<strong>Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-36-W3H-X-R-T-X</strong><br />
[DWU-3]:<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature 100 °C<br />
Connection weld-on flan.<br />
[6]: Material combination, st.st.<br />
[W3H]: Connection, for tube nom. diam. DN 300 <br />
[X]: Signal lamp, without signal lamp<br />
[R]: Flow direction, flow from right to left<br />
[T]: Location of indicator, above lead<br />
[X]: Options, EX-contact

Low Volume Flowmeter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: KDG-22YYNV000 <br />
[KDG-22]<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy: ±2.5% qG <br />
Process temperature: -20°C ... +100°C<br />
Max. pressure PN 16<br />
Protection type: IP65 (EN60529)<br />
With needle valve<br />
[YY] Measuring range: Special<br />
Range Special, 0.5 - 6 Nl/h, Nitrogen, 20°C and 1,013 bar abs.<br />
[N] Connection, 1/4 NPT<br />
[V] Seal, FPM<br />
[0] Panel mounting kit, w/o<br />
[0] Contacts measuring range, w/o<br />
[0] Flow differential pressure regulator, w/o

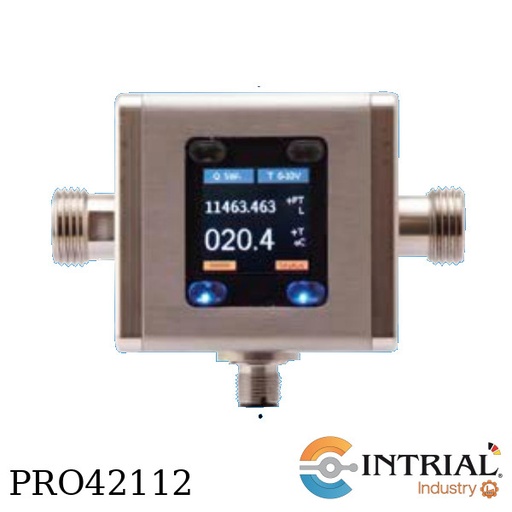

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-40HG9-C3T-0<br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[40HG9] Measuring range (flow/temperature), 3…650 L/min. / [°C] G 2 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without

<strong>Multivariable Vortex Flow Meter<br />
Model: DVH-P-2H-1-S-L-L-2-H-0-H<br />
Brand: Heinrichs (Kobold Group)</strong><br /><br />
[DVH-P]: Elektronic-Options, Flow Velocity including temperature and pressure sensor<br />
[2H]: Flow Body-Flange,  DN 200  DIN EN 8 inch  <br />
[1]: Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer) <br />
[S]: Material Flow Body, Edelstahl 1.4404 / 316 L (standard)<br />
[L]: Sensor Configuration / Mounting Option, Kompakt inkl. LCD Anzeige IP 66 / Nema 4 <br />
[L]: Input Power, 12-36 VDC loop powered<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls <br />
[H]: Process Temperature, High Temperature  -200….+400 °C <br />
[0]: Option Pressure Sensor (Electronic versions T/P/E/M) (min. temp -40°C), w/o <br />
Pressure Sensor Electr.version V / T / E Max. test pressure<br />
[H]: Version, Heinrichs

<strong>Viscosity Compensated Flow Meter/Monitor<br />
Brand: Kobold USA<br />
Model: VKA-3105-R0-N20</strong><br /><br />
[VKA-3105]: Measuring range, 5-16 l/min Oil<br />
[R0]: Contact, 1 Contact<br />
[N20]: Connection Female, 3/4" NPT<br /><span style="background-color:#00FF00;">Nota: Al enviar OC, favor de confirmar dirección de flujo</span>

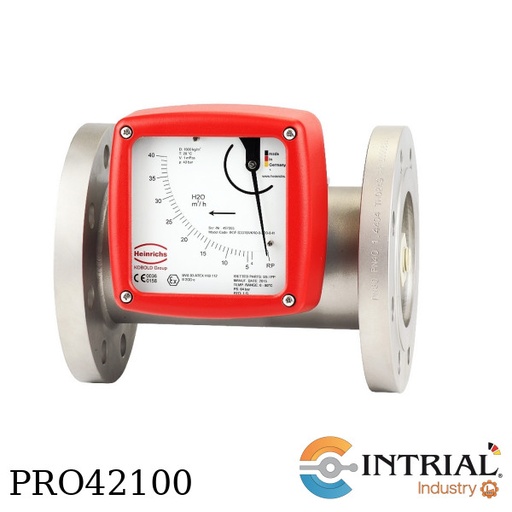

All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S50-226R-U-K-L-0-0-S-5-0-0-K<br />
Brand: Kobold - Heinrich (Alemania)<br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 200°C<br />
[226R]: Connection, 2" Class 300 RF ASME B16.5-2003<br />
[U]: Range medium, 2500 - 25000l /h<br />
[K]: Magnet bearer, Standard PP bis 80°C<br />
[L]: Flow direction, left to right<br />
[0]: Heating/cooling, without heating/cooling<br />
[0]: certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature ≤ 150 °C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, measuring range-scale (water)<br />
[0]: switches, without<br />
[0]: Accessory, without<br />
[K]: Design, Kobold

Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-12-35H-B9-Z3N-L<br />
[DOT-12]<br />
Operating principle, Turbine wheel<br />
Mounting position: all directions<br />
Flow direction, in direction of the arrow<br />
Connection/ Housing material, st.steel / st. steel<br />
max. temperature, -20…+120 °C<br />
max. pressure, 250 bar (with flange acc. flange specification)<br />
Linearity, ± 0.5 % of reading<br />
[35H] measuring range, 6.8-68 m³/h<br />
[B9] Mechanical connection, 2" ANSI 300 RF Flange for range code 35<br />
[Z3N] Electronics / cable entry, dual LCD totaliser/rate, <br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top

Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-12-50H-BE-Z3N-L<br />
[DOT-12]<br />
Operating principle, Turbine wheel<br />
Mounting position: all directions<br />
Flow direction, in direction of the arrow<br />
Connection/ Housing material, st.steel / st. steel<br />
max. temperature, -20…+120 °C<br />
max. pressure, 250 bar (with flange acc. flange specification)<br />
Linearity, ± 0.5 % of reading<br />
[50H] measuring range, 55-550 m³/h<br />
[BE] Mechanical connection, 6" ANSI 300 RF Flange for range code 50<br />
[Z3N] Electronics / cable entry, dual LCD totaliser/rate, <br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-215R-1-S-S-1-0</strong><br />
[EPS]: Sensor Model<br />
[H]: Material Lining, Hard Rubber (Ebonite),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[215R]:Process connection, 12" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 2560 m³/h<br />
Installation length, 500 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67 <br />
[0]:Certificates, w/o<br /><br /><strong>Model: UMF2-A-1-1-F-0BH</strong><br />
[UMF2]: Transmitter Model<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

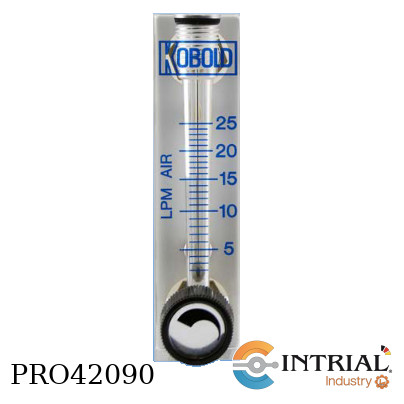

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-2113-N0</strong><br />
[KFR-21]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 102 mm <br />
Accuracy ±5 % FS <br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass <br />
Connection size 1/8 NPT female on rear <br />
Seal NBR <br />
[13]: Measuring range, 0,1...1 L/min air <br />
[N0]: Options, Needle valve

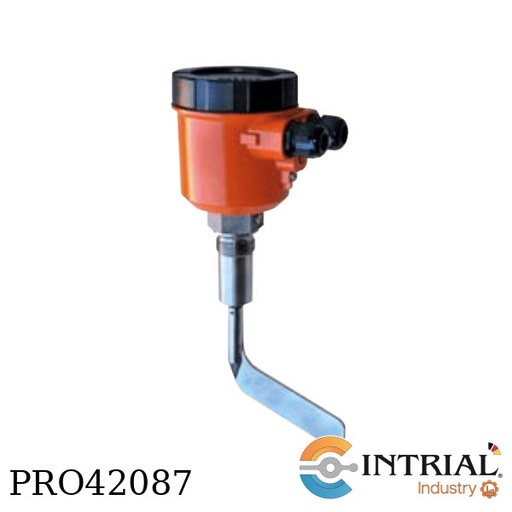

<strong>Rotating Vane Monitor for Solids<br />
Brand: Kobold (Alemania)<br />
Model: NIR-91-W-V-G6-4-0</strong><br /><br />
[NIR-91]:<br />
Version, neck pipe 65 mm<br />
Connection/neck pipe/axis/vane, St.st. 1.4305/1.4301<br />
Housing, Aluminium<br />
max. temperature, -20..+90 °C<br />
max. pressure, -0,5....0,5 bar<br />
max. grain size, 50 mm<br />
min. bulk material density, 0,038 kg/L<br />
Protection, IP 66<br />
[W]: Neck-pipe, with extension w/o pipe protection<br />
Neck-pipe length, for neck-pipe type "W": 500 mm (50 cm)<br />
[V]: Rotating vane,foldable vane<br />
[G6]: Connection, G1 male<br />
[4]: Power-supply, 110 VAC<br />
[0]: Option, w/o
<div>
<div class="gtx-trans-icon"></div>
</div>

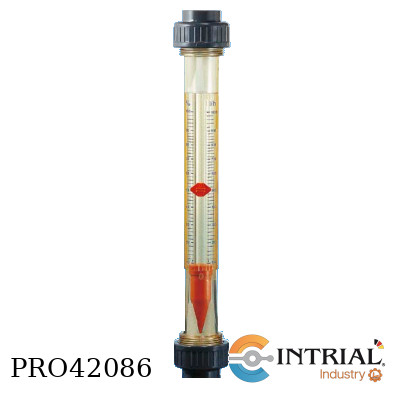

<strong>Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSK-1-500-M-P15-SS</strong><br /><br />
[KSK-1]:<br />
Operation principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
[500]: Scale, 7-55 Nm3/h for Air<br />
[M]: Measuring range, 10 bar rel. air measuring ranges s. data sheet<br />
[P15]: Connection for size 500, PVC G 1/2 female<br />
[SS]: Option contact, 2 N/O

Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K5-3-20-S-PG0<br />
Brand: Kobold<br />
[KAL-K5]<br />
Operating principle calorimetric<br />
Mounting position all directions<br />
Indication DUO-LED and LED-chain<br />
max. temperature 80 °C<br />
max. pressure 100 bar<br />
Protection class IP 65<br />
Connection thread NPT<br />
[3] Probe material, st.st. 1.4301<br />
[20] Connection, 3/4"NPT<br />
[S] Contact version, N/O<br />
[PG0] Electron. connection/power supply, <br />
M 16x1,5 relay output 230 VAC

<strong>Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K8-3-20-S-PG0<br />
Brand: Kobold (Alemania)</strong><br />
[KAL-K8]<br />
Operating principle calorimetric<br />
Mounting position all directions<br />
Indication DUO-LED and LED-chain<br />
max. temperature 80 °C<br />
max. pressure 100 bar<br />
Protection class IP 65<br />
Connection thread NPT<br />
[3] Probe material, st.st. 1.4301<br />
[20]: Connection, 3/4"NPT<br />
[S]: Contact version, N/O<br />
[PG0]: Electron. connection/power supply, <br />
M 16x1,5 relay output 230 VAC<br />
Version, Sensor Length 100 mm

<strong>Flow Counter and Batch controller with field housing<br />
Brand: Kobold (Alemania)<br />
Model: ZOK-Z3-F-NF-0-R-0</strong><br /><br />
[ZOK-Z3]:<br />
Function: Totaliser/ rate<br />
LCD Digital display: grafic,128 x 54 , backlight<br />
Measuring inputs: 2 x pulse (0,1…1000 Hz),<br />
type NPN, PNP, NAMUR, Reed, Hall, active<br />
Counter function: Partial /total value<br />
Actual flow: yes<br />
Pulse output (actual flow): Push Pull<br />
Analogue output: 4-20 mA<br />
Ambient temperature: -20…+80 °C<br />
[F]: Housing version, Field housing<br />
[NF]: Electrical connection/Cable gland, 3x M16x1.5 cable entry<br />
[0]: Supply voltage, 90…260 VAC<br />
[R]: Contacts, 2 x Relay (SPDT) as limit switch<br />
[0]: Options, w/o

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-N4-1-H0-N-0<br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperature 120 °C*<br />
max. Pressure 70 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1-40 L/min <br />
[N4]: Mech. Connection, for meas. range 20H, NPT 1/2<br />
[1]: Seal, FKM up to DON-x25<br />
[H0]: Electronic, Pulse output Hall sensor/Reed switch, Push Pull (8-30 VDC)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without

<strong>Calorimetric Flow Meter / Monitor, Compact Version<br />
Brand: Kobold (Alemania)<br />
Model: KAL-A5-3-15-A4-SK</strong><br />
[KAL-A5]:<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
Output, 4-20 mA<br />
Max. Temperature, 80 °C<br />
Max. Pressure, 100 bar<br />
Power supply, 24 VDC<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[3]: Probe material, st.st. 1.4301<br />
[15]: Connection, 1/2"<br />
[A4]: Output, 4-20 mA<br />
[SK]: Circular plug conn. M12x1; 2 m cable NPN/PNP

EPS Electromagnetic Flow Meter<br />
Model: EPS-P-210R-1-H-0-1-0+UMF2-A-1-2-G-0BK-1<br />
Brand: Kobold-Heinrich<br />
[EPS-P] Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[210R] Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[0] Earthing electrode, w/o<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
Include:<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[2] Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

EPS Electromagnetic Flow Meter,<br />
Model: EPS-P-214R-1-H-0-2-0+UMF2-C-1-2-G-0BK-1<br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[214R]:Process connection, 10" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 1786 m³/h, Installation length, 450 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter,<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5,<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br />
Include:<br />
[UMF2] Transmitter<br />
[C] Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable,<br />
c/w pipe-/wall mounting bracket, Thread - electrical connection,<br />
cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[2] Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[1]: Longer cable, 5 m., breakout cable

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-15H-N3-1-Z3-N-N</strong><br />
[DON-2]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[15H] Measuring range,15-550 L/h<br />
[N3] Mech. connection for meas. range 15H, NPT 3/8,<br />
[1] Seal, FKM up to DON-x25<br />
[Z3] dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N] Cable entry, 1/2 NPT<br />
[N] Options, without battery
