Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-11-08-R0-N15-0-B<br />
[VKM-11]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[08] Measuring range: 5...20 L/min oil<br />
[R0] Contact, 1 N/O<br />
[N15] Connection, 1/2 NPT female<br />
[0] Option special connection, w/o<br />
[B] Flow direction, from bottom

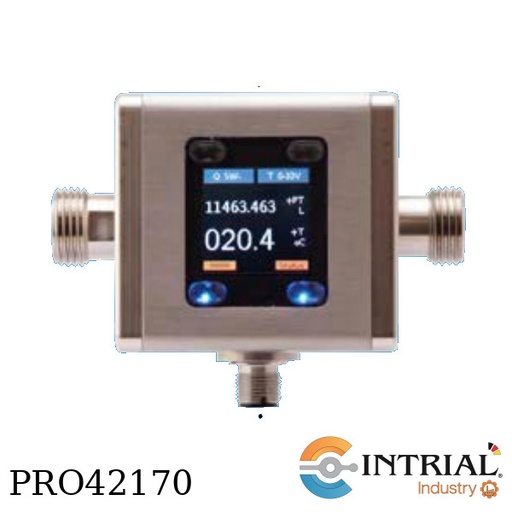

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-10HG5-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[10HG5] Measuring range (flow/temperature), 0,1…25 L/min / [°C] G ¾ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without

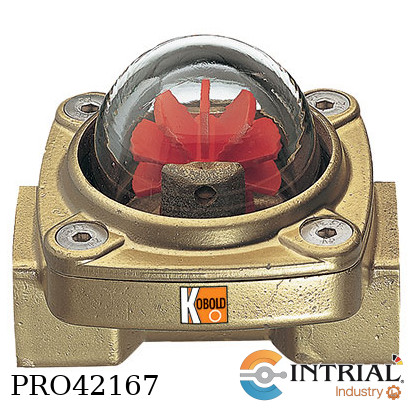

Paddle-Wheel Flow Indicator<br />
for Low Viscosity Liquids<br />
Brand: Kobold<br />
Model: DKF-3108<br />
Horizontal or Vertical Installation<br />
Highly Visible Indication of Flowl<br />
Max. Temperature: 250 °F<br />
Max. Pressure: 85 PSIG<br />
Flow Range Water (GPM), 0.07...1.8 <br />
Fittings (NPT) 1/4"

<strong>Model: DSS-11-17H-U0-R25<br />
All-Metal-Flow Switch<br />
Brand: Kobold (Alemania)</strong><br />
[DS-11]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Body  material, Brass<br />
Seal, NBR<br />
Switch point, adjustable<br />
Accuracy, ±5 % FS<br />
Max. temperature, 100 °C*<br />
* Measuring range 1 L/min only 70 °C<br />
Max. pressure, 250 bar**<br />
** Measuring range 1 L/min only 16 bar<br />
[17H] Switching range, 3,5...50 L/min water<br />
[U0] Contact, 1 SPDT<br />
[R25] Connection, G 1 female

<strong>Model: KSK-3-300-H-V32-00<br />
Low Volume Flowmeter/-switch<br />
Brand: Kobold (Alemania)</strong><br />
[KSK-3]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material PVDF<br />
Accuracy Class 4<br />
Max. temperature 140 °C<br />
Max. pressure PN 10<br />
Seal FPM<br />
[300]: Measuring range, 30...300 L/h water<br />
[H]: Scale, L/h waterscale<br />
[V32]: Connection for size, PVDF-welding sleeve o.d. 32<br />
[00]: Option contact, w/o

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE 11-20-N8-Z340<br />
[DPE-11]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: Brass casting<br />
Material Axis: Hard metal<br />
[20] Measuring range, 25-250 L/min<br />
[N8] Mech. connection for MR-Code: 20, 1 1/2 NPT female<br />
[Z340] Electronic, Pointer indicator 4-20 mA, plug M12x1

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-10HG5-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[10HG5] Measuring range (flow/temperature), 0,1…25 L/min / [°C] G ¾ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Modelo: MIK-6FC-85-K-F390<br />
[MIK-6FC]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing, PVDF<br />
Electrodes, Hastelloy<br />
Seal, FFKM<br />
[85] Measuring range, 35…700 L/min G 2¾ male<br />
[K] Connection set, PVC-glue connection, G 2¾ - Ø54/63 mm<br />
[F390] Frequency output, 24 VDC, plug M12, 50...1000 Hz

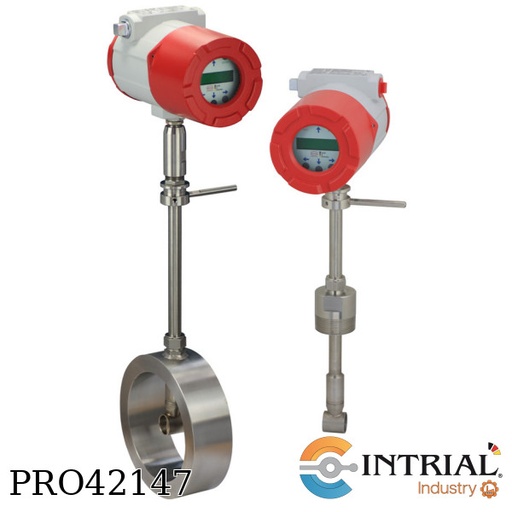

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Kobold Group)<br />
Model: DVE-P-S-L-L-2-S-3-A-H</strong><br />
[DVE]: MODEL CODE Insertion Version<br />
[P]: Electronic-Options, Flow Velocity including temperature and pressure sensor<br />
[S]: Probe length, Standard (max. stem length app. 690 mm)<br />
[L]: Sensor Configuration / Mounting Option, compact incl. Display, IP 66 / Nema 4<br />
[L]: Input Power: 12-36 VDC, Loop powered<br />
[2]: Output: 1x 4-20mA, HART, Loop powered,1x Pulse, only with input power L, passive<br />
[S]: Process temperature, Standard temperature -200….+260 °C/-330….+500 °F<br />
[3]: Option Pressure Sensor, Incl. Pressure Sensor 20 bar abs (300 psia) Electr.version P/M 41 bar abs. (600 psia)<br />
[A]: Process connection: 2" NPT Male thread, sensor-bushing compression fitting<br />
[H]: Version, Heinrichs

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-22-51-N-V-0-00-0</strong><br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
[51]: Measuring range, 180...1800 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDF-22-30-N-V-0-00-0<br />
[KDF-22]:<br />
Mounting length, 125 mm<br />
Operating principle, variable area<br />
Flow direction, from bottom to top<br />
Body material, st.st.<br />
Glass, Borosilicate<br />
Accuracy, class 2.5<br />
Max. temperature without/with contact, 100 °C / 80 °C<br />
Max. pressure, PN 16<br />
[30]: Measuring range, 4-40 L/h water<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold<br />
Model: DPU-1-6M-N20-S-B-T-2<br />
[DPU-1]<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature/max. pressure 100 °C / 16 bar<br />
Connection male thread<br />
[6M] Material combination, st.st. <br />
[N20] Connection, 3/4" NPT<br />
[S] Signal lamp, 230 VAC<br />
[B] Flow direction, flow from bottom to top<br />
[T] Location of indicator, above lead<br />
[2] Options, twin contact, 2.5 m cable, 7-wire

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold<br />
Model: DPU-1-6M-N20-S-T-T-2<br />
[DPU-1]<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature/max. pressure 100 °C / 16 bar<br />
Connection male thread<br />
[6M] Material combination, st.st. <br />
[N20] Connection, 3/4" NPT<br />
[S] Signal lamp, 230 VAC<br />
[T] Flow direction, flow from top to bottom<br />
[T] Location of indicator, above lead<br />
[2] Options, twin contact, 2.5 m cable, 7-wire

<strong>Viscosity Compensated  Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKG-2104-R0-R08-B+BVB-1101</strong><br />
[VKG-21]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o <br />
Switch point adjustable <br />
Accuracy ±4 % FS  (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[04]: Measuring range, 0,6...3,4 L/min oil <br />
[R0]: Contact,1 N/O <br />
[R08]: Connection, G 1/4 female*<br />
* for <= 8 L/min<br />
[B]: Option special connection, on top female thread, bottom BVB<br /><br /><strong>Include: <br />
Manifold Valves For Multiple Installation<br />
Model: BVB-1101</strong><br />
[BVB]:<br />
Housing Aluminium<br />
Max. temperature 100 °C<br />
Max. pressure PN 64<br />
Max. flow per multiple block 24 L/min<br />
Process connection G 1/2 IG<br />
[1101]: Version, Single fold blockvalve

<strong>Coriolis Massflowmeter<br />
Brand: Heinrichs - Kobold<br />
Model: TMU-S-008-201R-A-0-0-A-0-1-1+UMC4-B-1-1-A-2-1</strong><br />
[TMU-S]: <br />
Wetted materials, Stainless steel <br />
[008]: Meter line size, DN8, ANSI ¼" <br />
Range, min. 0-60 kg/h - max. 0-600 kg/h<br />
[201R]: Process connection, ½" Class 150 RF ASME B16.5-2003<br />
Installation length, 336 mm<br />
[A]: Containment options, Stainless steel containment 1.4301 (304)<br />
[0]: Heating / cooling, None<br />
[0]: Connection for heating / cooling, None<br />
[A]: Sensor configuration, Integral mount transmitter <br />
Process temperature, -4° to 212°F, -20° to 100°C <br />
Sensor Cable Connection, IP66<br />
[0]: Approvals, None<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br /><br />
[UMC4-B]:<br />
Mounting, Integral mount <br />
Conduit port opening, M20 x 1,5 <br />
[1]: Display / Interface board, Integral within transmitter housing,<br />
for ambient temperature up to 60°C <br />
[1]: Power supply, 90 - 265V AC, 50/60Hz <br />
[A]: Outputs<br />
Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2]: Approvals, II(1)2G Ex d [ia Ga] IIC T3-T4 Gb <br />
(terminal compartment Ex d), ambient to 60 °C<br />
[1]: Type of protection (signal output), Ex [ia Ga] intrinsically safe

<strong>Magnetic inductive Flowmeter PIT with UMF2<br />
Brand: Kobold - Heinrichs<br />
Model: PIT-S-206R-163-H-0-1-0-0-0K+UMF2-A-1-1-G0BK-0</strong><br />
[PIT]: Sensor<br />
[S]: Model, Stainless steel (1.4571/1.4404)/PTFE <br />
for nominal diameters DN125 - DN2000 (PN16) (PIT-520)<br />
Temperature, Tmax. = 80°C compact version<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2013<br />
[163]: Sensor Length, 163 mm (for Tubes < DN600) <br />
[H]: Electrode Material, Hastelloy C-4<br />
[0]: Measuring range / medium velocity, 1-10 m/s<br />
[1]: Transmitter layout, compact transmitter<br />
Protection class, IP67<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br />
[K]: Design, Kobold<br /><br /><strong>UMF2-A-1-1-G-0BK-0</strong><br /><strong>[UMF2]: Transmitter</strong><br />
[A]: Transmitter layout, compact transmitter IP67<br />
Power supply cable entry, ½" NPT (F)<br />
[1]: Indication / user interfcace, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Outputs, <br />
current output: (0)4-20mA with HART® - protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[OBK]: Design, Kobold<br />
[0]: Interconnecting cable, IP67, 2,5m standard on remote version

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-103-R-10-U-1</strong><br />
[PSR-11]:<br />
Operating principle: paddle<br />
Mounting position: all directions  <br />
Approvals: w/o<br />
Incl. fitting: brass<br />
Body material: brass     <br />
Max. pressure*: 100 bar   <br />
*only 25 bar at PSR-..32 and PSR-..40  <br />
[103]: Measuring range/paddle, 2,8-6,0 L/min paddle: 3<br />
[R]: Connection, G-thread<br />
[10]: Connection, 3/8" (for PSR-xx10...)<br />
[U]: Contact version, SPDT<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-251-N-25-U-1</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: brass<br />
Body material: brass<br />
Max. pressure: 100 bar<br />
[251] Measuring range/paddle, 47.6-67.2 L/min paddle: 1<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-251-N-25-U-1<br />
[PSR-12]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: st.st.<br />
Body material: st.st.<br />
Max. pressure: 250 bar<br />
[251] Measuring range/paddle, 47.6-67.2 L/min paddle: 1<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

<strong>Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-36-W2F-X-R-T-X</strong><br />
[DWU-3]:<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature 100 °C<br />
Connection weld-on flan.<br />
[6]: Material combination, st.st.<br />
[W2F]: Connection, for tube nom. diam. DN 250<br />
[X]: Signal lamp, without signal lamp<br />
[R]: Flow direction, flow from right to left<br />
[T]: Location of indicator, above lead<br />
[X]: Options, EX-contact
