Viscosity Compensated Flowmeter/-switch ATEX<br />
Brand: Kobold (Alemania)<br />
Model: VKG-21-04-G0-R15<br />
[VKG-21]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[04]: Measuring range, 0,6...3,4 L/min oil<br />
[G0]: Contact, 1 ATEX N/O contact (model 41R57)<br />
II 3G Exic IIC T4 GC<br />
II 3D Exic IIIC T125ºC Dc<br />
Max. 1,5 A/ 100W/ 100 VA<br />
Max.250 V AC/DC<br />
[R15]: Connection, G 1/2 female<br />
RoHS conform

Differential Pressure Flow Meter/Monitor<br />
Brand: Kobold (Alemania)<br />
Model: RCD-12-25H-N6-ZLT<br />
[RCD-12]<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[25H] Measuring range, 20-132 L/min water<br />
[N6] Process Connection, 1 NPT female<br />
[ZLT] Evaluating electronics, <br />
mech. pointer indication Flow from left/indication on top

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-230R-1-H-H-1-0+UMF2-A-1-1-G-0BK</strong><br /><br />
[EPS]: Sensor Model<br />
[H]: Material Lining, Hard Rubber (Ebonite),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[230R]:Process connection, 4" Class 300 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 274 m³/h<br />
Installation length, 310 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy <br />
[1]: Transmitter mounting, Integrated Transmitter<br />
Protection class, sensor, IP 67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]: Transmitter Model<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread, Electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold

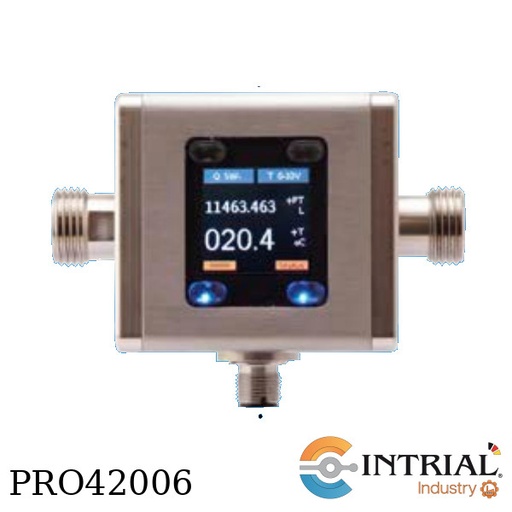

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-05HG4-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[05HG4] Measuring range (flow/temperature), 0,04…10 l/min / [°C] G ½ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)  <br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-05HG4-C3T-0<br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 micro S/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[05HG4] Measuring range (flow/temperature), 0,04…10 l/min / [°C] G ½ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model:TMU-S-025-203R-A-0-0-B-0-1-1-0-H+UMC4-B-1-1-A-0-0</strong><br />
[TMU-S]:<br />
Wetted materials, Stainless steel<br />
[025]: Meter line size, DN25, ANSI 1", Range - min. 0-3.000 kg/h - max. 0-30.000 kg/h <br />
[203R]: Process connnection, 1" Class 150 RF ASME B16.5-2003 <br />
[A]: Containment options, Stainless steel containment 1.4301 (304) <br />
[0]:  Heating/cooling, None<br />
[0]:  Connection for heating / cooling, none<br />
[B]:  Sensor configuration,Integral mount transmitter, Process temperature: -4° to 302°F, -20° to 150°C<br />
Sensor Cable Connection: IP66<br />
[0]: ApprovaIs, none<br />
[1]:  Calibration Flow, Standard, 3-point<br />
[1]:  Calibration Density, Standard (3-point) <br />
[0]: Supplementary equipment, None<br />
[H]: Design, Heinrichs<br /><br /><strong>Include:<br />
Transmitter UMC4<br />
Model: UMC4-B-1-1-A-0-0</strong><br />
[B]:Mounting, Integral mount, Conduit port opening, M20 x 1,5<br />
[1]:Display / Interface board, Integral within transmitter housing, for ambient temperature up to 60°C <br />
[1]:Power supply, 90-265V AC, 50/60Hz<br />
[A]:Analog output <br />
1: 4 - 20mA with HART® Analog output <br />
2: 4 - 20mA <br />
Pulse output: passive Um=30V DC <br />
Status output: passive Um=30V DC<br />
[0]:Approvals, none<br />
[0]:Type of protection (signal output), none

<strong>EPX Magnetic Inductive Flowmeter Ex Version<br />
Brand: Kobold(Alemania)<br />
Model: EPX-P-208R-1-SS-1-1-0+UMF31-A-1-C-1-3K-0</strong><br /><br /><strong>[EPX-P]</strong> Mounting position, all directions. Display / Protection class, LCD Display / IP 67<br />
Output, Analogue, frequency, connections and status output. Coating, PTFE<br />
max. medium temperature,  -35+139 °C. Material flange connection, painted steel<br />
[208R] Connection flange ASME B16.5-2003, 3" 150 RF max. 0-163 m³/h<br />
[1] Material flanges, steel (painted)<br />
[SS] Material electrodes, st.st. 1.4571 incl. grounding electr.<br />
[1] Transmitter mounting, compact transmitter; Protection class sensor IP67<br />
[1] Approval, ATEX -Gas<br />
[0] Certificate, without<br /><br /><strong>[UMF31] Transmitter</strong>;<strong> </strong>Power supply, 90-250 VAC, 50/60 Hz<br />
Output, Standard:<br />
1x Current output: 4 - 20mA (passive) HART®<br />
1x pulse output: 1 kHz, passive 24V DC (Um=30V DC)<br />
1x Status output: passive 24V DC (Um=30V DC)<br />
[A] Approval conditions, Compact mounted, for intrinsically safe output <br />
Ex de ib[ia IIC Ga] IIB T4/T3 Gb, Ex tb ib[ia Da] IIIC T125°C / T 150 °C Db<br />
[1] Approval, ATEX - only Gas Ex<br />
[C] outputs, intrinsically safe<br />
[1] Transmitter mounting, IP67 compact transmitter<br />
[3] Thread for cable gland, 1/2" NPT(f) Ex d (via Adaptor)<br />
[K] Design, Kobold<br />
[0] Connecting cable, without

Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-P-50-1-S-L-D-H-S-3-H<br />
[DVH] Model<br />
[P] Elektronic - Options, Flow Velocity including temperature and pressure sensor<br />
[50] Flow Body - Flange, DN 50 DIN EN 2 inch <br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, Stainless steel 1.4404 / 316 L, (standard)<br />
[L]: Sensor Configuration / Mounting Option, Compact, incl. LCD Display,<br />
IP 66 / Nema 4<br />
[D] Input Power, 12-36 VDC 4-wire requested for output options H / M / 3 / 4 <br />
[H] Output Signal, 1x 4-20mA HART 1x Alarm, 1x Pulse only with Input Power D/ A<br />
[S] Process Temperature, Standard Temperature, -200….+260 °C, -330….+500 °F<br />
[3] Option Pressure Sensor (Electronic versions T/P/E/M),<br />
Incl. Pressure Sensor 20 bar abs ( 300 psia), Electr.version P / M  41 bar abs. (600 psia<br />
[H] Version, Heinrichs

<div>
<div>Oval Gear Flow Meter/Counter</div>

<div>Brand: Kobold (Alemania)</div>

<div>Model: DON-1-05H-R1-1-E3-N-0</div>

<div>[DON-1]</div>

<div>Operating principle: Gear Wheel</div>

<div>Mounting position: horizontal / vertical</div>

<div>Flow direction: in direction of the arrow</div>

<div>Max. temperature: 80°C</div>

<div>Max. pressure: 16…64 bar</div>

<div>Accuracy: ±0,2 % …1 % of reading</div>

<div>Housing material: Aluminium</div>

<div>Rotor material: PPS</div>

<div>[05H] Measuring range, 0,5-36 L/h</div>

<div>[R1] Mech. connection, for meas. range 05H G 1/8</div>

<div>[1] Seal, FKM up to DON-x25</div>

<div>[E3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue,</div>

<div>with ATEX approval (Exi)</div>

<div>[N] Cable entry, 1/2 NPT</div>

<div>[0] Options, without<span> </span></div>

<div>* Not include Battery</div>
</div>

<div><strong>Oval Gear Flow Meter/Counter</strong></div>

<div><strong>Brand: Kobold (Alemania)</strong></div>

<div><strong>Model: DON-2-05H-R1-1-E3-N-0</strong></div>

<div>[DON-2]</div>

<div>Operating principle: Gear Wheel</div>

<div>Mounting position: horizontal / vertical</div>

<div>Flow direction: in direction of the arrow</div>

<div>Max. temperature: 120°C</div>

<div>Max. pressure: 16…100 bar</div>

<div>Accuracy: ±0,2 % …1 % of reading</div>

<div>Housing material: st. steel</div>

<div>Rotor material: st. steel</div>

<div>[05H] Measuring range, 0,5-36 L/h</div>

<div>[R1] Mech. connection, for meas. range 05H G 1/8</div>

<div>[1] Seal, FKM up to DON-x25</div>

<div>[E3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue,</div>

<div>with ATEX approval (Exi)</div>

<div>[N] Cable entry, 1/2 NPT</div>

<div>[0] Options, without<span> </span></div>

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-30H-N8-1-Z3-N-0<br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, NPT 1 1/2<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, withou

<strong>Variable Area Flowmeter<br />
Brand: Heinrichs (Kobold Group) (Alemania)<br />
Model: V31-207R3S-02-E3W-B-F-A-0-3-4-0-0-0-0-0-0-0-H</strong><br /><br />
[V31]: Model<br />
[207R3S]: Flange, <br />
Connection - wetted parts, Stainless steel<br />
[01]: Type of float, Material; Stainless steel 1.4571<br />
[C2W]: Measuring range - stainless steel float; 580-5800 L/h<br />
[F]: Gasket, Viton<br />
[F]: Float - stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[4]: Scale, Measuring range-scale (Sodium Hidroxide 35%)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-22-11H-00-N08<br />
[SMV-22]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body material St.St.<br />
Seal, FPM<br />
Side mounted indication, yes<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure, 350 bar<br />
[11H]: Adjustment range, 2...14 L/min water<br />
[00]: Contact, w/o contact<br />
[N08]: Connection, 1/4 NPT female

<p class="MsoNormal"><strong>Turbine Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: TUR-21-50-K-3-0-2</strong><br /><br />
[TUR-21]:<br />
Operating principle, Turbine Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Material, PVDF<br />
Max. temperature, 70 °C<br />
Max. pressure, PN 10<br />
Accuracy, +-1% FS<br />
Protection, IP 65<br />
[50]: Connection / Measuring range, NW 50 / 1,2...20 m³/h water<br />
[K]: ADI-evaluating electronics-field-housing (mounted at sensor)<br />
Housing 116 x 116<br />
Bargraph display 55 LEDs<br />
Digital display 5 digit LED<br />
Ambient temperature -20 ..60 (80) °C<br />
Min./Max. memory yes<br />
Housing material Aluminium/PA66<br />
Protection IP 65<br />
[3]: Power supply, 18-30 VAC, 10-40 VDC<br />
[0]: Output, without<br />
[2]: Contacts, 2 SPDT</p>

<p></p>

Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: V31-60401S-02-D4W-B-F-A-0-0-4-0-0-0-0-0-0-K<br />
[V31] Model<br />
[60401S] Thread: NPT ¾"(F) Verschraubung, Length, 375 mm,<br />
connection - wetted parts Edelstahl<br />
[02] Type of float, Material, Stainless steel 1.4571 - guided; with guide rod 1.4571<br />
[D4W] Measuring range - stainless steel float, 0.59 - 5.9 SCFM/min<br />
[B] Gasket, EPDM<br />
[F] Float Stop, PVDF<br />
[A] Union nut, Aluminium lacquered<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[4] Scale, Measuring range-scale (Medium)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard (free of oil and grease), without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

Low Volume Flowmeter<br />
Brand: Kobold <br />
Model: KFR-42-53-N0<br />
[KFR-42]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, st.st.<br />
Connection size, 1/8 NPT female on rear<br />
Seal, FPM<br />
[53]: Measuring range, 100...1500 cm³/min water<br />
[N0]: Options, Needle valve<br /><br />
Include:<br />
Accessories <br />
Brand: Kobold<br />
Model: KFR-PPHW024<br />
set hose barbes (2 pcs.)

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-41-53-N0</strong><br />
[KFR-41]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8 NPT female on rear<br />
Seal, NBR<br />
[53]: Measuring range, 100...1500 cm³/min water<br />
[N0]: Options, Needle valve<br /><br />
Include:<br />
Accessories <br />
Brand: Kobold<br />
Model: KFR-PPHW024<br />
set hose barbes (2 pcs.)

Low Volume Flowmeter<br />
Brand: Kobold <br />
Model: KFR-41-50-N0<br />
[KFR-41]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8 NPT female on rear<br />
Seal, NBR<br />
[50]: Measuring range, 40...400 cm³/min water<br />
[N0]: Options, Needle valve<br /><br />
Include:<br />
Accessories <br />
Brand: Kobold<br />
Model: KFR-PPHW024<br />
set hose barbes (2 pcs.)

<strong>Viscosity Compensated Flowmeter and Switch<br />
Brand: Kobold (USA)<br />
Model: VKM-6202-C34P</strong><br /><br />
Range Oil: 0.03 - 0.12 GPM<br />
Stand Conn. 1/4" NPT<br />
Press. Drop. Max. 11.6 PSI<br />
[VKM-6202]: Flowmeter Oil Scale (SS)<br />
[C34P]: Compact Electronic Display<br />


Thermal Mass Flow Meter for gases<br />
Brand: Kobold<br />
Model: MAS-31-08-C4-V2-A<br />
[MAS-31]:<br />
Operating principle: thermal, Bypass<br />
Mounting position: all directions<br />
Indication: LCD+Counter<br />
Max. Temperatura: 50 °C<br />
Max. Pressure: 35 bar<br />
Design: st.st.<br />
[08] Measuring range: 0-2 LN/min N2<br />
[C4] Connection: Swagelok 1/2" (max. 500 LN/min)<br />
[V2] Power supply: 24 VDC<br />
[A] Output: 4-20 mA<br /><br />
Include:<br />
Accessories for MAS Models<br />
Model: MAS-5024<br />
Power supply unit: 90-264 VAC<br />
Output: 24 VDC
