<strong>Calibration Certificate for TWL<br />
Brand: Kobold (Alemania)</strong><br />
01 Point Calibration Certificate (0-XXºC)<br />
For model TWL-XX

Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WF-10-0-10<br />
[DUC-WF]<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range (-40..+100°C)<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[10] for tube diameter, DN32..DN400, 1 MHz<br />
[0] Ex-approval¸ without<br />
[10] Cable length, 10 m<br /><br />
Include:<br />
Accessories<br />
Model: DUC-ZF-BE<br />
stainless steel strap (1 pair) suitable for ultrasonic transducer

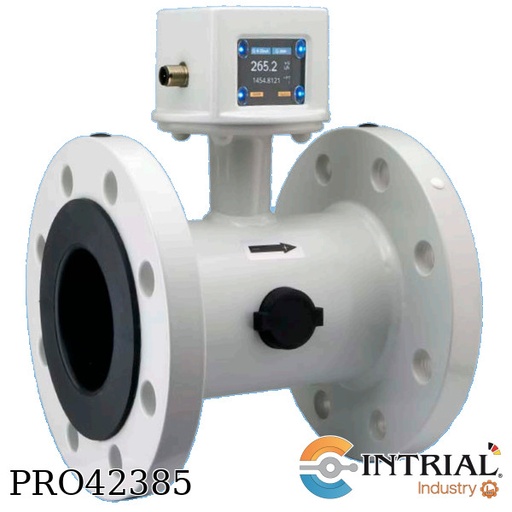

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-212R-1-S-S-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[212R] Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-25H-A6-1-E3-N-0<br />
[DON-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 16...64 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material Aluminium<br />
Rotor material PPS<br />
[25H] Measuring range, 10-150 L/min<br />
[A6] Mech. connection, ANSI flange 1" 150 lbs<br />
[1] Seal, FKM up to DON-x25<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*No include Battery

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-206R-1-S-S-1-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[206R] Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

<strong>Variable Area Flowmeter/-switch Glass Cone<br />
Model: URK-73-33H-L-A9-0<br />
Brand: Kobold (Alemania)</strong><br />
[URK-73]:<br />
Operating principle variable area <br />
Mounting position vertical, flow direction from bottom <br />
Accuracy Class 4 <br />
Type loose flange<br />
Max. temperature 65 °C<br />
Max. pressure 12 Bar<br />
Housing st. st. 1.4301<br />
Connection Cast iron <br />
Float 1.4301 <br />
Ring PVC <br />
Seal NBR<br />
[33H]: Range Full Scale, 10 000 L/h<br />
[L]: Type, loose flange<br />
[A9]: Connection, ANSI 150 lbs, 2"<br />
[0]: Contacts, w/o

EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-205R-1-S-S-1-0<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[205R] Process connection, 1½" Class 300 RF ASME B16.5-2003<br />
Max. measuring range, 38 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2]:Transmitter<br />
[A] Mounting IP 67, Integrated transmitter IP 67 standard.<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%),<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-207R-1-S-S-1-0<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[207R] Process connection, 2½" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 117 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-4-G-0BK<br />
[UMF2]:Transmitter<br />
[A] Mounting IP 67, Integrated transmitter IP 67 standard.<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%),<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

<strong>Spare rotor set for DON<br />
Brand: Kobold (Alemania)</strong><br />
For model: DON-2-25H-P6-3-H0-M-Y (Y= flow from left to right).<br />
According to order confirmation # 0560738<br />
Serial number: 417889D

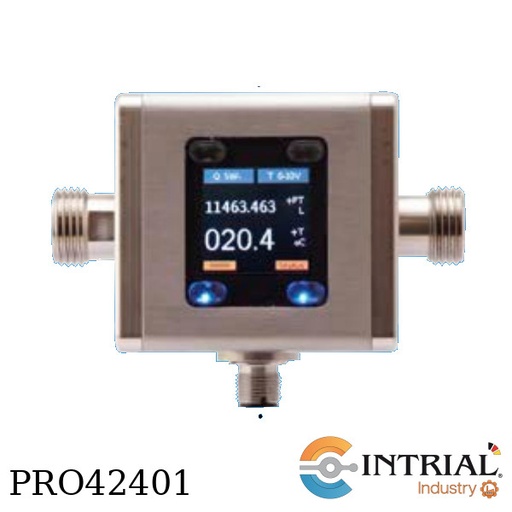

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Model: MIM-1-2-20GG6-C3T-0</strong><br />
[MIM-1]<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor Pt 1000<br />
Material housing/insulation part see below<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (medium) -20°C …+60°C<br />
Max. temperature (medium)<br />
-20°C..+70°C (compact),<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[2] Material housing / insulation part / sealing; <br />
st. steel 1.4404 / PEEK / FKM<br />
[20GG6] Measuring range, 0,1…26 GPM / [°F], G1 male<br />
[CT3] Evaluation electronic, Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output<br />
Part- or grand totaliser<br />
[0] Options without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

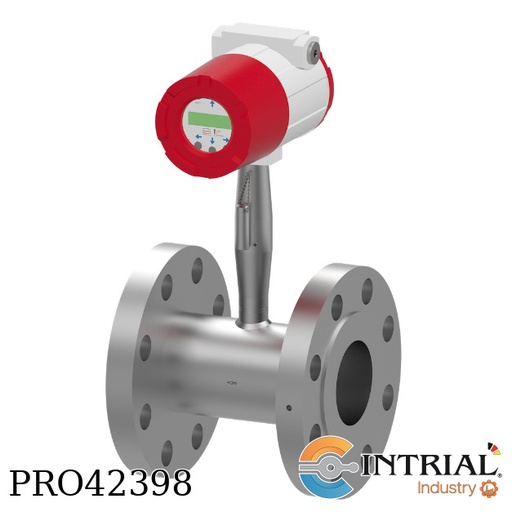

Vortex Flow Meter with Flange<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-V-40-1-S-L-L-2-S-0-H<br />
[DVH-V]: Electronic-Options: Flow measurement of Liquids, Gases<br />
[40]: Nominal size: DN 40 ANSI 1½" JIS 40<br />
[1]: Pressure rating: Class 150, RF ASME B16.5-2003 (not for Wafer)<br />
[S]: Material Measuring Tube/Connection: Stainless steel 1.4404/316L<br />
[L]: Transmitter Version/ Mounting: compact incl. Display<br />
[L]: Supply voltage, 12-36 VDC, loop powered 1)<br />
[2]: Output: 1x 4…20mA, HART, 1x totalizer pulse, only for power supply: L<br />
[S]: Process temperature: Standard [-40...+260]°C<br />
[0]: Pressure transmitte: w/o Pressure Sensor, for Electronic-Option V / T / E<br />
[H]: Design: Heinrichs

Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-V-25-1-S-L-L-2-S-0-H<br />
[DVH] Model<br />
[V] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
[25] Flow Body - Flange; DN 25 DIN EN 1 inch ANSI JIS 25<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br />
[S] Material Flow Body, Stainless steel 1.4404 / 316 L, (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact, incl. LCD Display IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L<br />
[S] Process Temperature, Standard Temperature, -200….+260 °C<br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version, Heinrichs<br />
*Range: 5 a 127m3/h…Aire

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-40H-N9-1-E3-N-0<br />
[DON-2]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16...100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[40H] Measuring range, 50-580 L/min<br />
[N9] Mech. connection 2" NPT<br />
[1] Seal, FKM<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*not include Baterry

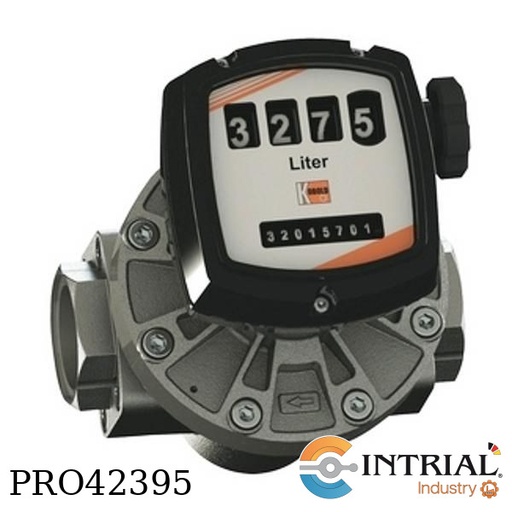

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model:DON-8-40H-N9-1-M4-N-N</strong><br />
[DON-8]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16...100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material PPS/PEEK*** <br />
**from DON-x20 PTFE<br />
[40H] Measuring range, 50-580 L/min<br />
[N9] Mech. connection 2" NPT<br />
[1] Seal, FKM<br />
[M4] Electronic, mech. totaliser 4-digit <br />
[N] Cable entry, 1/2 NPT<br />
[N] Options, without battery

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-40H-N9-1-E3-N-0<br />
[DON-1]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16...64 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: PSS<br />
[40H] Measuring range, 50-580 L/min<br />
[N9] Mech. connection 2" NPT<br />
[1] Seal, FKM<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*not include Baterry

<strong>Transmitter Clamp-on  Ultrasonic Flow Meter<br />
Model: DUC-MF-1-0-0-S-R4+DUC-WF-05-0-50<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-MF]:<br />
Operating principle: Ultrasonic<br />
Mounting position: stationary, wall mount<br />
Measuring units: volume flow, flow velocity, thermal output<br />
Counter: heat quantity, volume<br />
Housing: ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB,<br />
1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1]: Measuring channels, 1 channel<br />
[0]: Power supply, 90-240 VAC<br />
[0]: Ex-approval, without<br />
[S]: Language packages, german/spanish/french<br />
[R4]: Options, RS 485<br /><br /><strong>Transducer Clamp-on Ultrasonic Flow Meter<br />
Model: DUC-WF-05-0-50</strong><br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range (-40..+100°C)<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval¸ without<br />
[50]: Cable length, 50 m

<strong>Transducer Clamp-on  Ultrasonic Flow Meter <br />
Model: DUC-WF-05-0-50<br />
Brand: Kobold (Alemania)</strong><br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range  (-40..+100°C)<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[05]: for tube diameter, DN200..DN6000, 0,5 MHz<br />
[0]: Ex-approval¸ without<br />
[50]: Cable length, 50 m

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Model: MIS-H-210R-1-HH-100</strong><br />
[MIS]:<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[210R] Flange size, ASME B16.5-2003 / 4" Class 150FF<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted<br /><br />
*Measuring range 1.0 a 250 m3/h<br />
Incluye:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin<br />


<strong>All-Metal Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S1H-210R-2-0-0-0-0-S-5-C-0-K</strong><br />
[BGN] Model<br />
[S1H] Model, Stainless Steel, process temperature ≤ 350°C<br />
[210R] Connection, 4" Class 150 RF ASME B16.5-2003<br />
[2] Range (water 20°C, 1 mPas), Rango: 170  LPM  a 1600 LPM<br />
[0] Heating/cooling, without heating / Cooling<br />
[0] Damping/spring stop, without<br />
[0] Self-draining, with self-draining body<br />
[0] Certificates, without<br />
[S] Display,<br />
Standard display housing,<br />
Process temperature ≤150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[C] Switches, 1 x microswitch, Ambient temperature -40° to +65°C<br />
[0] Accessories, without<br />
[K] Design, Kobold

Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold<br />
Model: DPU-1-6M-N50-S-B-T-0<br />
[DPU-1]<br />
Operating principle paddle-bellow<br />
Indication pointer indication<br />
Flow direction in direction of the arrow<br />
Output 1 microswitch/SPDT<br />
max. temperature/max. pressure 100 °C / 16 bar<br />
Connection male thread<br />
[6M] Material combination, st.st.<br />
[N50] Connection, 2" NPT<br />
[S] Signal lamp, 230 VAC<br />
[B] Flow direction, flow from bottom to top<br />
[T] Location of indicator, above lead<br />
[0] Options, w/o option<br /><br />
*Rango: 50 m3/h  a 250 m3/h
