<strong>Variable Area Flowmeter/-switch<br />
Model: SWK-12-40<br />
Brand: Kobold (Alemania)</strong><br />
[SWK-12]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Function Switch<br />
Material, housing, st.st.<br />
Repeatability contact <= 2,5 %<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Connection G 1/2 female<br />
[40]: Measuring range, 1,7...4 L/min water<br />
Limit switch, Reed contact N/O

<strong>Rotating Vane Flow Meter<br />
Model: DRS-9-3-50-G5-L343-0<br />
Brand: Kobold (Alemania)</strong><br />
[DRS-9]:<br />
Operating principle, rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Max. Temperature, 80°C<br />
Max. Pressure, 200/16 Bar<br />
Accuracy, +/-1, 5%<br />
Protection, IP65<br />
[3]: Material; plastic<br />
[50]: Measuring range: 2-40 L/min. water<br />
[G5]: Connection; G 3/4 male<br />
[L343]: Evaluating Electronic; Analogue output 4-20mA, M12x1, 3-wire<br />
[0]: Options; w/o

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5NC-35-K-L343<br />
Brand: Kobold (Alemania) </strong><br />
[MIK-5NC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position any<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes Hastelloy<br />
Seal NBR<br />
[35]: Measuring range (liquid >30uS/cm), 2,5...50 L/min G 1 AG <br />
[K]: Connection set, PVC glue connection, G 1 - Ø15/20 mm <br />
[L343]: Evaluation electronic for MIK, 24 VDC, 4-20 mA, connector M12, 3-wire

<strong>Full Metal Variable Area Flow Meter and Counter<br />
Flange DIN EN 1092-1 form B1<br />
Model: BGN-P-15305BK-0-0-0-0-S-2-C-0K<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom to the top<br />
Material tube, st. st.<br />
casing, PTFE<br />
Accuracy, 1,6% F.S.<br />
Max. temperature, 125 °C<br />
Max. pressure, PN 16<br />
[15305BK]: Measuring range water, 40-400 L/h<br />
Measuring range air (1,013 bar abs., 20 °C), 1,0-11 m³N/h<br />
Nominal diameter (DIN EN  1092-1), DIN DN 15<br />
[0]: Heating/cooling, without<br />
[0]: Damping/spring stop, without<br />
[0]: Draining body, without<br />
[0]: Certificates, without<br />
[S]: Display, Aluminium<br />
[2]: Display, Water, measuring range<br />
[C]: Electrical output, 1 micro switch<br />
[0K]: Accessories, without

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: DVH-P-1H-1-S-L-L-2-S-3-H</strong><br />
[DVH]: Model, Inline Version<br />
[P]: Electronic – Options, Flow Velocity including temperature and pressure sensor<br />
[1H]: Flow Body Flange, 4 inch ANSI 300 lbs<br />
[1]: Process Connection, ANSI 150 lbs, ASME B16.5.2003, (not for wafer)<br />
[S]: Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L]: Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4<br />
[L]: Input Power, 12-36 VDC loop powered<br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with  Input Power L passive <br />
[S]: Process Temperature, Standard Temperature  -200….+260 °C  -330….+500 °F<br />
[3]: Option Pressure Sensor (Electronic versions T/P/E/M), Incl. Pressure Sensor 20 bar abs (300 psia) Electr.version P / M41 bar abs. (600 psia)<br />
[H]: Version, Heinrichs

<strong>Modular, compact Inline flow meter<br />
Brand: Kobold (Alemania)<br />
Model: KME-7-15-N-1-L-2-N-Q-4</strong><br />
[KME-7]<br />
Function principle, Direct thermal flow<br />
Measuring tube, Aluminium<br />
Sensor head/ sensor, st. steel 1.4404/ glass<br />
Housing, Polycarbonet<br />
Flow direction, +/- 3% of meas. value +0,3% full scale<br />
Power supply, 18-30 VDC<br />
Electr. connection, M12x1<br />
max. pressure / max. temperature, PN 16 / -20…+60 °C<br />
[15] Measuring range, 0.2-76.3 Nm³/h for tube DN 15 (1/2")<br />
[N] Connection, NPT- femal connection<br />
[1] Display, LCD-display<br />
[L] Medium, air<br />
[2] Units, US units<br />
[N] Physical size,output 1, Standard volume flow (standard Nm³/h)<br />
[Q] Physical size, Physical size,output 2, Consumption (standard Nm³)<br />
[4] Output 1/ Output 2, Analogue-output 0-40 mA / totalizer output<br /><br /><strong>Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

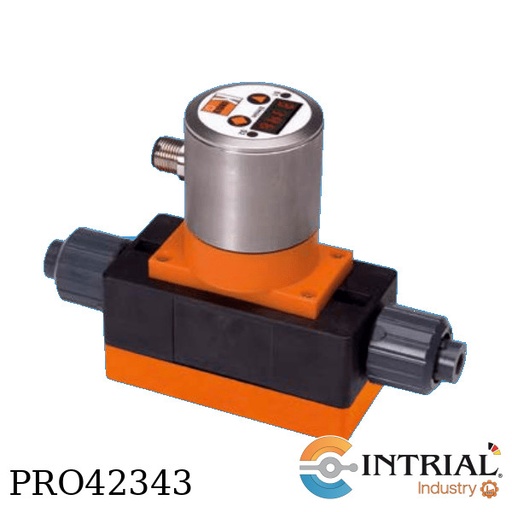

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania) <br />
Model: MIK-5NA-30-A-C34P </strong><br />
[MIK-5NA]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal NBR<br />
[30]: Measuring range (liquid >30 uS/cm), 1,6...32 L/min G 1 male<br />
[A]: Connection set, without<br />
[C34P]: Evaluation electronic for MIK, 24 VDC, 4-20 mA, 1x PNP

Micro Variable Area Flowmeter KDS<br />
Brand: Heinrichs - Kobold<br />
Model: KDS-K-D-P-O-0-E-E-0<br />
[KDS]<br />
All-metal design<br />
Range (0,1-1 l/h - 20-200 l/h H2O)<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[K] Variable Area Flowmeter, rear connection,<br />
overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br />
[D] Range: Acetileno 1.93 - 8.44 Nl/m ( 4.2 a 19.2 SCFH)<br />
[P] Sealing: PTFE<br />
[O] Valve: Top (standard) (not for KDS-S)<br />
[0] Certificates: without<br />
[E] Scale: Measuring Range-Scale (Media)<br />
Approval: IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[E] Switches: Transmitter 4-20mA w/o HART<br />
Connection: M12 plug<br />
Processtemperature -25C - +100°C<br />
[0] Accessories: without

Micro Variable Area Flowmeter KDS<br />
Brand: Heinrichs - Kobold<br />
Model: KDS-K-D-P-O-0-E-E-0<br />
[KDS]<br />
All-metal design<br />
Range (0,1-1 l/h - 20-200 l/h H2O)<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[K] Variable Area Flowmeter, rear connection,<br />
overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br />
[D] Range: Air 2.42-10.95 Nl/m  (5 a 24 SCFH)<br />
[P] Sealing: PTFE<br />
[O] Valve: Top (standard) (not for KDS-S)<br />
[0] Certificates: without<br />
[E] Scale: Measuring Range-Scale (Media)<br />
Approval: IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[E] Switches: Transmitter 4-20mA w/o HART<br />
Connection: M12 plug<br />
Processtemperature -25C - +100°C<br />
[0] Accessories: without

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-102-N-10-R-1</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Approvals: w/o<br />
Incl. fitting: brass<br />
Body material: brass<br />
Max. pressure*: 100 bar<br />
*only 25 bar at PSR-..32 and PSR-..40<br />
[102] Measuring range/paddle, 5.5-7.1 L/min paddle: 2<br />
[N] Connection, NPT-thread<br />
[10] Connection, 3/8" (for PSR-xx10...)<br />
[R] Contact version, N/O<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-15H-N3-1-Z3-N-0</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16...64 bar<br />
Accuracy, 0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[15H]: Measuring range, 15 – 550 l/h<br />
[N3]: Mech. connection, 3/8” NPT<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without<br />
*Not Include Battery

EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-H-219R-1-S-S-1-0<br />
[EPS] Sensor Model<br />
[H] Material Lining, Hard Rubber (Ebonite),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[219R] Process connection, 20" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 6669 m³/h<br />
Installation length, 600 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67<br />
[0]:Certificates, w/o<br /><br />
Model: UMF2-A-1-2-G-0BK<br />
[UMF2] Transmitter Model<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, Electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[2] Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

MMultivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-V-W4-2-S-L-L-2-S-0-H<br />
[DVH] Model<br />
[V] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
[W4] Flow Body - Wafer DN 40 EN / 11/2" ANSI / JIS 40<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, Stainless steel 1.4404 / 316 L, (standard)<br />
[L]: Sensor Configuration / Mounting Option, Compact, incl. LCD Display IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L<br />
[S] Process Temperature, Standard Temperature, -200….+260 °C, -330….+500 °F<br />
[0] Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor,<br />
Electr.version V / T / E, Max. test pressure<br />
[H] Version, Heinrichs<br />
*Range: 10 a 375 m3/h…Aire

Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-V-W3-2-S-L-L-2-S-0-H<br />
[DVH] Model<br />
[V] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
[W3] Flow Body - Wafer DN 25 EN / 1" ANSI / JIS 25<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S]: Material Flow Body, Stainless steel 1.4404 / 316 L, (standard)<br />
[L]: Sensor Configuration / Mounting Option, Compact, incl. LCD Display IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L<br />
[S] Process Temperature, Standard Temperature, -200….+260 °C, -330….+500 °F<br />
[0] Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor,<br />
Electr.version V / T / E, Max. test pressure<br />
[H] Version, Heinrichs<br />
*Range: 5 a 127m3/h…Aire

<strong>EPX Magnetic Inductive Flowmeter Ex Version<br />
Brand: Kobold (Alemania)</strong><br /><strong>Model: EPX-V-206R-1-SS-1-1-0+UMF31-A-1-C-1-1K-0</strong><br />
[EPX-V]: Mounting position, all directions<br />
Display / Protection class, LCD Display / IP 67<br />
Output, analogue, frequency, connection and status output<br />
max. medium temperature, -35..+64 °C<br />
Material flange connection, painted steel<br />
Coating, hard rubber<br />
[206R]: Connection flange DIN EN 1092-1, 2" 150 RF, max. 0..62 m³/h<br />
[1]: Material flange connection, painted steel<br />
[SS]: Electrodes material, st.st. 1.4571 incl. grounding electr.<br />
[1]: Position Transmitter, compact version, IP67<br />
[1]: Approval, ATEX gas<br />
[0]: Certificates, without<br /><br /><strong>Include:<br />
Transmitter for EPX (ATEX)<br />
Model: UMF31-A-1-C-1-1K-0</strong><br />
[UMF31]: Power supply, 90 - 250 VAC, 50/60 Hz<br />
outputs, 1xcurrent output 4-20 mA, (passive), HART ® <br />
1xPulse output 1kHz (passive) 24 VDC (Um=30 VDC) <br />
1xStatus output (passive) 24 VDC (Um=30 VDC)<br />
intrinsically safe<br />
[A]: Approval conditions, Compact mounted, for intrinsically safe output <br />
Ex de ib[ia IIC Ga] IIB T4/T3 Gb; Ex tb ib[ia Da] IIIC T125°C / T 150 °C Db<br />
[1]: Approvals, ATEX - only Gas (only for sensor with ATEX-gas)<br />
[C]: Output, intrinsically safe<br />
[1]: Protection class transmitter, IP67 for compact version<br />
[1K]: Thread for cable gland, M20x1,5<br />
[0] Connecting cable, without

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-H-20H-N4-1-H0-M-0</strong><br />
[DON-H]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 400 Bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H]: Measuring range, 1-40 L/min <br />
[N4]: Mech. Connection, 1/2 NPT <br />
[1]: Seal, FKM up to DON-x25<br />
[H0]: Electronic, Pulse output Hallsensor/Reed switch, Push Pull (8-30 VDC)<br />
[M]: Cable entry, M20<br />
[0]: Options (please specify in clear text), without

Low Volume Vane Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DTK-12-25-N2-L343<br />
[DTK-12]<br />
Operating principle: Rotating vane<br />
Mounting position: horizontal<br />
Flow direction: in direction of the arrow<br />
Material: st. st.<br />
max. temperature: 80 °C (140 °C)*<br />
max. pressure: 30 bar<br />
Accuracy: +-2% v. EW,+-5% v. EW OEM<br />
[25]:Measuring range (water), 0,3-3,5 L/min <br />
[N2]:Connection, 1/4 NPT <br />
[L343]:Evaluating Electronic, <br />
Analogue output 4-20mA, M12x1, 3-wire

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-201R-1-H-0-2-0+UMF2-C-1-4-G-0BK-/5</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, Process Temperature, -20°C...150°C<br />
[201R]:Process connection, ½ "Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 6.6 m³/h<br />
length, Installation 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[2]: Transmitter mounting, Remote Transmitter, <br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5, <br />
cable > 10m add. term.conn.box on transmitter<br />
[0]:Certificates, w/o<br /><br /><strong>Include:<br />
Model: UMF2-C-1-4-G-0BK-/-5</strong><br /><strong>[UMF2]:Transmitter</strong><br />
[C]: Mounting, Remote transmitter, Connection to sensor, incl 2,5 m cable, <br />
c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal: <br />
current output: 1x 0/4-20 mA c/w HART protocoll <br />
pulse output: passive Um=24 VDC <br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[5]: Longer cable, 30m / IP67, add junction box to transmitter

<strong>Full Metal Variable Area Flow Meter and Counter<br />
Flange ASME Class 150 RF<br />
Brand: Kobold (Alemania)<br />
Model: BGN-S-H5212R2-0-0-0-0-V-5-6-0K</strong><br />
[BGN-S]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom to the top<br />
Material tube, st.st.<br />
Accuracy, 1.6% FS<br />
Max. Temperature, 350 °C<br />
Max. Pressure, Class 150<br />
[H5212R2]: <br />
Measuring range water, 10000-100000 L/h<br />
Measuring range air (1.013 bar abs., 20 °C), on request<br />
Nominal diameter, ASME 6"<br />
[0]: Heating/cooling, without<br />
[0]: Damping/spring stop, without<br />
[0]: Draining body, without<br />
[0]: Certificates, without<br />
[V]: Display, Aluminium, assembled at distance up to 350 °C<br />
[5]: Display, Media, measuring range, Vegetable oil, 11-110 m3/h<br />
[6]: Electrical Output, transmitter ES, EExia, 4-20 mA HART®; SIL<br />
[0K]: Accesories, without

Viscosity-Compensated Flow Meters and Switches<br />
Brand: Kobold (USA)<br />
Model: VKM-7206-B-U<br />
[VKM-7206]<br />
Specifications:<br />
Accuracy: ± 4% full scale (viscosity of 105 cSt)<br />
Max. Temperature: 212 °F<br />
Housing: SS<br />
Ingress Protection: IP54 for Side Indicator<br />
Range: 0.5...2.5 GPM<br />
Press. Drop Max: 11.6 (PSI)<br />
[B]:Opt. Conn. (NPT) Suffix "B", 1/2" NPT<br />
[U]: Special Contact, SPDT Contact
