<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-362B-1-S-S-2-0<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[362B] Process connection, DN300 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 2560 m³/h, Installation length, 500 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor IP 67 terminal conn.box via M 20x1,5<br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br /><strong>Model: UMF2-C-1-4-F-0BH/2<br />
[UMF2] Transmitter</strong><br />
[C] Mounting, Remote transmitter<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, ½" NPT (f); cable > 10m add. term.conn.box on transmitter<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design, Heinrichs<br />
[2] Longer cable, 10m; breakout cable

<strong>Paddle Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PPS-3-2-06</strong><br />
[PPS]: Operating principle, paddle<br />
Mounting position paddle, vertical<br />
Mounting position piping, horizontal<br />
Bellow, w/o<br />
Output/SPDT, reed contact<br />
Connection, screw-in<br />
material, polysulfone<br />
Max. temperature, 105  °C<br />
Max. pressure, 10 bar<br />
[3]: Connection, NPT 1" male <br />
[2]: Material, Polysulfone<br />
[05]: Design, Contact N/C

<strong>Rotating Vane Flow Meter<br />
Marca: Kobold (Alemania)<br />
Model: DPM-1-5-40-N1-F300</strong><br />
[DPM-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5] Material, st. st.<br />
[40] Measuring range, 0,05-4,0 L/min<br />
[N1] Mech. connection, 1/8 NPT female<br />
[F300] Evaluating Electronic, Frequency output, plug M12x1, PNP<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

<strong>Rotating Vane Flow Meter<br />
Marca: Kobold (Alemania)<br />
Model: DPM-1-5-40-N1-F300</strong><br />
[DPM-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5] Material, st. st.<br />
[40] Measuring range, 0,05-4,0 L/min<br />
[N1] Mech. connection, 1/8 NPT female<br />
[F300] Evaluating Electronic, Frequency output, plug M12x1, PNP

<strong>Rotating Vane Flow Meter<br />
Marca: Kobold (Alemania)<br />
Model: DPM-1-5-03-N2-F300</strong><br />
[DPM-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5] Material, st. st.<br />
[03] Measuring range, 15-300 mL/min<br />
[N2] Mech. connection, 1/4 NPT female<br />
[F300] Evaluating Electronic, Frequency output, plug M12x1, PNP<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

<strong>Rotating Vane Flow Meter<br />
Marca: Kobold (Alemania)<br />
Model: DPM-1-5-40-N2-F300</strong><br />
[DPM-1]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[5] Material, st. st.<br />
[40] Measuring range, 0,05-4,0 L/min<br />
[N2] Mech. connection, 1/4 NPT female<br />
[F300] Evaluating Electronic, Frequency output, plug M12x1, PNP

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-251-N-25-R-1</strong><br />
[PSR-12]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: st.st.<br />
Body material: st.st.<br />
Max. pressure: 250 bar<br />
[251] Measuring range/paddle, 47.6-67.2 L/min paddle: 1<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[R] Contact version, n/o<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

<strong>Paddle Wheel Flowmeter<br />
Model: DRB-11-15-N6-Z340<br />
Brand: Kobold (Alemania)</strong><br />
[DRB-11]:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, Brass casting<br />
Material Axis, Hard metal<br />
[15]: Measuring range, 20-80 L/min<br />
[N6]: Mech. connection, for MR-Code: 15; 1 NPT female<br />
[Z340]: Electronic, Pointer indicator 4-20 mA, plug M12x1

<strong>Paddle Wheel Flowmeter<br />
Model: DRB-11-10-N5-Z340<br />
Brand: Kobold (Alemania)</strong><br />
[DRB-11]:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, Brass casting<br />
Material Axis, Hard metal<br />
[10]: Measuring range, 10-50 L/min<br />
[N5]: Mech. connection, for MR-Code: 10; 3/4 NPT female<br />
[Z340]: Electronic, Pointer indicator 4-20 mA, plug M12x1

<strong>Flowindicator with Flange Connection<br />
Brand: Kobold (Alemania)<br />
Model: DAR-2-2-05H-F-40-B</strong><br />
[DAR-2]:<br />
Operating principle Rotor<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C (Option B/R: 260 °C)<br />
max. pressure 16 bar (Option 25 or 40 bar)<br />
[2]: Housing, st.st<br />
[05H]: Nom. Diameter, 40<br />
[F]: Flanges, flange acc. EN 1092-1<br />
[40]: Connection*, DN 40 / 1 1/2"<br />
[B]: Option, DN 25..40 borosilicate glass

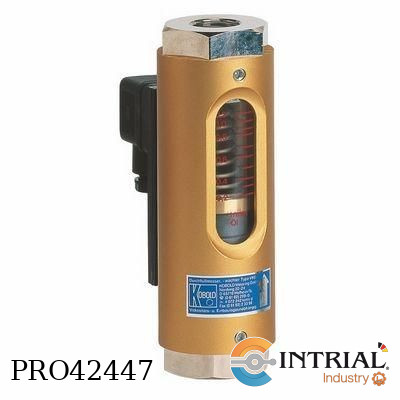

<strong>Viscosity Compensated Flowmeter/-switch<br />
Model: VKG-22-09-R0-R25<br />
Brand: Kobold (Alemania)</strong><br />
[VKG-22]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St.<br />
Seal, FPM<br />
Sight glass, Duran<br />
Side mounted dial, w/o<br />
Switch point, adjustable<br />
Accuracy, ±4 % FS (at 105 mm²/s)<br />
Max. temperature, 100 °C<br />
Max. pressure, 12 bar<br />
Viscosity range, 1...540 mm²/s<br />
[09]: Measuring range, 5-55 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[R25]: Connection, G 1 female

<strong>Flap Flow Meter<br />
Model: TSK-S-317B-B3-R-5-V-0-0-S-5-6-0-H<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[TSK-S]:<br />
Wetted materials, Armature: Stainless steel<br />
Built-in parts: Stainless steel<br />
Built-in parts: Stainless steel<br />
Pressure rating: 40 bar<br />
Process temperature: -40° to +300°C<br />
[317B]: Process connection, for DN40 PN40 Form B1 DIN EN 1092-1<br />
[B2]: Range: Water: 1,5 - 10 m³/h<br />
[R]: Flow direction, Right to left<br />
[5]: Temperature class, max. 100°C<br />
Contains: enclosure of magnet PVDF<br />
[V]: Sealing, Viton, Process temperature: max. 150°C<br />
[0]: Protection against particle-penetration into transmission chamber, without<br />
[0]: Certificates, without<br />
[S]: Indicating part, Standard indicating housing (aluminum)<br />
[5]: Product scale, Measuring range-Scale (Media)<br />
[6]: Electrical output, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature: -40° to +70°C<br />
[0]: Accessory, without<br />
[H]: Design, Heinrichs<br /><br /><strong>Include 1:<br />
ZGN-3.1-Certificate DIN EN 10204<br />
Model: ZGN-3.1</strong><br />
3.1 - Material- and Works- Certificate EN 10204<br />
Material of pressure resistant met. parts (with analysis),<br />
pressure-test Art.-No.: 50000064<br /><br /><strong>Include 2:<br />
Calibration Certificate for TSK<br />
Model: ZGN-CC</strong><br />
ZGN-Calibration-Certificate

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-203R-1-H-0-1-0+UMF2-A-1-1-F-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C <br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003, (Water 20°C, 1 mPas)<br />
Max. measuring range 19,1 m³/h, <br />
Length Installation 200 mm <br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated Transmitter, <br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard, Thread – electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal: <br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC <br />
[0BK]: Design, Kobold

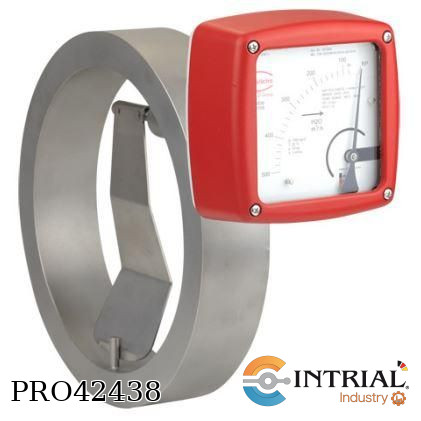

<strong>Flap Flow Meter<br />
Model: TSK-S317BB2R5V0-0-S56-0-H-Gearbox-oil<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[TSK-S]<br />
Wetted materials, Armature: Stainless steel<br />
Built-in parts: Stainless steel<br />
Pressure rating: 40 bar<br />
Process temperature: -40° to +300°C<br />
[317B] Process connection, for DN40 PN40 Form B1 DIN EN 1092-1<br />
[B2] Indication range 30 - 180 l/min<br />
[R] Flow direction, Right to left<br />
[5] Temperature class, max. 100°C<br />
Contains: enclosure of magnet PVDF<br />
[V] Sealing, Viton, Process temperature: max. 150°C<br />
[0] Protection against particle-penetration into transmission chamber, without<br />
[0] Certificates, without<br />
[S] Display, Standard display housing<br />
[5] Product scale, Measuring range-Scale (Media)<br />
[6] Electrical output, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature: -40° to +70°C<br />
[0] Accessory, without<br />
[H] Design, Heinrichs

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-15H-R3-1-E3-N-0<br />
[DON-2]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[15H] Measuring range, 15-550 L/h<br />
[R3] Mech. connection, 3/8 NPT<br />
[1] Seal, FKM up to DON-x25<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*No include Battery

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-15H-R3-1-E3-N-0<br />
[DON-8]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material PPS<br />
[15H] Measuring range, 15-550 L/h<br />
[R3] Mech. connection, 3/8 NPT<br />
[1] Seal, FKM up to DON-x25<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*No include Battery

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-15H-R3-1-E3-N-0<br />
[DON-1]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 16...64 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material Aluminium<br />
Rotor material PPS<br />
[15H] Measuring range, 15-550 L/h<br />
[R3] Mech. connection, 3/8 NPT<br />
[1] Seal, FKM up to DON-x25<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
*No include Battery

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-206R-1-H-H-1-0+UMF2-A-1-4-F-0BK<br />
Brand: Heinrich (Alemania)</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[F]: Output Signal: current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-212R-1-H-H-1-0+UMF2-A-1-1-F-0BK</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[212R]: Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br /><strong>[UMF2]:Transmitter</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal: current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Calibration Certificate for TWL<br />
Brand: Kobold (Alemania)</strong><br />
03 Points Calibration Certificate (0-XXºC)<br />
For model TWL-XX
