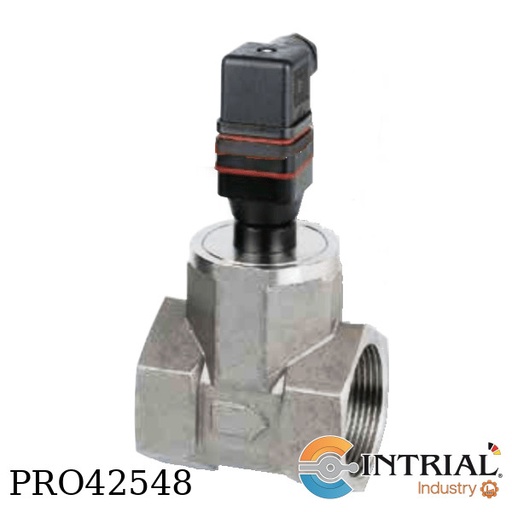

<strong>Pelton Wheel Flow Meter<br />
Model: DRB-12-25-N9-L442<br />
Brand: Kobold (Alemania)</strong><br />
[DRB-12]:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, st. st.<br />
Material Axis, Hard metal<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, for MR-Code: 25, 2 NPT female<br />
[L442]: Electronic, Analogue output 4-20 mA, DIN-plug, 2-wire

<div>
<div>
<div>
<div>
<div>Oval Gear Flow Meter/Counter<br />
Brand: KOBOLD (Alemania)<br />
Model: DON-1-05H-N1-1-H0-N-0<br />
[DON-1]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16…64 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[05H] Measuring range, 0,5-36 L/h<br />
[N1] Mech. connection, for meas. range 05H 1/8 NPT<br />
[1] Seal, FKM up to DON-x25<br />
[H0] Electronic, Pulse output Hallsensor/Reed switch, Push Pull (8-30 VDC)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without<br />
* Not include Battery</div>
</div>
</div>
</div>
</div>

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold<br />
Model: MIM-1-2-10HG5-C3T-0</strong><br />
[MIM-1]<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor Pt 1000<br />
Material housing/insulation part see below<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (medium) -20°C …+60°C<br />
Max. temperature (medium)<br />
-20°C..+70°C (compact),<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[2] Material housing / insulation part / sealing;<br />
st. steel 1.4404 / PEEK / FKM<br />
[10HG5] Measuring range, 0,1…25 L/min / [°C] G ¾ male<br />
[CT3] Evaluation electronic, Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output<br />
Part- or grand totaliser<br />
[0] Options without<br /><br />
Include:<br />
MIM Fitting Sets Accessory Kits<br />
Model: ZUB-AD2G20N15<br />
Meter connection G 3/4 female <br />
Process connection 1/2" NPT female<br />
Fitting set type Adapter<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

Variable Area - Flowmeter monitor<br />
Brand: Kobold Alemania<br />
Model: URM-5524LN40Y<br /><br />
Material: st. St. 1,4404<br />
tmax: 100 ºC<br />
protection: IP67<br />
range: 0.32… 3.2 Nm³/h<br />
instrument length: 360 mm<br />
connection: 1/2 npt male<br />
without contact<br />
Special option:<br />
Y=Mesuring range 1-10 Nm³/h hydrogen<br />
connection 1/2" NPT (Female)

Plastic Flowmeter - switch<br />
Model: KSM-2-001-1-N25-R0<br />
Operating principle variable area<br />
Measuring range, 1,2 ...7 Nm³/h (air 1 Bar)<br />
PSU 1" NPT PVC Fittings<br />
According to S/N: B84864

Plastic flowmeter - Switch<br />
Brand: Kobold<br />
Model: KSM-4005LMT<br />
Description: Flowmeter 2-18 Nm3/h (air)<br />
1 NPT socket.<br />
According to S/N B84865<br />


Bypass-Level Indicators with glass tube<br />
Model: SZM-K-5-0-N4-G2-G2-0<br />
Brand: Kobold (Alemania)<br />
[SZM-K]<br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length, 1000 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[0] Valves, without<br />
[N4] Connection, union nut 1/2" NPT male<br />
[G2] Scale, engraved meas. tube (cm-division)**max. 1000 mm<br />
[G2]  Length of sclae engraved meas. tube (cm-division)**<br />
[0] Limit switch, without

<strong>Bypass-Level Indicators with glass tube<br />
Model: SZM-K-5-0-N4-G2-G2-0<br />
Brand: Kobold (Alemania)</strong><br />
[SZM-K]<br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length, 600 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[0] Valves, without<br />
[N4] Connection, union nut 1/2" NPT male<br />
[G2] Scale, engraved meas. tube (cm-division)**max. 1000 mm<br />
[G2]  Length of sclae engraved meas. tube (cm-division)**<br />
[0] Limit switch, without

Bypass-Level Indicators with glass tube<br />
Model: SZM-K-5-0-N4-G2-G2-0<br />
Brand: Kobold (Alemania)<br />
[SZM-K]<br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length, 800 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[0] Valves, without<br />
[N4] Connection, union nut 1/2" NPT male<br />
[G2] Scale, engraved meas. tube (cm-division)**max. 1000 mm<br />
[G2]  Length of sclae engraved meas. tube (cm-division)**<br />
[0] Limit switch, without<br />


<strong>Flow monitor S25-FA250<br />
Model: S25-FA250-A/R<br />
Brand: Eletta</strong><br />
Robust flow monitor with 130mm dial<br />
with micro switch<br />
Measuring Range: 1500-7500 l/min, Water<br />
Bore diameter: 153.84 mm<br />
Temperature range: 125 °C

<strong>Screw-Type Spindle Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OMH-20R20-2F/45</strong><br />
[OMH]:<br />
Operating principle : Screw spindle<br />
Mounting position : horizontal / vertical<br />
Flow direction : in direction of the arrow<br />
Material : cast iron<br />
Accuracy : +-0,3% of MV<br />
Viscosity range: 1...1x10*6 mm²/s<br />
[20R20]: Measuring range / connection , 0,3...30 L/min / G 3/4 female<br />
[2F]: Pressure rating (only for flanges), PN 250<br />
[45]: Pick-up/ temp./ pressure , Magnetic PNP / 250 °C / 420 bar

Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-8210-C4P-N20-B<br />
[VKM-82]<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, St.St.<br />
Seal, FPM<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
Viscosity range 1...540 mm²/s<br />
[10] Measuring range: 5...50 L/min oil<br />
[C4P] Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N20] Connection, 3/4 NPT female<br />
[B] Flow direction, from bottom<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K5-4-08-S-PG0<br />
Brand: Kobold ( Alemania)<br />
[KAL-K5]<br />
Operating principle, calorimetric<br />
Mounting position, all directions<br />
Indication, DUO-LED and LED-chain<br />
Max. Temperature, 80 °C<br />
Max. Pressure, 100 bar<br />
Protection class, IP 65<br />
Connection thread, NPT<br />
[4] Probe material, st.st. 1.4571<br />
[08] Connection, 1/4"<br />
[S] Contact versión, N/O<br />
[PG0] Electron. connection/power M 16x1,5 relay output 230 VAC

<strong>Differential Pressure Flow Meter / Monitor<br />
Model: RCD-11-60H-GB-ZLT<br />
Brand: Kobold (Alemania)</strong><br />
[RCD-11]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class IP 65<br />
max. temperature 80 °C (100 °C)<br />
max.pressure 40 bar<br />
Material Brass casting <br />
[60H]: Measuring range, 200-1540 L/min  water<br />
[GB]: Process Connection,  G 3 female <br />
[ZLT]: Evaluating electronics, Flow from left/indication on top

<strong>Differential Pressure Flow Meter / Monitor<br />
Model: RCD-11-35H-G8-ZLT<br />
Brand: Kobold (Alemania)</strong><br />
[RCD-11]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class IP 65<br />
max. temperature 80 °C (100 °C)<br />
max.pressure 40 bar<br />
Material Brass casting <br />
[35H]: Measuring range, 30-275 L/min  water<br />
[G8]: Process Connection, G 1 1/2 female<br />
[ZLT]: Evaluating electronics, Flow from left/indication on top

<div><strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05H-R1-1-Z3-S-0</strong><br />
[DON-2]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[05H] Measuring range, 0,5-36 L/h<br />
[R1] Mech. connection, for meas. range 05H G 1/8<br />
[1] Seal, FKM up to DON-x25<br />
[Z3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N] Cable entry, M20 with cooling fin for electronic Z.. and E.. <br />
[0] Options, without<span> </span></div>

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-22-13-N-V-0-00-0</strong><br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
[13]: Measuring range, 1.6...16 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-92-77-N-V-0-00-0</strong><br />
[KDG-92]:<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[77]: Measuring range, 200...2000 NL/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: wall mounting kit, w/o<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-380B-1-S-S-2-0<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[380B] Process connection, DN500 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 6669 m³/h, Installation length, 600 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor IP 67 terminal conn.box via M 20x1,5<br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br /><strong>Model: UMF2-C-1-4-F-0BH/2<br />
[UMF2] Transmitter</strong><br />
[C] Mounting, Remote transmitter<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, ½" NPT (f); cable > 10m add. term.conn.box on transmitter<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design, Heinrichs<br />
[2] Longer cable, 10m; breakout cable

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-375B-1-S-S-2-0<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[375B] Process connection, DN400 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 4191 m³/h, Installation length, 600 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor IP 67 terminal conn.box via M 20x1,5<br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br /><strong>Model: UMF2-C-1-4-F-0BH/2<br />
[UMF2] Transmitter</strong><br />
[C] Mounting, Remote transmitter<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, ½" NPT (f); cable > 10m add. term.conn.box on transmitter<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design, Heinrichs<br />
[2] Longer cable, 10m; breakout cable
