Viscosity Compensated Flowmeter/-switch ATEX<br />
Brand: Kobold (Alemania)<br />
Model: VKG-21-02-R0-N15<br />
[VKG-21]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[02]: Measuring range, 0,2...1,2 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[N15]: Connection,  1/2 NPT

Flowindicator<br />
Brand: Kobold(Alemania)<br />
Model: DAZ-11-01H-R15<br />
[DAZ]:<br />
Operating principle, Flap<br />
Mounting position, horizontal<br />
Flow direction, in direction of the arrow<br />
Max. temperature, 200 °C<br />
Max. pressure, 16 bar<br />
[11]: Version, red brass (DAB w/o ball)<br />
[01H]: Nom. diameter/ind. Range, 2,1...17 L/min water<br />
[R15]: Connection, G 1/2 female<br />


EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-213R-1-H-0-1-2+UMF2-A-1-1-G-0BK<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[212R]:Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 1110 m³/h,<br />
length, Installation 350 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67 <br />
[2]:Certificates, Test report 2.2<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 <br />
Thread - electrical connection, 1/2 NPT<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br /><br />


EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-212R-1-H-0-1-2+UMF2-A-1-1-G-0BK<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[212R]:Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 632 m³/h,<br />
length, Installation 300 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67 <br />
[2]:Certificates, Test report 2.2<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 <br />
Thread - electrical connection, 1/2 NPT<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

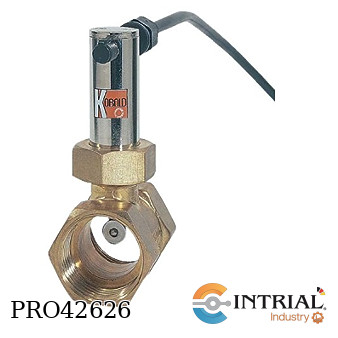

<strong>Paddle Type Flow Switch<br />
Model: PSR-12-152-N-15-R-1<br />
Brand: Kobold (Alemania)</strong><br />
[PSR-12]:<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals  --- <br />
incl. fitting st. st.<br />
Body material st. st.<br />
max. pressure 250 bar <br />
[152]: Measuring range/paddle, 8.3-10.7 L/min paddle: 2<br />
[N]: Connection, NPT-thread <br />
[15]: Connection, 1/2" NPT (for PSR-xx15..) <br />
[U]: Contact version, SPDT<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

<strong>Paddle Type Flow Switch<br />
Model: PSR-12-153-N-15-R-1<br />
Brand: Kobold (Alemania)</strong><br />
[PSR-12]:<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals  --- <br />
incl. fitting st. st.<br />
Body material st. st.<br />
max. pressure 250 bar <br />
[153]: Measuring range/paddle, 2.5-6.4 L/min paddle: 3 <br />
[N]: Connection, NPT-thread <br />
[15]: Connection, 1/2" NPT (for PSR-xx15..) <br />
[U]: Contact version, SPDT<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

<br /><strong>Turbine Wheel-Pulse-Analogue Output DRB<br />
Brand: Kobold<br />
Model: DRB-11-15-N6-F390</strong><br />
[DRB-11]<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction, in all directions/ in direction of the arrow<br />
Protection, IP65<br />
Max. temperature, 80 °C<br />
Max. pressure, 16 bar<br />
Accuracy of final value, +/-3%<br />
Material Housing, Brass casting<br />
Material Axis, Hard metal<br />
[15]: Measuring range, 20-80 L/min<br />
[N6]: Mech. connection, for MR-Code: 15, 1 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Rotating Vane Flow Meter<br />
Model: DRG-11-25-N6-F390<br />
Brand: Kobold (Alemania)</strong><br />
[DRG-11]<br />
Operating principle: Rotating Vane<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Accuracy: +/-3%<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: 16 bar<br />
Material of housing: Brass casting<br />
Material housing cover: Polysulfon<br />
[25]: Measuring range, 5-90 L/min<br />
[N6]: Mech. connection, for range 25: 1 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-11-15-N6-F390</strong><br />
[DPE-11]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: Brass casting<br />
Material Axis Hard metal<br />
[15]: Measuring range, 20-80 L/min<br />
[N6]: Mech. connection, for MR-Code: 15, 1 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Compact Ultrasonic Flowmeter<br />
Brand: Kobold (USA)<br />
Model: DUK-11-N9G-C34P</strong><br />
[DUK-11]: Model / Housing Material, Brass<br />
[N9G]: connection, 2" NPT<br />
Measuring Range, 0.25...65 GPM<br />
[C34P]: Evaluation electronic for DUK,<br />
Compact electronic 4-20 mA, Open Collector, PNP

<strong>Low Volume Vane Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DPL-1-P-15-G4-F590</strong><br />
[DPL]:<br />
Operating principle: Rotating vane<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: Polypropylene<br />
max. temperature: 70 °C<br />
max. pressure: 10 bar<br />
Accuracy +-2,5(5,0)% of FS<br />
Protection: IP 65<br />
[1]: Version; Standard<br />
[P]: Seal; NBR<br />
[15]: Measuring range; 0,2...6 L/min water<br />
[G4]: Mech. Connection; G 1/2 male<br />
[F590]: Electronic; Frequency divider 1...1/128, 2 m PVC-cable, PNP

<br /><strong>Oval Wheel Flowmeter Model DON<br />
Model: DON-1-25H-R6-1-HE-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[25H]: Measuring range, 10-150 L/min<br />
[R6]: Mech. connection, G 1"<br />
[1]: Seal, FKM<br />
[HE]: Electronic, Pulse output Hallsensor/Reed switch, Push Pull (exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without

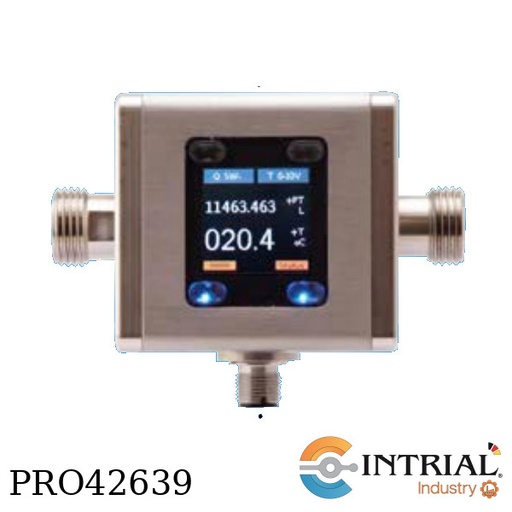

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-35GN9-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[35GN9] Measuring range (flow/temperature), 0,4…90 GPM / [°F] 2"NPT female<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-20GG6-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[20GG6] Measuring range (flow/temperature), 0,1…26 GPM / [°F] G 1 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without<br /><br />
Flow direction: From Left to Right.

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-2-25H-F6-1-E3-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 60 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[25H]: Measuring range, 10-150 L/min<br />
[F6]: Mech. connection, DIN flange DN 25, PN 16/40<br />
[1]: Seal, FKM up to DON-x25<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Paddle Type Flow Switch<br />
Brand: Kobold  USA<br />
Model: PSR-5115-U<br />
Specifications:<br />
Switching Tolerance: ± 15%<br />
Media Temperature  Brass/NBR Seal: -4...158 °F<br />
Max. Pressure  Brass: 1/4"...1" = 1450 PSIG,<br />
Ingress Protection: IP 65<br />
[PSR-5115]<br />
pproximate Switching Range*<br />
Connection 1/2 NPT<br />
Increasing GPM Options (Water) 0.7...1.6<br />
Decreasing GPM (Water) 0.5...1.6<br />
Material Brass<br />
[U] Options, SPDT Switch, 5 Ft. Cable

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-2-25H-F6-1-Z3-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 60 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[25H]: Measuring range, 10-150 L/min<br />
[F6]: Mech. connection, DIN flange DN 25, PN 16/40<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

<strong>Digital Thermal Mass Flow Meter and Controller<br />
Model: DMS-1-03-N2-F-D2-3-L<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, thermal<br />
Mounting position,all directions<br />
Indication LC-Display (Option)<br />
Output 4-20 mA + 0-5/0-10/1-5V<br />
max. temperature 50 °C<br />
max. pressure 35 bar<br />
Design, Meter, L-Body<br />
[04]: Measuring range (air), 0-100 mLN/min<br />
[N2]: 1/4 FNPT (up to 185 L/min)<br />
[F]: Seal, FPM<br />
[D2]: Display, with Display<br />
[3]: Electrical connection, 24 VDC / plug connection incl. 3 m cable.<br />
[L]: Options,w/o.

<strong>Digital Thermal Mass Flow Meter and Controller<br />
Model: DMS-1-03-N2-F-D2-3-L<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, thermal<br />
Mounting position,all directions<br />
Indication LC-Display (Option)<br />
Output 4-20 mA + 0-5/0-10/1-5V<br />
max. temperature 50 °C<br />
max. pressure 35 bar<br />
Design, Meter, L-Body<br />
[03]: Measuring range (air),0-50 mLN/min <br />
[N2]: 1/4 FNPT (up to 185 L/min)<br />
[F]: Seal, FPM<br />
[D2]: Display, with Display<br />
[3]: Electrical connection, 24 VDC / plug connection incl. 3 m cable.<br />
[L]: Options,w/o.

<strong>Turbine Wheel Flowmeter TUR<br />
Model: TUR-10-80-P<br />
Brand: Kobold (Alemania)</strong><br />
[TUR-10]:<br />
Operating principle Turbine Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
Material PVC<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Accuracy +-1% FS<br />
Protection IP 65<br />
PVC Flanges according to DIN 2501 standard<br />
Electrical Connection 2m PVC cable<br />
[80]: Connection / Measuring range, NW 80 / 2...80 m³/h water<br />
[P]: Electronic, Pulse output PNP (24 VDC, 3 wires)
