Viscosity Compensated Flowmeter/-switch <div>Viscosity Compensated Flowmeter/-switch<br /> Brand: Kobold (Alemania)<br /> Model: VKG-41-04-R0-N08</div> <div>[VKG-41]:<br /> Operating principle variable area<br /> Mounting position all directions<br /> Flow direction in direction of the arrow<br /> Body material Brass <br /> Seal NBR<br /> Sight glass Duran<br /> Side mounted dial with<br /> Switch point adjustable<br /> Accuracy ±4 % FS (at 105 mm²/s)<br /> Max. temperature 100 °C<br /> Max. pressure 12 bar<br /> Viscosity range 1...540 mm²/s<br /> [04]: Measuring range, 0,6...3,4 L/min oil<br /> [R0]: Contact, 1 N/O<br /> [N08]: Connection, 1/4 NPT female</div> S/ 4,067.82 4067.82 PEN	Viscosity Compensated Flowmeter/-switch Viscosity Compensated Flowmeter/-switch<br /> Brand: Kobold (Alemania)<br /> Model code: Y-VKG-13160/20RU S/ 2,606.18 2606.18 PEN	Viscosity Compensated Flowmeter/-switch Viscosity Compensated Flowmeter/-switch<br /> Brand: Kobold (Alemania)<br /> Model code: Y-VKG-13160/15RU S/ 2,606.18 2606.18 PEN	Variable Area Flowmeter/-switch, 1000 L/h, 1 PULG Variable Area Flowmeter/-switch Glass Cone<br /> Model: URK-73-23H-L-A6-0 <br /> Brand: Kobold<br /> [URK-73]<br /> Operating principle, variable area<br /> Mounting position, vertical, flow direction from bottom<br /> Accuracy, Class 4<br /> Type, loose flange<br /> Max. temperature, 65 °C<br /> Max. pressure, 6 bar...16 bar depend see data sheet<br /> Housing, st. st. 1.4301<br /> Connection, Cast iron<br /> Float, 1.4301<br /> Ring, PVC<br /> Seal, NBR<br /> [23H]: Range Full Scale*,1000 L/h<br /> [L]: Type, loose flange<br /> [A6]: flange, ANSI 150 lbs, 1"<br /> [0]: Contacts, w/o S/ 2,197.94 2197.94 PEN
Flowindicator with Threaded Connection, Max. pressure: 16 bar (Option 25 or 40 bar) Flowindicator with Threaded Connection<br /> Model: DAR-1-1-03H-R-15-B<br /> Brand: Kobold<br /> [DAR-1]:<br /> Operating principle: Rotor<br /> Mounting position: all directions<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120 °C (Option B/R: 260 °C)<br /> Max. pressure: 16 bar (Option 25 or 40 bar)<br /> [1]: Housing: Cast iron<br /> [03H]: Nom. diameter, 1/2" <br /> [R]: Thread: G-thread female<br /> [15]: Connection, 1/2"<br /> [B]: Option, 1/2" , borosilicate glass S/ 1,228.37 1228.3700000000001 PEN	Oval Gear Flow Meter/Counter. Range 400 L/min. Accuracy: ±0,2 % …1 % of reading. Connection, 2 NTP. <div>Oval Gear Flow Meter/Counter<br /> Brand: Kobold (Alemania)<br /> Model: DON-2-35H-N9-1-Z3-N-0-Y<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120 °C<br /> Max. pressure: 16-100 Bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [35H]: Measuring range, 400 L/min<br /> [N9]: Mech. connection for meas. for meas. range 35H, 2 NPT<br /> [1]: Seal, FKM up to DON-x25<br /> [Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options,without<br /> [Y]: Options, Special gear wheels for viscosity > 1000 cP for range 35H</div> S/ 13,224.06 13224.06 PEN	Oscillation Flow Meter for Gases <div>Oscillation Flow Meter for Gases<br /> Model: DOG-42-F5F1H-0-G0-0<br /> Brand: Kobold-Alemania</div> <div>[DOG-42]<br /> Operating principle, electronic mounted and wired in IP 65-housing<br /> Mounting position ,any direction<br /> max. temperature , -20...+120 °C (-20...+60 °C ATEX)<br /> Housing material , st.steel 1.4404/316 L<br /> Measuring head, PPS (Polyphenylensulfid)<br /> Gaskets, Klingersil C- / NBR<br /> Protection type, IP 65<br /> [F5F1H], Measuring range,10...1000 m³/h air<br /> Flange,DN 100 PN 16<br /> [0],Shut-off ball valve to measuring unit, w/o ball valve<br /> [G0],Remote electronic,<br /> Display with backlightning incl.B0=transmitter, 230 VAC<br /> flow rate/ total, resetable, analogue and pulse output<br /> electronic mounted and wired in IP 65-housing<br /> [0],Options, w/o.</div> S/ 11,452.59 11452.59 PEN	Thermal Mass Flow Meter for Gas, 2.8…2793 Nm³ , DN 65 Thermal Mass Flow Meter for Gas<br /> Brand: Kobold (Alemania)<br /> Model: KMT-4-20-F-1-2-L-1-N-Q-4<br /><br /> [KMT-4]:<br /> Function principle: Direct thermal flow<br /> Sensor: remote<br /> Flow direction: acc. Mounting<br /> Power supply 18-30 VAC/DC<br /> max. pressure / max. temperature PN 16 / 80 °C<br /> Sensor material st. st./ plastic<br /> [20]: Measuring range: 2.8…2793 Nm³ for tube DN 65 (2 1/2")/ 165 mm<br /> [F]: Connection: R 1/2" male<br /> [1]: Display, LCD-display<br /> [2]: Cable length sensor/electronic: 2 m with plug M12, 4-pins<br /> [L]: Medium, Air<br /> [1]: Units, SI units<br /> [N]: Physical size, output 1: Standard volume flow (standard Nm³/h)<br /> [Q]: Physical size, output 2: Consumption (standard Nm³)<br /> [4]: Consumption (standard Nm³): Analogue-output 4-20 mA / totalizer output (standard) S/ 10,111.23 10111.23 PEN
Plastic Flowmeter/-switch, Measuring range, 300...3000 L/min water Plastic Flowmeter/-switch<br /> Brand: Kobold<br /> Model: KSM-1-030-M-F40-R1<br /><br /> [KSM-1]:<br /> Operating principle, variable area<br /> Mounting position, vertical<br /> Flow direction, from bottom<br /> Armature material, Trogamide<br /> Accuracy, ±4 % FS<br /> Max. temperature, 60 °C<br /> Max. pressure, 16 bar<br /> [030]: Measuring range, 300...3000 L/min water<br /> [M]: either scales for liquid media, L/min water<br /> [F40]: Option connection for size 030, PVC flange DN 40<br /> [R1]: Option contact, 1 contact S/ 2,926.94 2926.94 PEN	Plastic Flowmeter-switch. Range: 600...6000 L/h water. Accuracy, ±4 % FS. connection PVC flange DN 5 <div>Plastic Flowmeter/-switch</div> Brand: Kobold<br /> Model: KSM-1-060-H-F50-R1<br /><br /> [KSM-1]:<br /> Operating principle, variable area<br /> Mounting position, vertical<br /> Flow direction, from bottom<br /> Armature material, Trogamide<br /> Accuracy, ±4 % FS<br /> Max. temperature, 60 °C<br /> Max. pressure, 16 bar<br /> [060]: Measuring range, 600...6000 L/h water<br /> [H]: either scales for liquid media, L/h water<br /> [F50]: Option connection for size 060, PVC flange DN 50<br /> [R1]: Option contact, 1 contact S/ 3,203.96 3203.96 PEN	Viscosity Compensated Plastic Flowmeter/-switchMeasuring range: 20...100 L/min water Viscosity Compensated Plastic Flowmeter/-switch<br /> Brand: Kobold (Alemania)<br /> Model: VKP-1-100-R25-S<br /><br /> [VKP-1]:<br /> Operating principle variable area<br /> Mounting position vertical or horizontal<br /> Flow direction all directions<br /> Material Polysulfone<br /> Accuracy ±5 % FS<br /> Max. temperature 120 °C<br /> Max. pressure 16 bar<br /> c/w contact 85 °C; c/w PVC-connection 60 °C<br /> [100]: Measuring range: 20...100 L/min water<br /> [R25]: Connection G 1 male (Standard)<br /> [S]: Contact N/0<br /> https://www.kobold.com/uploads/files/vkp-gb-flow.pdf S/ 973.22 973.22 PEN	Low Volume Flowmeter, Measuring range, 4…40 Nm³/h air Low Volume Flowmeter<br /> Model: UTR-3-36L-1-N4-0<br /> Brand: Kobold- Alemania<br /> <br /> [UTR-3]<br /> Mounting length 240 mm<br /> Material: body / valve, st.st. 1.4301<br /> Float, st.st. 1.4301<br /> Measuring , glass Borosilicate<br /> Operating principle, Float<br /> Flow direction, from bottom to top<br /> Accuracy, class 4<br /> Max. temperature without/with contact, 100 °C / 70 °C<br /> Max. pressure, PN 10<br /> [36L] Measuring range, 4…40 Nm³/h air<br /> [1] Valve,with valve<br /> [N4] Connection, 1/2" NPT<br /> [0] Contacts,w/o S/ 3,903.80 3903.8 PEN

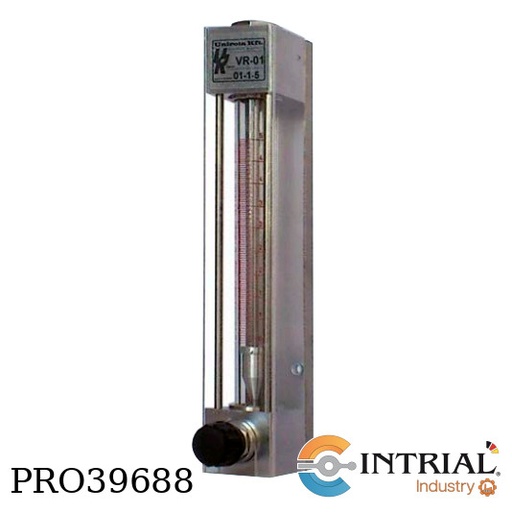

Low Volume Flowmeter Kobold(Alemania) UVR-3-32L-1-N3-00 Low Volume Flowmeter<br /> Model: UVR-3-32L-1-N3-00<br /> Brand: Kobold(Alemania)<br /> [UVR-3]<br /> Mounting length 240 mm<br /> Material: body / valve, st.st. 1.4301<br /> Float, st.st. 1.4301<br /> Measuring , glass Borosilicate<br /> Operating principle, Float<br /> Flow direction, from bottom to top<br /> Accuracy, class 4<br /> Max. temperature without/with contact, 100 °C / 70 °C<br /> Max. pressure, PN 10<br /> [32L] Measuring range,1,6…16 Nm³/h air<br /> [1] Valve,with valve<br /> [N3] Connection,3/8" NPT<br /> [00] Contacts,w/o S/ 3,418.32 3418.32 PEN	Variable Area Flowmeter/-switch,Connection G 1/2 female,Max. temperature 60 °C Variable Area Flowmeter/-switch<br /> Brand: Kobold<br /> Model: SWK-13-40<br /><br /> [SWK-13]:<br /> Operating principle variable area<br /> Mounting position all directions<br /> Flow direction in direction of the arrow<br /> Function Switch<br /> Material, housing PVC<br /> Repeatability contact <= 2,5 %<br /> display --<br /> Max. temperature 60 °C<br /> Max. pressure 6 bar<br /> Connection G 1/2 female<br /> Limit switch Reed contact N/O<br /> [40]: Measuring range, 1,7...4 L/min water S/ 444.69 444.69 PEN	All-Metal Variable Area Flowmeter BGN, Range: 0.40 - 4.00 m3/h <strong>All-Metal Variable Area Flowmeter BGN<br /> Brand: Kobold - Heinrichs<br /> Model: BGN-S50-321B-Q-0-F-0-0-S-2-6-0-K</strong><br /> [BGN]: Model<br /> [S50]: Stainless Steel, process temperature ≤ 350°C<br /> [321B]: Connection, size, DN50 PN40 Form B1 DIN EN 1092-1<br /> [Q]: Range (water 20°C, 1 mPas), H2O,0.40 - 4.00 m3/h<br /> [0]: Heating/cooling, without<br /> [F]: Damping/spring stop, with liquid damping<br /> [0]: Self-draining, without<br /> [0]: Certificates, without<br /> [S]: Display,<br /> Standard display housing,<br /> Process temperature ≤ 150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [2]: Scale, Measuring range-Scale (Water)<br /> [6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia -40° to +70°C<br /> [0]: Accessories, without<br /> [K]: Design, Kobold S/ 6,976.53 6976.53 PEN	Oval Gear Flow Meter/Counter-DON, Measuring range, 0,5-36 L/h Oval Gear Flow Meter/Counter<br /> Brand: Kobold (Alemania)<br /> Model:DON-2-05H-R1-4-GE-N-0<br /> [DON-2]:<br /> Operating principle: Gear Wheel<br /> Mounting position: horizontal / vertical<br /> Flow direction: in direction of the arrow<br /> Max. temperature: 120°C<br /> Max. pressure: 16…100 bar<br /> Accuracy: ±0,2 % …1 % of reading<br /> Housing material: st. steel<br /> Rotor material: st. steel<br /> [05H]: Measuring range, 0,5-36 L/h<br /> [R1]: Mech. connection, for meas. range 05H G 1/8<br /> [4]: Seal, NBR<br /> [GE]: Electronic, High resolution Hall sensor, 4-times pulse Exd (up to DON-x10)<br /> [N] Cable entry, 1/2 NPT<br /> [0] Options, without S/ 2,937.87 2937.87 PEN
Low Volume Vane Flowmeter-DTK Low Volume Vane Flowmeter DTK<br /> Brand: Kobold - Alemania<br /> Model: DTK-12-60-N2-F300<br /> [DKT-12]<br /> Operating principle, Rotating vane<br /> Mounting position, horizontal<br /> Flow direction in direction of the arrow<br /> Material st. st.<br /> max. temperature 80 °C (140 °C)<br /> max. pressure :30 bar<br /> Accuracy :+-2% v. EW,+-5% v. EW OEM<br /> 140 °C with connection: Silicone cable<br /> [60]: Measuring range (water), 1,0 - 12,0 L/min<br /> [N2]:Connection ,1/4 NPT<br /> [F300]:Evaluating Electronic,Frequency output, PNP, plug M12x1 S/ 1,501.74 1501.74 PEN	Oval Gear Flowmeter Measuring range by 10-320 mm2/s, 0.4 – 10 L/min Oval Gear Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: OVZ-04-5-G2-N-L343<br /><br /> [OVZ-04]:<br /> Operating principle Oval Gear<br /> Mounting position horizontal / vertical<br /> Measuring range by 10-320 mm2/s, 0.4 – 10 L/min<br /> Max. temperature 80 °C<br /> Accuracy +-2,5% FS<br /> Protection IP 65<br /> [5]: Body material / cover / max. pressure, Aluminium / Aluminium / PN 40<br /> [G2]: Connection, G ¼<br /> [N]: Seals, NBR<br /> [L343]: Electronic, Analogue output 4-20 mA, M12x1, 3-wire S/ 2,883.20 2883.2000000000003 PEN	Oval Gear Flow Meter/Counter. Range 1 - 40 L/min. Accuracy: ±0,2 % …1 % of reading. Z3 electronic wi Brand: Kobold (Alemania)<br /> Model: DON-H-20H-R4-3-E3-N-0<br /> [DON-H]: <br /> Operating principle Gear Wheel<br /> Mounting position horizontal / vertical<br /> Flow direction in direction of the arrow<br /> max. temperature 120 °C*<br /> max. pressure 400 Bar<br /> Accuracy ±0,2 % …1 % of reading<br /> Housing material st. steel<br /> Rotor material st. steel<br /> [20H]: Measuring range, 1 - 40 L/min<br /> [R4]: Mech. Connection, G 1/2<br /> [3]: Seal, FEP O-seal / EPDM-core for DON-x20<br /> [E3]: Electronic, Z3 electronic with ATEX approval (Exi)<br /> [N]: Cable entry, 1/2 NPT<br /> [0]: Options (please specify in clear text), without S/ 5,897.61 5897.61 PEN	Indicador de flujo para montaje horizontal (0,6...28 L/min water) Flowindicator for Horizontal Mounting<br /> Brand: Kobold (Alemania)<br /> Model: DKF-11-04H-R-15<br /> [DKF]: <br /> Operating principle, Rotating vane<br /> Mounting position, horizontal<br /> Flow direction, in direction of the arrow<br /> Housing material, brass<br /> max. temperature 120 °C<br /> max. pressure, 6 bar <br /> [11]: Material (rotating vane or ball), POM <br /> [04H]: Nom. diameter/ind. 1/2" - 0,6...28 L/min water<br /> [R]: Thread, G-thread female <br /> [15]: Connection*: 1/2" S/ 1,006.02 1006.02 PEN
