Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-25H-N6-3-Z3-T-0<br />
[DON-2]:                 <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[25H]: Measuring range, 10-150 L/min <br />
[N6]: Mech. Connection, 1 NPT <br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[T]: Cable entry, 1/2 NPT with cooling fin for electronic Z.. and E...<br />
[0]: Options, without

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-30H-N8-3-M4-N-0<br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[30H]: Measuring range, 15-250 L/min<br />
[N8]: Mech. connection, 1 1/2 NPT<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x30<br />
[M4]: Electronic, mech. totaliser 4-digit (not for DON-x05, -x10, -x15)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-25H-N6-3-M4-N-0<br />
[DON-2]:                 <br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[25H]: Measuring range, 10-150 L/min<br />
[N6]: Mech. Connection, 1 NPT<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x25<br />
[M4]: Electronic, mech. totaliser 4-digit (not for DON-x05, -x10, -x15)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

<strong>Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K1-4-15-S-PG3<br />
Brand: Kobold (Alemania)</strong><br />
[KAL-K1]<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C<br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: G<br />
[4]: Probe material, st.st. 1.4571<br />
Version: Standard<br />
[15]: Connection, 1/2"<br />
[S]: Contact version, N/O<br />
[PG3]: Electron. connection/power supply, M 16x1,5 PNP/NPN 24 VDC

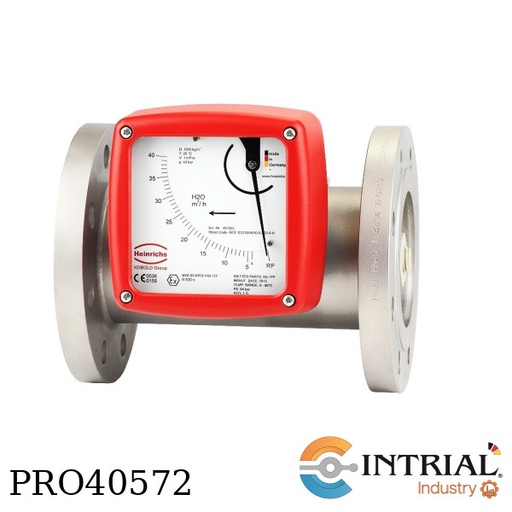

All-Metal Variable Area Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: BGF-S80-208R-W-S-U-0-0-S-5-0-0-K<br />
[BGF]: Model,<br />
[S80]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[W]: Range (water 20°C, 1 mPas), Range: 6 a 60 m3/hr<br />
[S]: Magnet bearer, stainless steel<br />
[U]: Flow direction, Bottom to top<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

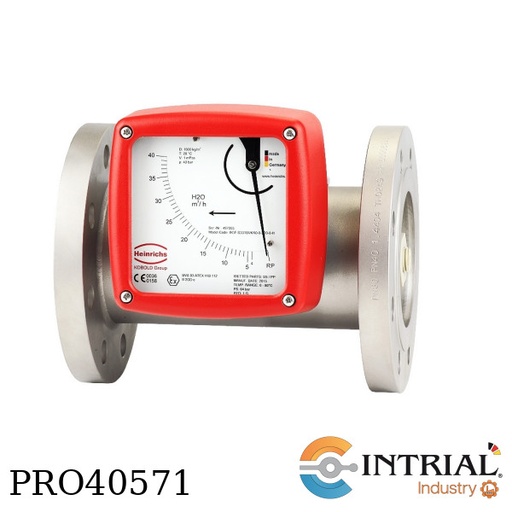

<strong>All-Metal Variable Area Flowmeter <br />
Brand: Kobold - Heinrichs<br />
Model: BGF-S80-208R-W-K-U-0-0-S-5-0-0-K </strong><br />
[BGF]: Model,<br />
[S80]: Model, Stainless Steel, process temperature ≤ 200°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[W]: Range (water 20°C, 1 mPas), Range: 6 a 60 m3/hr <br />
[K]: Magnet bearer, Standard PP bis 80 °C<br />
[U]: Flow direction, Bottom to top<br />
[0]: Heating/cooling, without Heating/Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

Rotating Vane-Flowmeter with Pulse Output<br />
Brand: Kobold (Alemania)<br />
Model: DF-06-E-R15-IHO-3K<br />
[DF]:<br />
Operating principle Rotating Vane<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
Max. temperature s. material combination<br />
Max. pressure s. material combination<br />
Accuracy +-2,5% FS<br />
[06]: Measuring range, 0,3...6 L/min water<br />
[E]: Material combination, Housing/ cover/ connection/ temp. / Pressure<br />
st.st./ Polysulfone/ st.st./ 80 °C/ 16 bar<br />
[R15]: Connection, Material combination+A83 code: A/D/G G 1/2<br />
[IHO]: Pulse output, approx. 80 mm open lead, NPN, w/o calibration report<br />
[3K]: Power supply, 5...24 VDC

<strong>Paddle Type Flow Switch<br />
Model: PSE-12-520-R-15-R-8<br />
Brand: Kobold</strong><br />
[PSE-12]:<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
[520]: Measuring range/paddle, Paddle length: 52 mm<br />
[R]: Connection, G-thread<br />
[15]: Connection, 1/2"<br />
[R]: Contact versión, N/O<br />
[8]: Connecting cable, PVC-cable 5.0 m

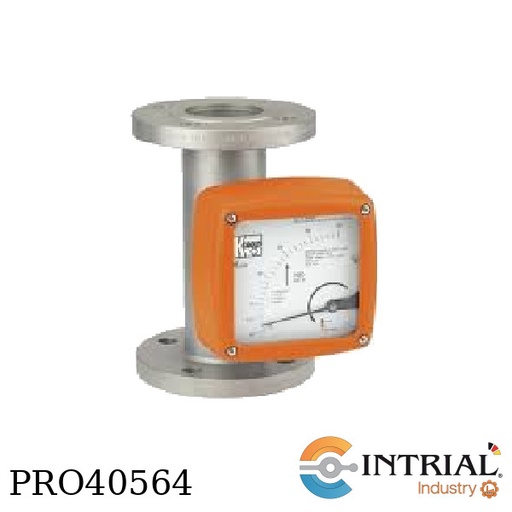

<strong>All-Metal Variable Area Flowmeter <br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S80-208R-V-0-0-0-0-S-5-0-0-K</strong><br />
[BGN]: Model,<br />
[S80]: Model, Stainless Steel, process temperature ≤ 350°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[V]:  Range (water 20°C, 1 mPas), Range medium, 0 - 40 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, with self-draining body<br />
[0]: Certificates, without<br />
[S]: Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>All-Metal Variable Area Flowmeter<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S1H-210R-W-0-0-0-0-S-5-0-0-K</strong><br />
[BGN]: Model<br />
[S1H]: Model, Stainless Steel, process temperature ≤ 350°C<br />
[210R]: Connection, size, 4" Class 150 RF ASME B16.5-2003<br />
[W]: Range (water 20°C, 1 mPas), Range medium, 0 - 60 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, with self-draining body<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

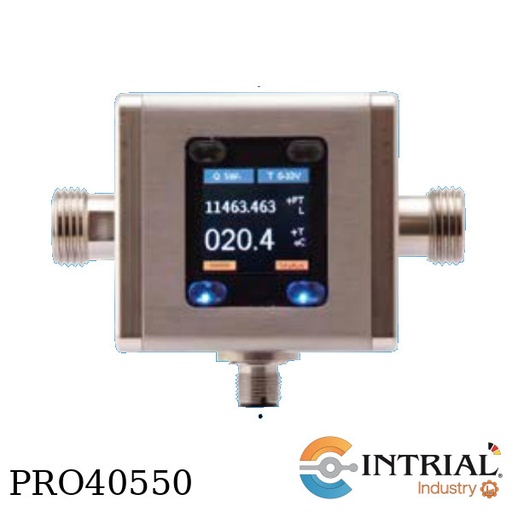

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-15HG6-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μ/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature: <br />
-20°C..+70°C (media),<br />
-10°C..+60°C (ambient)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part, st. steel 1.4404 / PEEK / FKM<br />
[15HG6] Measuring range (flow/temperature),0,2…50 L/min / -20..+70 °C / G 1 male<br />
[C3T] Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0] Options, without

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-35H-A9-3-E3-N-0<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[35H]: Measuring range, 30-450 L/min<br />
[A9]: Mech. connection for meas. range 35H, ANSI flange 2" 150 lbs<br />
[3]: Seal,FEP O-seal / EPDM-core for DON-x35<br />
[E3]: Electronic,Z3 electronic with ATEX approval<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-35H-A9-3-M4-N-0<br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[35H]: Measuring range, 30-450 L/min<br />
[A9]: Mech. connection for meas. range 35H, ANSI flange 2" 150 lbs<br />
[3]: Seal,FEP O-seal / EPDM-core for DON-x35<br />
[M4]: Electronic,mech. totaliser 4-digit<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

VARIABLE AREA FLOWMETER<br />
Brand: Kobold – Heinrichs<br />
Model: V31-203R3F-03-C5W-F-F-A-0-3-2-0-0-0-0-0-0-0-H<br />
[V31]: Model,<br />
[203R3F]: Flange, 1" 150lbs RF ASME B16.5-2003,<br />
Length 425 mm, Connection – Wetted parts, Stainless steel<br />
[03]: Type of float, Material, Stainless steel 1.4571 - with magnet, without guide rod 1.4571<br />
[C5W]: Measuring range - stainless steel float with magnet H2O: 0.54 – 5.4 L/min<br />
[F]: Gasket, Viton<br />
[F]: Float – stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[3]: Electrical output, 1 x K 33 two way contact (SPDT)<br />
[2]: Scale, Measuring range-scale (H2O)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[H]: Make, Heinrichs

Rotating Vane Flow Meter<br />
Model: DPM-1-1-50-N2-L443<br />
Marca: Kobold<br />
[DPM-1]:<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature ,80 °C<br />
max. pressure, 16 bar<br />
Accuracy, +/-1,0 (2,5)%<br />
Protection, IP 65<br />
[1]: Material, brass<br />
[50]: Measuring range, 0,05-5,0 L/min<br />
[N2]: Mech. connection, 1/4 NPT female<br />
[L443]: Evaluating Electronic,<br />
Analogue output 4-20mA, DIN-plug, 3-wire

<strong>Acrylic Variable Area Flowmeter<br />
Brand: Kobold (USA)<br />
Model: KFR-2200-V2</strong><br />
[KFR-2200]<br />
Max Pressure:100 PSIG<br />
Max Temperature: 150 °F<br />
Body: Clear Acrylic<br />
Range SCFH: 0.1-1 Air<br />
Float material: Glass<br />
Fitting Material (1/8" NPT), SS<br />
[V2]: Options, Stainless Steel Inlet Needle Valve

<strong>EPS Electromagnetic Flow Meter<br />
EPS-H-206R-1-S-S-1-0_UMF2-A-1-1-F-0BK<br />
Brand: Kobold-Heinrichs</strong><br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[206R]:Process connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1.77 m3/hr - 70 m3/hr<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]:Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter. <br />
Protection class sensor, IP67<br />
[0]:Certificates, w/o<br /><br /><strong>[UMF2]</strong><br />
[A]: Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-05GG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature: <br />
-20°C..+70°C (media),<br />
-10°C..+60°C (ambient)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part, st. steel 1.4404 / PEEK<br />
[05GG4]: Measuring range (flow/temperature), 0,011…2,6 GPM / -4…+158 °F<br />
[C3T]: Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0]: Options, without

Paddle Type Flow Switch PSR.<br />
Brand: Kobold (Alemania)<br />
Model: PSR-12-081-R-08-R-2<br />
[PSR-12]:<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: st.st.<br />
Body material: st.st.<br />
Max. pressure*: 250 bar<br />
*only 25 bar at PSR-..32 and PSR-..40<br />
[081]: Measuring range/paddle, 5.7-7.7 L/min paddle: 1<br />
[R]: Connection, G-thread<br />
[08]: Connection, 1/4"<br />
[R]: Contact version, N/O<br />
[2]: Connecting cable, PVC-cable 2.0 m

lastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-2-005-H-000-R0<br />
[KSM-1]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C<br />
Max. pressure 16 bar<br />
[005]: Measuring range, 50...500 L/h water<br />
[H]: scales for liquid media; L/h water<br />
[000]: Option connection for size 005; R 1 1/2 male<br />
[R0]: Option contact; w/o contact
