Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: UTR-5-26H-1-N4-0<br />
[UTR-5]:<br />
Mounting length 240 mm.<br />
Material, st.st. 1.4404.<br />
Float, st.st. 1.4404.<br />
Measuring glass Borosilicate<br />
Operating principle Float<br />
Flow direction from bottom to top<br />
Accuracy class 4.<br />
Max. temperature without contact, 100 °C<br />
Max. pressure PN 10<br />
[26H]: Measuring range, 40…400 L/h water.<br />
[1]: Valve, with valve<br />
[N4]: Connection, 1/2" NPT<br />
[0]: Contacts, w/o

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-22-YY-N-V-0-00-0-Y<br />
[KDG-22]: <br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact 100 °C / 80 °C<br />
Max. pressure PN 16<br />
[YY]: Measuring range, 3,5-28 l/m (air) @ 25°C & 2 bar g<br />
[N]: Connection 1/4 NPT <br />
[V]: Seal: FPM<br />
[0]: Panel mounting kit, w/o<br />
[00]: Contacts measuring range, w/o <br />
[0]: Flow differential pressure regulator, w/o<br />
[Y]: Without valve.

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - (Alemania)<br />
Model: BGN-S40-205R-Q-0-G-0-1-S-5-6-0-H</strong><br />
[BGN]: Model<br />
[S40]: Stainless Steel, process temperature ≤ 350°C<br />
[205R]: Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[Q]: Range (water 20 °C, 1 mPas), H2O: 400 - 4000 l/h<br />
[0]: Heating/cooling, without heating/Cooling<br />
[G]: Damping/spring stop, Gas damping<br />
[0]: Self-draining, without<br />
[1]: Certificates, Certificate of compliance with the order 2.1<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter<br />
Brand: Kobold - (Alemania)<br />
Model: BGN-S40-205R-R-0-A-0-1-S-5-6-0-H</strong><br />
[BGN]:  Model<br />
[S40]:  Stainless Steel, process temperature ≤ 350°C<br />
[205R]: Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[R]: Range (water 20 °C, 1 mPas), H2O: 600 - 6000 l/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[A]: Damping/spring stop, Spring stop<br />
[0]: Self-draining, without<br />
[1]: Certificates, Certificate of compliance with the order 2.1<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media), <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Ultrasonic-Counter/Dosing-DUK<br />
Model: DUK-12-N9H-E14R-L<br />
Brand: Kobold (Alemania)</strong><br />
[DUK-12]:<br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. Temperature 90 °C / 16 bar.<br />
Protection IP 65<br />
Seal NBR<br />
Sensor Housing St. St.<br />
[N9H]:Measuring range/connection, 1…250 L/min, 2 NPT female<br />
[E14R]: Evaluation electronic for DUK, Counter electronic, 4-20 mA, 24 VDC, 1 m cable connection<br />
[L]: Flow direction from left to right

Variable Area Flowmeter/-switch<br />
Model: DSV-12-05H-00-N15<br />
Brand: Kobold<br />
[DSV-12]:<br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from bottom<br />
Fitting material: st.st.<br />
Sight glass: Borosilicate<br />
Accuracy: ±4 % FS<br />
Max. temperature: 100 °C (metal-float)<br />
Max. pressure: 10 bar<br />
[05H]: Measuring range :2...18 L/min water<br />
[00]: Contact w/o<br />
[N15]: Connection measuring range: 1/2 NPT female (up to 18 L/min)

Compact Magneto-Inductive Flowmeter<br />
Model: MIK-6FC-U4-A-L443<br />
Brand: Kobold USA<br />
[MIK-6FC]<br />
Measurement Process: Electromagnetic<br />
Mounting Position: Universal, Flow in Direction of the Arrow<br />
Ambient Temperature: 14 ... 140 °F<br />
Max. Pressure: 145 psi<br />
Protection, IP 65<br />
PVDF-housing,<br />
FFKM-seal,<br />
Hastelloy- electrode<br />
[U4]: Measuring Range, Native, Process Connection, 0.13...2.6 GPM, G ¾<br />
[A]:  Optional Fitting Set, without<br />
[L443]: Output/Electronics, DIN-plug, 4 - 20 mA

Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: TUR-20-25-C34P<br />
[TUR-20]:<br />
Operating principle, Turbine Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Material, PVC<br />
Max. temperature,60 °C<br />
Max. pressure, PN 10<br />
Accuracy, +-1% FS<br />
Protection, Protection IP 65<br />
[25]: Connection / Measuring range, NW 25 / 0,2...5 m³/h water<br />
[C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP

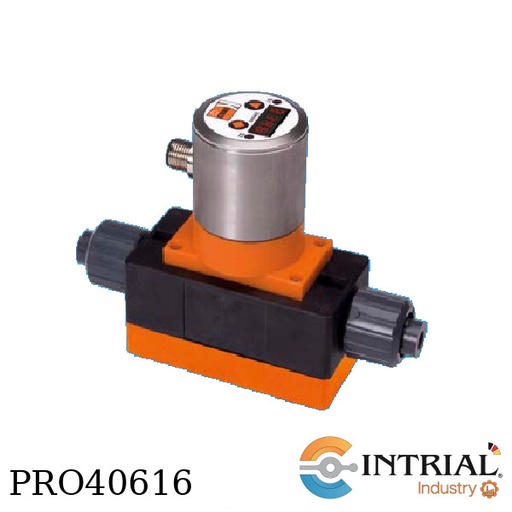

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIK-5VA-55-A-C34P</strong><br />
[MIK-5VA]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[55]: Measuring range (liquid >30 μS/cm), 5...100 L/min G 1½ male<br />
[A]: Connection set, without <br />
[C34P]: Evaluation electronic for MIK, Compact electronic, 24 VDC, 4-20 mA, 1x PNP

<strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-12-N8H-C34P-L</strong><br />
[DUK-12]<br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar<br />
Protection IP 65<br />
Seal NBR<br />
Sensor Housing St. st.<br />
[N8H] Measuring range/connection, 0,6…150 L/min 1½ NPT female<br />
[C34P] Evaluation electronic for DUK, <br />
Compact electronic, 24 VDC, 4-20 mA, 1x PNP<br />
[L] Flow direction, from left to right

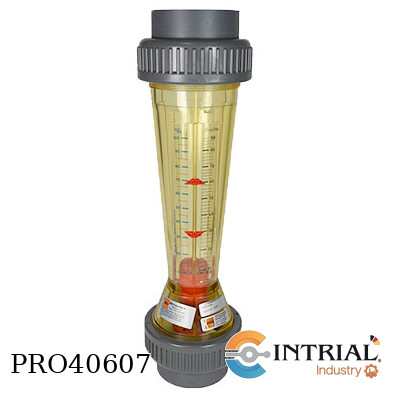

<strong>Plastic Flowmeter-switch<br />
Brand: Kobold<br />
Model: KSM-1-120-M-P25-R0</strong><br />
[KSM-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[120] Measuring range: 1200...12000 L/h water<br />
[M] either scales for liquid media, L/min water<br />
[P25] Option connection, PVC G 1 female<br />
[R0] Option contact: w/o contact

Plastic Flowmeter-switch<br />
Brand: Kobold<br />
Model: KSM-1-030-M-P25-R0<br />
[KSM-1]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[030] Measuring range: 300...3000 L/h water<br />
[M] either scales for liquid media, L/min water<br />
[P25] Option connection, PVC G 1 female<br />
[R0] Option contact: w/o contact

<strong>Variable Area Flowmeter-Plastic KSM<br />
Model: KSM-1-020-M-P25-R0<br />
Brand: Kobold - Alemania</strong><br />
[KSM-1] <br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Trogamide<br />
Accuracy, ±4 % FS<br />
Max. temperature, 60 °C<br />
Max. pressure, 16 bar<br />
[020] Measuring range: 200...2000 L/h water<br />
[M] either scales for liquid media, L/min water<br />
[P25] connection for size 020, PVC G 1 female<br />
[R0] Option contact: w/o contact

Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-11-30-NB-E34R<br />
[DPE-11]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: Brass casting<br />
Material Axis. Hard metal<br />
[30]: Measuring range, 50-750 L/min<br />
[NB]: Mech. connection, 3 NPT female<br />
[E34R]: ZED-evaluating electronics<br />
Counter electronic, supply 24 VDC, 0(4)-20 mA, 2 SPDT

<strong>Battery Powered Rate Meter and Totalizer for Water <br />
Model: EDM-8503-N<br />
Brand: Kobold USA</strong><br />
Specifications:<br />
Accuracy: ±3% of reading<br />
Max. Pressure: 225 PSIG @ 73 °F<br />
Oper. Temp. Range: 32...140 °<br />
[EDM-8503]<br />
Range (Water): LPM 18.9...189<br />
Fitting Size (NPT): 1 " <br />
dP at Max. Flow(PSI): 5.0<br />
Body: PVC<br />
[N] Fitting Style: Female NPT

Battery Powered Rate Meter and Totalizer for Water<br />
Model: EDM-8502-N<br />
Brand: Kobold USA<br />
Specifications:<br />
Accuracy: ±3% of reading<br />
Max. Pressure: 225 PSIG @ 73 °F<br />
Oper. Temp. Range: 32...140 °<br />
[EDM-8502]<br />
Range (Water): LPM 7.6...76<br />
Fitting Size (NPT): 3/4 "<br />
dP at Max. Flow(PSI): 8.0<br />
Body: PVC<br />
[N] Fitting Style: Female NPT

<strong>All-Metal Variable Area Flowmeter <br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S25-203R-N-0-0-0-0-S-2-D-0-H </strong><br />
[BGN]: Model <br />
[S25]: Stainless Steel, process temperature  ≤ 350°C <br />
[203R]: Connection, 1" Class 150 RF ASME B16.5-2003 <br />
[N]: Range (water 20°C, 1 mPas) H2O: 0.04 – 0.44 L/s<br />
[0]: Heating/cooling: without heating / Cooling <br />
[0]: Damping/spring stop, without <br />
[0]: Self draining: without<br />
[0]: Certificates: without<br />
[S]: Display: <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2] Scale: Measuring range-Scale (Water)<br />
[D] Switches, 2 x microswitch<br />
[0]: Accesories: without<br />
[H]: Design: Heinrichs

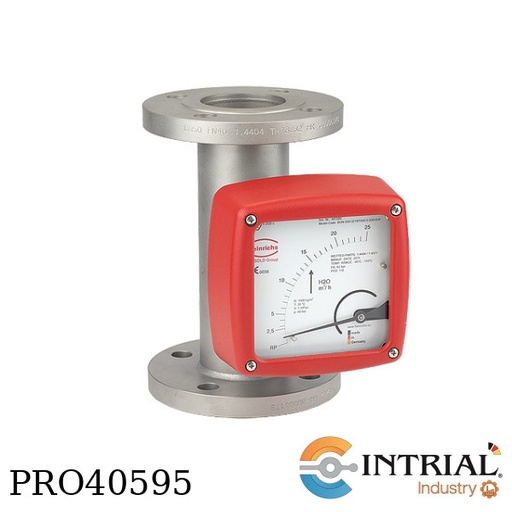

<strong>All-Metal Variable Area Flowmeter <br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S50-206R-S-0-0-0-0-S-2-D-0-H </strong><br />
[BGN]: Model <br />
[S50]: Stainless Steel, process temperature ≤ 350°C <br />
[206R]: Connection, 2" Class 150 RF ASME B16.5-2003<br />
[S]: Range (water 20°C, 1 mPas) H2O: 0.3 – 2.8 L/s<br />
[0]: Heating / cooling: without heating / Cooling <br />
[0]: Damping / spring stop, without <br />
[0]: Self draining: without<br />
[0]: Certificates: without<br />
[S]: Display: <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2] Scale: Measuring range-Scale (Water)<br />
[D] Switches, 2 x microswitch<br />
[0]: Accesories: without<br />
[H]: Design: Heinrichs

<strong>All-Metal Variable Area Flowmeter <br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S25-203R-Q-0-0-0-0-S-2-D-0-H</strong><br />
[BGN]: Model <br />
[S25]: Stainless Steel, process temperature ≤ 350°C <br />
[203R]: Connection, 1" Class 150 RF ASME B16.5-2003 <br />
[Q]: Range (water 20°C, 1 mPas) H2O: 0.1 – 1.1 L/s<br />
[0]: Heating/cooling: without heating/Cooling <br />
[0]: Damping/spring stop, without <br />
[0]: Self-draining: without<br />
[0]: Certificates: without<br />
[S]: Display: <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2] Scale: Measuring range-Scale (Water)<br />
[D] Switches, 2 x microswitch<br />
[0]: Accessories: without<br />
[H]: Design: Heinrichs

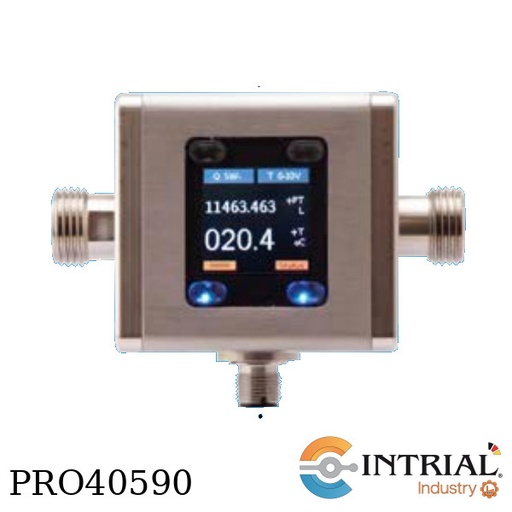

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-05HG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part, st. steel 1.4404 / PEEK<br />
[05HG4]: Measuring range (flow/temperature), 0,04…10 l/min G ½ male<br />
[C3T]: Evaluation electronic: <br />
Analogue output: 0(4)-20 mA, 0-10 V, <br />
Switching output NPN, PNP, PushPull, <br />
Frequency output, pulse output, <br />
Part- or grand totaliser.<br />
[0]: Options, without
