MASS FLOWMETER<br />
Model: TME-S-95-206R-0-L-1-0-0-0-H/UMC4-B-1-1-A-0-0<br />
Marca: Heinrichs-Kobold<br />
TME:<br />
Accuracy: +/-0.15% of actual flow<br />
Temperature: -20°C t 100°C<br />
Pressure: 40 bar<br />
S: Wetted materials, Stainless Steel<br />
95: Range, min. 0-3.000 kg/h - max. 0-30.000 kg/h (SENSOR TME025)<br />
206R: Process connection, 2" Class 150 RF ASME B16.5-2003<br />
0: Heating Cooling, without<br />
L: Flow direction, Left to right<br />
1: Sensor configuration, Integral mount transmitter<br />
0: Approvals, without approval<br />
0: Certificate, without<br />
0: Supplementary equipment, without<br />
H: Design, Heinrichs<br />
[UCMC4] Transmitter IP65,<br />
[B] Mounting of transmitter, integral mount<br />
[1] Display/Interface board, integrated in transmitter housing, max.60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Outputs,<br />
Analog output 1: 4-20 mA with HART®,<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, without<br />
[0] Type of protection (signal output), none<br />
Datasheet: http://www.heinrichs.eu/uploads/tx_rsbproductdownload/tme_umc4_gb_en.pdf

MASS FLOWMETER<br />
Modelo: TME-S-58-208R-0-L-1-0-0-0-H/UMC4-B-1-1-A-0-0<br />
Marca: Kobold - Heinrichs<br />
TME:<br />
Accuracy: +/-0.15% of actual flow<br />
Temperature: -20°C t 100°C<br />
Pressure: 40 bar<br />
S: Stainless Steel<br />
58: min. 0-6.000 kg/h - max. 0-60.000 kg/h (SENSOR TME080)<br />
208R: 3" Class 150 RF ASME B16.5-2003<br />
0: Heating Cooling, without<br />
L: Flow direction, Left to right<br />
1: Sensor configuration, Integral mount transmitter<br />
0:   Approvals,  without approval<br />
0: Certificate,  without<br />
0: Supplementary equipment,  without<br />
[UCMC4] Transmitter IP65, Aluminium painted, display cover out of safety class<br />
[B] Mounting of transmitter, integrated, M 20x1,5<br />
[1] Display/Interface board, integrated in transmitter housing, max.60°C<br />
[1] Power supply, 90 - 265V AC, 50/60Hz<br />
[A] Output, 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive<br />
[0] Approvals, without<br />
[0] Type of protection (signal output), none

Coriolis-Mass Flow Meter<br />
Model code Sensor: TME-S-85-305B-0-L-1-0-2-0<br />
Model code Transmitter: UMC4-B-1-1-A-0-0<br />
*********************************************<br />
Fluid: TERMIN 8<br />
*********************************************<br />
***Process conditions:<br />
Flow rate [kg/min]: 0,2 - 14,3<br />
Density [kg/m3]: 1070<br />
Viscosity [cP]: 3,03<br />
Fluid temperature [°C]: 20<br />
Line Pressure [bar g]: 2,86<br />
***Sensor Information:<br />
TME-S-85<br />
Range min/max: 0-120 kg/h - 0-2.500 kg/h<br />
Pressure rating: 40 bar<br />
Ingress protection Sensor: IP65 (EN60529)<br />
305B<br />
Process connection: DN15 PN40 Form B1 DIN EN 1092-1<br />
Installation Length: 300 mm<br />
0: Heating/cooling: without<br />
L: Flow direction: Left to Right<br />
1: Sensor configuration: Integral mount, Temperature service rating: -20 to 100°C<br />
0: Approvals: without approval<br />
2: Test report, 2.2<br />
***Transmitter:<br />
Type: UMC4<br />
B: Mounting: Integral mount, Conduit port opening: M20x1, 5<br />
1: Display/Interface board: Integral within transmitter housing<br />
1: Power supply: 90-265V AC, 50/60Hz<br />
A:<br />
Analog output 1: 4-20 mA With HART®-protocol: Mass flow<br />
Analog output 2: 4-20 mA: Mass flow, temperature, Volume flow<br />
Pulse output 1: ...Imp/kg passive<br />
Status output 2: passive: Forward and backward flow, Alarm, MIN/MAX flow, MIN/MAX, density, MIN/MAX temperature.<br />
0: Approval: none<br />
0: Type of protection (signal output), none<br />
***Performance Characteristics:<br />
Accuracy: ± 0, 15% of actual flow<br />
+ zero-point-stability<br />
Repeatability: ± 0,075% of actual flow<br />
Pressure loss: 0,35bar at flow 16, 5 kg/min<br />
Datasheet:<br />
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/tme_umc4_db_en.pdf

Coriolis-Mass Flow Meter<br />
Model code Sensor: TME-S-90-309B-0-L-1-0-2-0<br />
Model code Transmitter: UMC4-B-1-1-A-0-0<br />
*********************************************<br />
Fluid: ALIMET (SAN FERNANDO - AREQUIPA)<br />
*********************************************<br />
***Process conditions:<br />
Flow rate [kg/min]: 2 - 16, 5<br />
Density [kg/m3]: 1214<br />
Viscosity [cP]: 127<br />
Fluid temperature [°C]: 20<br />
Line Pressure [bar g]: 5, 31<br />
***Sensor Information:<br />
TME-S-90<br />
Range min/max: 0-600 /0-12000 kg/h<br />
Pressure rating: 40 bar<br />
Ingress protection Sensor: IP65 (EN60529)<br />
309B<br />
Process connection: DN25 PN40 Form B1 DIN/EN1092<br />
Installation Length: 400 mm<br />
0: Heating/cooling: without<br />
L: Flow direction: Left to Right<br />
1: Sensor configuration: Integral mount, Temperature service rating: -20 to 100°C<br />
0: Approvals: without approval<br />
2: Test report, 2.2<br />
***Transmitter:<br />
Type: UMC4<br />
B: Mounting: Integral mount, Conduit port opening: M20x1, 5<br />
1: Display/Interface board: Integral within transmitter housing<br />
1: Power supply: 90-265V AC, 50/60Hz<br />
A:<br />
Analog output 1: 4-20 mA With HART®-protocol: Mass flow<br />
Analog output 2: 4-20 mA: Mass flow, temperature, Volume flow<br />
Pulse output 1: ...Imp/kg passive<br />
Status output 2: passive: Forward and backward flow, Alarm, MIN/MAX flow, MIN/MAX, density, MIN/MAX temperature.<br />
0: Approval: none<br />
0: Type of protection (signal output), none<br />
***Performance Characteristics:<br />
Accuracy: ± 0, 15% of actual flow<br />
+ zero-point-stability<br />
Repeatability: ± 0,075% of actual flow<br />
Pressure loss: 0,35bar at flow 16, 5 kg/min<br />
Datasheet:<br />
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/tme_umc4_db_en.pdf

Calorimetric Flowswitch, Compact Version<br />
MODELO: KAL-KH5-4-20-S-PG3<br />
[KAL-KH5] <br />
Operating principle: Calorimetric <br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
Max. temperature: 80 °C (120 °C for KAL-KH)<br />
Max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
[4] Probe material: st.st. 1.4571<br />
[20] Connection: 3/4"<br />
[S] Output: N/O <br />
[PG3] Electron. Connection: M 16x1,5 PNP/NPN 24 VDC<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_kal-k.pdf

Magnetic inductive flowmeter<br />
EP-H-212R-1-SS-2-0/UMF2-C-1-2-G-0BK-5 (670 m3/h)<br />
Brand: Kobold-Heinrichs<br />
H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br />
212R:<br />
Process Connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 670 m³/h<br />
1: Material flanges, steel (painted)<br />
SS: Material electrodes, Stainless steel incl. grounding electrode<br />
2: Transmitter mounting, remote transmitter (IP67, junction box via M20 x 1,5)<br />
0: Approvals, without<br />
UMF2<br />
C:<br />
Mounting, remote transmitter<br />
Connection to sensor, incl. 2,5m cable and wall mounting bracket<br />
Thread - Electrical connection, cable >10m c/w term.conn box on transmitter - ½" NPT (f)<br />
1: Display and control unit, integrated<br />
2: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
G: Output:<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
0BH: Design, Heinrichs<br />
5: Extended cable length, 30 m (add. Junction box on transmitter)<br />
Datasheet:<br />
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf<br /><br />


<strong>Low Volume Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSK-1-100-H-K16-00</strong><br />
[KSK-1]<br />
Operation principle variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
[100]:Measuring range, 10...100 L/h water<br />
[H]: Scale, L/h waterscale<br />
[K16]: Connection for size, PVC-glue connection o.d. 16 (standard)<br />
[00]: Option contact, w/o

<strong>Low Volume Flowmeter/-switch<br />
Model: KSK-1-200-H-K20-00<br />
Brand: Kobold</strong><br />
[KSK-1]:<br />
Operation principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
[200]: Measuring range, 30...200 L/h water  <br />
[H]: Scale, L/h waterscale<br />
[K20]: Connection for size 80, 150, 200 L/h water,<br />
PVC-glue connection o.d. 20 (standard) <br />
[00]: Option contact w/o

Model: KSK-1-500-H-K32-00<br />
Plastic Flowmeter and Switch KSK<br />
KSK-1:<br />
Operation principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Material, Trogamide<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
500: 50...500 L/h water<br />
H: Measuring range, L/h waterscale<br />
K32: PVC-glue connection o.d. 32 (standard)

EP-H-210R-1-SS-1-0/UMF2-A-1-4-F-0BK<br />
Magnetic inductive flowmeter<br />
Brand: Kobold-Heinrichs<br />
H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br />
210R:<br />
Process Connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 288 m³/h<br />
1: Material flanges, steel (painted)<br />
SS: Material electrodes, Stainless steel incl. grounding electrode<br />
1: Transmitter mounting, integrated transmitter (Protection class sensor, IP67)<br />
0: Approvals, without<br />
UMF2<br />
A:<br />
Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
1: Display and control unit, integrated<br />
4: Power supply, 24V DC (±15%)<br />
F: Output:<br />
current output 1: 0(4) - 20mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
0BK: Design, Kobold<br />
Datasheet:<br />
http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf

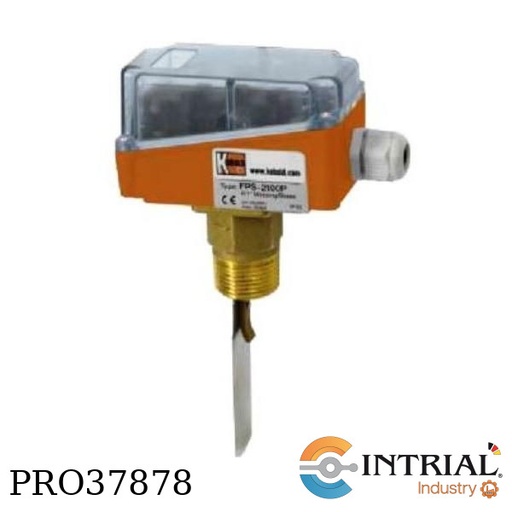

Paddle Flow Switch<br />
Brand: Kobold(Alemania)<br />
Model: FPS-2-1-00P<br />
[FPS]:<br />
Operating principle, paddle bellow<br />
Mounting position paddle, all directions<br />
Bellow, bronze<br />
Output/SPDT, microswitch<br />
Connection, screw-in<br />
material, brass<br />
Max.temperature, 120 °C<br />
Max.pressure, 11 bar<br />
[2]: Connection, c/w R 1 thread, standard<br />
[1]: Material, brass<br />
[00P]: Design, Standard switching range

MODELO: DPL-1-E-25-S4-L443<br />
Low Volume Vane Flowmeter<br />
Operating principle Rotating vane<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Polypropylene<br />
max. temperature 70 °C<br />
max. pressure 10 bar<br />
Accuracy +-2,5(5,0)% of FS<br />
Protection IP 65<br />
DPL-1: Version: Standard<br />
E: Seal: EPDM<br />
25: Measuring range: 1...25 L/min water<br />
S4: Mech. Connection: Hose connection<br />
L4: Electronic: Analogue output4-20mA, DIN-plug, 3-wire<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dpl.pdf

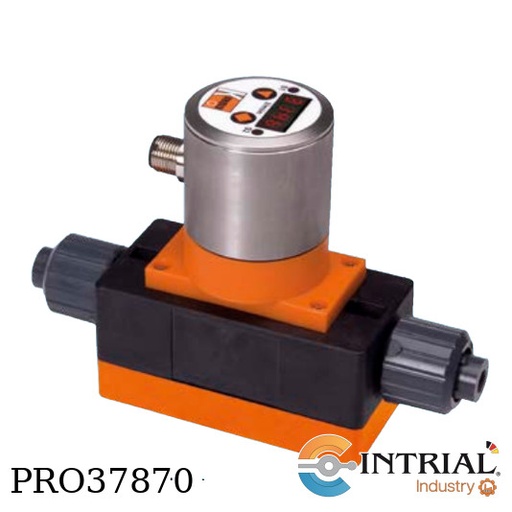

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-35-A-L343<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy <br />
Seal FFKM <br />
[35]: Measuring range (liquid >30 µS/cm), 2,5...50 L/min G 1 male <br />
[A]: Connection set, without<br />
[L343]. Evaluation electronic for MIK, Analogue output 24 VDC, <br />
4-20 mA, plug M12, 3-wire

DON-1-25H-N6-4-Z3-N-0<br />
Oval Wheel Flowmeter Model DON<br />
Model: DON-1<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
25H: Measuring range, 10-150 L/min<br />
N6: Mech. connection, 1" NPT<br />
4: Seal, NBR<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf

Oval Wheel Flowmeter DON<br />
Model: DON-250H-NB-1-Z3-N-0-Y<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
50H: Measuring range, 50-1000 L/min<br />
NB: Mech. connection, 3" NPT<br />
1: Seal, FKM<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without<br />
Y: Wiring diagram with Hall sensor (recommended in connection with external supply)

Oval Wheel Flowmeter DON<br />
Model: DON-230H-N8-1-Z3-N-0-Y<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
30H: Measuring range, 15-250 L/min<br />
N8: Mech. connection, 1 1/2" NPT<br />
1: Seal, FKM<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without<br />
Y: Wiring diagram with Hall sensor (recommended in connection with external supply)<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf

Oval Gear Flow Meter/Counter. Range 10-150 L/min. Accuracy: ±0,2 % …1 % of reading. Electronic, dual LCD totaliser/rate, outputs: pulse, analogue. Connection, 1" NPT. Housing material: st. steel. Max. temp: 120 °C. Pressure, 16…100 bar<br /><br />
Oval Wheel Flowmeter DON<br />
Model: DON-225H-N6-1-Z3-N-0-Y<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
25H: Measuring range, 10-150 L/min<br />
N6: Mech. connection, 1" NPT<br />
1: Seal, FKM<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without<br />
Y: Wiring diagram with Hall sensor (recommended in connection with external supply)<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf

<div>Variable Area Flowmeter-Low Volume KDG<br />
Model: KDG-9290-N-V-0-00-0<br />
KDG-92:<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
90: Measuring range, 12...120 L/h air<br />
N: Connection, 1/4 NPT<br />
V: Seal, FPM<br />
0: wall mounting kit, w/o<br />
00: Contacts measuring range, w/o<br />
0: Flow differential pressure regulator, w/o<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kdf-kdg-9.pdf</div>

Oval Wheel Flowmeter DON<br />
Model: DON-225H-A9-4-Z3-N-0<br />
Marca: Kobold (Alemania)<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16…100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
25H: Measuring range, 10-150 L/min<br />
A6: Mech. connection, ANSI flange 1" 150 lbs<br />
4: Seal, NBR<br />
Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
N: Cable entry, 1/2 NPT<br />
0: Accessory, without<br />
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf

<strong>KES-3023-K-D-3-4-B-K<br />
Mass Flowmeter-Thermal KES</strong><br />
Function principle, Direct thermal flow<br />
Mounting position, all directions<br />
Version, inserting version<br />
Output, Analogue/contact<br />
Max. temperature, 175°C<br />
Max. pressure, 8 bar<br />
Sensor material, St.st. (316SS)<br />
023: mounting length/connection, 23 cm<br />
K: electronic version, Compact version<br />
D: Display, LCD-display, backlight, 2x12 digit<br />
3: Power supply, 18-30 VDC<br />
4: Analogue output, 4-20 mA<br />
B: real gas calibration, Digester gas*, Methane, Propane (* 60% Methane, 40% Carbon Dioxide)<br />
K: Corelation calibration with air, Digester gas*, Methane, Oygen, Propane (* 60% Methane, 40% Carbon Dioxide)
