Magnetic Inductive Flowmeter EP/UMF2 (1896m3/h),Process Connection, 1½" Class 150 RF ASME B16.5-2003 EP-H-205R-1-SS-1-1/UMF2-A-1-1-F-0BK<br /> Magnetic inductive flowmeter<br /> Brand: Kobold-Heinrichs<br /> H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br /> 205R: <br /> Process Connection, 1½" Class 150 RF ASME B16.5-2003<br /> Max. measuring range (Water 20°C, 1 mPas), 38 m³/h<br /> 1: Material flanges, steel (painted)<br /> SS: Material electrodes, Stainless steel incl. grounding electrode<br /> 1: Transmitter mounting, integrated transmitter (Protection class sensor, IP67)<br /> 1: Approvals, certificate of compliance with order 2.1<br /> UMF2<br /> A: <br /> Mounting, integrated transmitter IP67 standard<br /> Electrical connection, ½" NPT (f)<br /> 1: Display and control unit, integrated<br /> 1: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> F: Output:<br /> current output 1: 0(4) - 20mA<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> 0BK: Design, Kobold<br /> Datasheet:<br /> http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf S/ 6,950.77 6950.77 PEN	Magnetic Inductive Flowmeter EP/UMF2 (1896m3/h) EP-H-321B-1-SS-1-0/UMF2-A-1-1-G-0BK<br /> Magnetic inductive flowmeter<br /> Brand: Kobold-Heinrichs<br /> H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br /> 321B:<br /> Process Connection,DN50 PN40 Form B1 DIN EN 1092-1<br /> Max. measuring range (Water 20°C, 1 mPas), 62.4 m³/h<br /> 1: Material flanges, steel (painted)<br /> SS: Material electrodes, Stainless steel incl. grounding electrode<br /> 1: Transmitter mounting, integrated transmitter (Protection class sensor, IP67)<br /> 0: Approvals, without<br /> UMF2<br /> A:<br /> Mounting, integrated transmitter IP67 standard<br /> Electrical connection, ½" NPT (f)<br /> 1: Display and control unit, integrated<br /> 1: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> G: Output:<br /> current output 1: 0(4) - 20mA with HART-protocol<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> 0BK: Design, Kobold<br /> Datasheet:<br /> http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf S/ 6,999.06 6999.06 PEN	Magnetic inductive flowmeter. Max. Range (Water 20°C, 1 mPas), 163 m³/h. Connection, ½" NPT (f). Out Magnetic inductive flowmeter<br /> EP-H-330B-1-SS-1-0/UMF2-A-1-1-G-0BK<br /> Brand: Kobold-Heinrichs<br /> H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br /> 330B:<br /> Process Connection, DN80 PN16 Form B1 DIN EN 1092-1<br /> Max. measuring range (Water 20°C, 1 mPas), 163 m³/h<br /> 1: Material flanges, steel (painted)<br /> SS: Material electrodes, Stainless steel incl. grounding electrode<br /> 1: Transmitter mounting, integrated transmitter (Protection class sensor, IP67)<br /> 0: Approvals, without<br /> UMF2<br /> A:<br /> Mounting, integrated transmitter IP67 standard<br /> Electrical connection, ½" NPT (f)<br /> 1: Display and control unit, integrated<br /> 1: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> G: Output:<br /> current output 1: 0(4) - 20mA with HART-protocol<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> 0BK: Design, Kobold<br /> Datasheet:<br /> http://www.heinrichs.eu/uploads/tx_rsbproductdownload/ep_umf2b_db_en.pdf<br /><br /><br /><br /> S/ 7,073.36 7073.360000000001 PEN	Oval Wheel Flowmeter Model DON Model: DON-1-45H-FB-4-Z3-N-0<br /> Marca: Kobold (Alemania)<br /> Operating principle, Gear Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> max. temperature, 80°C <br /> max. pressure, 40 bar<br /> Accuracy, ±0,5 % of reading<br /> Housing material, Aluminium<br /> Rotor material, PPS<br /> 45H: Measuring range, 35-750 L/min (2.1 - 45 m3/h)<br /> N8: Mech. connection, DIN flange DN 80, PN 16<br /> 4: Seal, NBR<br /> Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br /> N: Cable entry, 1/2 NPT<br /> 0: Accessory, without<br /> Datasheet:http://www.kobold.com/uploads/files/s4gb_don.pdf S/ 9,064.60 9064.6 PEN
Flujómetro de rueda ovalada (15-250 L/min) Oval Wheel Flowmeter Model DON<br /> Model: DON-1-30H-N8-4-Z3-N-0<br /> Marca: Kobold (Alemania)<br /> Operating principle, Gear Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> max. temperature, 80°C <br /> max. pressure, 40 bar<br /> Accuracy, ±0,5 % of reading<br /> Housing material, Aluminium<br /> Rotor material, PPS<br /> 30H: Measuring range, 15-250 L/min (0.9 - 15 M3/H)<br /> N8: Mech. connection, 1-1/2" NPT<br /> 4: Seal, NBR<br /> Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br /> N: Cable entry, 1/2 NPT<br /> 0: Accessory, without S/ 5,483.34 5483.34 PEN	Oval Gear Flow Meter/Counter, 10 a 150 l/min, 1 NPT, ALU Oval Gear Flow Meter/Counter<br /> Brand: Kobold (Alemania)<br /> Model: DON-1-25H-N6-1-M4-0-0<br /> [DON-1]:<br /> Operating principle Gear Wheel<br /> Mounting position horizontal / vertical<br /> Flow direction in direction of the arrow<br /> max. temperature 80 °C<br /> max. pressure 40 Bar<br /> Accuracy ±0,2 % …1 % of reading <br /> Housing material Aluminium<br /> Rotor material PPS<br /> [25H]: Measuring range, 10-150 L/min<br /> [N6]: Mech. Connection, for meas. range 25H, NPT 1”<br /> [1]: Seal, FKM up to DON-x25<br /> [M4]: Electronic, mech. totaliser 4-digit (not for DON-x05, -x10, -x15)<br /> [0]: Cable entry, without (only for mechanical totaliser "M4")<br /> [0]: Options (please specify in clear text), without S/ 3,983.33 3983.33 PEN	Oval Wheel Flowmeter Model DON, Measuring range, 30-450 L/min (1.8 - 27 M3/H) Oval Wheel Flowmeter Model DON<br /> Model: DON-1-35H-F9-4-M4-0-0<br /> Marca: Kobold (Alemania)<br /> Operating principle, Gear Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> max. temperature, 80°C<br /> max. pressure, 40 bar<br /> Accuracy, ± 1 % of reading<br /> Housing material, Aluminium<br /> Rotor material, PPS<br /> 35H: Measuring range, 30-450 L/min (1.8 - 27 M3/H)<br /> F9: Mech. connection, DIN flange DN 50, PN 16<br /> 4: Seal, NBR<br /> M4: Mech. totaliser 4-digit<br /> 0: Cable entry, without<br /> 0: Accessory, without S/ 7,192.24 7192.24 PEN	Bypass-Level Indicators with glass tube. Installation length 800 mm. Connection flange ANSI 2" 150 l Bypass-Level Indicators with glass tube<br /> MODEL: SZM-K-1-1-A9-S1-2 (800 mm)<br /> BRAND: KOBOLD<br /> [SZM-S] Bypass-Level Indicators with glass tube<br /> Bypass- tube: Borosilicate glass<br /> O-ring: FPM<br /> Protecting tube: st. steel 1.4301<br /> Connection: st. steel 1.4301<br /> Max. temperature: 100 °C<br /> Max. pressure 10 bar<br /> Installation length: 800 mm<br /> [1] Version (top/bottom): top: cleaning hole, bottom: outlet screw<br /> [1] Valves: 2 shut off valves in connection<br /> [A9] Connection: loose flange ANSI B16.5 2" 150 lbs<br /> [S1] Scale: sidewise Alu-scale (with plastic-foil (2 mm- division)<br /> Length of scale: 700 mm<br /> [2] Limit switch: 2 capacitive sensors<br /> Datasheet:<br /> http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_szm.pdf S/ 7,155.09 7155.09 PEN

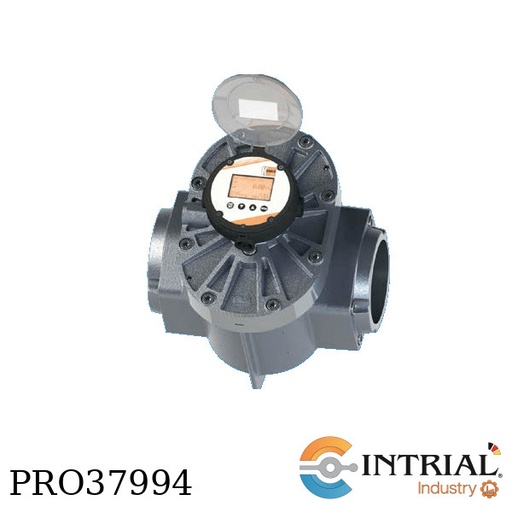

Oval Wheel Flowmeter Model DON DON-1-30H-F8-4-Z3-N-0<br /> Oval Wheel Flowmeter Model DON<br /> Model: DON-1<br /> Operating principle, Gear Wheel<br /> Mounting position, horizontal / vertical<br /> Flow direction, in direction of the arrow<br /> max. temperature, 120°C (80°C for electronic Z,L,M)<br /> max. pressure, 16...64 bar<br /> Accuracy, ±0,2 % …1 % of reading<br /> Housing material, Aluminium<br /> Rotor material, PPS<br /> 30H: Measuring range, 15-250 L/min<br /> F8: Mech. connection, DIN flange DN 40, PN 16/40<br /> 4: Seal, NBR<br /> Z3: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br /> N: Cable entry, 1/2 NPT<br /> 0: Accessory, without<br /> http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_don.pdf S/ 5,895.71 5895.71 PEN	Contacto para flujometro KSM, repuesto. contacts for KSM S/ 787.58 787.58 PEN	Rotating Vane-Low Volume-Dosing Electronic, Range:0.2 to 2.5 L/min.Connection: G 3/8. Output: pulse, Rotating Vane-Low Volume-Dosing Electronic DF<br /> Modelo: DF-25-E-R10-IHO-3K<br /> Range:0.2 to 2.5 L/min.<br /> Accurasy: 2.5 % f.s.<br /> Connection: G 3/8.<br /> Electrical connection: cable, 80 mm.<br /> Output: pulse, NPN, max. 15 mA.<br /> Power supply: 5 to 24 VDC.<br /> Material: Stainless steel.<br /> S/ 0.00 0.0 PEN	Paddle Switch PSR , 2,3-4,7 L/min...47,6-67,2 L/min water Connection: G ¼... G 1 ½, ¼...1 ½ NPT Paddle Switch PSR<br /> Model: PSR-40_DM<br /> Switching range:<br /> 2,3-4,7 L/min...47,6-67,2 L/min water<br /> Connection: G ¼... G 1 ½, ¼...1 ½ NPT<br /> Material: brass, st. st.<br /> Max. pressure: 100 bar<br /> Max. temperature: 110 °C<br /> Reed contact<br /><br /> Modelo DEMO S/ 0.00 0.0 PEN
Indicador de flujo con el rotor DKF <strong>Flowindicator for Horizontal Mounting<br /> Model: DKF-11-02H-N-08<br /> Brand: Kobold (Alemania)</strong><br /> [DKF]:<br /> Operating principle Rotating vane<br /> Mounting position horizontal<br /> Flow direction in direction of the arrow<br /> Housing material, brass<br /> max. temperature 120 °C<br /> max. pressure 6 bar<br /> [11] Material (rotating vane or ball), POM<br /> [02H] Nom. diameter/ind. Range, 1/4" 0,25...7 L/min water<br /> [N] NPT-thread female<br /> [08]: Connection*: 1/4" S/ 661.27 661.27 PEN	Variable Area Flowmeter, 0,25 - 1,25 L/min, G 1/4 Variable Area Flowmeter DSV<br /> Modelo: DVS<br /> Measuring -/switching range: 0,25 - 1,25 L/min ...<br /> 10 - 130 l /min water<br /> Connection: G ¼ - G 1 ¼ , ¼ - 1 ¼ NPT female<br /> Material: brass, st. st.<br /> Max. pressure: 10 bar<br /> Max. temperature: 100 °C<br /> Accuracy: ± 5% FS S/ 0.00 0.0 PEN	Flujómetro/interruptor de plástico de viscosidad compensada (5-50 L/min water) Viscosity Compensated Plastic Flowmeter/-switch<br /> Brand: Kobold (Alemania)<br /> Model: VKP-1-050-R25-S<br /> [VKP-1]:<br /> Operating principle variable area<br /> Mounting position vertical or horizontal<br /> Flow direction all directions<br /> Material Polysulfone<br /> Accuracy ±5 % FS <br /> Max. temperature 120 °C*<br /> Max. pressure 16 bar<br /> [050]: Measuring range, 5...50 L/min water <br /> [R25]: Connection, G 1 male (Standard) <br /> [S]: Contact N/O S/ 1,058.78 1058.78 PEN	Oval Gear Flowmeter,Connection, G 1/4 ,Max. temperature 80 °C Oval Gear Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: OVZ-04-3-G2-V-C34P<br /> [OVZ-04]:<br /> Operating principle Oval Gear<br /> Mounting position horizontal / vertical<br /> Measuring range by 10-100 mm²/s, 0,4-10 L/min <br /> Max. temperature 80 °C<br /> Accuracy +-2,5% FS<br /> Protection IP 65<br /> [3]: Body material / cover / max. pressure, Aluminium / PMMA / PN 16 <br /> [G2]: Connection, G 1/4 <br /> [V]: Seals, FPM <br /> [C34P]: Electronic, Compact electronics, 4-20 mA, 1x PNP, S/ 0.00 0.0 PEN
Medidor de flujo ultrasónico con abrazadera para el transmisor (2-30 m/s) <strong>Transducer Clamp-on Ultrasonic Flow Meter<br /> DUC-WF-10-0-05<br /> Brand: Kobold (Alemania)</strong><br /> [DUC-WF]: <br /> Application area for: stationary<br /> flow velocity: 0..2 m/s, 2-30 m/s<br /> Temperature range: -40..+150 °C<br /> Sensor Housing: PEEK/aluminium<br /> Protection: IP 68 (for stationary transducer)<br /> Included Accessories: Mounting rail, coupling foil, steel strap<br /> [10] for tube diameter: DN32..DN400, 1 MHz<br /> [0] Ex-approval: without<br /> [05] Cable length: 5 m S/ 3,752.15 3752.15 PEN	Bypass-Level Indicators with glass tube SZM Bypass-Level Indicators with glass tube<br /> MODEL: SZM-K-5-1-G4-00-0 (1500 mm)<br /> BRAND: KOBOLD<br /> [SZM-S] Bypass-Level Indicators with glass tube<br /> Bypass- tube: Borosilicate glass<br /> O-ring: FPM<br /> Protecting tube: st. steel 1.4404<br /> Connection: st. steel 1.4404<br /> Max. temperature: 100 °C<br /> Max. pressure 10 bar<br /> Installation length: 1500 mm<br /> [5] Version (top/bottom): top: cleaning hole, bottom: drain valve<br /> [1] Valves: 2 shut off valves in connection<br /> [G4] Connection: 1/2" NPT<br /> [00] Scale: without<br /> [0] Limit switch: without<br /> Datasheet:<br /> http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_szm.pdf S/ 5,204.72 5204.72 PEN	Bypass-Level Indicators with glass tube. Installation length 1750 mm. Connection 1/2" NPT. 2 shut-of Bypass-Level Indicators with glass tube<br /> MODEL: SZM-K-5-1-G4-00-0 (1750 mm)<br /> BRAND: KOBOLD<br /> [SZM-S] Bypass-Level Indicators with glass tube<br /> Bypass- tube: Borosilicate glass<br /> O-ring: FPM<br /> Protecting tube: st. steel 1.4404<br /> Connection: st. steel 1.4404<br /> Max. temperature: 100 °C<br /> Max. pressure 10 bar<br /> Installation length: 1750 mm<br /> [5] Version (top/bottom): top: cleaning hole, bottom: drain valve<br /> [1] Valves: 2 shut off valves in connection<br /> [G4] Connection: 1/2" NPT<br /> [00] Scale: without<br /> [0] Limit switch: without<br /> Datasheet:<br /> http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_szm.pdf S/ 5,436.90 5436.900000000001 PEN	Caudalímetro magnético inductivo (288 m³/h) <strong>EP-H-210R-1-SS-2-1/UMF2-C-1-1-G-0BK-2<br /> Magnetic inductive flowmeter<br /> Brand: Kobold-Heinrichs</strong><br /> H: hard-rubber, standard 3 stainless steel electrodes 0°C...80°C<br /> 210R: <br /> Process Connection, 4" Class 150 RF ASME B16.5-2003<br /> Max. measuring range (Water 20°C, 1 mPas), 288 m³/h<br /> 1: Material flanges, steel (painted)<br /> SS: Material electrodes, Stainless steel incl. grounding electrode<br /> 2: Transmitter mounting, remote transmitter, IP67, junction box via M20 x 1,5<br /> 1: Approvals, certificate of compliance with order 2.1<br /> UMF2<br /> C: <br /> Mounting, remote transmitter incl. 2,5m cable and wall mounting bracket cable >10m c/w term.conn box on transmitter ½" NPT (f)<br /> 1: Display and control unit, integrated<br /> 1: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> G: Output:<br /> current output 1: 4 - 20mA with HART-protocol<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> 0BK: Design, Kobold<br /> 2: Extended cable length; 10m breakout cable S/ 10,071.37 10071.37 PEN
