Oval Gear Flow Meter/Counter<br />
MODELO: DOM-A25H-N6-1-H-0<br />
[DOM-A] Oval Gear Flow Meter/Counter<br />
[25H] Measuring range: 10-150 L/min<br />
[N6] Mech. Connection: G 1 for meas. range 25H<br />
[1] Seal: FPM (Standard)<br />
[H0] Electronic: Pulse output, NPN and reed switch<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. temperature: 120 °C<br />
max. pressure: 10...68 bar<br />
Accuracy: ±0,5 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: Aluminium<br /><br />
Ficha técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

Option: Oxygen Cleaning

<div>MODELO: MAS-30-15-C4-00-0<br />
[MAS-30] Operating principle, thermal, Bypass<br />
[15]  M-body 0-100 LN/min N2 (Equivalente: 0 a 6 m3/Hr)  <br />
[C4] Connection, Swagelok 1/2" (up to 20 LN/min)<br />
[00] Power supply, 12 VDC<br />
[A]  Output, 4-20 mA<br />
Mounting position, all directions<br />
Indication, LC-Display<br />
Max. Temperature: 50°C<br />
Max. Pressure: 35 bar (507 PSI)<br />
Design, st.st.</div>

<div>Ficha Técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_mas-mfc.pdf</div>

Float Switch<br />
Brand: Kobold (Alemania)<br />
Model: NSP-SW-YYFEP<br />
[NSP-SW]:<br />
Float material: Polypropylene.<br />
max. temperature: FEP= 85 °C<br />
max. pressure:  1 bar <br />
min. density:  0,9 kg/dm³<br />
Contact version: microswitch <br />
Contact:  N/C or. N/O <br />
Protection: IP 68<br />
[YYFEP] Cable: Special length FEP-cable: 2m

Level Monitor for liquids<br />
Model: RFS-12-00-N4<br />
Brand: Kobold (Alemania)<br />
[RFS-12]<br />
Connection/float, st. st. 1.4301<br />
Plug/housing, Polycarbonate<br />
Max. medium temperatura, 120 °C<br />
Max. ambient temperatura, 80 °C<br />
Max. Pressure, max. 5 bar<br />
Medium Density, > 0,7 kg/dm³<br />
Contact function, NC / NO (depending on mounting position)<br />
Mounting position, horizontal<br />
Protection, IP 65<br />
[00] Versión, Standard, plug Connection<br />
[N4] Connection, 1/2 NPT AG

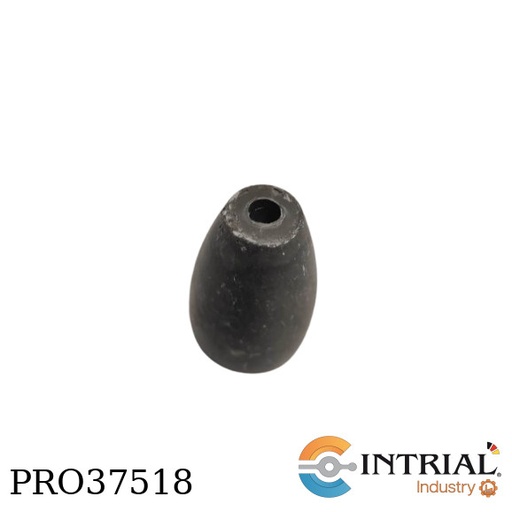

Accesories for NSP<br />
Model: NSP-BESCHWER<br />
ballast PP<br />
weight, 650 g
<div>
<div class="gtx-trans-icon"></div>
</div>

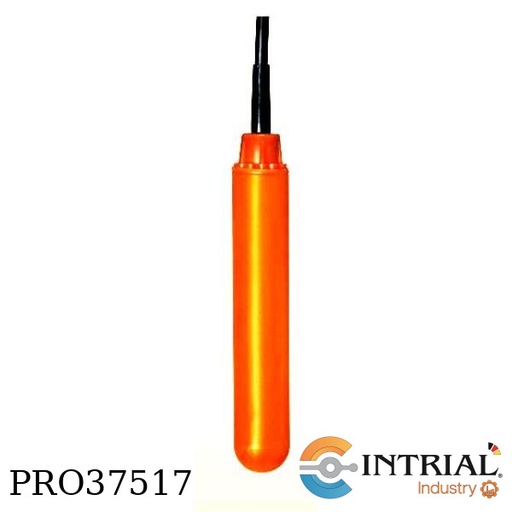

<strong>Float Switch<br />
Brand: Kobold (Alemania)<br />
Model: NSP-SW- 04TPK</strong><br />
[NSP-SW]:<br />
Float material Polypropylene <br />
max. temperature TPK=60 °C<br />
max. pressure 1 bar <br />
min. density 0,9 kg/dm³ <br />
Contact version microswitch <br />
Contact N/C or. N/O <br />
Protection IP 68<br />
[04TPK]: Cable, 4 m TPK cable

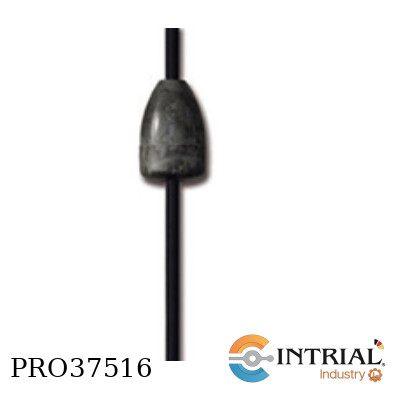

Accesories for-NAB<br />
Model: NAB-BESCHWER<br />
Brand: Kobold<br />
Accessories, ballast weight, loaded resin

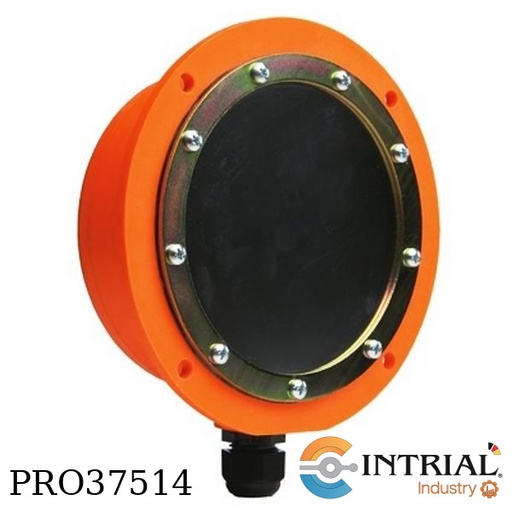

<div><strong>Membrane Level Monitor<br />
Model: NMF-E-VN<br />
Brand: Kobold</strong><br />
[NMF-E]: <br />
Housing material: GRP<br />
Sensitivity: 60...200 g<br />
Max. Temperature: 60 °C<br />
Max. Pressure: Pressure less (up to 1 bar over pressure secured)<br />
Contact: SPDT<br />
Application: Thin wall <br />
[VN]: Membrane / Fix. Ring: FPM / st., zinc plated</div>

MODELO: PAD-D-EE-3-S-2-N-F0-0<br />
[PAD-D] Differential Pressure Transmitter PAD<br />
[EE] Material (Diaphragm/other): st.steel 1.4404/1.4401<br />
[3] Measuring range: 1,5..75 mbar (0,15...7,5 KPa)<br />
[S] Filling liquid: Silicone<br />
[2] Process connection: 1/4-18 NPT IG (standard)<br />
[N] Electr. Connection: 1/2-14 NPT Epoxy-polyester painted Aluminium<br />
[F] Approvals: ATEX, flameproof, Exd<br />
[0] Manifold Valve: w/o<br />
[0] Options: w/o<br />
Pressure type: Difference <br />
Accuracy: ± 0,075%..±0,25% of calibr span<br />
measuring principle: piezoresistive<br />
Medium temperature: -30..+120 °C<br />
Power supply: 12-45 VDC (17,5-45 VDC with HART)

Multivariable VORTEX Flowmeter - Insertion Version<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Modelo: DVE-V-S-L-L-2-S-0-A<br />
[DVE-V] Vortex Flow Meter Insertion Version<br />
[S] Probe length: Standard (max. stem length app. 690 mm)<br />
[L] Transmitter Version/ Mounting: compact incl. Display<br />
[L] Supply voltaje: 12-36 VDC, loop powered 1)<br />
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered<br />
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)<br />
[0] Option Pressure Sensor:<br />
[A] Process connection: 2" NPT male, sensor-bushing compression fitting<br />
Version: Standard<br />
Integrated temperature sensor: no<br />
Integrated pressure sensor: no

MODELO: NAD-MM-N08<br />
standard -20...+120 °C<br />
[R08]: G ¼ macho.<br />
PN 250

MODELO: DVH-V-802-S-L-A-M-S-0<br />
[DVH-V] Vortex Flow Meter with Flange<br />
[802] Connection (ASME B16.5.2003): Flange ANSI 3 inch 300 lbs<br />
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L<br />
[L] Transmitter Version/ Mounting: compact incl. Display<br />
[A] Supply voltaje: 85-240 VAC, 50/60 Hz 2)<br />
[M] Output: 1x 4-20 mA MODBUS 1x Alarm 1x Pulse<br />
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)<br />
[0] Option Pressure Sensor: without<br />
Version Standard for<br />
Integrated temperature sensor: no<br />
Integrated pressure sensor: no<br />
Transmitter Housing Aluminium<br /><br />
Ficha tecnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_dvh.pdf

Magnetostrictive Level Meter<br />
MODELO: NMT-1208-N50 (Measuring length = 2000mm)<br />
[NMT-12] Magnetostrictive Level Meter<br />
[08] Medium density: 0,7 kg/dm³<br />
[N50] Connection: 2 NPT<br />
Guiding tube: St. St.<br />
Connection: St. St.<br />
Float: St. St.<br />
Max. temperature: 70 °C<br />
Max. pressure: PN 10<br />
Max. length: 4000 mm<br />
Output: 4..20 mA<br />
Power supply: 24 VDC<br />
Ficha técnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/n2gb_nmt.pdf

MODELO: TMA-H6410-8-60-4<br />
[TMA-H64] Insertion Resistance Thermometers with Integrated Transmitter<br />
[10] Immersion length: 100 mm<br />
[8] Connection: 1/2 NPT <br />
[60] Measuring range: 0..+600 °C<br />
[4] Output: 4-20 mA<br />
Probe material st.st. 1.4571 <br />
Connecting:  fixed <br />
Design: c/w stand-off <br />
Power supply 12 - 36 VDC<br />
electr. Connection plug acc. to DIN 43650<br />
Output 4-20 mA<br /><br />
Ficha tecnica:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/t2gb_tma.pdf

Accessories for pressure gauges<br />
Connection 1: G 1/2 male<br />
Connection 2: swiv. nut G 1/2 f.<br />
Pn (Bar) 100<br />
Material: Steel

<div>MODELO: SEN-8600-P090<br />
              <br />
[SEN-86] Pressure sensor with ceramik sensor element<br />
[0] Electr. Connection: DIN plug form A<br />
[0] Accuracy: 0,5 % of FS<br />
[P090] Measuring range: 0...300 psi g<br />
Version: with internal sensor<br />
Pressure type: relative pressure<br />
Accuracy: 0,5 %/1 % of FS<br />
measuring principle: thick film<br />
Medium temperature: -40..+85 °C<br />
Pressure conn. :st. Steel 1.4301<br />
Thread G 1/2 male<br />
Power supply 15-32 VDC<br />
Electr. connection DIN plug form A<br />
Protection IP 65</div>

<div></div>

MODELO: SEN-8600-P060-N<br />
[SEN-86] Pressure sensor with ceramik sensor element<br />
[0] Electr. Connection: DIN plug form A<br />
[0] Accuracy: 0,5 % of FS<br />
[P060] Measuring range: 0...60 psi g<br />
Version: with internal sensor<br />
Pressure type: relative pressure<br />
Accuracy: 0,5 %/1 % of FS<br />
measuring principle: thick film<br />
Medium temperature: -40..+85 °C<br />
Pressure conn. :st. Steel 1.4301<br />
Thread G 1/2 male <br />
Power supply 15-32 VDC<br />
Electr. connection DIN plug form A<br />
Protection IP 65<br />
Ficha técnica: <br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/p2gb_sen-86-87.pdf

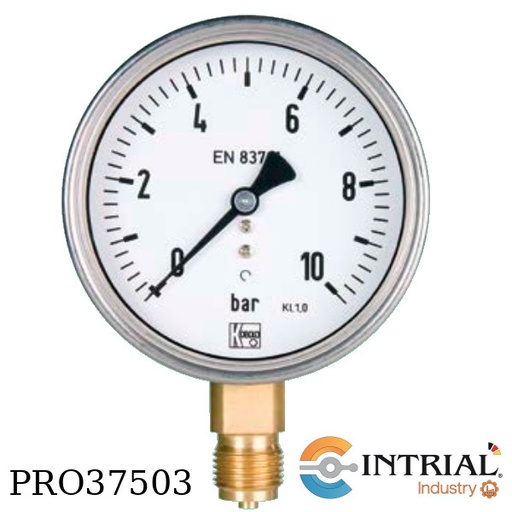

<strong>All Stainless Steel- Pressure Gauges with Bourdon Tube<br />
Brand: Kobold (Alemania)<br />
Model: MAN-RF26-B6</strong><br />
[MAN-RF26]:<br />
Accuracy class 1,0<br />
Diameter 100mm<br />
Housing st. st.<br />
*Standard filling: Glycerin<br />
Connection St.St.<br />
Process Connection G 1/2 Male<br />
Max. medium temperature 80 °C<br />
Connection at bottom, special safety<br />
[B6]: Indication range, 0...6 bar

<strong>Stainless Steel - Pressure Gauges with Bourdon Tube<br />
Brand: Kobold<br />
Model: MAN-RD25-B6</strong><br />
[MAN-RD25] Stainless Steel - Pressure Gauges with Bourdon Tube<br />
[B6] Indication range: 0...6 bar<br />
Accuracy class: 1.6<br />
Housing material: stainless steel 1.4301<br />
Filling:<br />
Bezel: stainless steel 1.4301<br />
Pointer: aluminum, black anodized<br />
Movement: stainless steel<br />
Throttle D=: from 60 bar D = 0.5 mm<br />
Glass: Polyamide<br />
Measuring element: stainless steel 1.4571<br />
Protection: IP 65<br />
Overrange protection: none<br />
Ambient temperature: -20...+80°C<br />
Connection: stainless steel 1.4571<br />
Thread connection: G 1/4 male<br />
Max. medium temperature: 80°C
