RF100CH-D402-NPT(0 - 300 PSI)<br />
BOURDON TUBE PRESSURE GAUGES FOR CHEMICAL APPLICATIONS<br />
•    Brand: AFRISO(Germany)<br />
•    Measuring system fully welded to housing<br />
•    Extremely robust design<br />
•    For medium temperatures up to 150 °C<br />
•    Tightness-tested with helium<br />
•    Nominal size: 100mm(4”)<br />
•    Accuracy class (EN 837-1/6), 1.0<br />
•    Static load: ≤ 600 bar = full scale value<br />
•    Operating temperature range: Tmax = +150 °C<br />
•    Connection: Stainless steel 316 L, bottom 1/2” NPT<br />
•    Measuring element: Bourdon tube, stainless steel 316 Ti/316 L<br />
•    Movement: stainless steel 316 Ti/316 L<br />
•    Dial: Aluminium, white, Dial marking black<br />
•    Pointer:Aluminium, black<br />
•    Housing: Stainless steel 304 with blow-out<br />
•    Bayonet type bezel: Stainless steel 304<br />
•    Window: Laminated safety glass<br />
•    Range: 0 - 300 PSI<br />
•    Include:<br />
•    scale in psi and kg/cm2<br />
•    Calibration certificate, issue by Peruvian entity certify by INACAL<br />
•    TAG number<br /><br />
38141<br />
•    Wetted parts cleaned for oxygen1<br />
•    label "Oxygen", symbol "Free from oil and grease"<br />
•    (gauges without filling only)

MX SERIES PULSERS<br />
Brand: Macnaught <br />
Reed / Hall Effect switch

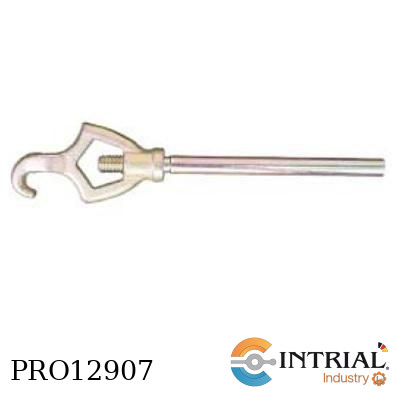

<div>MODEL: 8230<br />
LLAVE PARA HIDRANTE </div>

<div>Marca: GUARDIAN</div>

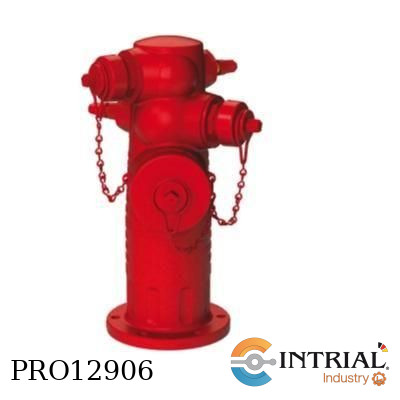

<div>WET BARREL IRON FIRE HYDRANTS</div>

<div>Brand: MUELLER</div>

<div>UL Listed / FM Approved</div>

<div>Conforms to AWWA Standard C503 </div>

<div>250psig Working Pressure (17barg/1725 kPa) </div>

<div>500gpsi (34barg/3450 kPa) Test Pressure</div>

<div>M4060 1 x 5” STORZ plus </div>

<div>2 x 2½" NH 3-Way Style Hydrant</div>

<div>Flange Pattern 8 x 7/8" (22mm) Holes</div>

<div>9½" (241mm) DBC</div>

<div>FLUJOMETRO DE AREA VARIABLE<br />
Marca: AW-LAKE<br />
Modelo: B5A-6HW-75</div>

<div>•<span> </span>[B]:Estilo: Básico en línea para líquidos</div>

<div>•<span> </span>[5]:Puerto / línea Rango de tamaños:1 1/4"- 2”</div>

<div>•<span> </span>[A]:Material: Aluminio</div>

<div>•<span> </span>[6]:Rango de Presión Max: 3500 PSIG</div>

<div>•<span> </span>[H]: Medio fluido: Aceite y 0.873 Gravedad especifica.</div>

<div>•<span> </span>[W]:Tipo de Rosca: 1 1/4” BSPP</div>

<div>•<span> </span>[75]:Rango de Flujo: 6 a  75 GPM</div>

<div>FLUJOMETRO DE AREA VARIABLE<br />
Marca: AW-LAKE<br />
Modelo: B4A-6HU-30</div>

<div>•<span> </span>[B]:Estilo: Básico en línea para líquidos</div>

<div>•<span> </span>[4]:Puerto / línea Rango de tamaños: 3/4"- 1”</div>

<div>•<span> </span>[A]:Material: Aluminio</div>

<div>•<span> </span>[6]:Rango de Presión Max: 3500 PSIG</div>

<div>•<span> </span>[H]: Medio fluido: Aceite y 0.873 Gravedad especifica.</div>

<div>•<span> </span>[U]:Tipo de Rosca: 3/4” BSPP</div>

<div>•<span> </span>[30]:Rango de Flujo: 4 a 30 GPM</div>

<div>FLUJOMETRO DE AREA VARIABLE<br />
Marca: AW-LAKE<br />
Modelo: B3A-6HT-05</div>

<div>•<span> </span>[B]:Estilo: Básico en línea para líquidos</div>

<div>•<span> </span>[3]:Puerto / línea Rango de tamaños: 1/4"- 1/2”</div>

<div>•<span> </span>[A]:Material: Aluminio</div>

<div>•<span> </span>[6]:Rango de Presión Max: 3500 PSIG</div>

<div>•<span> </span>[H]: Medio fluido: Aceite y 0.873 Gravedad especifica.</div>

<div>•<span> </span>[T]:Tipo de Rosca: 1/2” BSPP</div>

<div>•<span> </span>[05]:Rango de Flujo: 0.5 a 5.0 GPM</div>

HS45 – Heavy Mill Duty MAGNETIC Hollow Shaft<br />
Part Number: HS45FA4XX6WUA904<br />
(F) Bore Size: 1 in. bore, insulated shaft bushing, universal end or thru shaft mountable<br />
(A4) Left Output PPR: 2048 PPR<br />
(XX) Right Output PPR: No Right Output<br />
(6) Line Driver: 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no Complements, and differential wiring up to 500'.<br />
(W) Connector Options: Cable (36 in. or special length) with Remote Alarm Diagnostics<br />
(U) Anti-Rotation Tether: Universal Tether/Torque Arm Kit (includes all standard tethers)<br />
(A) Channels: All Channels (A, A/, B, B/, Z, Z/ )<br />
(904) Modifications: 1.2m/4 ft. Special Cable Length

<strong>HS35A – LIGHT MILL DUTY OPTICAL HOLLOW SHAFT<br />
Brand: AVTRON</strong><br />
Part Number: HS35A41FWU0UA904<br />
(4) PPR: 2048 PPR<br />
(1) Line Driver: 5-28v In/Out (7272)<br />
(F) Bore Size: 1 in. bore<br />
(W) Connector Options: Cable (18 in. or special length)<br />
(U) Mounting: Universal (Thru & End of Shaft)<br />
(A) Channels: All Signals (A,A NOT,B,B NOT,Z,Z NOT)<br />
(904) Modifications: 4 ft./1.2m Cable

AV6A ENCODER ABSOLUTO<br />
Numero de Parte: AV6AD1C43AA1A000<br />
 (D) Communication Bus: DeviceNet (Slave) Communication<br />
(1) Flange:  58mm Flange clamp style, 36mm male pilot, 3X M3, 3X M4 @ 48mm BC<br />
( C ) Shaft Size: 10mm Solid Shaft w/flat<br />
(4) Turns/bits: 16384 Turns/14 bits<br />
(3) PPR/bits Per Turn: 8192 Counts per Revolution/13 bits<br />
(A) Connector: 1xM12/5 pin w/o Plug<br />
(A) Connector Exit: Side/Radial exit<br />
(1) Output Coding: Binary Bit Coding<br />
(A) IP Rating: IP66 Shaft Seals, aluminum housing<br />
(000) Modifications: No Special Features

<div>

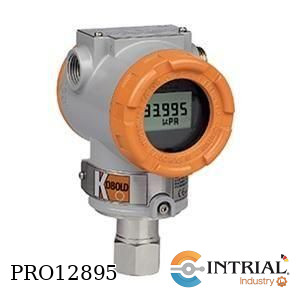

<div>PRESSURE TRANSMITTER</div>

<div>Brand: KOBOLD <span> </span></div>

<div>Accuracy, ± 0,075% of calibrated span</div>

<div>Medium temperature, -30..+120 °C</div>

<div>Power supply, 12-45 VDC (17,5-45 VDC with HART)</div>

<div>Material, st.steel 1.4404/1.4401</div>

<div>Measuring range, -1...15 bar</div>

<div>Process connection, 1/2"NPTM x M20 x 1.5 macho</div>
</div>

TRANSMISOR DE PRESION INTELIGENTE<br />
Marca (KOBOLD)<br />
Material Diaphragm/Other, 316L St. St.<br />
Measuring Range, 0 a +250 bar<br />
Process connection, ½” NPT Female <br />
Power Supply: 12 a 45 VDC<br />
Output: 4 a 20 mA ,protocol HART<br />
Precision: 0.075%<br />
Con rosca 1/2"NPTM x M20 x 1.5 macho

<strong>TRANSMISOR DE PRESION INTRINSECAMENTE SEGURO<br />
MARCA: NOSHOK<br />
MODELO: SERIE 625<br />
PROCEDENCIA: USA<br />
Part N° : 625-750-1-1-11-8</strong> <br />
ESPECIFICACIONES:<br />
Rango de presion: 0 - 750 psig<br />
Exactitud: ± 0.25% a escala completa (BSFL)<br />
Estabilidad: ±0.2 % a escala completa.<br />
Tiempo de repuesta: ± 1 ms<br />
Señal de salida: 4 - 20 mA<br />
Conexión de proceso: G 1/2 en acero inoxidable 316.<br />
Conexión eléctrica: Hirschmann <br />
Carcasa: Acero inoxidable 316<br />
Grado de protección: IP67<br />
Alimentación: 10 a 30 V de CC

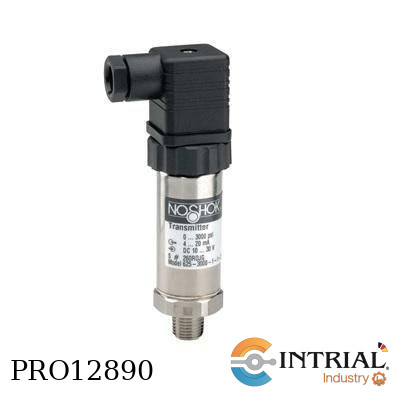

PRESSURE TRANSMITTER<br />
Brand: NOSHOK<br />
Model: 625-300-1-1-11-8<br />
• 625 Stainless steel threaded connection<br />
• Pressure Ranges: 0 psig to 300 psig<br />
• Accuracy 1 ±0.25% full scale (BFSL)<br />
• Output Signal : 4 mA to 20 mA, 2-wire<br />
• Process Connections: G 1/2 B*<br />
• Electrical Connections: Hirschmann (DIN EN 175301-803 Form A)

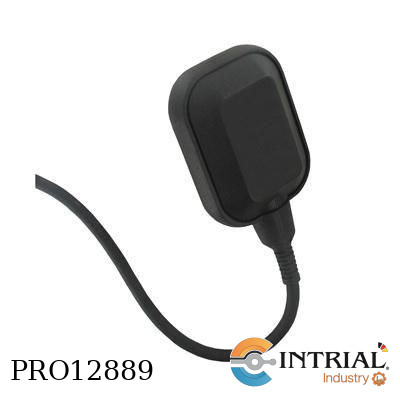

CABLE FLOAT SWITCH<br />
MERCURY-FREE<br />
BRAND: DWYER<br />
CABLE TYPE:PVC<br />
APPROVALS: CE<br />
SWITCH TYPE: SPST NO<br />
CABLE LENGHT: 50” (15.24M)<br />
SERVICE: COMPATIBLE LIQUIDS.<br />
TEMPERATURE LIMITS: 32 TO 122°F (0 TO 50°C).<br />
PRESSURE LIMITS: 14.5 PSI (1 BAR).<br />
ENCLOSURE RATING: IP68.<br />
SWITCH TYPE: SEE MODEL CHART.<br />
ELECTRICAL RATING: 10 (8) A @ 250 VAC

Calcium Hardness Analyzer With Protective Enclosure<br />
Range: 25 ppb to 500 ppm<br />
Sample Conditions:<br />
•    Temperature: 5 to 35 C<br />
•    Inlet Pressure: 8 to 100 Psi<br />
•    Total Alkalinity: Less Than 250 ppm CaCO3<br />
•    Rate Flow: 40 mL/min<br />
Includes:<br />
* Calcium hardness analyzer with calcium electrode (100049)<br />
* Reference electrode (100056)<br />
* ATC probe (2100TP)<br />
* Standard solution kit (182040)<br />
* More information please see datasheet Attached<br />
Brand: Thermo Scientific

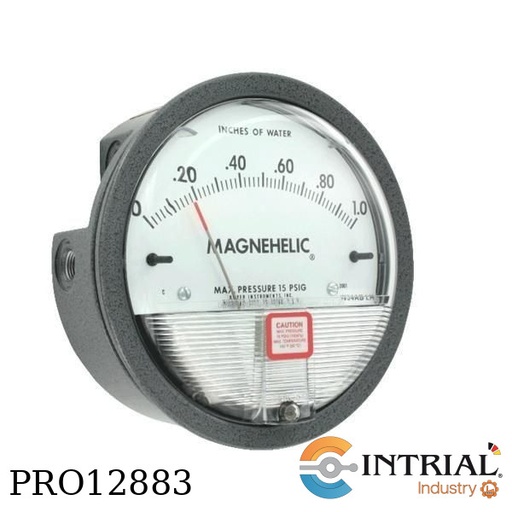

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  0 a 15 “ de agua<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4"
<div>
<div class="gtx-trans-icon"></div>
</div>

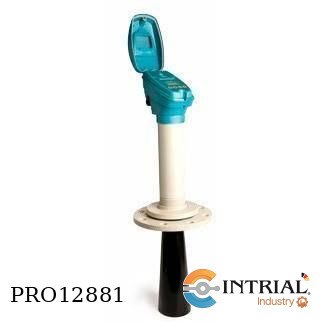

AWI234SU30T4XXXXX+FA4A4+C034Z<br />
* Sultan INTEGRAL 2,3,4 Wire, Modbus (AWI234SU30T4XXXXX)<br />
* 4-20mA Analogue<br />
* 12-30VDC and 90-260VAC<br />
* 30 kHz for the following applications:<br />
- Up to 7m (Liquids with Foam/Froth/Turbulence, Slurries)<br />
- Up to 14m (Liquids)<br />
* Available in 3”<br />
* Facing Material: Teflon 80°C<br />
* Transducer Housing: Polypropylene<br />
* Enclosure sealing: IP 67 (NEMA 6)<br />
ACCESORIES<br />
===========<br />
Flange: ANSI 4" (FA4A4)<br />
* Cone Mounted<br />
* Flange Material: Polypropylene<br />
Focaliser Cone (C034Z)<br />
3" Cone for 30-20 & 15 Khz<br />
* Cone Material: Polypropylene

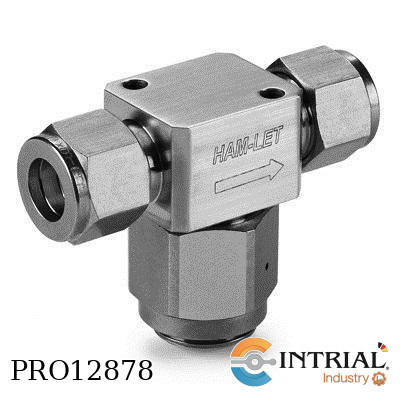

Modelo: 2377-3831<br />
(Particulate Filter, 2 µm, 1/8" Connections)<br />
•T-Type<br />
•Particulate Filter, 2 µm<br />
•Max pressure: 6000 psi<br />
•For use with 4100 series, Zirconiza sensor from Servomex<br />
///Servomex Part Numer:  2377-3831/////
