BIMETAL THERMOMETER T7000 SERIES<br />
Brand: GEORGIN<br />
Ref. T7000 (100mm 0/120 °C) <br />
Case : 100mm - 304 st.st. - plain glass 4mm<br />
Range : 0...120 °C (class 1)<br />
Stem : bottom connection<br />
Bulb Ø 6 x S= 500mm - 316L st.st.<br />
Connection : 1/2""NPTM adjustable

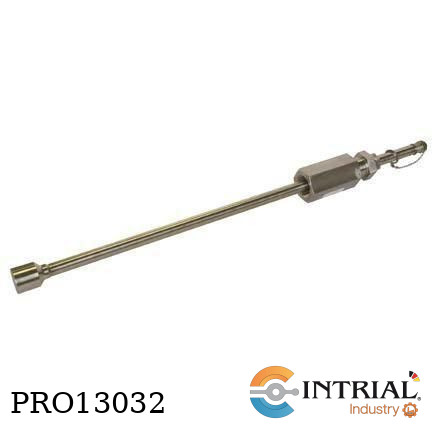

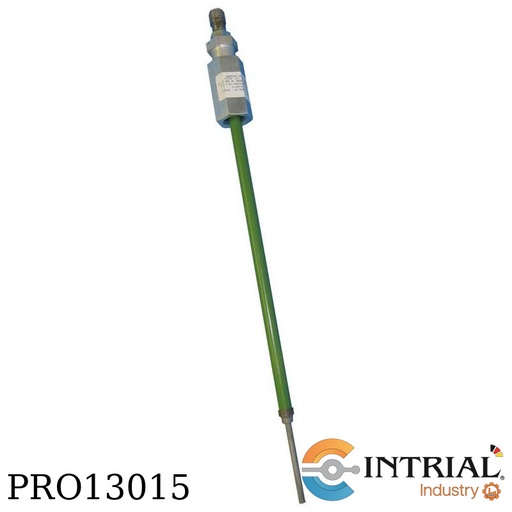

3504-T10-K03005-18-1<br />
Electrica Resistance probe (ER)<br />
Model 3504 (Small Diameter)<br />
•    Cylindrical Element<br />
•    Mounting 3/4” NPT Full Port Valve with ½” ID Minimun<br />
•    Temperature Rating: 260C / Pressure Rating: 1000 Psi<br />
•    Element Seal Material: All welded<br />
•    Probe Body Material: AS ELEMENT<br />
•    Complete Probe Assembly with Stuffing Box<br />
•    Element Form T10: 10 mil thickness (5 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order length: 18”<br />
•    Safety Clamp INCLUDED

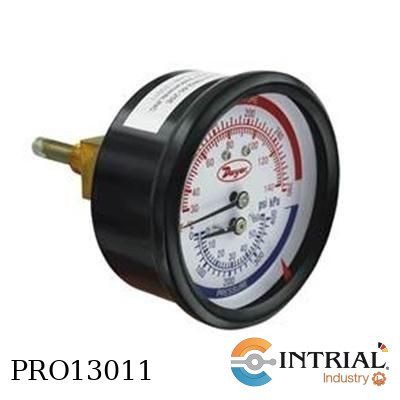

TRIDICATOR GAGE COMBINATION PRESSURE/TEMPERATURE GAGE<br />
Range: 0 to 100 psi (0 to 700 kPa)<br />
Brand;: DWYER<br />
Male NPT Connection: 1/4" back mount with ext. shank<br />
Service: Compatible gases and liquids.<br />
Wetted Materials: Brass connection and phosphor bronze Bourdon tube.<br />
Housing: Drawn steel, black finish.<br />
Accuracy: Pressure ±3-2-3%;<br />
Temperature ±1 scale division.<br />
Temperature Limits: Ambient: -40 to 250°F (-40 to 120°C)<br />
Process: 80 to 290°F (30 to 140°C).<br />
Size: 3" (76 mm).<br />
Process Connections: 1/2" male NPT<br />
Weight: 12.35 oz (350 g) center back mount and lower mount; 14.11 oz <br />
(400g) center back mount with extension shank.

DIRECT READING GLASS FLOWMETERS<br />
Flow rate: 16 SCFH air<br />
Service: Compatible gases or liquids.<br />
Wetting Materials: Flowtube:<br />
Borosilicate glass; Float: 316 SS<br />
Temperature Limit: 250°F (121°C).<br />
Pressure Limit: 250 psig (17 bar).<br />
Accuracy: ±5% FS @ 70°F (21.1°C)<br />
Repeatability: ±0.25% of scale reading.<br />
Turn-Down Ratio: 10:1.<br />
Connection: 1/8" female NPT.<br />
Mounting: Vertical.<br />
Model Without Valve

VALVULA TERMOSTATICA (THERMOSTATIC VALVE)<br />
MODELO A21-001<br />
EMMEGI 034<br />
MARCA EDH

FLOWMETER<br />
Brand: DWYER INSTRUMENTS<br />
Range: 0.15 - 1 LPM AIR <br />
Service: Compatible gases & liquids.<br />
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available)<br />
Temperature & Pressure Limits: Without valve: 100 psig (6.9 bar) @ 150°F<br />
(65°C); 150 psig (10 bar) @ 100°F (38°C<br />
Accuracy: VFA = 5% <br />
Process Connection: 1/8" female NPT<br />
Scale Length: VFA 2" typical length; VFB 4" typical length.<br />
Mounting Orientation: Mount in vertical position.<br />
Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg)

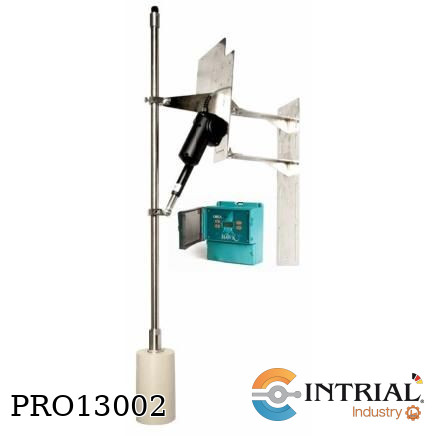

OSIRDXX<br />
--------------<br />
ORCA Remote Sonar Level Transmitter, 3 relay alarms<br />
* Power Supply 90-250 VAC and 24-30VDC<br />
* 03 Relay (SPDT, 0.5Amp 240 Vac)<br />
* Sealing: IP67<br />
* Communication: 1 x 4-20mA Analog Output modules with MODBUS<br />
* Display: LCD Display (2 line x 12 digit alphanumeric)<br /><br />
OSIRT302SHXC15<br />
----------------------------<br />
ORCA Remote Sonar Transducer<br />
* 150 kHz for Industrial and Mining Application<br />
* Maximum Range: 25 mts<br />
* Full Fiberglass high temp version for Facing & Housing Material<br />
* No Approval standard required<br />
* End Connection: 1" NPT<br />
* IP 68 Sealed with 15 mts cable<br /><br /><br />
A C C E S S O R I E S<br />
================<br />
OSIRSC-A<br />
--------------<br />
Automatic Scum Cleaner<br />
* 24VDC Electric Actuator incl. Mounting Accessories<br /><br />
OSIRMEL-2<br />
---------------<br />
Mounting Extension Pipe<br />
* Stainless Steel Pipe with a length of 2 mts

MA Series Mounting Accessories<br />
•    2” UHMW Windows each

Model : BPI-102<br />
Battery powered temperature indicator, <br />
K, J, T, N, R, S, E, or F thermocouples input. <br />
Series BPI Battery Powered <br />
Temperature Indicator RTD or T/C Input, <br />
4-Digit Display, <br />
Selectable °F or °C
<div>
<div class="gtx-trans-icon"></div>
</div>

G1 Microwave Swith Series<br />
Circular Polarization<br />
Gladiator 1” Microwave Integral RECEIVER, 1 Relay with Failsafe<br />
Electronic Housing: Powder Coated Aluminium<br />
Power Supply: 12-30 VDC<br />
Mounting Thread: 1” NPT<br />
Not Approvals Required

G1 Microwave Swith Series<br />
Circular Polarization<br />
Gladiator 1” Microwave Integral SENDER<br />
Electronic Housing: Powder Coated Aluminium<br />
Power Supply: 12-30 VDC<br />
Mounting Thread: 1” NPT<br />
Not Approvals Required

<div>Model:AVF250-015-S4ABT-B-NN-D</div>

<div>•<span> </span>Metal Tube Variable Area Flowmeter</div>

<div>•<span> </span>Model AVF250 Series</div>

<div>•<span> </span>Size:15mm</div>

<div>•<span> </span>Function:</div>

<div>•<span> </span>Local indication+Rate 5 digit/Totalizer 8 digit +4-20mA</div>

<div>•<span> </span>Option: Damper</div>

<div>•<span> </span>*Application:</div>

<div>•<span> </span>Fluid: Oxigen</div>

<div>•<span> </span>Flow rate: 5 Nm3/h~15 Nm3/h</div>

<div>•<span> </span>Temperature: 25°C</div>

<div>•<span> </span>OP. pressure: 50psi  (Calibrated for Oxigen)</div>

<div>•<span> </span>MAX. pressure: 100 PSI</div>

<div>•<span> </span>Gas Density(1 ATM): 1.429kg/m3</div>

<div>•<span> </span>AVF250:         AVF250 Series</div>

<div>•<span> </span>015:     size, 15mm(1/2)</div>

<div>•<span> </span>S4:      Material, Stainless Steel 304</div>

<div>•<span> </span>A:        process connection, ANSI 150 #</div>

<div>•<span> </span>BT:      flow direction, Bottom – Top</div>

<div>•<span> </span>B:        function, Local Indication + Rate 5 digit/Totalizer 8 digit + 4-20 mA</div>

<div>•<span> </span>NN:     protection class, IP65</div>

<div>•<span> </span>D:        option, Damper (For Steam & Gas Application)</div>

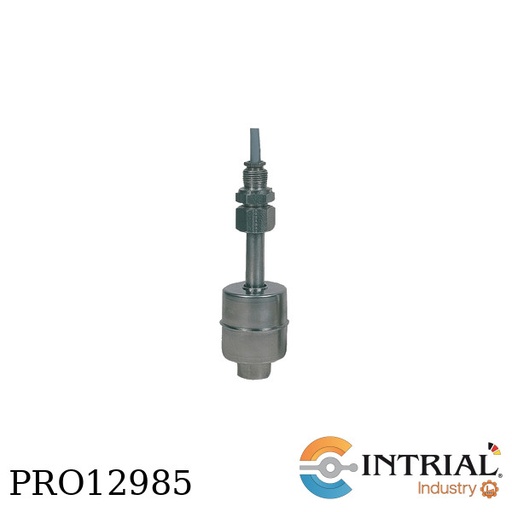

Brand: Kobold<br />
Float material st.st. 1.4404<br />
Guiding tube length (L0): 405 mm <br />
Switch point at (L1): 326 mm<br />
Switch point at (L2): 380 mm<br />
Connection, G 3/8<br />
contact, 1st N/O<br />
additional contacts, 2nd N/C<br />
Cable type and length, PVC / 3 mts<br />
ATEX, without

129108<br />
=======<br />
Adaptor Bushing 1/4“ to 1/8“ ,NPT 316 S.S.<br />
030472-X1<br />
=========<br />
Right Angle Nozzle 1/8 B5<br />
GPM Capacity (Pressure Differential)<br />
10 PSI /20 PSI/  40 PSI / 100 PSI<br />
========================<br />
0.50/ 0.70 / 1.0 / 1.6

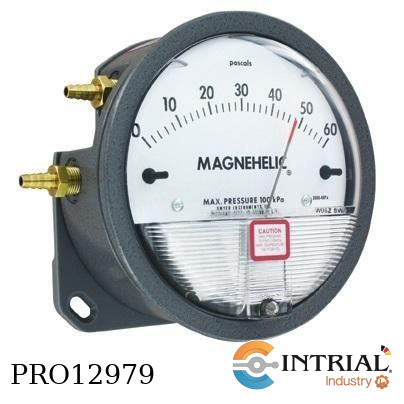

DIFFERENTIAL PRESSURE GAGES<br />
Brand : DWYER<br />
Range : 0 a 2 kpa<br />
Option : Furnished with attached surface mounting plate<br />
Size : 4" (101.6 mm) diameter dial face.<br />
Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
<div>
<div class="gtx-trans-icon"></div>
</div>

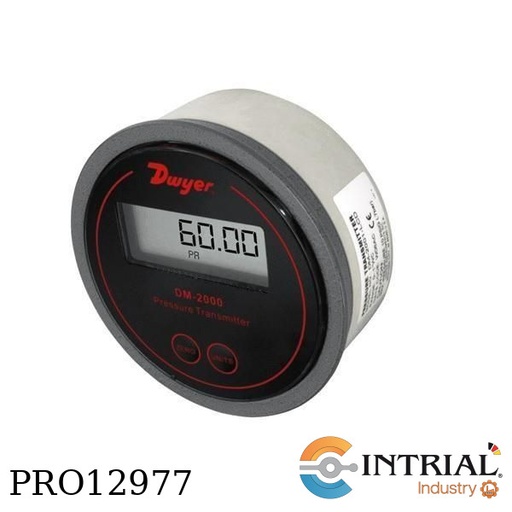

DIFFERENTIAL PRESSURE TRANSMITTERS<br />
Brand: Dwyer<br />
Range (in w.c.): 0 to .250 <br />
Pa: 62.2<br />
mm w.c.: 6.35<br />
mBar: 0.622<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Pressure Limits: 10 psig (0.69 bar).<br />
Power Requirements: 10 to 35 VDC (2 wire).<br />
Output Signal: 4 to 20 mA.
<div>
<div class="gtx-trans-icon"></div>
</div>

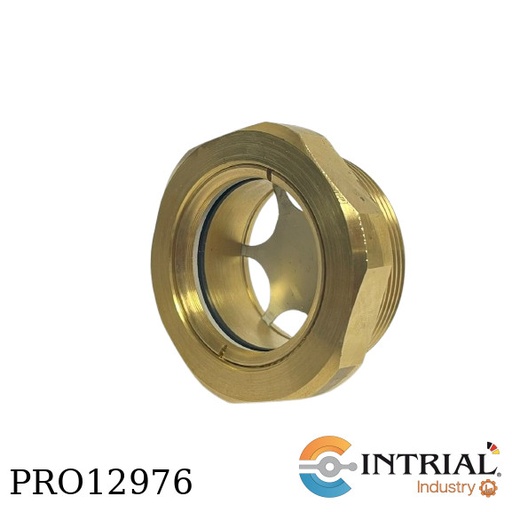

Modelo PRO12976<br />
Mirilla 2" NPT,<br />
con estrella,<br />
Material : Bronce<br />
Marca : Intrial<br />
Con estrella fija lacada en blanco,<br />
borde exterior moleteado,<br />
presión de trabajo 4 bar,<br />
estabilidad térmica hasta 120 °C,
