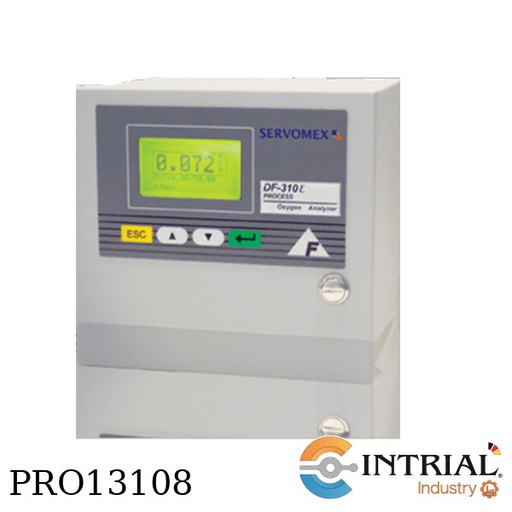

<strong>DF 310E PROCESS OXYGEN ANALYSER -SPECIAL <br />
Brand: SERVOMEX</strong><br />
With the following configuration:<br />
Sensor Basic Sensor<br />
Resolution High<br />
Single Range 0-100 ppm<br />
Power Input 110 VAC Input Power<br />
Battery Backup Not Required<br />
Certification CE Certified<br />
Sensor Location Local Sensor<br />
Pump No Pump<br />
Case Purge Not Required<br />
Mounting / Cabinet Dual Rack Mount<br />
Key Lock Not Required<br />
Flow Alarm Required<br />
Relay Contacts Two Relay Contacts<br />
Sample Inlet Stainless Steel (Standard)<br />
Isolated Output 4-20mA with live zero (2-20mA)<br />
Stainless Steel Tags Required<br />
Electrolyte Type Blue<br />
DF310E-OEM-0020-DRM-1<br />
As above with:<br />
310E-ROTM ROTAMETER<br />
310E-FLEX-FA FLEXIBLE OUTLET TUBING FOR FLOW ALARM<br />
15437110 ASSEMBLY, STANDARD CABINET DF310E<br />
50980707 CONN, TERM BLK, 8 PIN 1757077 PHOENIX<br />
50980755 PLUG, 4 PIN, 5.08mm PHOENIX 1757035<br />
50980708 PIN, CODING, 1759994, PHOENIX<br />
NSQ-0265-MTL<br />
NSQ-0311-JS<br />
NSQ-0313-JS

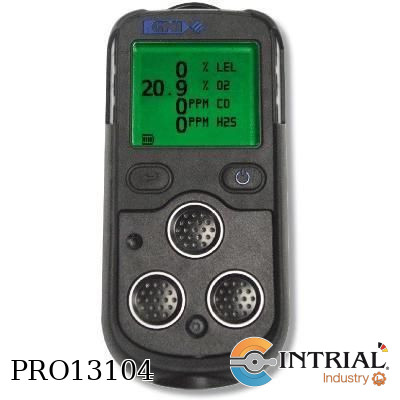

• Simple 1-button operation<br />
• Any combination of (LEL/O2/CO/H2S)<br />
• Audible, visual and vibrating alarms<br />
• Fully certified<br />
• Internal pump (optional)<br />
• Run up time up to 80 hours, when using low power LEL sensor (optional)<br />
• Lightweight<br />
• Sensor integrity checking<br />
• Robust construction<br />
• Ease of maintenance

ULTRA-VIEW™ POLYSULFONE FLOWMETERS<br />
HIGH CORROSION - RESISTANT BODY, DUAL SCALES<br />
Range: 0.25 to 2.5 GPM (1 to 9.5 LPM)<br />
Brand: DWYER<br />
Service: Compatible liquids and gases.<br />
Wetted Materials: Polysulfone body and fittings, fluoroelastomer O-rings and virgin PTFE float.<br />
Temperature Limits: 35 to 212°F (2 to 100°C<br />
Pressure Limit: 150 psi (10.34 bar).<br />
Accuracy: ±2% FS @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only).<br />
Repeatability: ±1% FS @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only).<br />
Process Connections: 1˝ female NPT.<br />
Scale Length: 6˝ (152.40 mm) – 7˝ (177.80 mm), depending on model.<br />
Fitting Torque: Maximum 22 ft - lb.<br />
Weight: 1 lb (457 g) for 20 GPM range.

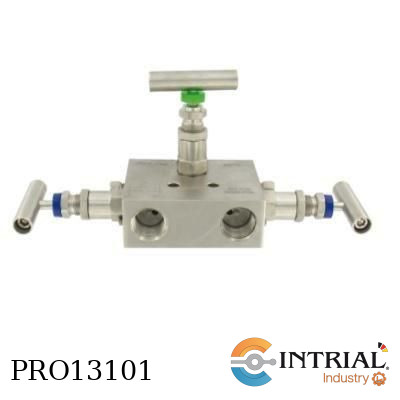

3-VALVE BLOCK MANIFOLD<br />
Brand: DWYER (USA)<br />
Stainless Steel Body, NPT Connections<br />
Service: Compatible liquids, gases, or steam.<br />
End Connections: BBV-1B: 1/4" NPT x 1/4" NPT<br />
Wetted Materials: Body, stem, valve assembly: 316 SS; Stem packing: PTFE.<br />
Pressure Limit: 6000 psi (400 bar).<br />
Temperature Limit: 464°F (240°C).

ENCODER Magnetico INCREMENTAL<br />
HS35M5X9R2U0UA00<br />
DESCRIPTION:<br />
Left Output PPR (5): 2500 PPR<br />
Right Output PPR(X): No Right Output<br />
Line Driver(9): 5-28v In, 5v Out (7272) (TTL/RS422)<br />
Bore Size (R): 15mm via insert<br />
Connector Options (2): M23 12 Pin Euro w/o plug, L&L/Hubner Pin Out<br />
Mounting (U): Universal (Thru & End of Shaft)<br />
Protection (0): No Protective Basket<br />
Anti-Rotational Tether (    U): All Tether Kits A-F<br />
Channels and Modifications (A00): Standard, No Special Features, All Channels A, A\, B, B\, Z, Z\

OSIRDJX<br />
--------------<br />

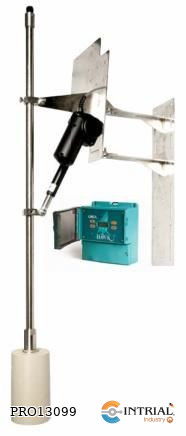

ORCA Remote Sonar Level Transmitter, 3 relay alarms<br />
* Power Supply 90-250 VAC and 24-30VDC<br />
* Sealing: IP67<br />
* Communication: 2 x 4-20mA Analog Output with HART<br />
* Display: LCD Display (2 line x 12 digit alphanumeric)<br />
OSIRT302SHXC15<br />
----------------------------<br />
ORCA Remote Sonar Transducer<br />
* 150 kHz for Industrial and Mining Application<br />
* Maximum Range: 25 mts<br />
* Full Fiberglass high temp version for Facing & Housing Material<br />
* No Approval standard required<br />
* End Connection: 1" NPT<br />
* IP 68 Sealed with 15 mts cable<br /><br />
A C C E S S O R I E S<br />
================<br />
OSIRSC-A<br />
--------------<br />
Automatic Scum Cleaner<br />
* 24VDC Electric Actuator<br />
* Include Mounting Accesoiries for Actuator and Mounting SS Pipe<br /><br />
OSIRMEL-3<br />
---------------<br />
Mounting Extension Pipe<br />
* Stainless Steel Pipe with a length of 3 mts<br />
SUNHOOD<br />
---------------<br />
Stainless Steel Sunhood for Orca(included with OSIRSCA package)<br /><br />
HAWKLINK<br />
---------------<br />
Usb cable and converter for Goshawk Software

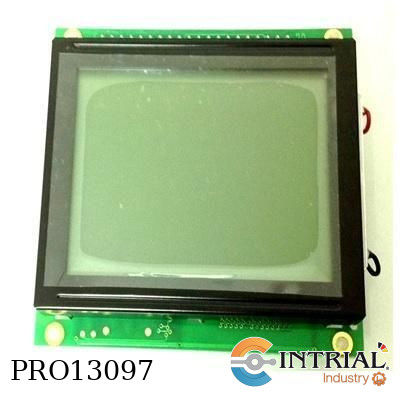

Modelo : 05000950<br />
Display Spare Kit<br />
for 5200 portable gas analyzer- Servomex

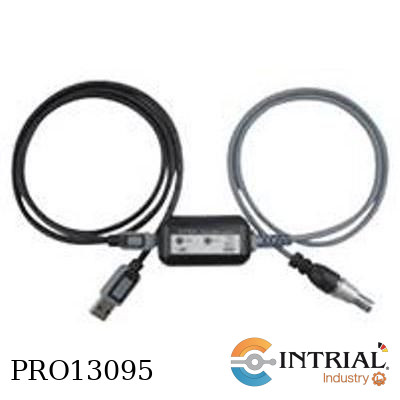

<div>Model 1: 309010.0075</div>

<div>•<span> </span>Keller K-114A USB Converter</div>

MEDIDOR DE CAUDAL TIPO TURBINA<br />
Marca: GPI (USA) <br />
conexión de 1/2” NPT<br />
En acero inoxidable 316<br />
Flujo 1-10 GPM. LCD electrónico. <br />
Certificado: GPM

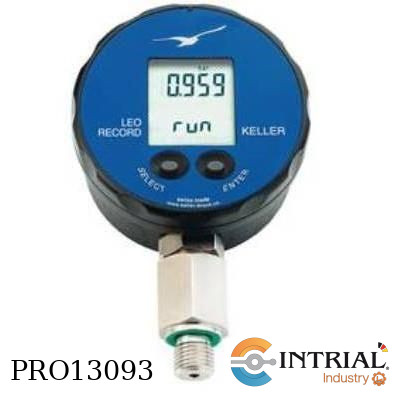

Model 1: LEO-Record-3BAR-1/4NPT<br /><br />
Keller LEO Record Digital Manometer<br />
Digital Manometer <br />
with record function<br />
Configuration<br />
Sensor Type: Piezoresistive <br />
Pressure Ranges: -1 to 3 bar <br />
Intrinsically Safe Version: Not available<br />
Process Connection: NPT1/4 <br />
Specifications LEO Record (Ei) <br />
Storage- / Operating Temperature -10…60 °C / 0…50 °C <br />
Measuring Cycle Adjustable (shortest interval 1 x per second) <br />
Memory ≈ 57’000 measuring values with time indication @ a measuring cycle of ≤15 s <br />
≈28’000 measuring values with time indication @ a measuring cycle of >15 s <br />
Supply 3,6 V Lithium battery, type SL-760 <br />
External supply (excl. Ei instruments) 8…28 VDC <br />
Battery Life up to 2 years @ 1 recording every 10 seconds <br />
Pressure Connection G 1/4” (other threads on demand) <br />
Temperature Measurements Accuracy typ. 0,5 °C <br />
Interface RS485; rear-sided mating plug “Fischer” compatible with PC-converter cable K-103A (RS232) and K-114A (USB) <br />
Material in Contact with Media LEO Record: Stainless steel (AISI 316L), Viton® O-ring <br />
LEO Record capacitive: Viton® O-ring, gold-coated ceramic diaphragm <br />
Protection IP 65 <br />
Diameter x Height x Depth (approx.) 76 x 120 x 55 mm (LEO Record) / 76 x 150 x 55 mm (LEO Record capacitive)

INTERRUPTOR DE FLUJO<br />
•    Marca FANTINI COSMI<br />
•    Conexion G1 de bronce<br />
•    Rango de 0.26 a 0.58 dm3/s,<br />
•    4 platinas inox 316 de 1" a 4"<br />
•    Con salida electrica NANC

• Sensor de Temperatura PT-100 IMANTADO (200 N )simple, 3 hilos<br />
• DIN 100 1 x Pt 100 Ohm DIN EN 60751, class A/0°C, 3-wire<br />
• Marca: INTRIAL (Made in Germany)<br />
• Tipo superficie imantada cilíndrica diámetro 25mm, <br />
• Espesor 12.5 mm cuello de largo 50mm<br />
• Incluye 10 mts de cable fibra de vidrio malla metalica<br />
• RTDIMAN: Sensor de Temperatura tipo IMAN -50 hasta +180°C<br />
• 2 = especial cable con 10 metros  3 x 0,22 mm² PTFE/acero inoxidable<br />
• 10 = 10 metros de cable<br />
• Y= Versión especial con cable y proteccion doblada en 90 Grados

SENSOR DE TEMPERATURA PT100<br />
MARCA: DANFOSS<br />
MODELO: MBT 5252 (084Z6168)<br /><br />
Especificaciones Tecnicas:<br />
- Longitud de inserción: 150mm<br />
- Proceso de conexión: 1/2" NPT<br />
- Rango : -50 A 200ºC,<br />
- Material : Acero Inox AISI 316<br />
- Diametro : 10mm<br />
- Grado de Protecciòn : IP65<br /><br />
* No Incluye Transmisor

QUAD-4 HALL EFFECT PICKUP<br />
SOURCING SENSOR<br />
Brand: AW LAKE<br />
Part Number: AP20130

G1 Microwave Swith Series<br />
Circular Polarization<br />
• Gladiator 1” Microwave Integral RECEIVER, 1 Relay with Failsafe<br />
• Electronic Housing: Powder Coated Aluminium<br />
• Power Supply: 12-30 VDC<br />
• Mounting Thread: 1” NPT<br />
• Approvals: ATEX  Grp II Cat 3 GD T85°C IP67 Tamb -40°C to 70°C

G1 Microwave Swith Series<br />
Circular Polarization<br />
• Gladiator 1” Microwave Integral SENDER<br />
• Electronic Housing: Powder Coated Aluminium<br />
• Power Supply: 12-30 VDC<br />
• Mounting Thread: 1” NPT<br />
• Approvals: ATEX  Grp II Cat 3 GD T85°C IP67 Tamb -40°C to 70°C

SIGHT FLOW INDICATOR<br />
Brand: DWYER<br />
Tube type with 8 blade<br />
Acetal impeller and integral wipers to clean<br />
Tube interior, tempered borosilicate tube<br />
Fluoroelastomer gaskets<br />
Body Style: Brass body<br />
Body Size: 1/2 Inch female NPT connection size<br />
Service: Compatible gases and liquids<br />
Temperature Limit: 212°F (100°C)<br />
Pressure Limit: 230 psig (15.86 bar)<br />
Connections: Threaded.

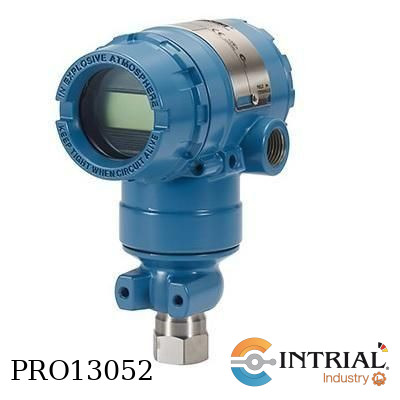

•    Rosemount 2051T Pressure Transmitter<br />
•    SELECTED OPTIONS:<br />
•    Pressure Type: Gage pressure transmitter<br />
•    Pressure Upper Range Limit: -14.7 to 800 psi<br />
•    Output: Foundation Fieldbus protocol<br />
•    Process Connection: 1/2-14 NPT Female<br />
•    Isolating Diaphragm: 316L SST<br />
•    Sensor Fill Fluid: Silicone<br />
•    Housing Material / Conduit Entry Size: Polyurethane covered<br />
•    aluminum; 1/2-14 NPT<br />
•    Manifold Assembly: None<br />
•    Mounting Brackets: Bracket for 2” pipe or panel mount; SST<br />
•    Diaphragm Seal Assemblies: None<br />
•    Hazardous Location Certifications: FM Explosion-proof, Dust<br />
•    Ignition-proof, Intrinsically Safe, Division 2<br />
•    Digital Display: LCD display<br />
•    Special Configuration (Hardware): None<br />
•    Additional Options: Calibration Certificate<br />
•    Surface Finish: No<br />
****segun hoja de datos: MIP17C55-C2-3240-70-DS-101****
