Variable Area Flowmeter-Plastic KSM<br />
KSM-1060-M-P25-R0<br />
GENERAL DESCRIPTION<br />
Variable Area Flowmeter-Plastic KSM<br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from bottom<br />
Armature material: Trogamide<br />
Accuracy: ±4 % FS<br />
Max. temperature: 60 °C<br />
Max. pressure: 16 bar<br />
Measuring range: 600...6000 L/h water<br />
scales for liquid media: L/min water<br />
Option connection: PVC G 1 female<br />
Option contact: w/o contact<br />
*********************************************<br />
SPECIFIC DESCRIPTION OF THE REQUESTED<br />
MODEL: KSM-1060-M-P25-R0<br />
[KSM-1] Plastic Flowmeter/-switch<br />
[060] Measuring range: 600...6000 L/h water<br />
[M] scales for liquid media: L/min water<br />
[P25] connection for size >=060: PVC G 1 female<br />
[RO] Option contact: w/o contact

-SENSOR DE TEMPERATURA<br />
-Especificaciones:<br />
-Precisión: 0.06%.<br />
-Construcción: 3 cables.<br />
-Material: Platino.<br />
-DIN 0.00385.<br />
-Resistencia: 100<br />
-envoltura: 3/ ohm +/– 0.12% a 0°C<br />
-Estilo de montaje: Vaina conductora y cable de armadura flexible de acero inoxidable<br />
-Conductores aislados de Teflón.<br />
-Diámetro (0.188)<br />
-Longitud: 6"<br />
-Material de la envoltura: Acero Inoxidable<br />
-Rango de temperatura: -45 to 482°C (-50 to 900°F).<br />
-Longitud de cable: 240”<br />
-Modelo especial fabricado a Medida del cliente (PRO13138)

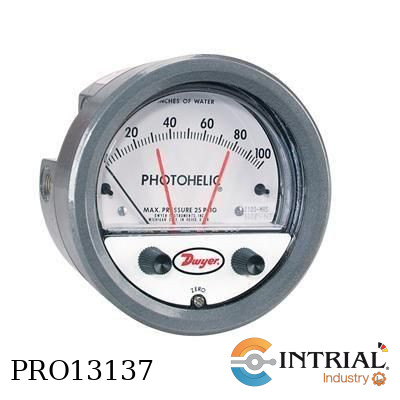

GAGE SPECIFICATIONS<br />
Range: 0 to 3.0 In w.c.<br />
Brand: DWYER<br />
Service: Air and non-combustible,<br />
compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±2% of FS (3000-0 ±3% of<br />
FS). (3000-00 ±4% of FS).<br />
Pressure Limit: -20" Hg. to 25 psig<br />
(-0.677 bar to 1.72 bar). <br />
MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Process Connections: 1/8" female NPT<br />
(duplicated side and back).<br />
Size: 4" (101.6 mm) dial face, 5" (127<br />
mm) OD x 3-1/8" (79.38 mm); -SS bezel:<br />
4-3/4" (120.7 mm) OD x 2-21/32 (67.5mm).<br />
Weight: 1.8 Ib (816 g).<br />
SWITCH SPECIFICATIONS 3000MR<br />
Switch Type: Each setpoint has 1 form C relays (SPDT).<br />
Relay Contacts: (Resistive load) 1 form<br />
C rated 1.0A @ 30 VDC, 0.3A<br />
@ 110 VDC or 0.5A @ 125 VAC.<br />
Gold over clad silver - suitable for dry circuits.<br />
Electrical Connections: 18" (46 cm)<br />
cable assembly with 8 conductors.<br />
Optional lengths to 100´ (30.5 m).<br />
Power Requirements: 24 VDC,<br />
regulated ±10%.<br />
Mounting Orientation: Diaphragm in<br />
vertical position. Consult factory for other<br />
position orientations.<br />
Set Point Adjustment: Adjustable<br />
knobs on face.<br />
Agency Approvals: CE.<br />
Option.- LT.- Low temperature option; for use under 20°F (-6.7°C)

-SENSOR DE TEMPERATURA<br />
Marca:  INTRIAL (Made in Germany)<br />
-Especificaciones:<br />
-Precisión: 0.06%.<br />
-Construcción: 3 cables.<br />
-Material: Platino.<br />
-DIN 0.00385.<br />
-Resistencia: 100<br />
-envoltura: 3/ ohm +/– 0.12% a 0°C<br />
-Estilo de montaje: Vaina conductora y cable de<br />
-armadura flexible de acero inoxidable; Conductores<br />
-aislados de Teflón.<br />
-Diámetro (0.188)<br />
-Longitud: 12"<br />
-Material de la envoltura: Acero Inoxidable<br />
-Rango de temperatura: -45 to 482°C (-50 to 900°F).<br />
-Longitud de cable: 240”<br />
-Modelo especial fabricado a Medida del cliente (PRO13135)

GAGE SPECIFICATIONS<br />
Brand: DWYER<br />
Service: Air and non-combustible,<br />
compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±2% of FS (3000-0 ±3% of<br />
FS). (3000-00 ±4% of FS).<br />
Pressure Limit: -20" Hg. to 25 psig<br />
(-0.677 bar to 1.72 bar). <br />
MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).<br />
Process Connections: 1/8" female NPT<br />
(duplicated side and back).<br />
Size: 4" (101.6 mm) dial face, 5" (127<br />
mm) OD x 3-1/8" (79.38 mm); -SS bezel:<br />
4-3/4" (120.7 mm) OD x 2-21/32 (67.5mm).<br />
Weight: 1.8 Ib (816 g).<br /><br />
SWITCH SPECIFICATIONS 3000MR<br />
Switch Type: Each setpoint has 1 form C relays (SPDT).<br />
Relay Contacts: (Resistive load) 1 form<br />
C rated 1.0A @ 30 VDC, 0.3A<br />
@ 110 VDC or 0.5A @ 125 VAC.<br />
Gold over clad silver - suitable for dry circuits.<br />
Electrical Connections: 18" (46 cm)<br />
cable assembly with 8 conductors.<br />
Optional lengths to 100´ (30.5 m).<br />
Power Requirements: 24 VDC,<br />
regulated ±10%.<br />
Mounting Orientation: Diaphragm in<br />
vertical position. Consult factory for other<br />
position orientations.<br />
Set Point Adjustment: Adjustable<br />
knobs on face.<br />
Agency Approvals: CE.

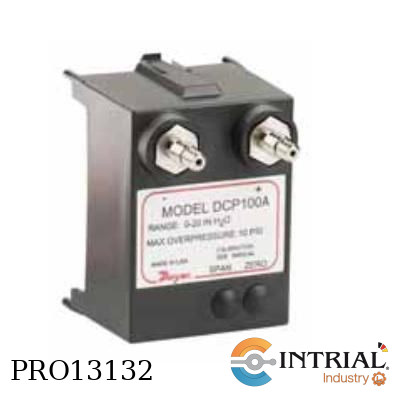

DCP PRESSURE MODULE<br />
Brand: DWYER<br />
Pressure Ranges: 10 in w.c. or 20 in w.c.<br />
Temperature Limits: -40 to 140°F (-40 to 60°C).<br />
Pressure Limit: 10 psi (68.95 kPa).<br />
Pressure Limit (differential): 10 psi (68.95 kPa).<br />
Accuracy: ±1.5% FS @ 73°F (22.8°C).<br />
Output Signal: 4 to 20 mA.<br />
Alarm Contacts: 1.5 A inductive load, 3<br />
A resistive load @ 30 VAC or 40 VDC.<br />
Process Connections: Two barbed<br />
connections for use with 1/8" (3.18 mm)<br />
or 3/16" (4.76 mm) ID tubing.<br />
Weight: 5.5 oz (155.9 g).

SENSOR DE TEMPERATURA<br />
Marca: INTRIAL (Made in Germany)<br />
Sensor de Temperatura PT-100 IMANTADO (200 N )simple, 3 hilos, <br />
DIN 100 1 x Pt 100 Ohm DIN EN 60751, class A/0°C, 3-wire<br />
Tipo superficie imantada cilíndrica diámetro 25mm, <br />
Espesor 12.5 mm cuello de largo 50mm<br />
Incluye 30 mts de cable fibra de vidrio malla metalica<br />
RTDIMAN: Sensor de Temperatura tipo IMAN -50 hasta +180°C<br />
2 = especial cable con 10 metros  3 x 0,22 mm² PTFE/acero inoxidable<br />
30 = 30 metros de cable

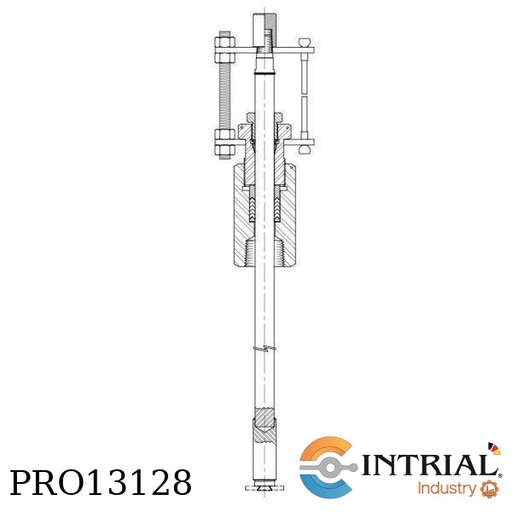

Coupon Holder Retractable system for a Flush Disc coupon..<br />
• With Stuffing Box Assy.<br />
• Length 30” according to drawing. Pressure rating 1500PSI,<br />
• Mounting 1” NPT<br />
• Requires Full port valve 1 ½” minimum with Niple reduction to 1"NPT<br />
• Safety Clamp Included<br />
• Temperature rating 260C

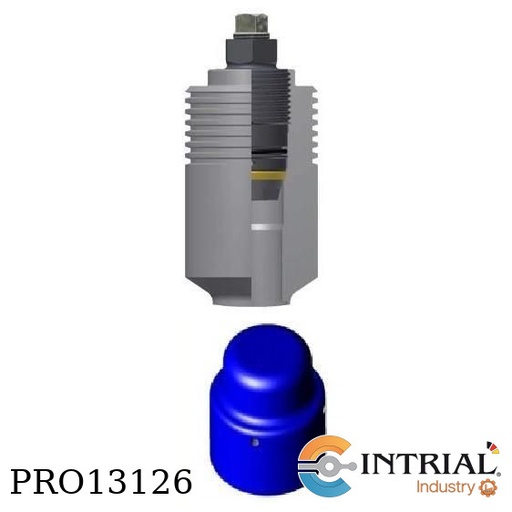

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
• Non-tee, Flarweld Mounting with integral Branch Reinforcement per ASME B31.3<br />
• Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
• Pressure Rating: 6000 Psi<br />
• INCLUDE:  SOLID Plug Assembly in 316L<br />
• Pipe Size: 04”<br />
• Body Material: ASTM A105 Carbon Steel<br />
• INCLUDES Polycarbonate Cover without Hole

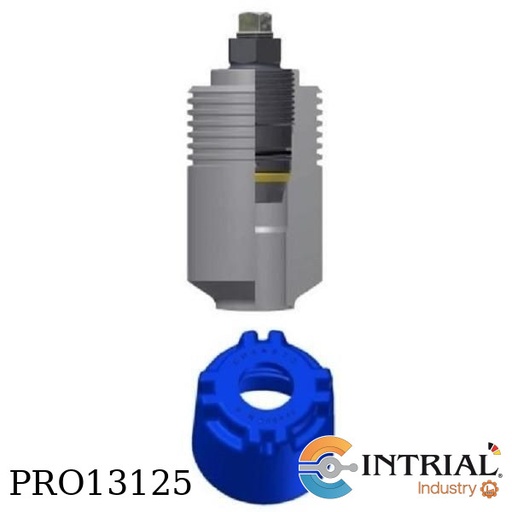

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
• Non-tee, FLARWELD Mounting with integral Branch Reinforcement per ASME B31.3<br />
• Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
• Pressure Rating: 6000 Psi<br />
• INCLUDE:  HOLLOW Plug Assembly in 316L<br />
• Pipe Size: 04”<br />
• Body Material: ASTM A105 Carbon Steel (K03504)<br />
• INCLUDES Polycarbonate Cover with Hole

AWR234SUIXXX+AWRT05T4XXXC50XX+FA10A4+C10054<br />
.<br />
AWR234SUIXXX (Transmisor)<br />
Sultan Remote Transmitter<br />
* Remote 2/3/4 Wire<br />
* 4-20mA analogue with HART isolated 4 wire<br />
* 5 Relays SPDT 0.5A at 240Vac non-inductive<br />
* Housing: Polycarbonate<br />
* Power Supply: 12-30 VDC and 90-260VAC<br />
* Enclosure sealing: IP65 (NEMA 4x)<br />
AWRT05T4XXXC50XX (Sensor)<br />
* Acoustic Wave Remote Transducer<br />
* 05 kHz for applications up to 60m for liquids<br />
* Face Material: Teflon 80 C<br />
* Transducer Housing of Polypropylene<br />
* Connection IP68 Sealed Unit with cable<br />
* Cable Length: 50 m<br />
.<br />
ACCESSORIES<br />
===========<br />
FA10A4 (Brida)<br />
===========<br />
* ANSI 10"<br />
* Cone Mounted<br />
* Flange Material: Polypropylene<br />
C10-05-4 (Cone Focalizador)<br />
=================<br />
* 10" Cone for 5 Khz unit<br />
* Cone Material: Polypropylene

621202-30 (RETRACTABLE Coupon Holder)<br />
==================================’<br />
Coupon Holder retractable system for a Flush Disc coupon.<br />
• Brand: COSASCO<br />
• With Stuffing box assy.<br />
• Length 30” according to drawing. Pressure rating 1500PSI,<br />
• Mounting 1” (full port valve 1 ½” minimum)<br />
• Safety Clamp Included<br />
• Temperature rating 260C<br />
• QTY: 01<br />
.<br />
061501-4 (Access Valve Retractable System)<br />
===============================’<br />
• Brand: COSASCO<br />
• Access Valve Assembly with Threadolet for pipe size 4” to 36”<br />
• All thread nipple,<br />
• Ball valve 1 ½”<br />
• Reduction Nipple 1 ½” to 1”<br />
• Full Valve Provided in Carbon Steel<br />
• QTY: 01<br />
.<br />
CI-D-G10180-0-3-0-0 (Flush Disc Coupon)<br />
==================================<br />
• Brand: COSASCO<br />
• Dimensions: 1.25" Dia; 0.125" Thickness; Mounting hole ID 0.312”<br />
• Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
• Ground Surface Finish, Pre-weighed.<br />
• Material: G10180 (1018 mild Steel)<br />
• QTY: 02

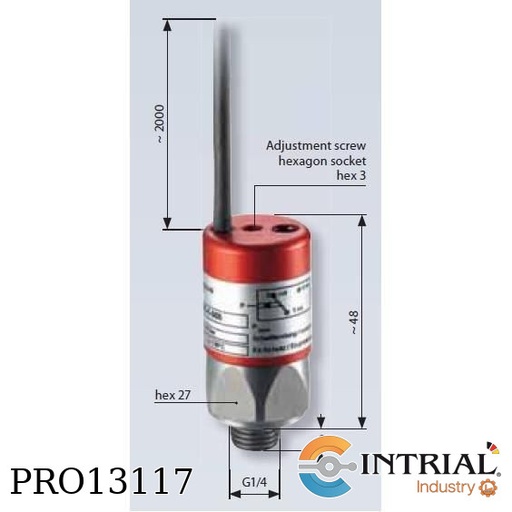

Presostatos Atex<br />
Modelo : 0340-45803-1-006  <br />
Rango de Presión 1-10 bar,<br />
Conección  ¼” BSPP de rosca, <br />
Longitud de Cable :  cable de 2 metros

621202-24 (RETRACTABLE Coupon Holder)<br />
==================================’<br />
Coupon Holder retractable system for a Flush Disc coupon.<br />
• Brand: COSASCO<br />
• With Stuffing box assy.<br />
• Length 24” according to drawing. Pressure rating 1500PSI,<br />
• Mounting 1” (full port valve 1 ½” minimum)<br />
• Safety Clamp Included<br />
• Temperature rating 260C<br />
• QTY: 01<br />
.<br />
061501-4 (Access Valve Retractable System)<br />
===============================’<br />
• Brand: COSASCO<br />
• Access Valve Assembly with Threadolet for pipe size 4” to 36”<br />
• All thread nipple,<br />
• Ball valve 1 ½”<br />
• Reduction Nipple 1 ½” to 1”<br />
• Full Valve Provided in Carbon Steel<br />
• QTY: 01<br />
.<br />
CI-D-G10180-0-3-0-0 (Flush Disc Coupon)<br />
==================================<br />
• Brand: COSASCO<br />
• Dimensions: 1.25" Dia; 0.125" Thickness; Mounting hole ID 0.312”<br />
• Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
• Ground Surface Finish, Pre-weighed.<br />
• Material: G10180 (1018 mild Steel)<br />
• QTY: 02

FLUJOMETRO EN POLICARBONATO<br />
Marca: DWYER<br />
RMB 5" escala<br />
Con  válvula de bronce<br />
107: Rango:  102 a 1200 SCFH Air <br />
Proceso de conexión: 1/2"<br />
Precision: 3%<br />
Límite de temperatura: 130°F (54°C)<br />
Límite de presión: 100 psi (6,9 bar)<br />
Materiales en contacto: Cuerpo: en policarbonato

FLUJOMETRO EN POLICARBONATO<br />
Marca: DWYER<br />
RMB 5" escala<br />
Con  válvula de bronce<br />
104: Rango:  40 a 400 SCFH Air <br />
Proceso de conexión: 1/2"<br />
Precision: 3%<br />
Límite de temperatura: 130°F (54°C)<br />
Límite de presión: 100 psi (6,9 bar)<br />
Materiales en contacto: Cuerpo: en policarbonato

<div>FLUJOMETRO EN POLICARBONATO</div>

<div>Marca: DWYER</div>

<div>RMB 5" escala</div>

<div>Con  válvula de bronce</div>

<div>56: Rango:  50 a 500 SCFH Air•<span> </span>Proceso de conexión: 1/4"</div>

<div>Precision: 3%</div>

<div>Límite de temperatura: 130°F (54°C)</div>

<div>Límite de presión: 100 psi (6,9 bar)</div>

<div>Materiales en contacto: Cuerpo: en policarbonat</div>

<div>FLUJOMETRO EN POLICARBONATO<br />
Modelo : RMB-55-SSV</div>

<div>Marca: DWYER</div>

<div>RMB 5" escala</div>

<div>Con  válvula de bronce</div>

<div>55: Rango:  40 a 400 SCFH Air•<span> </span><br />
Precision: 3%</div>

<div>Límite de temperatura: 130°F (54°C)</div>

<div>Límite de presión: 100 psi (6,9 bar)</div>

<div>Materiales en contacto: Cuerpo: en policarbonato</div>
