HUMIDITY TRANSMITTER<br />
BRAND : MINCO<br />
2% ROOM RH XMTR<br />

INCREMENTAL ENCODER <br />
Brand: AUTONICS<br />
Wheel Type<br />

<div>
<div class="gtx-trans-icon"></div>
</div>

100 MM VANE THERMO-ANEMOMETER TEST INSTRUMENT<br />
MEASURES AIR VELOCITY OR AIR VOLUME, TEMPERATURE, AND HUMIDITY SIMULTANEOUSLY<br />
Brand: DWYER(USA)<br />
Service: Dry, clean air.<br />
Temperature Limits: Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F<br />
(-15 to 51°C)<br />
Display: 4.5 digit backlit display.<br />
Range: Air velocity: 40 to 5000 fpm (0.2 to 25 m/s)<br />
Volumetric air flow: 19,999 in selected flow units<br />
Temperature: -20 to 212°F (-29 to 100°C)<br />
Relative humidity: 0 to 100% RH.<br />
Accuracy: Air velocity: ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s];<br />
±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s]<br />
±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]<br />
Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C)<br />
Relative Humidity: ±2% @ 77°F (25°C) [10 to 90% RH]<br />
±4% [0 to 10, 90 to 100% RH].<br />
Response Time: Air velocity: 1 s<br />
Volumetric air flow: 1 s<br />
Temperature: 1.5 s<br />
Relative humidity: 1.5 s.<br />
Probe Length: 8" (203 mm) insertion.<br />
Cable Length: 28" (71 cm) retracted; 6´ (18.3 m) extended.<br />
Vane Material: Anodized aluminum.<br />
Power Requirements: 9 V alkaline battery<br />
installed non-functional<br />
user replaceable.<br />
Weight: 18.4 oz (521 g).

Brooks® Models MT 3809 and 3819, Metal Tube Variable Area Flowmeters<br />
Important.- Base con serial number 9612HC021800<br />
Max Press @ Max Temp 1842 PSIG 127 BAR<br />
Max Press @ Min Temp 2567 PSIG 177 BAR<br />
Max Press @ Oper Temp 2567 PSIG 177 BAR<br />
Max Temperature 392F 200C / Min Temperature 5F -15C<br />
Accuracy 2% -Direct Scale-Gas<br />
Meter Material 316L SS<br />
Connection Size 1/2-inch / Connection Type F-NPT<br />
Inlet Down / Outlet Up<br />
O-Ring Material Viton<br />
Meter Lay Length 225 mm<br />
Valve On Inlet-Teflon-Ship Attached<br />
Valve Connection Visible Thd FNPT<br />
Tube Size 8-B/1.14<br />
Float 8-S-62<br />
Float Material 316L SS<br />
Range 1 - 10 SCFM

<div>MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL</div>

<div>MARCA: DWYER INSTRUMENTS</div>

<div>Escala Dual - English/Metric Models</div>

<div>Rango:  0 a 10 Inches of Water & 0 a 2.5 kPa.<span> </span></div>

<div>Conexión: 1/8 NPT hembra</div>

<div>Dial: 4" </div>

<div>Precisión: +/-4%</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL<br />
MARCA: DWYER INSTRUMENTS<br />
Rango:  0 a 20 “ de agua<br />
Conexión: 1/8 NPT hembra<br />
Dial: 4"
<div>
<div class="gtx-trans-icon"></div>
</div>

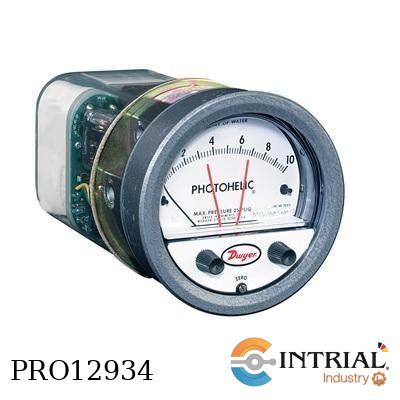

PHOTOHELIC® PRESSURE SWITCH/GAGES<br />
3-in-1 Indicating Gage, Lo-Limit and Hi-Limit Control<br />
Range: 0-10 KPa<br />
Brand: DWYER (USA)<br /><br />
GAGE SPECIFICATIONS<br />
Service: Air and non-combustible, compatible gases.<br />
Wetted Materials: Consult factory.<br />
Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.<br />
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C). Low temperature option<br />
available.<br />
Process Connections: 1/8" female NPT.<br />
Size: 4" (101.6 mm) dial face, 5" (127 mm) OD x 8-1/4" (209.55 mm).<br />
Weight: 4 lb (1.81 kg).<br /><br />
SWITCH SPECIFICATIONS<br />
Switch Type: Each setpoint has 2 form C relays (DPDT).<br />
Repeatability: ±1% of FS.<br />
Electrical Rating: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.<br />
Electrical Connections: Screw terminals. Use 167°F (75°C) copper conductors only.<br />
Power Requirements: 240 VAC.<br />
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.<br />
Set Point Adjustment: Adjustable knobs on face.<br />
Agency Approvals: CE, CSA, UL.
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>INDICADOR ELECTRÓNICO DE TEMPERATURE DE ACEITE EOTI</div>

<div>•<span> </span>Marca: Comem(Italia)</div>

<div>•<span> </span>Aplicación: Ambiente de salinidad moderada ISO 12944</div>

<div>•<span> </span>Fijación: Brida tipo A</div>

<div>•<span> </span>Rango: 0/+150°C</div>

<div>•<span> </span>DIAL: Multilayer glass con puntero de indicación máxima.</div>

<div>•<span> </span>n°4 microswitches</div>

<div>•<span> </span>Capilar: Rilsan 6.0 m</div>

<div>•<span> </span>Salida 1: 4-20mA, Salida 2: RS485</div>

<div>•<span> </span>Conexión del bulbo: 3/4 BSP fig.2 L=170mm</div>

<div>•<span> </span>Válvula de ventilación en plastico</div>

<div>•<span> </span>Salidas para cables: n°3 M25x1,5 </div>

<div></div>

<div>//////INFORMACION ADICIONAL///////////</div>

<div>•<span> </span>Type:<span> </span>Oil  temperatura</div>

<div>•<span> </span>Mechanical connection: <span> </span>Flange Type A</div>

<div>•<span> </span>Scale: <span> </span>0/+150°C</div>

<div>•<span> </span>Dial minimum división: <span> </span>5° (standard)</div>

<div>•<span> </span>Type of micro switches: <span> </span>Standard AC: 250V / 5A / cos?=1, DC: 250V /0.25A, 125V / 0.5A, 50V / 1A, 30V / 5A</div>

<div>•<span> </span>Number of micro switches: <span> </span>4</div>

<div>•<span> </span>Ventilation valve: <span> </span>Plastic (PA66 – standard)</div>

<div>•<span> </span>Capillary length: <span> </span>6.0 m</div>

<div>•<span> </span>Capillary tube protection: <span> </span>RILSAN (Standard)</div>

<div>•<span> </span>Bulb type: <span> </span>Fig.2 Male (170 mm)</div>

<div>•<span> </span>Bulb length (thread included): Without PT100 (100mm )</div>

<div>•<span> </span>Bulb connection): <span> </span>3/4 BSP Male only</div>

<div>•<span> </span>Cable glands (Max. nr. 3): <span> </span>Nr. 3 M25x1.5 Plastic (Standard)</div>

<div>•<span> </span>Corrosion protection: <span> </span>C4 acc. to ISO 12944 (standard)</div>

<div>•<span> </span>Color: <span> </span>RAL 7032</div>

<div>•<span> </span>Max Pointer: <span> </span>YES</div>

<div>•<span> </span>Lens: <span> </span>Multilayer glass</div>

<div>•<span> </span>Analog output 4-20 Ma: <span> </span>Incorporate (Comem eOTI / Comem eWTI)</div>

<div>•<span> </span>Modbus RTU: <span> </span>Incorporate (Comem eOTI / eWTI)</div>

<div>INDICADOR ELECTRÓNICO DE TEMPERATURE DE BOBINADO EWTI</div>

<div>•<span> </span>Marca: Comem(Italia)</div>

<div>•<span> </span>Corriente nominal (T.C.): 5A (Confirmado) </div>

<div>•<span> </span>Aplicación: Ambiente de salinidad moderada ISO 12944</div>

<div>•<span> </span>Fijación: Brida tipo A</div>

<div>•<span> </span>Rango: 0/+150°C</div>

<div>•<span> </span>DIAL: Multilayer glass con punter de indicación máxima.</div>

<div>•<span> </span>n°4 microswitches</div>

<div>•<span> </span>Capilar: Rilsan 6.0 m</div>

<div>•<span> </span>Salida 1: 4-20mA, Salida 2: RS485</div>

<div>•<span> </span>Conexión del bulbo: 3/4 BSP fig.2 L=170mm</div>

<div>•<span> </span>Válvula de ventilación en plastico</div>

<div>•<span> </span>Salidas para cables: n°3 M25x1,5</div>

<div></div>

<div>///////INFORMACION ADICIONAL ////////////</div>

<div>•<span> </span></div>

<div>•<span> </span>Type:<span> </span>Winding temperatura</div>

<div>•<span> </span>Mechanical connection: <span> </span>Flange Type A</div>

<div>•<span> </span>Scale: <span> </span>0/+150°C</div>

<div>•<span> </span>Dial minimum división: <span> </span>5° (standard)</div>

<div>•<span> </span>Type of micro switches: <span> </span>Standard AC: 250V / 5A / cos?=1, DC: 250V /0.25A, 125V / 0.5A, 50V / 1A, 30V / 5A</div>

<div>•<span> </span>Number of micro switches: <span> </span>4</div>

<div>•<span> </span>Ventilation valve: <span> </span>Plastic (PA66 – standard)</div>

<div>•<span> </span>Capillary length: <span> </span>6.0 m</div>

<div>•<span> </span>Capillary tube protection: <span> </span>RILSAN (Standard)</div>

<div>•<span> </span>Bulb type: <span> </span>Fig.2 Male</div>

<div>•<span> </span>Bulb length (thread included): Without PT100 (170mm )</div>

<div>•<span> </span>Bulb connection): <span> </span>3/4 BSP Male only</div>

<div>•<span> </span>Cable glands (Max. nr. 3): <span> </span>Nr. 3 M25x1.5 Plastic (Standard)</div>

<div>•<span> </span>Corrosion protection: <span> </span>C4 acc. to ISO 12944 (standard)</div>

<div>•<span> </span>Color: <span> </span>RAL 7032</div>

<div>•<span> </span>Max Pointer: <span> </span>YES</div>

<div>•<span> </span>Lens: <span> </span>Multilayer glass</div>

<div>•<span> </span>Analog output 4-20 Ma: <span> </span>Incorporate (Comem eOTI / Comem eWTI)</div>

<div>•<span> </span>Modbus RTU: <span> </span>Incorporate (Comem eOTI / eWTI)</div>

<div>•<span> </span>Comem WTI – CT nominal current:<span> </span>5A</div>

<div>•<span> </span>Comem WTI – specified values:</div>

<div>o<span> </span>_X_°C   Specify set thermal gradient (with thermowell thickness between 2.5 and 4 mm)</div>

<div>o<span> </span>_X_A Specify set nominal current</div>

<div>MEDIDOR DE FLUJO TIPO TURBINA <br />
TRG-1110-Y(2”)</div>

<div>FLUJOMETRO </div>

<div>•<span> </span>Medidor tipo: Turbina</div>

<div>•<span> </span>Rango Flujo: 5.3 a 53 GPM (20.06 a 200.6 LPM)</div>

<div>•<span> </span>Material del cuerpo: Acero Inoxidable 303</div>

<div>•<span> </span>Puerto:1-1/2" Macho NPT</div>

<div>•<span> </span>Presion maxima: 5000 PSI Max</div>

<div>•<span> </span>Filtración recomendada:300 Micrones</div>

<div>•<span> </span>Y(2”).-Incluye.- BRIDA de 2“ para montaje</div>

<div></div>

<div>RT-30SD-S31H </div>

<div>TRANSMISOR LOCAL DE FLUJO</div>

<div>•<span> </span>acceso único</div>

<div>•<span> </span>Sensor integral CAPM-15 para una operación máxima de 400 ° F</div>

<div>•<span> </span>Protocolo HART</div>

<div>MEDIDOT DE CAUDAL  TIPO DESPLAZAMIENTO POSITIVO<br />
JVM-80KL-Y(1 ½”)</div>

<div>FLUJOMETRO </div>

<div>•<span> </span>Medidor tipo: Desplazamiento positivo</div>

<div>•<span> </span>Rango Flujo: 5 a 60 GPM (18.92 a 227.12 LPM)</div>

<div>•<span> </span>Material del cuerpo: Acero Inoxidable 303</div>

<div>•<span> </span>Puerto:1-1/4" Bottom Port (Sin rosca)</div>

<div>•<span> </span>Presion maxima: 5000 PSI Max</div>

<div>•<span> </span>Filtración recomendada:200 Micrones</div>

<div>•<span> </span>Sello:PTFE</div>

<div>•<span> </span>Y(1 ½”).-Incluye.- BRIDA de 1 ½“ para montaje</div>

<div></div>

<div>BC80170</div>

<div>NPT-JVM-90-303 SS 90DEGREE</div>

<div>•<span> </span>1¼” NPT code 62 flanges for gear meters above</div>

<div>•<span> </span>1 for inlet and 1 for outlet</div>

<div></div>

<div>RT-30SD-S31H </div>

<div>TRANSMISOR LOCAL DE FLUJO</div>

<div>•<span> </span>acceso único</div>

<div>•<span> </span>Sensor integral CAPM-15 para una operación máxima de 400 ° F</div>

<div>•<span> </span>Protocolo HART</div>

<div>JVM-90KL-Y(1 ½”)</div>

<div>FLUJOMETRO </div>

<div>•<span> </span>Medidor tipo: Desplazamiento positivo</div>

<div>•<span> </span>Rango Flujo: 1.0 a 120 GPM (3.7 a 454.24 LPM)</div>

<div>•<span> </span>Material del cuerpo: Acero Inoxidable 303</div>

<div>•<span> </span>Puerto:1-1/4" Bottom Port (Sin rosca)</div>

<div>•<span> </span>Presion maxima: 5000 PSI Max</div>

<div>•<span> </span>Filtración recomendada:200 Micrones</div>

<div>•<span> </span>Sello:PTFE</div>

<div>•<span> </span>Y(1 ½”).-Incluye.- BRIDA de 1 ½“ para montaje</div>

<div></div>

<div>BC80170</div>

<div>NPT-JVM-90-303 SS 90DEGREE</div>

<div>•<span> </span>1¼” NPT code 62 flanges for gear meters above</div>

<div>•<span> </span>1 for inlet and 1 for outlet</div>

<div></div>

<div>RT-30SD-S31H </div>

<div>TRANSMISOR LOCAL DE FLUJO</div>

<div>•<span> </span>acceso único</div>

<div>•<span> </span>Sensor integral CAPM-15 para una operación máxima de 400 ° F</div>

<div>•<span> </span>Protocolo HART</div>

<div>MEDIDOR DE FLUJO DESPLAZAMIENTO POSITIVO</div>

<div>•<span> </span>Medidor tipo: Desplazamiento positivo<br />
JVM-80KL-Y(¾ )</div>

<div>•<span> </span>Rango Flujo: 5 a 60 GPM (18.92 a 227.12 LPM)</div>

<div>•<span> </span>Material del cuerpo: Acero Inoxidable 303</div>

<div>•<span> </span>Puerto:1-1/4" Bottom Port (Sin rosca)</div>

<div>•<span> </span>Presion maxima: 5000 PSI Max</div>

<div>•<span> </span>Filtración recomendada:200 Micrones</div>

<div>•<span> </span>Sello:PTFE</div>

<div>•<span> </span>Y(¾ ).-Incluye.- BRIDA de 3/4 “ para montaje</div>

<div></div>

<div>BC80170</div>

<div>NPT-JVM-90-303 SS 90DEGREE</div>

<div>•<span> </span>1¼” NPT code 62 flanges for gear meters above</div>

<div>•<span> </span>1 for inlet and 1 for outlet</div>

<div></div>

<div>RT-30SD-S31H </div>

<div>TRANSMISOR LOCAL DE FLUJO</div>

<div>•<span> </span>acceso único</div>

<div>•<span> </span>Sensor integral CAPM-15 para una operación máxima de 400 ° F</div>

<div>•<span> </span>Protocolo HART</div>

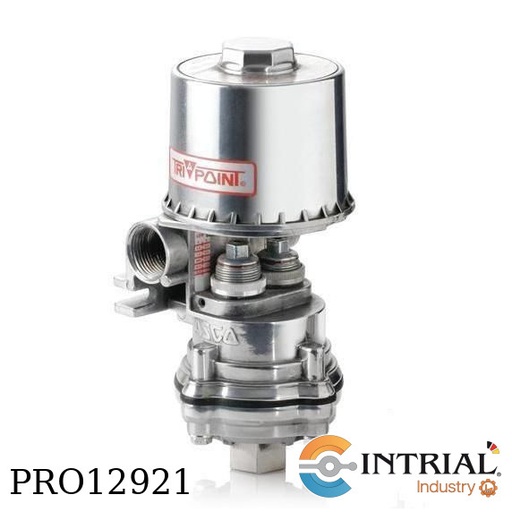

Single-Stage Adjustable Deadband (Adjustable Deadband)<br />
Brand: ASCO<br />
Adjustable Operating Range: (In W.C.): 0 to 12<br />
Adjustable Deadband : 2 to 12

SB Switch Unit: Single-Stage Fixed (Fixed Deadband or Manual Reset)<br />
Brand:(ASCO)<br />
Deadband units have an adjustable set point and a non-adjustable automatic reset point.<br />
SD Switch Unit:<br />
SE Switch Unit: <br />
Adjustable Operating Range: (In W.C.): 0 to 12<br />
Adjustable Deadband : 2 to 12

<div>MEDIDOR DE FLUJO TIPO TURBINA <br />
TRG SERIES<br />
TRG -1110-Y(2”)</div>

<div>•<span> </span>Marca: AW FLOW METERS(USA)</div>

<div>•<span> </span>Versión completamente en acero inoxidable</div>

<div>•<span> </span>Rango de trabajo de 5.3 a 53 GPM (20.06 a 200.6 LPM)</div>

<div>•<span> </span>Precisión: ± 1.0%</div>

<div>•<span> </span>Max presión: 5000 PSI</div>

<div>•<span> </span>Temperatura: -100 a 230°C</div>

<div>•<span> </span>Filtración: 300 micrón</div>

<div>•<span> </span>Y(2”): Conexión a proceso: BRIDA 2”</div>

<div></div>

<div>RT-30SD-S-00-H</div>

<div>METER MOUNTED TRANSMITTER </div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Local display – rate and total </div>

<div>•<span> </span>9 - 24VDC powered </div>

<div>•<span> </span>4-20mA output </div>

<div>•<span> </span>NEMA 4X enclosure</div>

<div>•<span> </span>Enclosure Style: Single Access</div>

<div>•<span> </span>Sensor: None (Remote mount)</div>

<div>•<span> </span>Comunication: Hart</div>

<div>MEDIDOR DE FLUJO TIPO TURBINA <br />
TRG -1110- Y(1 ½”)</div>

<div>•<span> </span>Marca: AW FLOW METERS(USA)</div>

<div>•<span> </span>Versión completamente en acero inoxidable</div>

<div>•<span> </span>Rango de trabajo de 5.3 a 53 GPM (20.06 a 200.6 LPM)</div>

<div>•<span> </span>Precisión: ± 1.0%</div>

<div>•<span> </span>Max presión: 5000 PSI</div>

<div>•<span> </span>Temperatura: -100 a 230°C</div>

<div>•<span> </span>Filtración: 300 micrón</div>

<div>•<span> </span>Y(1 ½”): Conexión a proceso: BRIDA 1 ½”</div>

<div></div>

<div>RT-30SD-S-00-H</div>

<div>METER MOUNTED TRANSMITTER </div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Local display – rate and total </div>

<div>•<span> </span>9 - 24VDC powered </div>

<div>•<span> </span>4-20mA output </div>

<div>•<span> </span>NEMA 4X enclosure</div>

<div>•<span> </span>Enclosure Style: Single Access</div>

<div>•<span> </span>Sensor: None (Remote mount)</div>

<div>•<span> </span>Comunication: Hart</div>

<div>MEDIDOR DE FLUJO TIPO TURBINA <br />
TRG -1120L-Y(1 ½”)</div>

<div>TRG SERIES</div>

<div>•<span> </span>Marca: AW FLOW METERS(USA)</div>

<div>•<span> </span>Versión completamente en acero inoxidable</div>

<div>•<span> </span>Rango de trabajo de 13 a 200 GPM (49.02 a 757.08 LPM)</div>

<div>•<span> </span>Precisión: ± 1.0%</div>

<div>•<span> </span>Max presión: 5000 PSI</div>

<div>•<span> </span>Temperatura: -100 a 230°C</div>

<div>•<span> </span>Filtración: 300 micrón</div>

<div>•<span> </span>Y(1 ½”): Conexión a proceso: BRIDA 1 ½”</div>

<div></div>

<div>RT-30SD-S-00-H</div>

<div>METER MOUNTED TRANSMITTER </div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Local display – rate and total </div>

<div>•<span> </span>9 - 24VDC powered </div>

<div>•<span> </span>4-20mA output </div>

<div>•<span> </span>NEMA 4X enclosure</div>

<div>•<span> </span>Enclosure Style: Single Access</div>

<div>•<span> </span>Sensor: None (Remote mount)</div>

<div>•<span> </span>Comunication: Hart</div>

<div>MEDIDOR DE FLUJO TIPO TURBINA <br />
TRG-11.880-Y(¾)</div>

<div>TRG SERIES</div>

<div>•<span> </span>Marca: AW-LAKE METERS(USA)</div>

<div>•<span> </span>Versión completamente en acero inoxidable</div>

<div>•<span> </span>Rango de trabajo de 3.2 a 32 GPM (12.11 a 121.1 LPM)</div>

<div>•<span> </span>Precisión: ± 1.0%</div>

<div>•<span> </span>Max presión: 5000 PSI</div>

<div>•<span> </span>Temperatura: -100 a 230°C</div>

<div>•<span> </span>Filtración: 300 micrón</div>

<div>•<span> </span>Y(¾): Conexión a proceso: BRIDA ¾</div>

<div></div>

<div>RT-30SD-S-00-H</div>

<div>METER MOUNTED TRANSMITTER </div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Local display – rate and total </div>

<div>•<span> </span>9 - 24VDC powered </div>

<div>•<span> </span>4-20mA output </div>

<div>•<span> </span>NEMA 4X enclosure</div>

<div>•<span> </span>Enclosure Style: Single Access</div>

<div>•<span> </span>Sensor: None (Remote mount)</div>

<div>•<span> </span>Comunication: Hart</div>

<div>RF100CH-D402-NPT(0 - 350 PSI)</div>

<div>BOURDON TUBE PRESSURE GAUGES FOR CHEMICAL APPLICATIONS</div>

<div>•<span> </span>Brand: AFRISO(Germany)</div>

<div>•<span> </span>Measuring system fully welded to housing</div>

<div>•<span> </span>Extremely robust design</div>

<div>•<span> </span>For medium temperatures up to 150 °C</div>

<div>•<span> </span>Tightness-tested with helium</div>

<div>•<span> </span>Nominal size: 100mm(4”)</div>

<div>•<span> </span>Accuracy class (EN 837-1/6), 1.0</div>

<div>•<span> </span>Static load: ≤ 600 bar = full scale value</div>

<div>•<span> </span>Operating temperature range: Tmax = +150 °C</div>

<div>•<span> </span>Connection: Stainless steel 316 L, bottom 1/2” NPT</div>

<div>•<span> </span>Measuring element: Bourdon tube, stainless steel 316 Ti/316 L</div>

<div>•<span> </span>Movement: stainless steel 316 Ti/316 L</div>

<div>•<span> </span>Dial: Aluminium, white, Dial marking black</div>

<div>•<span> </span>Pointer:Aluminium, black</div>

<div>•<span> </span>Housing: Stainless steel 304 with blow-out</div>

<div>•<span> </span>Bayonet type bezel: Stainless steel 304</div>

<div>•<span> </span>Window: Laminated safety glass</div>

<div>•<span> </span>Range: 0 - 350 PSI</div>

<div>•<span> </span>Include:</div>

<div>•<span> </span>scale in psi and kg/cm2 </div>

<div>•<span> </span>Calibration certificate, issue by Peruvian entity certify by INACAL</div>

<div>•<span> </span>TAG Number</div>

<div></div>

<div>38141</div>

<div>•<span> </span>Wetted parts cleaned for oxygen1</div>

<div>•<span> </span>label "Oxygen", symbol "Free from oil and grease"</div>

<div>•<span> </span>(gauges without filling only)</div>
