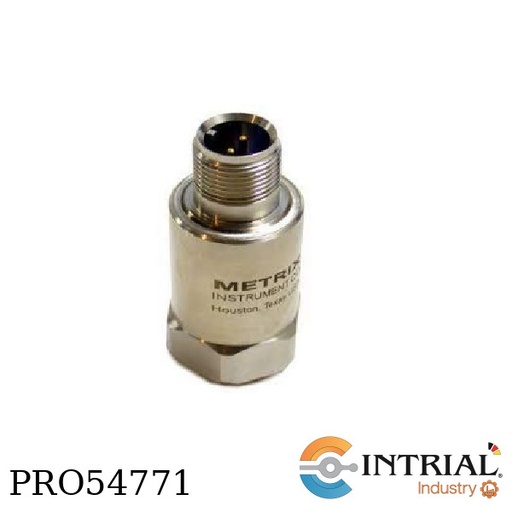

VIBRATION TRANSMITTER <br />
BRAND: METRIX  <br />
MODEL: ST6917-151-0-0<br /><br />
VELOCITY<br />
[151] FULL SCALE: 1 IPS (25 MM/S), RMS<br />
[0] MOUNTING OPTIONS:  1/4 -28 UNF<br />
[0] HAZARD RATING: NONE<br />

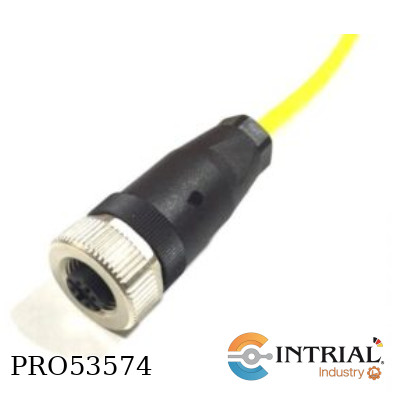

CABLE CONECTOR<br />
Marca: WILCOXON<br />
Modelo: RM12P-0-J9T4A-16<br />
Cable conector<br />
4 conductor<br />
Alta temperatura<br />
Teflon amarillo.

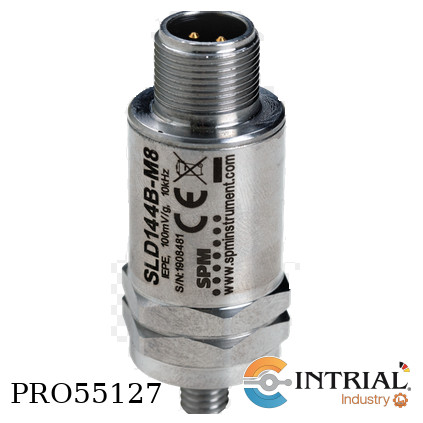

VIBRATION TRANSDUCER<br />
Brand: SPM<br />
Model: SLD144S-M6<br />
Nominal sensitivity, main axis, 10 mV/m/s 2 * =100 mV/g<br />
Transverse sensitivity, max. 10%<br />
Base strain sensitivity, 0.01 m / s 2 / μ strain typical<br />
Linear frequency range, 2 Hz to 10 kHz (± 1 dB)<br />
Max. peak acceleration, 600 m / s 2 = 60 g<br />
Settling time, 3 sec<br />
Bias point, 10 to 13 V (typical 12 V)<br />
Temperature range, – 40° to +125 °C (– 40° to 257 °F)<br />
Power requirements, 24 V, 2 to 5 mA<br />
Thread (t), M6 x 1.0, M8 x 1.25 or UNF 1/4"-28<br />
Torque limit, 10 Nm (7.4 lbf . ft)<br />


SENSOR DE VIBRACIÓN<br />
Brand: BRUEL & KJAER VIBRO<br />
Model: ASA-063<br />
Sensibilidad (4%), 100 mV/g<br />
Rango de frecuencia (+/- 5%), 4 - 10 000 Hz<br />
Conexión, Superior 2 pines compatible MIL C 5015<br />
Montaje a proceso, 1/4" 28 UNF / M8 x 14<br />
<br />


2-pin Cable Jack 16100<br />
Brand: SPM<br />
Model: CSC-C16100.T16323<br />
Conector SPM 16100<br />
Terminal 16323<br />
Mounting, Crimp/solder termination<br />
Wire range/size:<br />
 0.30 - 0.60 mm2 / 22-20 AWG<br />
 0.75 - 1.5 mm2 / 16-18 AWG<br />
Temperature range, –40° to 125 °C (–40 to 257 °F)

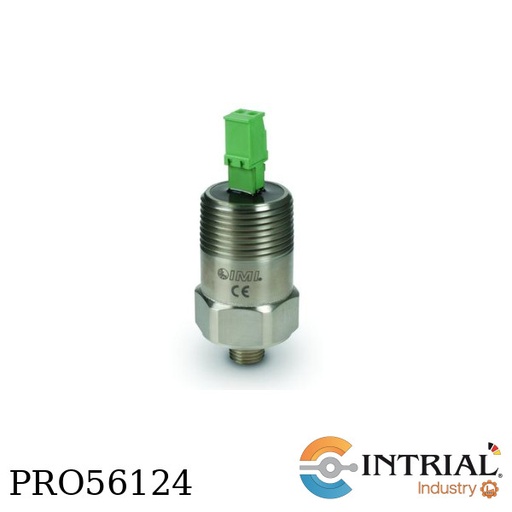

VIBRATION SENSOR<br />
BRAND: IMI SENSORS<br />
MODEL: HT640B71<br />
<br />
1HZ = 60 CPM (CYCLES PER MINUTE).<br />
CURRENT WILL FLUCTUATE AT FREQUENCIES BELOW 5 HZ.<br />
CONVERSION FACTOR 1 IN/SEC = 0.0254 M/SEC.<br />
TYPICAL.<br />
SEE PCB DECLARATION OF CONFORMANCE PS039 FOR DETAILS<br />
MEASUREMENT RANGE: 0.0 TO 1 IN/SEC PK<br />
OUTPUT: 4-20 MA<br />
BROADBAND RESOLUTION: 0.005 IN/SEC PK<br />
NON-LINEARITY: ±1 %<br />
TEMPERATURE RANGE: -40 TO 257 °F<br />
EXCITATION VOLTAGE: 12 TO 30 VDC<br />
SETTLING TIME (WITHIN 2% OF VALUE): <15 SEC<br />
ELECTRICAL ISOLATION (CASE): >100000000 OHM

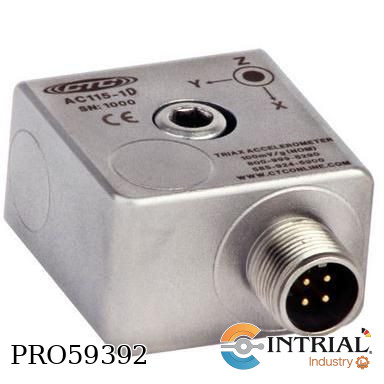

Low Cost Triaxial Accelerometer<br />
Brand: CTC<br />
Model: AC115-1D<br />
Sensitivity (±15%), 100 mV/g<br />
Frequency Response, 1,0-6500 Hz<br />
Dynamic Range, ± 50 g, peak<br />
Settling Time, <2.5 seconds<br />
Voltage Source, 18-30 VDC     <br />
Constant Current Excitation, 2-10 mA<br />
Connector (Non-Integral), 4 Pin Mini-MIL Connector         <br />
Output Impedance, <100 ohm     <br />
Bias Output Voltage, 10-14 VDC     <br />
Case Isolation, >108 ohm

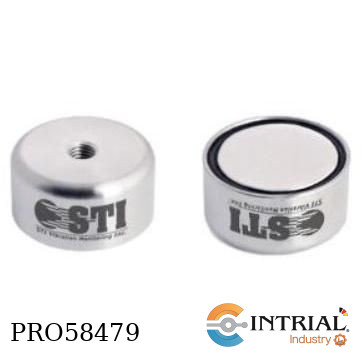

Magnetic Base<br />
Brand: STI<br />
Model: CMCP-MB03F<br />
1.4" OD 80 Lb. Pull,<br />
1/4"-28 Female Thread

ACELEROMETRO<br />
Marca: IMI<br />
Modelo: PCB-IMI-608A11/050BZ<br />
Cable integrado de 15m<br />
Sensibilidad, (±15%)100 mV/g (10,2 mV/(m/s²))<br />
Rango de frecuencia, (±3dB)30 a 600000 cpm (0,5 a 10000 Hz)<br />
Elemento sensor, Cerámica<br />
Rango de medición, ±50 g (±490 m/s²)<br />
Peso, 3,5 oz (99,3 g)

ACCELEROMETER SENSOR M5 THREAD FLAT
Marca: LUDECA INC.
ELECTRICALLYINSULATED

MAGNETIC HOLDERS CURVED MOUNTING SURFACES M5
Marca: LUDECA INC.

•    SIGNAL CONDITIONER Ultra SlimPak®
•    Brand: Action Instruments
•    1 Channel, Current
•    Input Range: 4-20mA
•    Output Range: 4-20mA
•    9 to 30 Vdc
•    1.5 W


COMPACT GENERAL ACCELEROMETER
Brand: WILCOXON
PURPOSE ACCELEROMETER
Sensitivity, ± 5%, 25°C 100 mV/g
Acceleration range 80 g peak
Amplitude nonlinearity 1%
Frequency response:
± 5%..3 - 5,000 Hz
± 10%..1 - 9,000 Hz
± 3 Db.. 0.5 - 14,000 Hz
Resonance frequency 30 kHz
Transverse sensitivity, max 5% of axial
Temperature response: –55°C.. –20%
+120°C.. +10%
Power requirement:
Voltage source: 18 - 30 VDC
Current regulating diode: 2 - 10 mA
Output impedance, max 100 Ω
Bias output voltage 12 VDC
Grounding case isolated, internally shielded
Temperature range –55° to +120°C
Vibration limit 500 g peak
Shock limit 5,000 g peak
Electromagnetic sensitivity, equiv. g, max 70 μg/gauss
Sealing hermetic
Base strain sensitivity, max 0.0002 g/μstrain
Sensing element design PZT, shear
Weight 62 grams
Case material 316L stainless steel
Mounting 1/4-28 UNF tapped hole
Output connector 2 pin, MIL-C-5015 style
Mating connector R6 type
Recommended cabling J10 / J9T2A

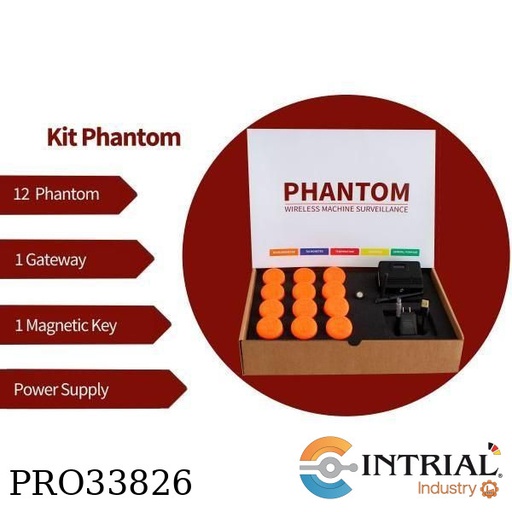

•    Vibration Monitoring system triaxial Sensor KIT
•    Brand: ERBESSD INSTRUMENTS®
•    Vibration Monitoring system includes the most powerfull DigivibeMX  versión.
•    Includes: 12 Phantoms , 1 Gateway, Software
////DESCRIPTION LIST////
•    PHANTOM-AHR       Phantom Wireless Sensor BLE 3-axis 10Hz to 10kHz (sw not included)  (10 units)
•    PHANTOM-TC          Phantom Wireless Sensor BLE for K type thermocouple (sw not included)(1 unit)
•    PHANTOM-S             Phantom Wireless Sensor for Measuring Speed using Hall-Effect Sensor(1 unit)
•    PHANTOM-GW        Phantom BLE Gateway/Repeater (sw not included) (1 unit)
•   Magnetic key (1 unit)
•    Software (1 unit)


SERVICIO DE MEJORA EN FAJA OVERLANDS

Incluye los siguientes accesorios:Modelos: 787B+ R6QI-0-J9T2A-64+ CB2Modelo: 787BSENSOR SALIDA LATERAL, PROPOSITO GENERALMarca: WILCOXONcase aisladoconector MIL-C-5015 , 100 mv/g±10% Tolerancia sensibilidad
***Inlcuye 10 Piezas***

Modelo: R6QI-0-J9T2A-64CABLE TEFLON AMARILLOMarca: WILCOXONAlta temp 200° Cenchaquetado 20m cable con conector2 socket MIL-C-5015, IP68 ​***Inlcuye 10 Piezas***

Modelo: CB22 CHANNEL BNCMarca: WILCOXONtermination junction boxcable grips​***Inlcuye 10 Piezas***

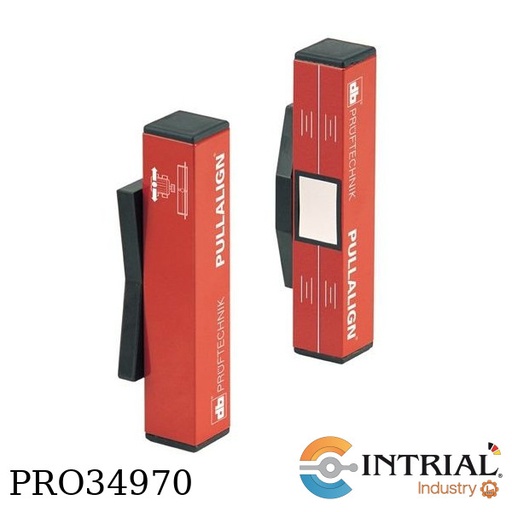

PULLALIGN SET WITH POUCH
Marca: PRUFTECHNIK

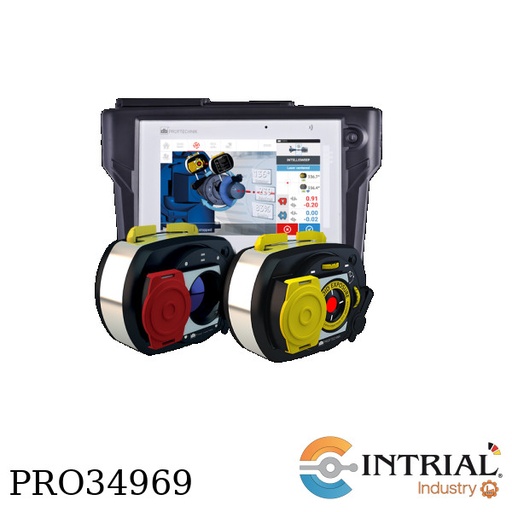

ROTALIGN touch Shaft package "FULL"
ROTALIGN touch short instructions, EN
Brand: PRUFTECHNIK
Compact chain-type bracket, 1 piece
Cleaning cloth
Support post 300 mm yellow [ 11 3/4" ]
touch device Safety information, multiple languages
Support post 250 mm, green [ 9 5/6" ]
ROTALIGN touch ruggedized trolley case
sensALIGN 7 rechargeable Lithium Ion battery<100Wh
2.5 mm Allen key
Support post 115 mm, white [ 4 5/9" ]
Support post 150 mm, black [ 5 7/8" ]
Tape measurement mm/inch
Power supply / Charger
FULL touch computer 'FULL`, Lithium Ion
battery <100Wh incl
Cable for sensALIGN 7 sensor, touch, 2m [ 6' 6 5/7" ]
sensALIGN 7 laser
Tension chain 300 mm [ 11 3/4" ]
OPTALIGN smart USB/PC cable, 2m
sensALIGN 7 vibration measuring probe
sensALIGN 7 sensor
sensALIGN 7 AC power supply charger
Storage pouch for compact chain type
bracket set

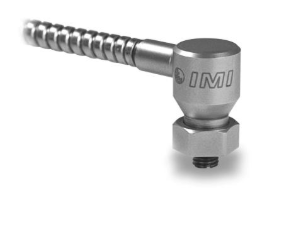

SPINDLER INDUSTRIAL ICP ACCELEROMETER
Brand: EMERSON
Model: 607A61/030BZ
Sensitivity: (±15%)100 mV/g (10.2 mV/(m/s²))
Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)
Sensing Element: Ceramic
Measurement Range: ±50 g (±490 m/s²)
Weight: 1.1 oz (31 gm)
