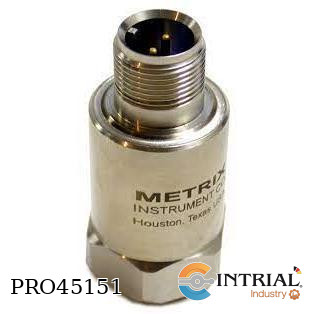

VIBRATION TRANSMITTER(FOR COOLING TOWER TURBINE)
BRAND: METRIX VIBRATION
MODEL: ST6917-154-1-0
Full Scale: 1.6 ips (40.6 mm/s) RMS
Mounting: M6 x 1.0
Agency Certification: No Hazardous Area Approval, CE

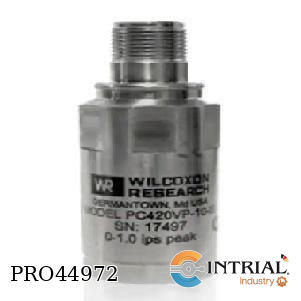

RMS and peak velocity<br />
loop powered sensors<br />
BRAND: WILCOXON<br />
R = RMS output, velocity,<br />
50mm:full scale,<br />
4-20 mA output type<br />
1.9 ips (50 mm/sec) <br />
R6:output connector,<br />
2 pin, MIL-C-5015

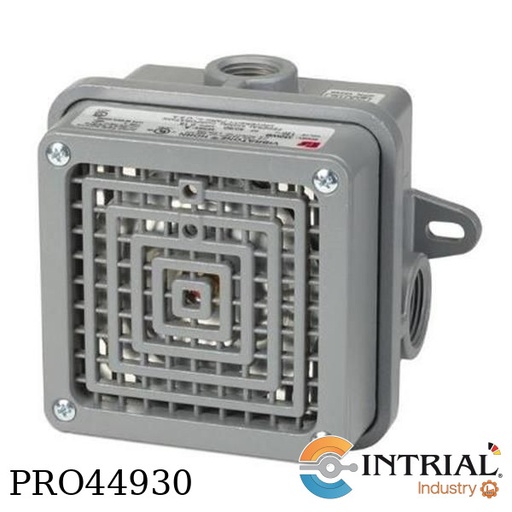

VIBRATONE HORNS<br />
Brand: FEDERAL SIGNAL<br />
Voltage:240 VAC<br />
dB @ 10 Ft.:100<br />
NEMA Rating:NEMA 4X<br />
Range:200 Feet<br />
Explosion Proof:No<br />
Hazardous Location Rated:No<br />
Operating Current:0.09 Amps<br />
Operating Temp.:-65 to 150 Degrees F

<strong>RMS and peak velocity loop powered sensors<br />
Model: PCC420VR-25MM-M12<br />
Brand: Wilcoxon</strong><br />
[PCC420V] Series<br />
series sensors provide a 4-20 mA <br />
output proportional to velocity vibration<br />
[R]  RMS output, velocity<br />
[25MM] 4-20 mA full scale; 0.9 ips (25 mm/sec)<br />
[M12] output connector,  4 pin, M12

<strong>RMS and peak acceleration loop powered sensors<br />
Brand: Wilcoxon <br />
Model: PCC420A-R-05-R6+R6W-0-J9T2A-64+SL-CALIB-CERT</strong><br />
[PCC420A]<br />
SPECIFICATIONS:<br />
Full scale, 20 mA, ±5%<br />
Repeatability ±2%<br />
Case material 316L stainless steel<br />
Mounting 1/4-28 UNF tapped hole<br />
(4-20 mA output type)<br />
[R] RMS output, acceleration<br />
[05]  5 g (49 m/sec2)<br />
[R6]  2 pin, MIL-C-5015<br /><br />
Incluye:<br />
CONJUNTO DE CABLE DE PAR<br />
TRENZADO DE ALTA TEMPERATURA<br />
Marca: WILCOXON <br />
Model: R6W-0-J9T2A-64<br />
20m cable<br />
Cable con clasificación de 200 ° C con cubierta de teflón<br />
Conector moldeado con clasificación IP67<br />
2 conductores<br /><br />
Incluye:<br />
​Calibration Certificate <br />
SL-CALIB-CERT<br />

VIBRATION SENSOR INTEGRATED<br />
24 VDC<br />
4-20 mA<br />
0-20 mm/s

<strong>RMS and peak acceleration loop powered sensors<br />
Brand: Wilcoxon <br />
Model: PCC420A-R-05-R6</strong><br />
[PCC420A]<br />
SPECIFICATIONS:<br />
Full scale, 20 mA, ±5%<br />
Repeatability ±2%<br />
Case material 316L stainless steel<br />
Mounting 1/4-28 UNF tapped hole<br />
(4-20 mA output type)<br />
[R] RMS output, acceleration<br />
[05]  5 g (49 m/sec2)<br />
[R6]  2 pin, MIL-C-5015

HORN /STROBE RED<br />
Brand: EDWARDS SIGNAL<br />
Voltage: 120 VAC<br />
Lamp Color: Red<br />
Lamp Type: Strobe<br />
Flash Rate/Minute:60<br />
dB @ 10 Ft.:90 dB<br />
Mounting: Surface<br />
Operating Currrent: 0.09 Amps<br />
Operating Temp.: 32 to 120 Degrees F<br />
Approvals: UL

<strong>RMS and peak velocity<br />
loop powered sensors<br />
Brand: Wilcoxon<br />
Model: PCC420VP-20-R6</strong><br />
Specification:<br />
[PCC420]<br />
4-20mA output (acceleration or velocity)<br />
More compact housing than legacy PC420 models<br />
Available with a 2-pin MIL <br />
[VP] calculated peak output, velocity<br />
[20] 2.0 ips (50.8 mm/sec)<br />
[R6] 2-pin, MIL-C-5015 style

<strong>PT580 Digital Vibration Switch<br />
Brand: PVTVM - Usa<br />
Model: PT580-000-011-30-01</strong><br />
[PT580] Model<br />
Specifications <br />
Frequency Range: <br />
Internal sensor: 2 - 1,000 Hz <br />
External sensor: 2 - 2,000 Hz<br />
Alarms: Dual alarms <br />
Dry-contact relay: 5A 230VAC/115VAC or 5A 30VDC <br />
Triac: 5A 230VAC. Optically Isolated, Standard NC <br />
Enclosure: Cast Aluminum<br />
Environmental Rating: NEMA 4X(optional E-coating ), IP65<br />
[0]  Alarms,  Dual SPDT Relays <br />
[0]   3/4” NPT <br />
[0]  Mounting Plate PT500-13<br />
[0] With display (No Local Reset)<br />
[1] Multiple approvals: <br />
CSA: Class I, Div 1, Groups B, C, D, T4 & T6 <br />
 CERTIFICATE: 2079756 <br />
ATEX: II 2G Ex db ⅡB+ H2 T4/T6 Gb <br />
T4@Ta= -52℃ to +100℃<br />
 T6@Ta= -52℃ to +70℃<br />
 DEKRA 16ATEX0003X <br />
IECEx: Ex db ⅡB+ H2 T4/T6 Gb <br />
 IECEx DEK 16.0002X <br />
PCEC: Ex d ⅡB+H2T4/T6 Gb <br />
CE Mar<br />
[1] Outputs/   4-20mA<br />
[30]  0 - 12.5 mm/s rms<br />
[0]  Sensors , Internal accelerometer <br />
[1] Power Supply,  24VDC

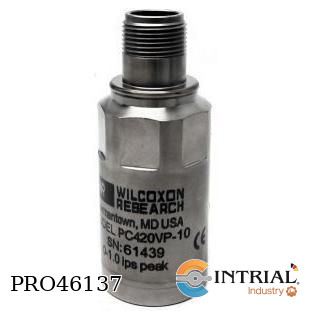

<strong>RMS and peak velocity loop powered sensors<br />
Brand: Wilcoxon<br />
Model: PC420VP-10</strong><br />
Power requirements, 2-wire loop power:<br />
Voltage at sensor terminals 12 - 30 VDC<br />
Mounting 1/4-28 tapped hole<br />
Case material stainless steel<br />
Turn on time, 4-20 mA loop 30 seconds<br />
[P] calculated peak output, velocity<br />
[10] PEAK 1.0 ips (25.4 mm/sec)

VIBRATION METER<br />
Brand: VMI AB<br />
Input Amplitude Range Vibration: 1.76 oz (50g) RMS with other sensor up to 17.64 oz (500 g)<br />
Bearing condition: Max 5 gBC<br />
Dynamic Range 80 dB (159 Hz with auto ranging)<br />
Frequency Range: Vibration: 2 to 400 Hz, 10 to 1000 Hz, 6 to 1600 Hz, 11 to 3200 Hz<br />
Bearing condition: 0.5 to 16 kHz<br />
Vibration Units g-value, m/s², mm/s, in/s, µm, mils<br />
Amplitude Presentation: RMS, Peak, Peak-Peak<br />
Frequency Range: Same as "frequency range", except for 11-3200 Hz range, where peak detection ends at 2000 Hz<br />
Storage Capacity: 100 measurements can be stored<br />
Three-point Balancing: 10 balancing results can be stored<br />
Interface: USB 2.0<br />
Sound Frequency: 60 Hz to 10 kHz +26 dB to -4.1 dB<br />
500 Hz to 10 kHz +26 dB to -4.1 dB<br />
Temperature Range-4 to 248°F (-20 to 120°C)<br />
Accuracy Vibration: ±3% f.s. is 50g for acceleration other units are frequency dependent<br />
Bearing condition: ±5% over 0.5 gBC<br />
Frequency/RPM: ±0.2%<br />
Temperature: Emissivity factor must be set in accordance with the target surface<br />
Display B&W LCD 64 x 120 pixels with background light<br />
Power Supply Rechargeable lithium battery, 2300 mA/h<br />
Dimensions 6.5 x 3.15 x 1.97" (165 x 80 x 50 mm)<br />
Weight 14.64 oz (415 g)

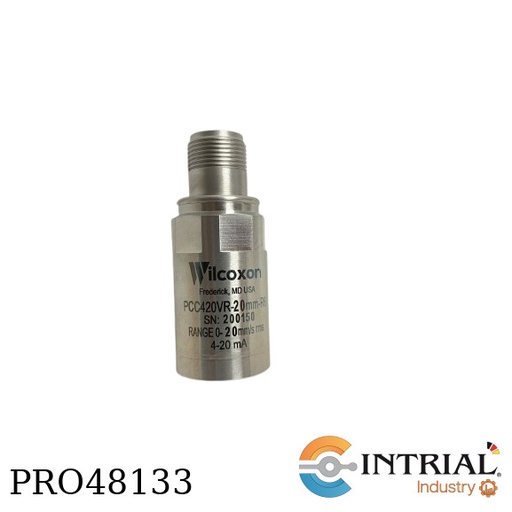

RMS and peak velocity loop powered sensors<br />
Model: PCC420VR-25MM-M12<br />
Brand: Wilcoxon<br />
[PCC420V] Series<br />
series sensors provide a 4-20 mA <br />
output proportional to velocity vibration<br />
[R]  RMS output, velocity<br />
[25MM] 4-20 mA full scale; 0.9 ips (25 mm/sec)<br />
[M12] output connector,  4 pin, M12<br /><br />
Include Cable.<br />
Model: RM12W-0-J88HT-5M   <br />
(16ft cable )

<strong>RMS and peak velocity loop powered sensors<br />
Model: PCC420V-R-20MM-R6<br />
Brand: Wilcoxon</strong><br />
[PCC420V] Series<br />
series sensors provide a 4-20 mA<br />
output proportional to velocity vibration<br />
[R] RMS output, velocity<br />
[20MM] 4-20 mA full scale;  2.0 ips (50.8 mm/sec)<br />
[R6] output connector, 2 pin, MIL-C-5015

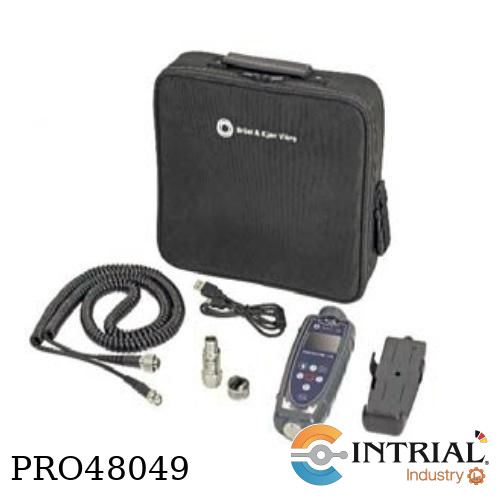

VIBRÓMETRO PORTÁTIL DE 1 CANAL<br />
Marca: BRUEL & KJAER VIBRO<br />
Mediciones: Aceleración (g), Velocidad (inch/s),<br />
Desplazamiento (microm, mils), daño de rodamiento (BDU)<br />
Resolucion de frecuencia: 1.25 Hz@ 800 líneas FFT<br />
Grado de Protección: IP67<br />
Incluye:<br />
REPORT & ROUTE MANAGER SOFTWARE (ReO)<br />
STROBE ADAPTER (Luz estroboscópica)<br />
Carcaza Heavy Duty<br />
Cable de señal espiral con conector 2 pines<br />
Acelerómetro AS-063 (100mV/g)<br />
Estuche de transporte de nylon<br />
Base magnética con perno M8<br />
Base de enlace infrarrojo con puerto USB<br />
Cable USB a mini USB

<strong>HART-enabled vibration transmitter<br />
Brand: Wilcoxon<br />
Model: PCH420V-M12</strong><br />
Specifications:<br />
HART PARAMETERS<br />
Full scale velocity output, 20 mA, ± 10% 0.5 - 5.0 in/sec, peak<br />
SENSOR SPECIFICATIONS<br />
Frequency response: ± 10%, 10 Hz - 1 kHz<br />
Measurement accuracy at 25°C,<br />
100 Hz, 1 ips full scale ± 5%<br />
Temperature range –40° to +105° C (–40° to +221°F)<br />
Vibration limit 500 g peak<br />
Case material 316L stainless steel<br />
Mounting 1/4-28 tapped hole<br />
Mating connector 4 pin, M12<br />
Recommended cabling J9T4A<br />
Recommended connector R75S<br />
4-20 mA + HART velocity sensor with

T761 AC Input Isolating Field Configurable Two-Wire Transmitter<br />
Brand: Action Instruments<br />
Model: T761-0000<br />
Minimum Output Current: 3.3mA, typical<br />
Maximum Output Current: 4-20mA: 24mA, typical<br />
10-50mA: 58mA, typical<br />
Supply-Voltage Range: 4-20mA: 12 to 80VDC<br />
10-50mA: 12 to 60VDC<br />
Loop Voltage Drop: 12VDC @ 20mA<br />
Frequency Response (±0.5dB): 20Hz to 3KHz<br />
Isolation: 600V DC maximum, input to output<br />
Temperature Range: -40 to 80°C

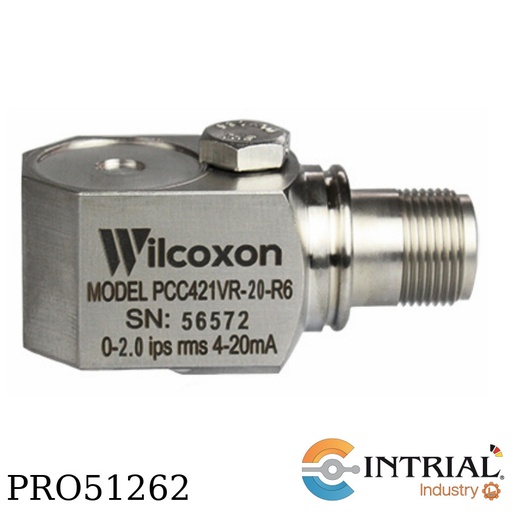

Loop powered sensors<br />
Brand: Wilcoxon<br />
Model: PCC421VR-10-R6<br />
[PCC421]: Series<br />
[VR]: 4-20 mA output type, velocity RMS<br />
[10]: 4-20 mA full scale; 10 g (98 m/sec2)<br />
[R6]: Output connector, 2 pin, MIL-C-5015

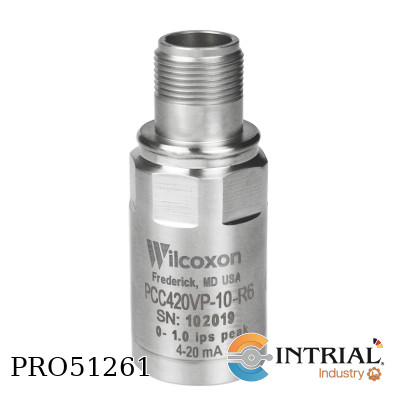

RMS and peak velocity loop powered sensors<br />
Model: PCC420VR-25MM-R6<br />
Brand: Wilcoxon<br />
[PCC420V]: Series<br />
series sensors provide a 4-20 mA<br />
output proportional to velocity vibration<br />
[R]: RMS output, velocity<br />
[25MM]: 4-20 mA full scale; 0.9 ips (25 mm/sec)<br />
[R6]: Output connector, 2 pin, MIL-C-5015

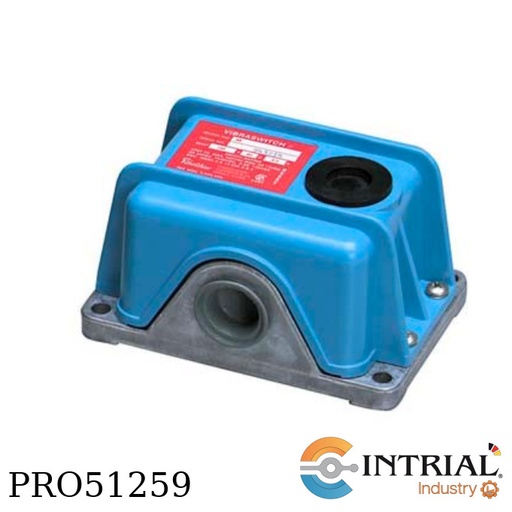

​VIBRASWITCH MALFUNCTION DETECTOR<br />
Brand: ROBERTSHAW<br />
Model: 366-D-0<br />
[366]: Vibraswitch, Weatherproof NEMA type 4 & 12 Enclosure, Range:0 - 4.5G<br />
[D]: Switch contacts, DPDT-2 gang SPDT load switches<br />
[0]: Remote reset, No reset coil
