SIRENA VIBRANTE<br />
Marca: EDWARDS<br />
AJUSTABLE<br />
78AMP<br />
103DB <br />
120VAC<br />
0.13AMP<br />
CAPACIDAD 400 HRS <br />
PROTECCION NEMA 4X

<strong>DISPOSITIVO LIMITADOR DE PRUF PARA ÁREAS EXPLOSIVAS</strong><br />
PRUFTECHNIK

SENSOR DE VIBRACION
MARCA: METRIX(USA)
CARACTERISTICAS:
151- 1.0 plg/s (25.4mm/s) RMS
4- Carcasa SS 303, M8x1.0- 12 macho
1- CSA/NRTL/C, Clase I, Div 2, Grps A-D
0- Conductores flexibles 24", 2-cables; (sólo
salida 4-20mA
0- 2 Hz (estándar)
0- 1500 Hz (estándar)

TRIAXIAL FORCE BALANCE ACCELEROMETER
•    Brand:GeoSIG
•    Full Scale Range: ±2 g.optional ± 0.5 or  ± 1g
•    Full Scale Range: ± 2 g
•    Optional ± 0.5 or ± 1 g
•    Sensor Element
•    Type: Force Balance Accelerometer
•    Dynamic Range: >120 dB effective at ± 2 g full scale
•    Nonlinearity: < 0.1 %
•    Hysteresis: < 0.01 %
•    Cross Axis Sensitivity: < 0.5 %
•    Bandwidth: DC to 100 Hz
•    optional DC to 50 or 200 Hz
•    Damping: 0.7 critical
•    Offset Drift: 100 ug / °C
•    Span Drift: 75 ppm / °C
•    Full Scale Output: 0 ± 10 V differential (20 Vpp)
•    optional 2.5 ± 2.5 V single-ended (5 Vpp)
•    0 ± 5 V differential (5 Vpp)
•    0 to 20 mA current loop
•    Measuring Range: See plot
•    Power
•    Supply Voltage: 9.2 to 15 VDC, single supply
•    Consumption: 70 mA @12 V
•    Connector: Metallic, Shielded, IP67, 12 pins, male
•    optional MIL, Bendix PT07A 14-19P
•    Mating: Binder / Coninvers type RC
•    Overvoltage Protection: All pins are protected
•    Connector Pin Configuration
•    Pin 1-2, 3-4, 5-6 Signal output for axis X, Y, Z
•    Pin 7-8 Test input, Digital test-pulse (0 – 12 V)
•    Pin 9-10 +12 VDC Power Supply
•    Pin 11-12 Auxiliary input
•    Case Shield connection
•    Environment/Housing
•    Housing Type: Cast aluminium
•    Sealed access cover
•    Housing Size: 193 x 112 x 94 mm
•    Weight: 3.0 kg
•    Index of Protection: IP 65
•    optional IP 68
•    Temperature Range: - 20 to 70 °C (operating)
•    - 40 to 85 °C (non-operating)
•    Humidity: 0 to 100 % (non-condensing)
•    Orientation: Can be configured for mounting in any position.
•    Mounting: Single bolt, surface mount, adjustable within ± 10°

TRANSMISOR DE VIBRACIÓN
MARCA: METRIX
MODELO: ST5484E-122-010-00
Sensor piezoelectrico Incorporado
Salida de 4-20 mA
Alimentación: 11-30 VDC
Rango: 0 hasta 12.7 mm/s (PK)
Fijacion a Proceso: 1/4" NPT
Clasificación de area: CSA/NRTL/C Clesse I/Div 2/Grps A-D

•    TRANSMISOR DE VIBRACIÓN SÍSMICA, ALIMENTADO POR LAZO, CON INDICACIÓN LCD.
•    MARCA: METRIX INSTRUMENTS
•    A: 024 GAMA DE ESCALA - 2,0 IPS (50.8MM/SEC), PK
•    B: 0 MONTAJE STUD - INTEGRAL 1/4 "NPT STUD MOUNT, 303 SST
•    C: 2 CLASIFICACIÓN DE PELIGRO - CSA, NRTL / C, CLASE 1, DIV. 1,
GR. B, C Y D, CLASE 2, DIV. 1, GR. E, F Y G
•    D: 0 CONNECTION - 4-20 MA FLYING LEADS
•    F: 0 LOW PASS FILTER - SIN FILTROS (1500 HZ), STANDARD
•    E: 0 HIGH PASS FILTER - SIN FILTROS (2 HZ), STANDARD

TRANSMISOR DE SEÑAL

• c/buffer dinámico

• Marca: PCB

• Baja frecuencia

• 4 - 20 mA

VIBRATION SWITCH
Adjustable Switch and Delay Settings
Continuous 4 to 20 mA Output
Brand: DWYER
Housing Material: PBT, PC, FPM, and 316 SS.
Temperature Limit: -22 to 221°F (-30 to 105°C).
Accuracy: < ±3%.
Measuring Range: 0 to 50 mm/s.
Connections: M12 connector.
Enclosure Rating: NEMA 6 (IP67).
Electrical Rating: 18 to 32 VDC.
Mounting Orientation: All.
Nonlinearity: < ±0.25% of span.
Switch Output Range: VBS-2: 0 to 50 mm/s Vrms.
Analog Output Range: 10 to 1000 Hz.
Output Signal: 4 to 20 mA.
Switch Type: PNP NO (500 mA max).
Switch Time Delay: 1 to 60 s.
Repeatability: < 0.5%.
Weight: 0.25 lb (0.114 kg).
Agency Approval: CE.

MOUNTING PAD


Stainless Steel
1" Diameter (2.54 cm)
1/4" or 3/8" Thick (6.4/9.5mm)
1 Side <16 RMS Finish
1/4"x28UNF Tapped Hole
With or Without Hole
304 Non-Magnetic or
416 Magnetic

RETROFIT DISPLAY

• Brand: STI

Modelo: CMCP420-EL
Marca: STI
Compatibilidad: CMCP420VT, CMCP420-WF
Caracteristicas: COdo 90°, 3/4"-3/4"NPT


WEATHERPROOF CABLE FITTING

• 3/4” NPT

• Brand: STI

LOOP POWERED TRANSMITTERS
Solid State Reliability
Integral Sensor
4-20 mA Output
Dual parameter Vibration and Temperature
1.00 In/Sec Full Scale (25.4mm/Sec)
Brand: STI

CELDA DE CARGA, 47T, PRECISION C3
MARCA: LATHI PRECISION
RANGO DE GRAN CAPACIDAD ENTRE 1T Y 47T,
CONTRUCCION SELLADO HERMETICO IP68
SERIE RC2
CARGA NOMINAL 47T
CARGA LIMITE 80T
CARGA DE RUPTURA 190T

TRANSMISOR DE VIBRACIÓN
FTX/AVX,
Marca: WEIDMULLER

Transmisor de velocidad sísmica de 4 mA a 20 mA
Modelo: ST5484E-151-414-00
Marca: Metrix Instrument
[151]: Rango de escala completa, 1.0 in/seg. (25.4 mm/s) RMS verdadera
[04]: Material de la carcasa y tamaño del pasador, Carcasa de acero inoxidable 303, pasador
M8 × 1.0 – 12
[1]: Certificaciones de área peligrosa, CSA US/C, Clase I, División 2, Grupos A-D
(no inflamable)
[4]: Tipo de conexión, Estilo MIL de 2 pines (MIL-C-5015);(solo salida de 4 mA a 20 mA)
[0]: Filtro de paso alto, 2 Hz (estándar)
[0]: Filtro de paso bajo, 1500 Hz (estándar)

CAJA DE 4 CANALES
Marca: WILCOXON
para sensores remotos

SENSOR SALIDA LATERAL, PROPOSITO GENERAL
Marca: WILCOXON
case aislado
conector MIL-C-5015 , 100 mv/g
±10% Tolerancia sensibilidad

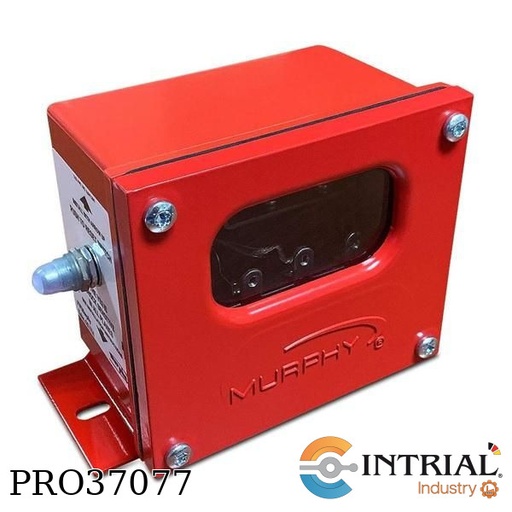

SHOCK AND VIBRATION SWITCH
Brand: MURPHY
Case: Environmental Protection: Ingress protected to IP54
(when mounted on a horizontal surface with drain holes down)
Suitable for non-hazardous areas.
Contacts: SPDT-double make leaf contacts, 3A @ 240 VAC;
10A @120 VAC; 10A @ 32 VDC
Shipping Weight: VS2: 2 lb. 8 oz. (1.1 kg)

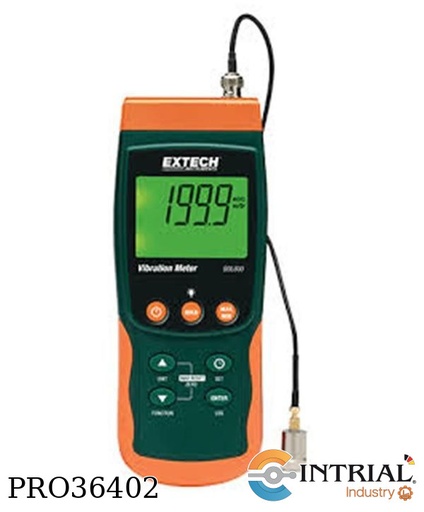

VIBRATION METER
Brand: EXTECH
Acceleration 656ft/s2 , 200m/s2 , 20.39g
Velocity 7.87in/s, 200mm/s, 19.99cm/s
Displacement 0.078in, 2mm (peak-to-peak)
Basic accuracy ±(5%+2 digits)
Memory 20M data records using 2G SD card
