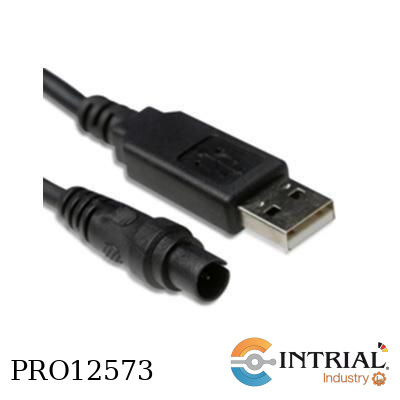

CAB-0007-USB; CABLE DE INTERFASE
Marca GEMINI (Ing.)
Para descarga de data a PC; c/conector USB

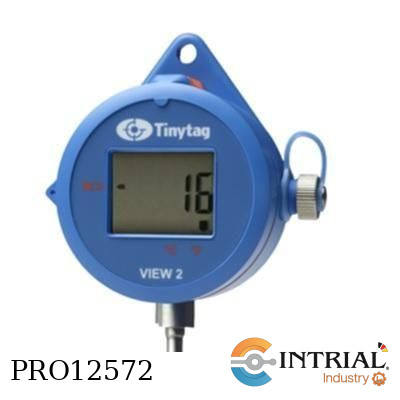

TV-4076 Datalogger
Marca GEMINI (Ing.)
Lecturas: Temperatura, -30 a 50 ºC (+/- 0.2 ºC).
Memoria: 30,000 lecturas.
Funciones: Arranque manual/automático c/temporización; intervalos de registro programables; alarmas.
Construcción: Caja plástica, IP65; 60mm Ø x 35mm alto. Sensor
Integrado en SS316, para inserción.
Alimentación: 01 batería de Litio (LS14250NO), incluida.
Accesorios necesarios (no incluidos): Cable Interface (CAB-0007-USB), Software (SWCD-0040-INT).

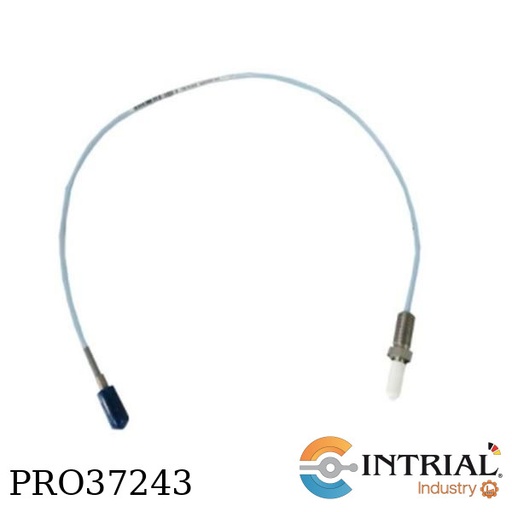

PROBE 3300 8MM BENTLY RVS MNT
MARCA: BENTLY NEVADA
With the following configuration:
Unthreaded reverse 02”
Case reverse 12”
Total length 0.5 meter
Connector & cable type w/conn, std cable
Agency approval mult-aprvls (CSA, IECEX, ATEX)

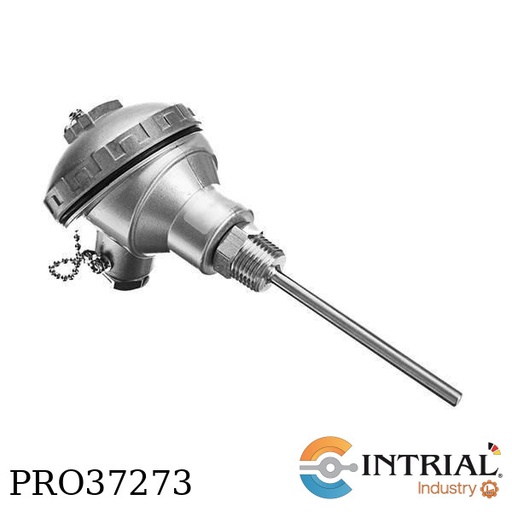

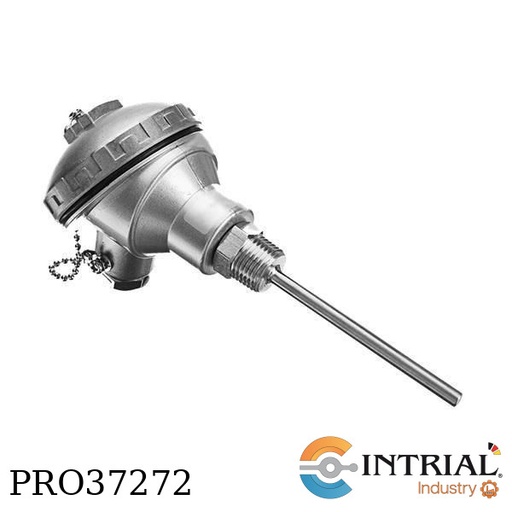

SCREW-IN RESISTANCE THERMOMETER
Brand: INTRIAL (Made in Germany)
1 x Pt 100 Ohm DIN EN 60751
class A/0°C, 3-wire,
protective tube ø 6 mm
built-in length 150 mm
compression fitting thread 3/4"NPT
material 1.4571
with connection head form B
electrical connection 1/2"NPT
 temperatura range: 0 to +250°C

SCREW-IN RESISTANCE THERMOMETER
Brand: INTRIAL (Made in Germany)
1 x Pt 100 Ohm DIN EN 60751
class A/0°C, 3-wire
protective tube ø 6 mm
built-in length 195 mm
compression fitting thread 3/4"NPT
material 1.4571
with connection head form B
electrical connection 1/2"NPT
temperatura range: 0 to +250°C

SCREW-IN RESISTANCE THERMOMETER
Brand: INTRIAL (Made in Germany)
1 x Pt 100 Ohm DIN EN 60751
class A/0°C, 3-wire
protective tube ø 6 mm
built-in length 120 mm
compression fitting thread 3/4"NPT
material 1.4571
with connection head form B
electrical connection 1/2"NPT
temperatura range: 0 to +250°C

TEMPERATURE MONITOR
Brand: HONSBERG
Switching range: 40 °C on
Connection material: Brass
Connection: Thread G ½ A
Connection type: Screw-in thread
Pressure resistance: PN 100
Media temperature: -20 ... +90 °C
Environmental temperature: -20 ... +70 °C
Electrical connection: Plug DIN 43650-A / ISO 4400
Electrical contact: Bi-metal
Max. contact load: 250 V AC 10 A
Connection diagram: Normally-open contact, connection diagram no. 0.212
Protection type: IP65
Switching point tolerance: ±10 K
Hysteresis: 10 ... 20 K

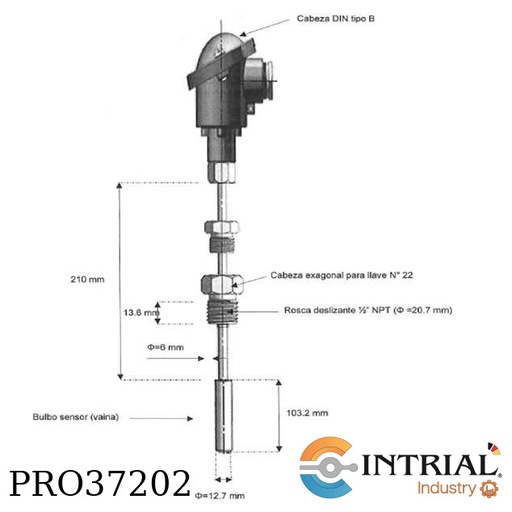

REVERSE MOUNT PROBE
Brand : Bently Nevada

Screw-in resistance thermometer
1 x Pt 100 Ohm DIN EN 60751, class B,
2-wire
probe tip sleeve ø 12,7 x 103,2 mm
tube ø 6 x 210 mm, nominal length 313,2mm,
material 1.4571
sliding screw connection 1/2 "NPT
SW22, thread length 13,6 mm
connection head type B
with 5000 mm connection cable glass silk/glass
silk/steel braided (cable no. 117A),
temperature range: -50 up to +200°C
Incluye Calibracion de 3 puntos
like to your drawing

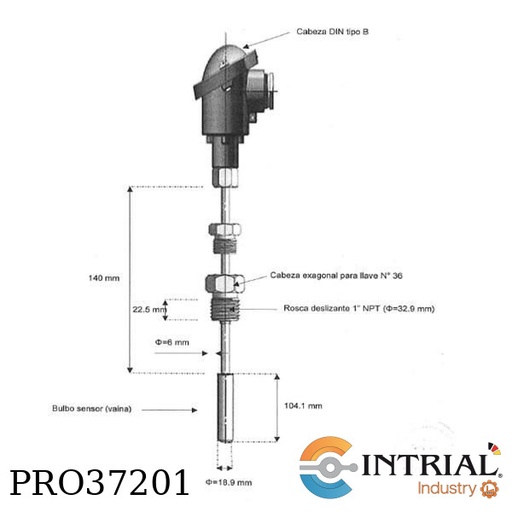

Srew-in resistance thermometer
1 x Pt 100 Ohm DIN EN 60751
class B, 2-wire,
probe tip sleeve ø 18 x 104,1 mm,
Tube ø 6 x 140 mm,
nominal length 244,1mm,
material 1.4571,
sliding screw connection 1 "NPT,
SW36, thread length 22,5 mm
connection head type B
with 5000 mm connection cable glass silk/glass silk/steel
braided (cable no. 117A)
temperature range: -50 up to +200°C, like to your drawing
Incluye Calibracion de 3 puntos

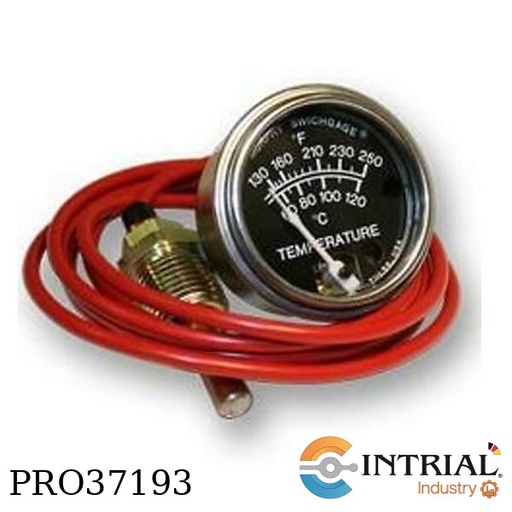

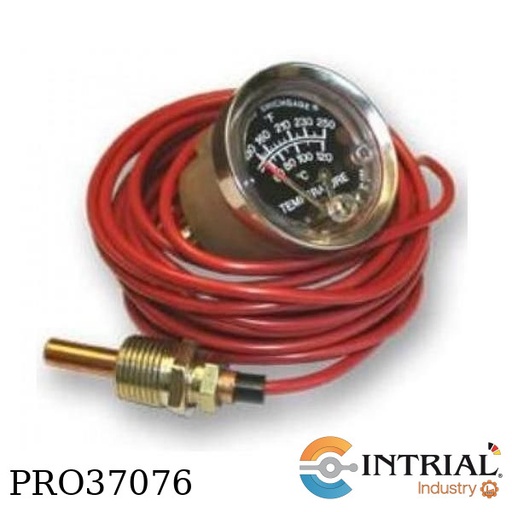

TEMPERATURE SWICHGAGE
Brand: MURPHY
2-1/2 inch/64 mm dial
Range: 130 – 250°F (54 – 121°C)
Adapter Nut: 1/2-14 NPT
Capillary: PVC armored copper; 8 ft.
Sensing Bulb: Copper
Maximum Temperature: 310°F (154°C)
Standard Settings: 210°F (99°C)
Capillary: PVC armored copper; 20 ft.

TEMPERATURE SWICHGAGE
Brand: MURPHY
2-1/2 inch/64 mm dial
Range: 130 – 250°F (54 – 121°C)
Adapter Nut: 1/2-14 NPT
Capillary: PVC armored copper; 8 ft.
Sensing Bulb: Copper
Maximum Temperature: 310°F (154°C)
Standard Settings: 210°F (99°C)
Capillary: PVC armored copper; 8 ft.

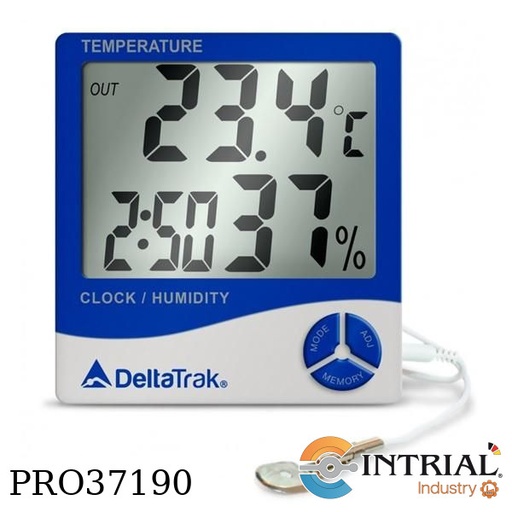

TERMOHIGRÓMETRO DIGITAL
Marca: DELTATRAK
Modelo: 13309
T° Interna: 14°F a 122°F(-10°C a 50°C)
Sonda Externa: -58°F a 158°F (-50°C a 70°C)
Humedad: Interna: 10% a 99%

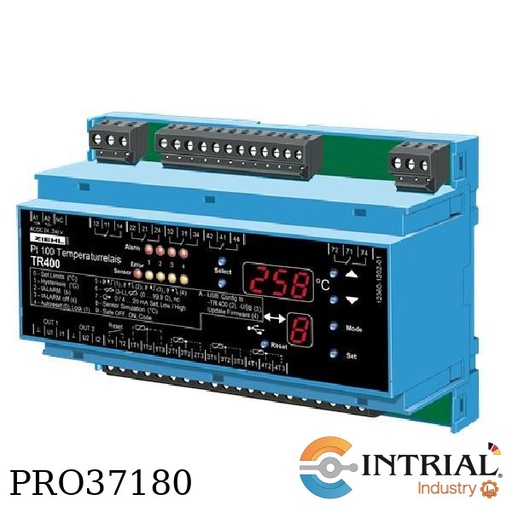

PT 100-TEMPERATURE RELAY
Brand: ZIEHL
Rated supply voltage Us: AC/DC 24-240 V
Tolerance DC: DC 20.4...297 V
Tolerance AC: AC 20-264 V 50/60 Hz
Power consumption:  < 4 W, < 13 VA
4 sensors: Pt 100 (RTD) acc. to EN 60751 (2/3- wire)
Measuring range: -199°C .. 800°C, resolution = 1°C
Resistance of sensor + wire: max. 500 Ohm
Sensor current: ≤0,7 mA
Measuring cycle/ time sensor: ≤ 1,5 s
Tolerance: ±0,5 % of measured value ±1 digit
Temperature factor: <0,04°C/K
Part Number: T224380

TEMPERATURE SWICHGAGE
Brand: MURPHY
130-250°F (54-121°C) temperature range (dual scale)
2 in (51 mm) dial gage
25 foot capillary length
PVC armor, copper capillary

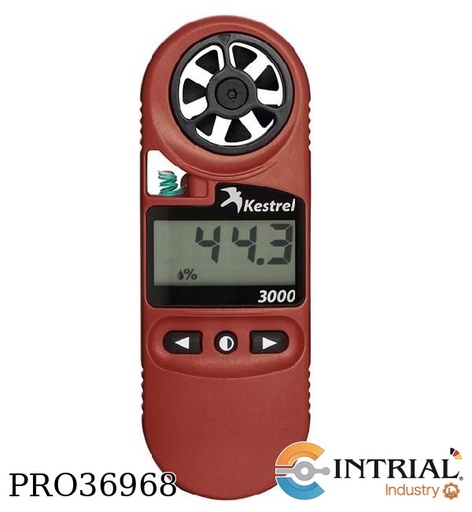

ANEMOMETRO
Marca: KESTREL
Viento: 0.4-60m/s, +/-3%,[ m/s, km/h, Beaufort,mph,kts]
Temperatura: temp. percibida, índice de calentamiento, punto de rocío: -45 - 125°C, +/- 1°, [ °F, °C ]
Humedad Relativa: 0 - 100%, +/- 3%, [ %RH ]El equipo viene con un certificado de conformidad

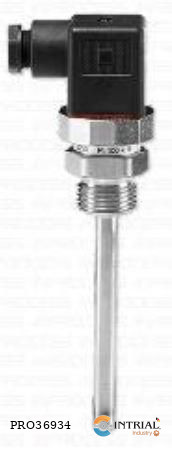

MBT5250 -50 A 200ºC, 50mm, G1/2, PT100, Sin Transmisor
SENSOR DE TEMPERATURA,
Marca: DANFOSS,
Modelo : MBT5250
Resistencia del sensor: PT100,
Rango de temperatura: -50 a 200ºC,
Longitud de inserción: 50 mm,
Conexión a proceso: G ½”
Diámetro del tubo protector: 8 mm
Sin Transmisor

THERMOCOUPLE & WELL
Brand: THERMO ELECTRIC
1/2" NPT
2" DP
120" FLEX LEAD

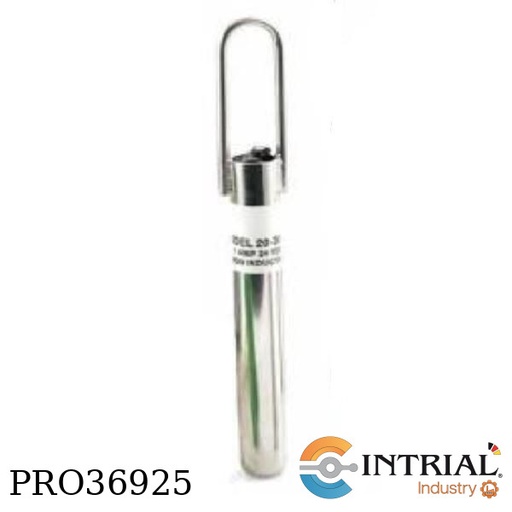

SONDA DE INCLINACIÓN SIN MERCURIO
Marca: THERMO SCIENTIFIC RAMSEY
Numero de parte: 092214

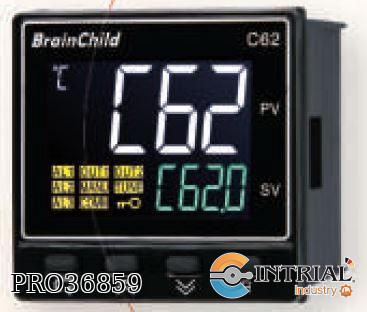

CONTROLADOR DIGITAL UNIVERSAL 48 x 48 mm, Salida Relé
ReléMarca: BRAINCHILD (Taiwán)
Código: C62-41000000
Descripciòn :
Entrada Universal: Termocupla, RTD, mA,
VAlta resolución convertidor
A/D de 18 Bit
Funciones de Alarma: Desviación Alta/Baja
Pantalla LCD de 4 Dígitos
Modos de Control: ON/OFF,
Control de rampa, Auto-sintonía,Control Manual,
PID con Lógica Fuzzy.
Alimentación: 90 a 250 VAC / 47-63 HzSalida 1: tipo relé 2A/240VAC
Montaje en Panel
Dimensiones: 48 (W) x 48 (H) x 59 (D) mmGrado de Protección: IP65 Panel frontal, IP20 parte posterior
