MEDIDOR DIGITAL PARA PANEL• Marca: REDLION• DIN de 1/8• DC Volt/ Current• Input: 11 to 36 VDC• 24 VAC• Green Display

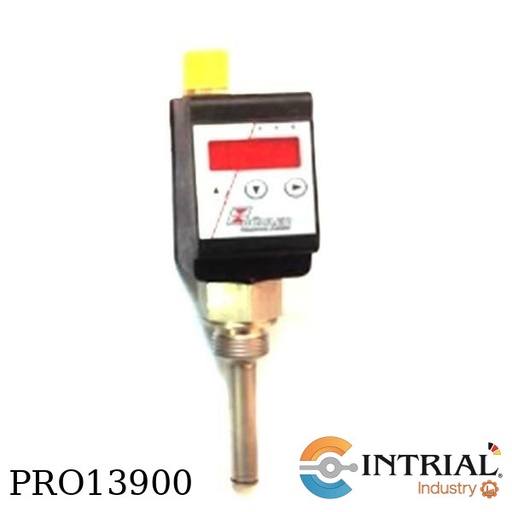

CONTROLADOR ELECTRÓNICO DE TEMPERATURA
• THERMOTRONIK
• Brand: BUHLER TECHNOLOGIES GMBH
• [TT-77]: Series, model
• [VA]: Stainless steel
• [2T]: 2 x PNP output Max. 0.5 A
• [70]: Length, 70 mm
• Supply voltage: 10 – 30 VDC
• Resolution: 0.5 °C
• Accuracy: 1%

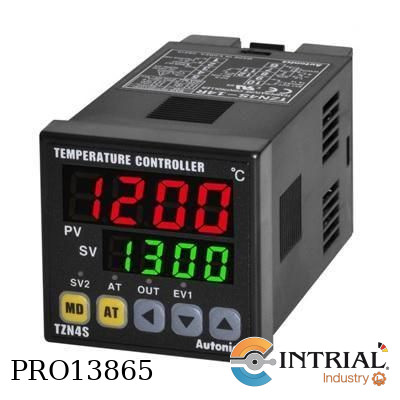

CONTROL DIGITAL DE TEMP, 4 DÍG
Marca : AUTONICS
W48xH48mm,
Ent universal
Alim 100-240VAC
Salida a relevador

CABLE PARA TERMOCUPLA TIPO "J",
CALIBRE DE 2 X 20 AWG
FORRO DE TEFLON + CHAQUETA DE
TEFLON + MALLA ACERO INOXIDABLE

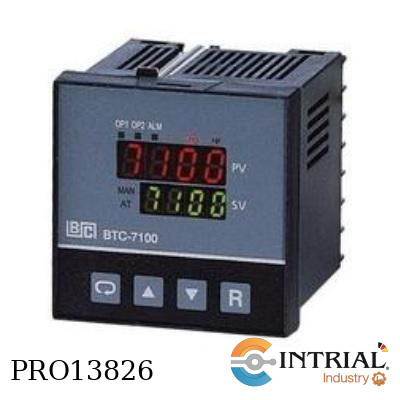

CONTROLADORES PID ECONÓMICO BTC-7100
Marca: BIELCO
Entrada Alimentación = (4) 90 a 250 VAC, 47-63 Hz
Entrada de señal = (1) Entrada Estándar
Salida 1 = (0) ninguna
Salida 2 = (0) ninguna
Alarma = (1) Relé forma C 2A/240 VAC
Comunicaciones = (3) Retransmisión 4 - 20 mA/0 - 20 mA
Opciones = (0) Montura en panel IP50 estándar

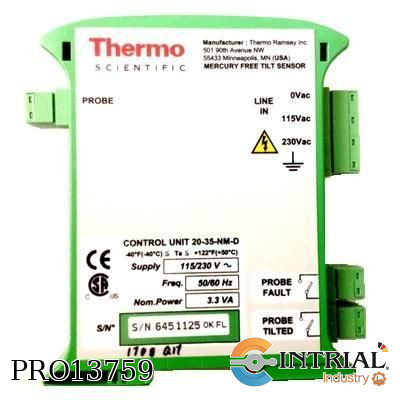

TILT SENSOR CONTROL IN DIN RAIL MOUNT BOX
• Brand: THERMO SCIENTIFIC

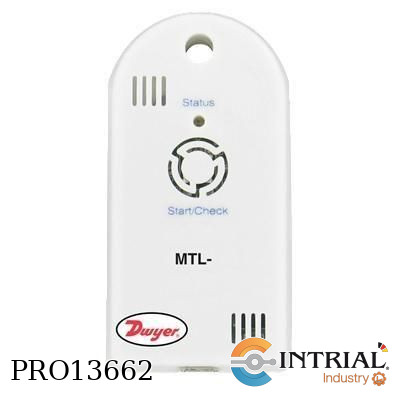

MINIATURE USB DATA LOGGER
Input type: Temperature/Humidity/Dew Point
MARCA: DWYER INSTRUMENTS
SPECIFICATIONS
Temperature Range: MTL30: -40 to160°F (-40 to 70°C), 0% to 99% RH(non condensing).
Accuracy: MTL20: ±1°F (±0.5°C); MTL30: ±1°F (±0.5°C), ±2% RH from10% to 90% RH.
Resolution:  Non-LCD models: 0.01°F (0.01°C), 0.01% RH; LCD models: 0.1°F (0.1°C), 0.1% RH.
Memory Size: 43,344 temperature; 21,672 each temperature and RH.
Sampling Mode: Stop on memory full or memory rollover for continuous recording.
Sampling Rate: 1 s to 18 hrs.
Computer Requirements: Windows® based application software included.
Power Requirements: 3 V CR2032 lithium metal battery, installed  functional, user replaceable.
Alarms: Programmable high/low.
Interface: USB port (cable included).
Weight: 1 oz (28 g).
Agency Approvals: CE.
NO DISPLAY

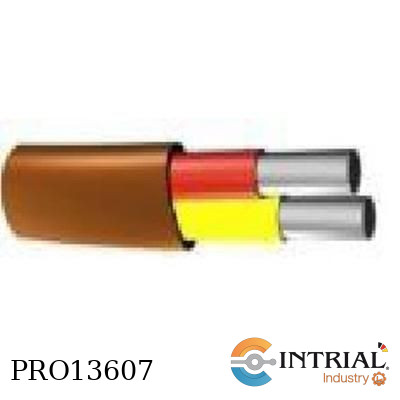

CABLE PARA TERMOCUPLA TIPO "K"
CALIBRE DE 2 X 24 AWG
FORRO DE TEFLON + CHAQUETA DE TEFLON
* ROLLOS

PROCESS DATA LOGGER  SOFTWARE(DL200)
Brand: Dwyer
[DL200]: Model, Windows Software and cable

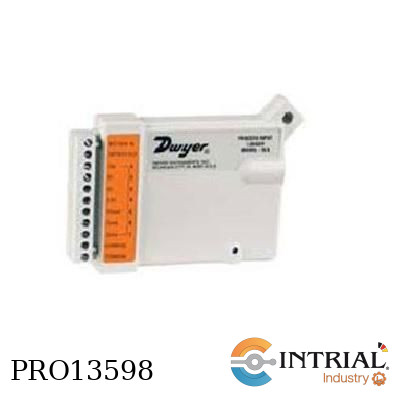

PROCESS DATA LOGGER (DL8)

Brand: Dwyer

[DL8]: Model,

Input Type: 0 to 2.5 VDC, 0 to 5 VDC (2 ch.), 0 to 10 VDC, 0 to 200 mV DC, and 0 to

25 A DC (2 ch).

No. of Channels: Eight; One for internal thermistor and seven for external analog inputs.

Internal Thermistor Range: -40 to 158°F (-40 to 70°C).

Memory Size: 32,768 readings.

Accuracy: ±1% of full-scale.

Clock Accuracy: ±8 s/day plus one sampling interval.

Resolution: 8 bits (1 in 256).

Sampling Methods: Continuous (firstin, first-out) or stop when full (fill-thenstop).

Sampling Rates: Selectable from 8 seconds to once every 5 days.

Ambient Operating Temperature: -50 to 160°F (-45 to 70°C), 0 to 95% RH, non-condensing.

Connection: Removable screw terminal.

Computer Requirements: IBM compatible 386 or above and Windows® 3.1 or later with 2 MB RAM and 2 MB hard drive disk space, one serial port.

Power Requirements: 3.6 V TL5134 lithium metal battery, internal, factory replaceable.

Power Consumption: 5-10 μA.

Housing Materials: Polyphenylene ether and polystryrene PPE & PS.

Weight: 5 oz (110 g).

Agency Approvals: CE.

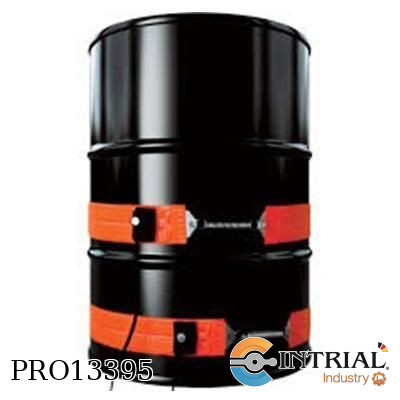

Heavy-Duty Silicone Rubber Drum/Pail Heaters (DHCS/DPCS)
Brand Name: BriskHeat
Height  3.0  inches
Length  44.0  inches
Manufacturer Series Number    DHCS
Material             Silicone Rubber
Width   24.0  inches
Incluye Heater 700 watts; 240 Volts

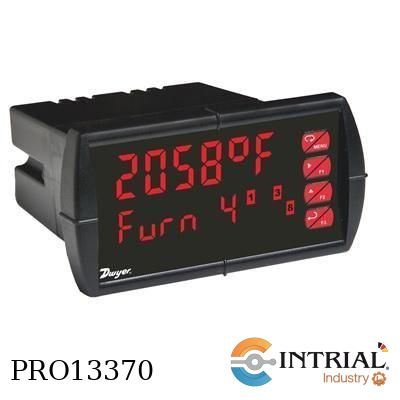

TEMPERATURE PANEL METER
Brand: DWYER
4 to 20 mA transmitter
Inputs: Thermocouple J, K, T, E, R, S, B, N, C; RTD 100  platinum, 10  copper,
120" nickel, 1000  platinum.
Input Impedance: Greater than 100 k.
Output: 4 to 20 mA.
Power Requirements: 85 to 265 VAC 50/60 Hz
Power Consumption:
90 to 265 VAC models: 20 W max;
12 to 24 VDC models: 15 W max.
Display: Dual-line, 6-digit display.
Resolution: 1° (up to four digits) or 0.1° (up to five digits).
Temperature Limits:
Operating:-4 to 149°F (-20 to 65°C);
Storage: -40 to 185°F (-40 to 85°C).
Humidity Limits: 0 to 90% (non-condensing).
Front Panel Rating: NEMA 4X, IP65.
Weight: 9.5 oz (269 g).
Agency Approvals: CE, RoHS, cUL, UL.

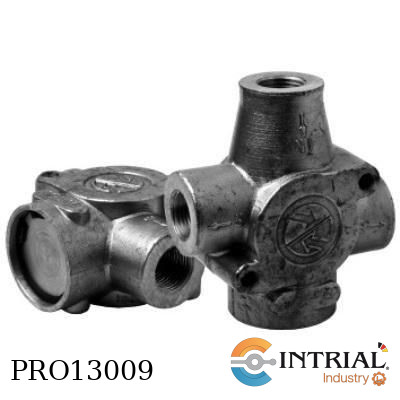

VALVULA TERMOSTATICA (THERMOSTATIC VALVE)
MODELO A21-001
EMMEGI 034
MARCA EDH

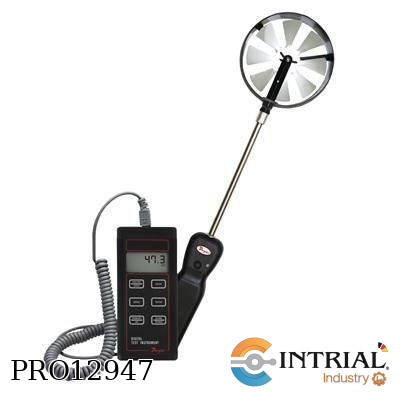

100 MM VANE THERMO-ANEMOMETER TEST INSTRUMENT
MEASURES AIR VELOCITY OR AIR VOLUME, TEMPERATURE, AND HUMIDITY SIMULTANEOUSLY
Brand: DWYER(USA)
Service: Dry, clean air.
Temperature Limits: Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F
(-15 to 51°C)
Display: 4.5 digit backlit display.
Range: Air velocity: 40 to 5000 fpm (0.2 to 25 m/s)
Volumetric air flow: 19,999 in selected flow units
Temperature: -20 to 212°F (-29 to 100°C)
Relative humidity: 0 to 100% RH.
Accuracy: Air velocity: ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s];
±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s]
±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]
Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C)
Relative Humidity: ±2% @ 77°F (25°C) [10 to 90% RH]
±4% [0 to 10, 90 to 100% RH].
Response Time: Air velocity: 1 s
Volumetric air flow: 1 s
Temperature: 1.5 s
Relative humidity: 1.5 s.
Probe Length: 8" (203 mm) insertion.
Cable Length: 28" (71 cm) retracted; 6´ (18.3 m) extended.
Vane Material: Anodized aluminum.
Power Requirements: 9 V alkaline battery
installed non-functional
user replaceable.
Weight: 18.4 oz (521 g).

INDICADOR ELECTRÓNICO DE TEMPERATURE DE ACEITE EOTI

• Marca: Comem(Italia)

• Aplicación: Ambiente de salinidad moderada ISO 12944

• Fijación: Brida tipo A

• Rango: 0/+150°C

• DIAL: Multilayer glass con puntero de indicación máxima.

• n°4 microswitches

• Capilar: Rilsan 6.0 m

• Salida 1: 4-20mA, Salida 2: RS485

• Conexión del bulbo: 3/4 BSP fig.2 L=170mm

• Válvula de ventilación en plastico

• Salidas para cables: n°3 M25x1,5



//////INFORMACION ADICIONAL///////////

• Type: Oil  temperatura

• Mechanical connection: Flange Type A

• Scale: 0/+150°C

• Dial minimum división: 5° (standard)

• Type of micro switches: Standard AC: 250V / 5A / cos?=1, DC: 250V /0.25A, 125V / 0.5A, 50V / 1A, 30V / 5A

• Number of micro switches: 4

• Ventilation valve: Plastic (PA66 – standard)

• Capillary length: 6.0 m

• Capillary tube protection: RILSAN (Standard)

• Bulb type: Fig.2 Male (170 mm)

• Bulb length (thread included): Without PT100 (100mm )

• Bulb connection): 3/4 BSP Male only

• Cable glands (Max. nr. 3): Nr. 3 M25x1.5 Plastic (Standard)

• Corrosion protection: C4 acc. to ISO 12944 (standard)

• Color: RAL 7032

• Max Pointer: YES

• Lens: Multilayer glass

• Analog output 4-20 Ma: Incorporate (Comem eOTI / Comem eWTI)

• Modbus RTU: Incorporate (Comem eOTI / eWTI)

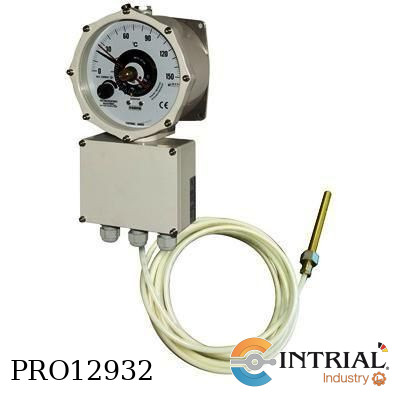

INDICADOR ELECTRÓNICO DE TEMPERATURE DE BOBINADO EWTI

• Marca: Comem(Italia)

• Corriente nominal (T.C.): 5A (Confirmado)

• Aplicación: Ambiente de salinidad moderada ISO 12944

• Fijación: Brida tipo A

• Rango: 0/+150°C

• DIAL: Multilayer glass con punter de indicación máxima.

• n°4 microswitches

• Capilar: Rilsan 6.0 m

• Salida 1: 4-20mA, Salida 2: RS485

• Conexión del bulbo: 3/4 BSP fig.2 L=170mm

• Válvula de ventilación en plastico

• Salidas para cables: n°3 M25x1,5



///////INFORMACION ADICIONAL ////////////

•

• Type: Winding temperatura

• Mechanical connection: Flange Type A

• Scale: 0/+150°C

• Dial minimum división: 5° (standard)

• Type of micro switches: Standard AC: 250V / 5A / cos?=1, DC: 250V /0.25A, 125V / 0.5A, 50V / 1A, 30V / 5A

• Number of micro switches: 4

• Ventilation valve: Plastic (PA66 – standard)

• Capillary length: 6.0 m

• Capillary tube protection: RILSAN (Standard)

• Bulb type: Fig.2 Male

• Bulb length (thread included): Without PT100 (170mm )

• Bulb connection): 3/4 BSP Male only

• Cable glands (Max. nr. 3): Nr. 3 M25x1.5 Plastic (Standard)

• Corrosion protection: C4 acc. to ISO 12944 (standard)

• Color: RAL 7032

• Max Pointer: YES

• Lens: Multilayer glass

• Analog output 4-20 Ma: Incorporate (Comem eOTI / Comem eWTI)

• Modbus RTU: Incorporate (Comem eOTI / eWTI)

• Comem WTI – CT nominal current: 5A

• Comem WTI – specified values:

o _X_°C   Specify set thermal gradient (with thermowell thickness between 2.5 and 4 mm)

o _X_A Specify set nominal current

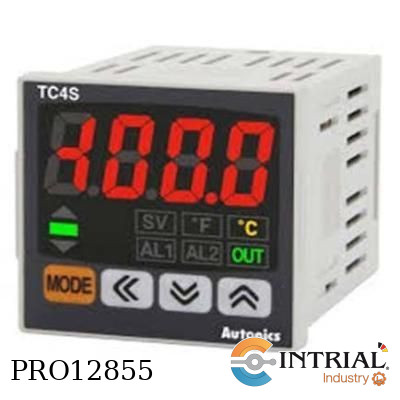

Modelo : TC4S-14R
Marca : AUTONICS
Control digital de temp, 4 díg,
W48xH48mm,
Ent TC + Pt100,
Alim 100-240VAC,
Sal SSR,
Relé + 1alarma

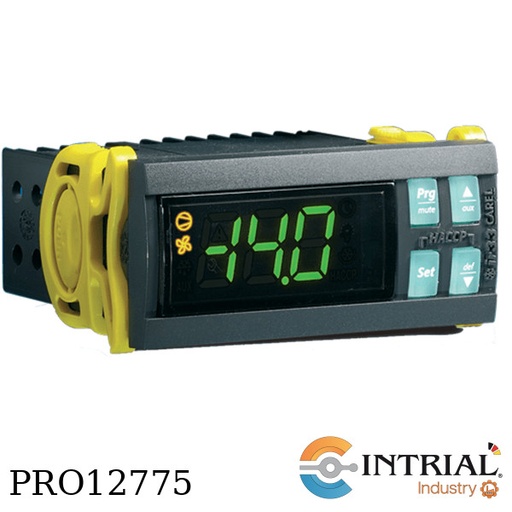

CONTROLLER, TEMPERATURE, 4 RELAY UNIV
BRAND: CAREL
THERMOCOUPLE TYPE:J, K; OPERATING
TEMPERATURE MAX:55 C; OPERATING
TEMPERATURE MIN:-10 C; TEMPERATURE

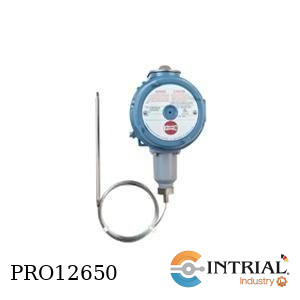

ADJUSTABLE CONTROL THERMOSTAT

• Brand: THERMON MANUFACTURING COMPANY.

• Ratings/Specifications

• Voltage rating: 125/250/480 VAC

• Switch rating: 22 amps

• Switch type: SPDT1

• Electrical connection2: terminal blocks

• Adjustable control range:  -4°C to 163°C

• Maximum control differential: 3.9°C

• Setpoint repeatability:  ±1.9°C

• Maximum bulb exposure temperature: 182.2°C

• Bulb dimensions: 6.4 x 210 mm

• Bulb material: stainless steel

• Capillary length : 3 m

• Capillary materia:. stainless steel

Hilo Movil 8 mm
1/2" NPT
acero inox 316
