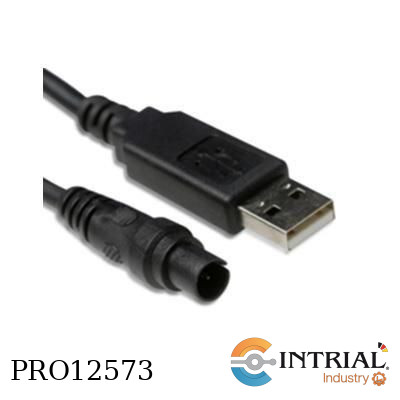

CAB-0007-USB; CABLE DE INTERFASE<br />
Marca GEMINI (Ing.)<br />
Para descarga de data a PC; c/conector USB

TV-4076 Datalogger<br />
Marca GEMINI (Ing.)<br />
Lecturas: Temperatura, -30 a 50 ºC (+/- 0.2 ºC).<br />
Memoria: 30,000 lecturas.<br />
Funciones: Arranque manual/automático c/temporización; intervalos de registro programables; alarmas.<br />
Construcción: Caja plástica, IP65; 60mm Ø x 35mm alto. Sensor<br />
Integrado en SS316, para inserción.<br />
Alimentación: 01 batería de Litio (LS14250NO), incluida.<br />
Accesorios necesarios (no incluidos): Cable Interface (CAB-0007-USB), Software (SWCD-0040-INT).

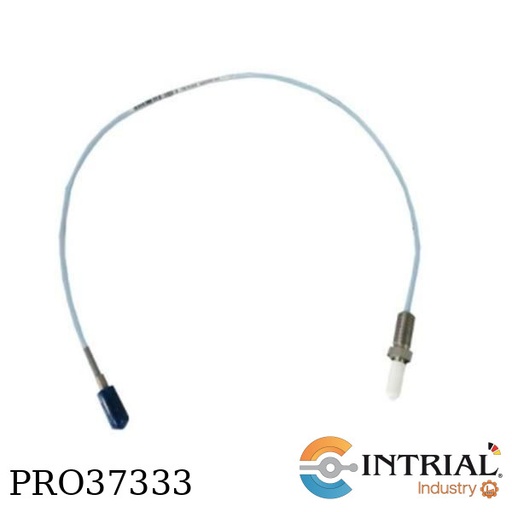

PROBE 3300 8MM BENTLY RVS MNT<br />
MARCA: BENTLY NEVADA<br />
With the following configuration:<br />
Unthreaded reverse 02”<br />
Case reverse 12”<br />
Total length 0.5 meter<br />
Connector & cable type w/conn, std cable<br />
Agency approval mult-aprvls (CSA, IECEX, ATEX)

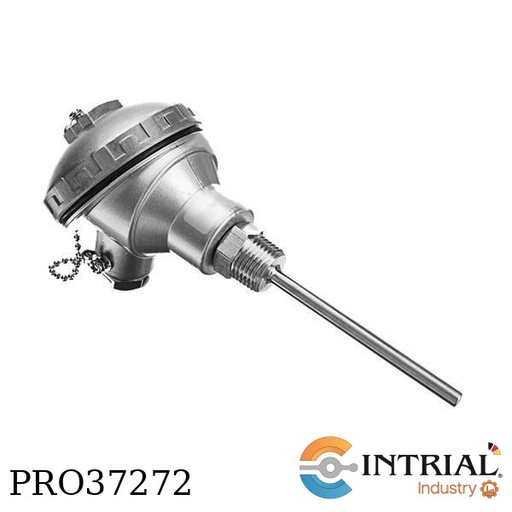

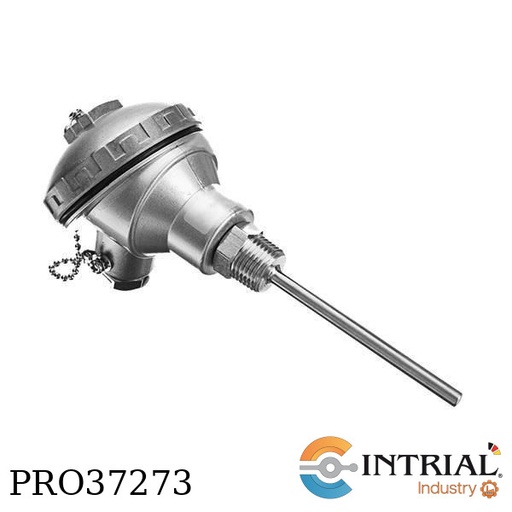

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire,<br />
protective tube ø 6 mm<br />
built-in length 150 mm<br />
compression fitting thread 3/4"NPT<br />
material 1.4571<br />
with connection head form B<br />
electrical connection 1/2"NPT<br />
 temperatura range: 0 to +250°C

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire<br />
protective tube ø 6 mm<br />
built-in length 195 mm<br />
compression fitting thread 3/4"NPT<br />
material 1.4571<br />
with connection head form B<br />
electrical connection 1/2"NPT<br />
temperatura range: 0 to +250°C

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class A/0°C, 3-wire<br />
protective tube ø 6 mm<br />
built-in length 120 mm<br />
compression fitting thread 3/4"NPT<br />
material 1.4571<br />
with connection head form B<br />
electrical connection 1/2"NPT<br />
temperatura range: 0 to +250°C

TEMPERATURE MONITOR<br />
Brand: HONSBERG<br />
Switching range: 40 °C on<br />
Connection material: Brass<br />
Connection: Thread G ½ A<br />
Connection type: Screw-in thread<br />
Pressure resistance: PN 100<br />
Media temperature: -20 ... +90 °C<br />
Environmental temperature: -20 ... +70 °C<br />
Electrical connection: Plug DIN 43650-A / ISO 4400<br />
Electrical contact: Bi-metal<br />
Max. contact load: 250 V AC 10 A<br />
Connection diagram: Normally-open contact, connection diagram no. 0.212<br />
Protection type: IP65<br />
Switching point tolerance: ±10 K<br />
Hysteresis: 10 ... 20 K

REVERSE MOUNT PROBE<br />
Brand : Bently Nevada

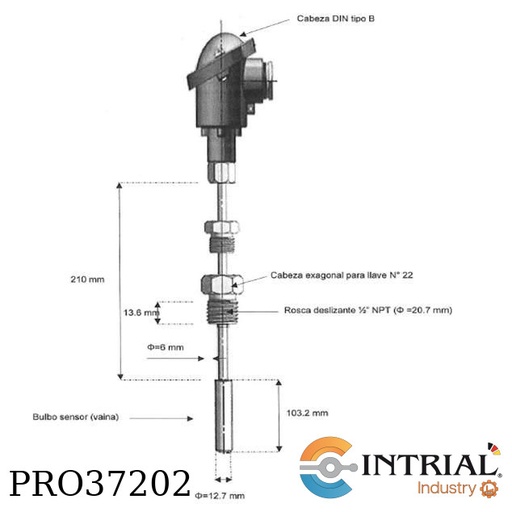

Screw-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751, class B,<br />
2-wire<br />
probe tip sleeve ø 12,7 x 103,2 mm<br />
tube ø 6 x 210 mm, nominal length 313,2mm,<br />
material 1.4571<br />
sliding screw connection 1/2 "NPT<br />
SW22, thread length 13,6 mm<br />
connection head type B<br />
with 5000 mm connection cable glass silk/glass<br />
silk/steel braided (cable no. 117A),<br />
temperature range: -50 up to +200°C<br />
Incluye Calibracion de 3 puntos<br />
like to your drawing

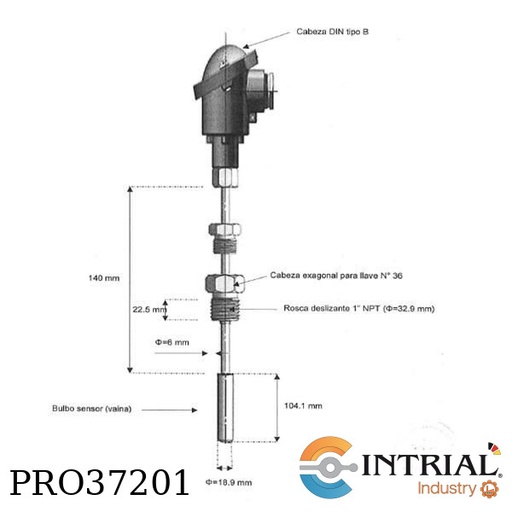

Srew-in resistance thermometer<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B, 2-wire,<br />
probe tip sleeve ø 18 x 104,1 mm,<br />
Tube ø 6 x 140 mm,<br />
nominal length 244,1mm,<br />
material 1.4571,<br />
sliding screw connection 1 "NPT,<br />
SW36, thread length 22,5 mm<br />
connection head type B<br />
with 5000 mm connection cable glass silk/glass silk/steel<br />
braided (cable no. 117A)<br />
temperature range: -50 up to +200°C, like to your drawing<br />
Incluye Calibracion de 3 puntos

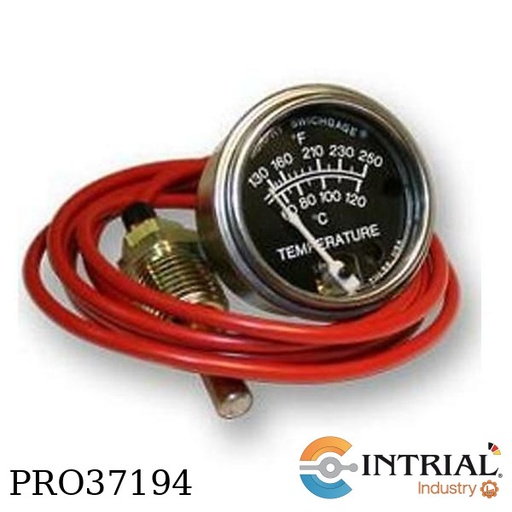

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
2-1/2 inch/64 mm dial<br />
Range: 130 – 250°F (54 – 121°C)<br />
Adapter Nut: 1/2-14 NPT<br />
Capillary: PVC armored copper; 8 ft.<br />
Sensing Bulb: Copper<br />
Maximum Temperature: 310°F (154°C)<br />
Standard Settings: 210°F (99°C)<br />
Capillary: PVC armored copper; 20 ft.

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
2-1/2 inch/64 mm dial<br />
Range: 130 – 250°F (54 – 121°C)<br />
Adapter Nut: 1/2-14 NPT<br />
Capillary: PVC armored copper; 8 ft.<br />
Sensing Bulb: Copper<br />
Maximum Temperature: 310°F (154°C)<br />
Standard Settings: 210°F (99°C)<br />
Capillary: PVC armored copper; 8 ft.

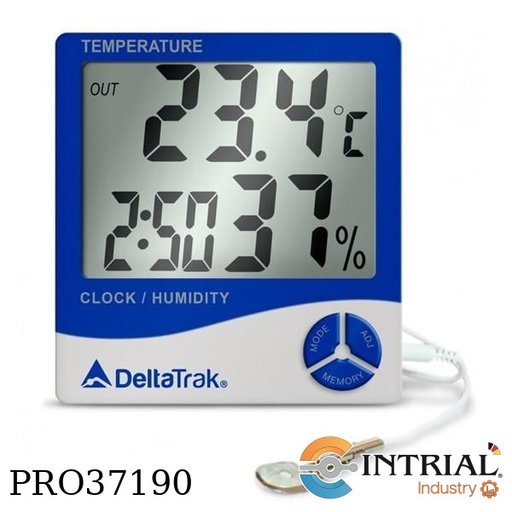

TERMOHIGRÓMETRO DIGITAL<br />
Marca: DELTATRAK<br />
Modelo: 13309<br />
T° Interna: 14°F a 122°F(-10°C a 50°C)<br />
Sonda Externa: -58°F a 158°F (-50°C a 70°C)<br />
Humedad: Interna: 10% a 99%

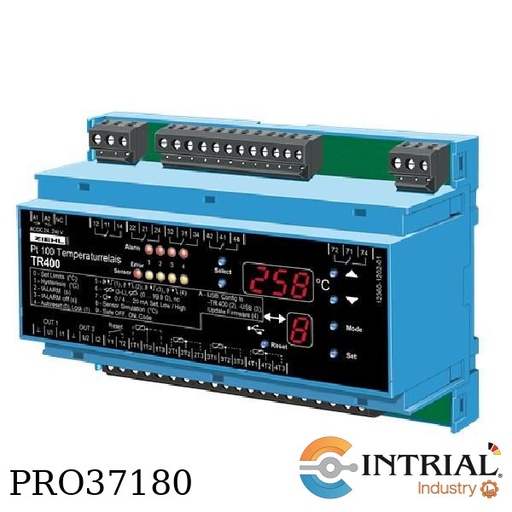

PT 100-TEMPERATURE RELAY<br />
Brand: ZIEHL<br />
Rated supply voltage Us: AC/DC 24-240 V<br />
Tolerance DC: DC 20.4...297 V<br />
Tolerance AC: AC 20-264 V 50/60 Hz<br />
Power consumption:  < 4 W, < 13 VA<br />
4 sensors: Pt 100 (RTD) acc. to EN 60751 (2/3- wire)<br />
Measuring range: -199°C .. 800°C, resolution = 1°C<br />
Resistance of sensor + wire: max. 500 Ohm<br />
Sensor current: ≤0,7 mA<br />
Measuring cycle/ time sensor: ≤ 1,5 s<br />
Tolerance: ±0,5 % of measured value ±1 digit<br />
Temperature factor: <0,04°C/K<br />
Part Number: T224380<br />

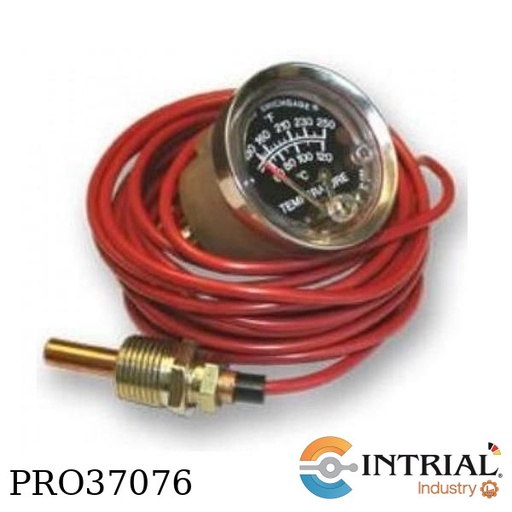

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
130-250°F (54-121°C) temperature range (dual scale)<br />
2 in (51 mm) dial gage<br />
25 foot capillary length<br />
PVC armor, copper capillary

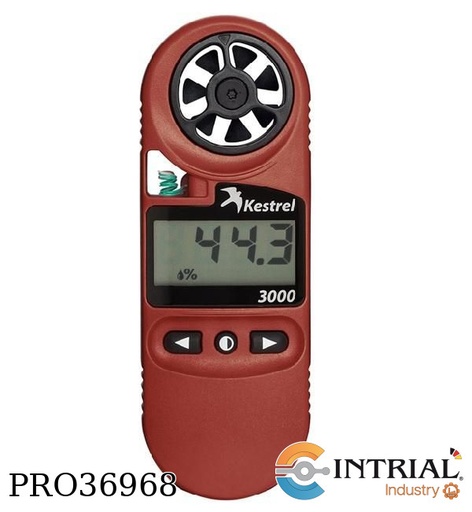

ANEMOMETRO<br />
Marca: KESTREL<br />
Viento: 0.4-60m/s, +/-3%,[ m/s, km/h, Beaufort,mph,kts]<br />
Temperatura: temp. percibida, índice de calentamiento, punto de rocío: -45 - 125°C, +/- 1°, [ °F, °C ]<br />
Humedad Relativa: 0 - 100%, +/- 3%, [ %RH ]El equipo viene con un certificado de conformidad<br />

MBT5250 -50 A 200ºC, 50mm, G1/2, PT100, Sin Transmisor<br />
SENSOR DE TEMPERATURA,<br />
Marca: DANFOSS,<br />
Modelo : MBT5250<br />
Resistencia del sensor: PT100,<br />
Rango de temperatura: -50 a 200ºC,<br />
Longitud de inserción: 50 mm,<br />
Conexión a proceso: G ½”<br />
Diámetro del tubo protector: 8 mm<br />
Sin Transmisor

THERMOCOUPLE & WELL<br />
Brand: THERMO ELECTRIC<br />
1/2" NPT<br />
2" DP<br />
120" FLEX LEAD

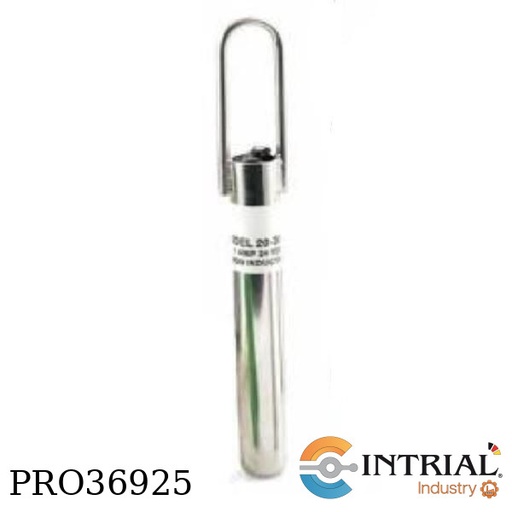

SONDA DE INCLINACIÓN SIN MERCURIO<br />
Marca: THERMO SCIENTIFIC RAMSEY<br />
Numero de parte: 092214

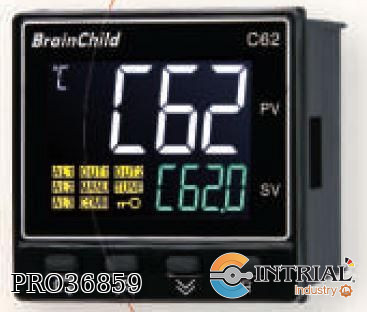

CONTROLADOR DIGITAL UNIVERSAL 48 x 48 mm, Salida Relé<br />
ReléMarca: BRAINCHILD (Taiwán)<br />
Código: C62-41000000<br />
Descripciòn :<br />
Entrada Universal: Termocupla, RTD, mA,<br />
VAlta resolución convertidor<br />
A/D de 18 Bit<br />
Funciones de Alarma: Desviación Alta/Baja<br />
Pantalla LCD de 4 Dígitos<br />
Modos de Control: ON/OFF,<br />
Control de rampa, Auto-sintonía,Control Manual,<br />
PID con Lógica Fuzzy.<br />
Alimentación: 90 a 250 VAC / 47-63 HzSalida 1: tipo relé 2A/240VAC<br />
Montaje en Panel<br />
Dimensiones: 48 (W) x 48 (H) x 59 (D) mmGrado de Protección: IP65 Panel frontal, IP20 parte posterior
