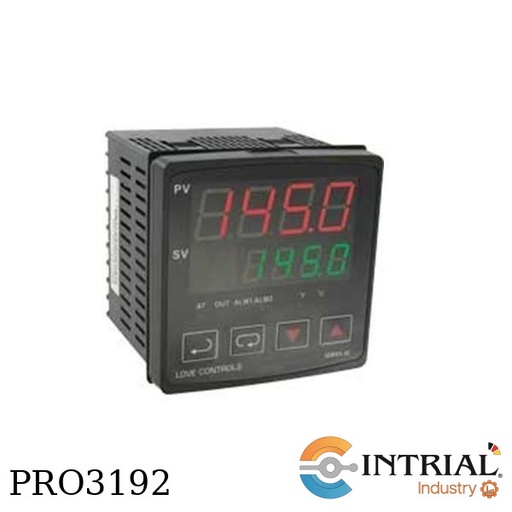

INDICADOR DE TEMPERATURA 100ºC 212ºF

CONTROLADOR DE TEMPERATURA
MARCA: DWYER
MODELO: 4C-3
Entrada: Termocupla (B, S, R, N, E, T, J, K, L, U) y RTD.
Dimensiones: 96x96 mm
Panel frontal: NEMA4X (IP66)
Salida: SPDT, 5A, 250 VAC Resistivo
Comunicación: RS-485 Modbus

Vane probe with K type thermocouple diam. 100 mm to measure air speed in the range 0.6…25m/s and air temperature in the range –25°C … +80°C.
Probe complete with handle, telescopic shaft available on request. Minimum length of shaft with handle 360 mm, maximum length with handle 1025 mm. 2 m cable.
Probe complete with SICRAM module.

Anemometer-Thermometer for air speed measurement which use hot-wire or vane probes, for temperature Pt100 sensor with SICRAM module.
Datalogger which stores the maximum, minimum, average value and can store up to 38,000 samples.
RS232C/USB output for data transfer in real time to a PC or printer.
Functions: REL, HOLD and auto power off which can be disabled, IP66 protection degree.
Supplied with carrying case, instruction manual, 4 batteries, Software DeltaLog 9.
The air speed probes, the temperature probes, cable for data downloading have to be ordered separately. TP47… series temperature probes are suitable.


DETECTORES DE TEMPERATURA
Marca: Kidde Fenwall.
Detect-A- fire
Temp Setting : 190°F
Contact Temp Rise: Closes

Termometro infrarrojo, tipo pistola.
Marca: Lutron (Taiwan)
Rango: -30°C a 300°C
Incluye: Certificado de calibración con trazabilidad de INDECOPI

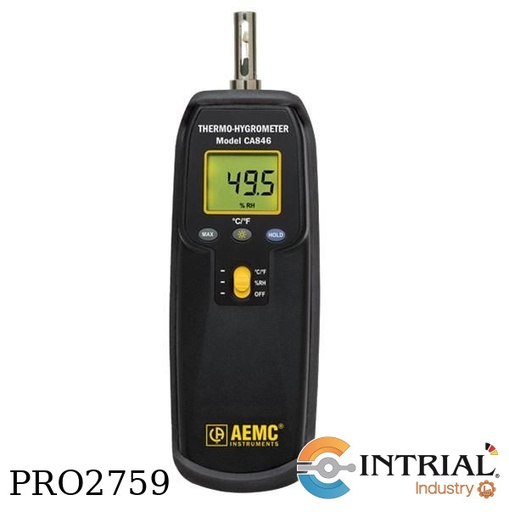

TERMO HIGRÓMETRO
MARCA: AEMC
MODELO: CA 846
MEDIDAS DE TEMPERATURA:-20ºC a 60ºC.
RESOLUCION 0,1ºC
NTC SENSOR DE TEMPERATURA
MEDIDAS HUMEDAD RELATIVA:0% a 100% RH,
RESOLUCION: 0,1% RH
SENSOR CAPACITIVO

FSW-6212

Thermal dispersion flow
switch, 85 to 240 Vac power
process connection: 3" NPT
enclosure: Glass filled nylon, 1" NPT conduit, cable, gland, and 2 m (6.5') cable
Insertion Length: 51 mm (2"), for 1 to 4" pipe
SPECIFICATIONS
Accuracy: }10% of setpoint
Repeatability: }1% of setpoint
Power Supply:
FSW-6000: 85 to 240 Vac (50/60 Hz)
FSW-7000: 24 Vdc }10%
Temperature Range:
Process: -20 to 80°C (-4 to176°F
[sanitary option to 120°C (248°F) for CIP]
Operating: -20 to 60°C (-4 to140°F)
Maximum Pressure: 300 bar
(4351 psi)
Protection Class: NEMA 4 (IP65)
Wetted Materials: 316 SS
Enclosure Material: Glass filled nylon
standard or aluminum die cast option
Process Connection:
1/2 to 11/2 NPT, Tri-GripTM, or flange
(others available, consult Flow
Engineering Department)
Output: 250 Vac SPDT 5 A relay
Switch Point Adjustment: Potentiometer
Bargraph:
Green LED: Flow rate above setpoint
Yellow LED: Flow is at above setpoint
Red LED: Flow is below setpoint
Switch Point Status:
Red LED: No flow
Green LED: Flow
Response Time: 1 to 10 seconds
Maximum Start up Delay: 12 seconds
Switching Range:
3 cm/s to 3 m/s (0.09 to 9.84 ft/sec)
(liquid), 5 cm/sec to 15 m/sec
(0.16 to 49 ft/sec) (gas)
Dimensions:
Nylon Head: 88 Dia x 80 mm H
(3.5 x 2.5" H)
Aluminum Head: 88 Dia x 108 mm H
(3.5 x 4.25")
Insertion Length: 13/8", 2 and 3" standard,
for other lengths consult Flow Engineering
Weight: Approx 680 g (1.5 lb)

DISPLAY INDICADOR DE PROCESO
•    Marca: SAFIR
•    A0 - Fuente De Alimentación: 92 a 265 VAC/DC
•    R0 - Entrada RMS: Sin Entrada.
•    S0 - Salida Slot 1: Sin Salida.
•    0 - Salida 2 Slot 2: Sin Salida.
•    0 - Salida Slot 3: Sin Salida.
•    E1 - Expansión De La Junta: En Curso.
•    0P - Opciones: Sin opciones.

SENSOR TERMICO
Marca: FENWAL
225 GRADOS

MEDIDOR DE TEMPERATURA Y HUMEDAD DE BOLSILLO,MODELO: PHT-316,MARCA: LUTRON,Display: LCD muestra temperatura y humedad.,Rangos:,            Temperatura: 0°C a 50°C,            Humedad: 10% a 95 % R.H,Resolución:,            Temperatura: 0.1 °C,            Humedad: 0.1 %R.H,Precisión:,            Temperatura: +/-0.8 °C,           Humedad: < 70% RH,* Incluye Certificado de Calibración

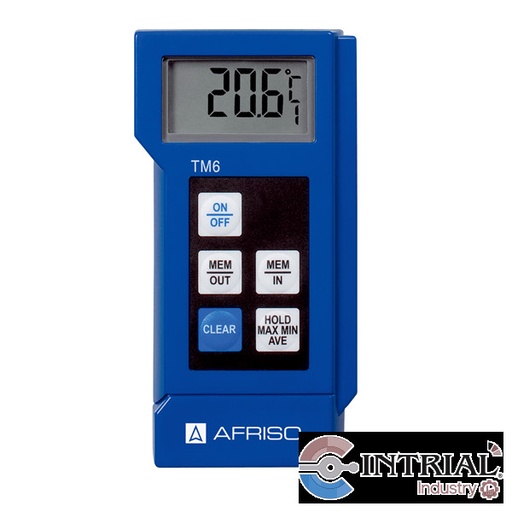

TEMPERATURE MEASURING INSTRUMENT TM 6
Brand: AFRISO
Short response time for measurements at cycles of a second
Min./max. and Hold function
Memory for 19 measured values 1 point Cal function: Correction of measured values, e.g. for compensation of probe tolerances
Standard connector type K for all NiCr-Ni probes
Measuring range: -99.9/+1,370 °C
Resolution: °C from -99.9/+299.9 °C
Accuracy: ± 0.5 °C ± 1 digit
Operating temperature range
Ambient/storage: 0/50 °C
Hours of operation: 200 hours
Weight : 240 g
Dimensions: W x H x D 65 x 130 x 25 mm
Display: LCD, 1 line W x H: 42 x 21 mm
Supply voltage x 1.5 V AA batteries
Scope of delivery Measuring instrument with batteries

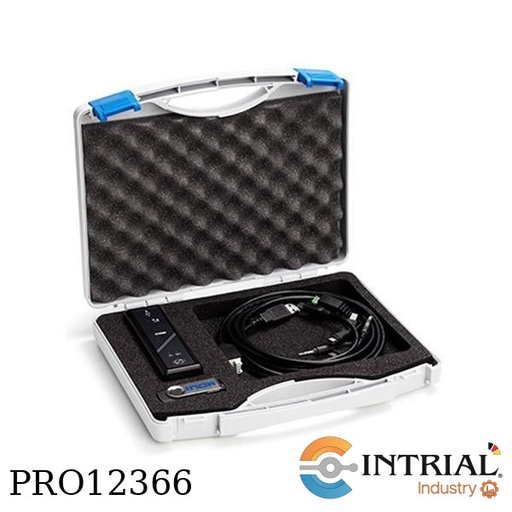

ICON-X COMPLETE CONFIGURATION KIT EX
Brand: INOR
Transmitter Configuration Kit with USB Communication
PC to USB Interface USB cable type A to type B
USB Interface to transmitter Changeable adapter cables
Power Supply PC´s USB port, 5 VDC, 74 mA max
Operation temperature 0 to 50 °C / 32 to 122 °F
Storage temperature -20 to 70 °C / -4 to 158 °F
Humidity (non-condensing) 0 to 90 %RH
Galvanic isolation 1500 VAC
System requirements
Windows 32- or 64-bit edition of Windows
XP (SP2+) / Vista / 7 / 8 / 8.1 / 10
Free hard disk space 185 MB
PC Port 1x USB 1.1 or higher port type A

RS232 CONFIGURATION KIT
•Brand: INOR
•(Ex-approved)
•(HART modem not included)
•Kit for configuration of all transmitters
•(except C201 and  MinIPAQ-HLP/-L)
•including: Ex-approved RS232 Interface, cables and transmitter softwares on CD

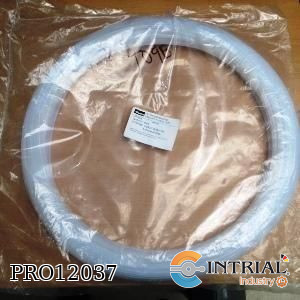

PTFE Tubing – Industrial and Heavy Wall
Diámetro exterior del tubo: 0.25 inch, 6.35 mm
Diámetro interior del tubo: 0.125 inch, 3.18 mm
Grosor de la pared del tubo: 0.062 inch, 1.57 mm
Presión de trabajo máxima: 290 psi, 20 bar
Presión de rotura mínima: 1160 psi, 80 bar
Radio de curvatura mínimo: 1/2 inch, 13 mm
Temperatura mínima de funcionamiento: -100 °F, -75 °C
Temperatura máxima de funcionamiento: 500 °F, 260 °C
Conector compatible: Compression, Compression-Align®, TrueSeal
Color: Natural
 Material del tubo: PTFE
Cumplimiento con especificaciones: AMS 3653E; FDA Compliant; USP Class VI Compliant; RoHs
Aplicación: Fluid Transfer, Food & Beverage, Gas Sampling, High Temperature Applications, Laboratory, Life Science, Heat Exchangers
Medio: Adhesives, Chemicals, Water
Length per Package: 100 ft

MEDIDOR MULTIFUNCIONAL CON MEDICIÓN

• Marca: TESTO

• integrada de presión diferencial para climatización,

• ventilación y calidad del aire interior,

• con memoria para valores de medición

• programa de ordenador,

• cable USB

• inclusive protocolo de calibración y pilas

Cable de Extensión para termocupla tipo “S”
Marca: TEW & C
Procedencia: USA
Calibre: 2 x 20 AWG, hilos paralelos con forro Int. Fibra de vidrio
Aislamiento: Cubierta Ext. De fibra de vidrio, y malla metálica de Acero Inoxidable
NORMA ANSI – Temperatura de Servicio del Forro: 510° C

DISPLAY TEMPERATURE & HUMIDITY

• Brand: DICKSON

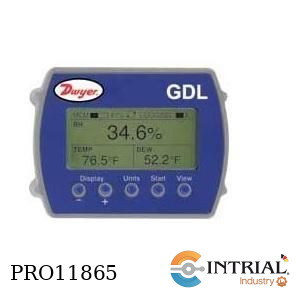

GRAPHICAL DISPLAY DATA LOGGER
Brand: DWYER INSTRUMENTS
Memory Size: 43,344 temperature;
21,672 temperature, RH and dew point.
Temperature Range: 15 to 150°F (-10 to 65°C).
Temperature Accuracy: ±1°F (±0.5°C).
Temperature Resolution: 0.01°F(0.01°C).
Humidity Range: 0 to 99% RH.
Humidity Accuracy: ±2% RH, from 10 to 90% RH.
Humidity Resolution: 0.01% RH.
Sampling Method: Stop on memory full or continuous recording.
Sampling Rate: 1 s to 18 hrs, 1 s increments.
Computer Requirements: Windows®
98 and above (software included).
Power Requirements: (3) AA alkaline
batteries, installed functional, user replaceable.
Alarms: Programmable high/low.
Interface: USB port (cable included).
Agency Approvals: CE.


SENSOR DE TEMPERATURA INFRARROJO
Marca: CALEX
Modelo: PC-151-MT-0
Sensor: 15:1 óptico
Rango: [0...+250]°C
Precisión: +/- 1 % lectura
Alimentación: 24 VDC
Señal de salida: 4…20 mA/ 2 hilos
Tensión de Alimentación: 6 → 28 VCC
Tipo de Montaje: Rosca M16 x 1 mm
Índice de Protección: IP65
