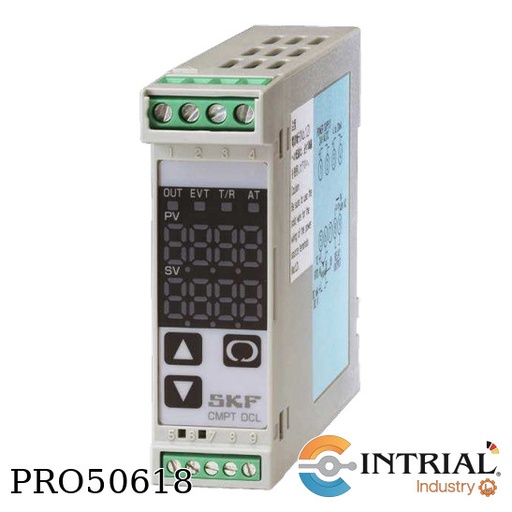

Alarm and Display Module<br />
Brand: SKF<br />
Model: CMPT-DCL<br />
Output signal: 4 to 20 mA<br />
Supply Voltage: 24 V AC/DC(20 to 28 V AC/DC)<br />
Supply current: 200 mA, maximum<br />
Power: 6 W, maximum

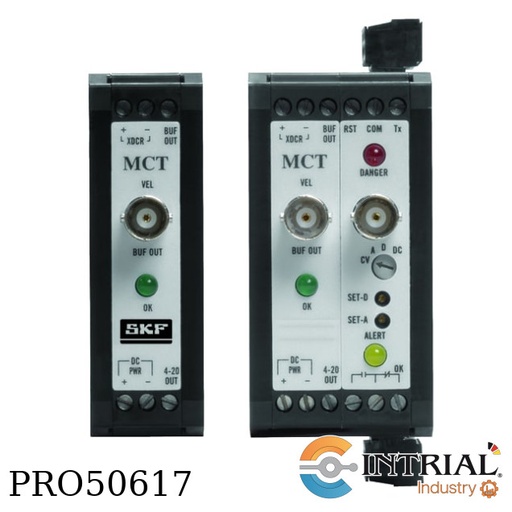

Velocity Transmitter/Monitor<br />
Brand: SKF<br />
Model: CMCP-530-100A-R-ISO-LF<br />
Input: 100 mV/g accelerometer<br />
Filter: 2 Hz to 2.0 kHz (-3 dB)<br />
Supply voltage: +24 V DC (23 V to 28 V)<br />
Relay ratings Switching voltage: 30 V DC maximum or 125 V AC<br />
Relay ratings Switching current: 5 A maximum<br />
Sensor sensitivity: 100 mV/g, 100 mV/in/sec, 500 mV/in/sec; or specified.<br />
Output: 4-20 mA DC Proportional to Velocity (600 Ohms max. resistive load)

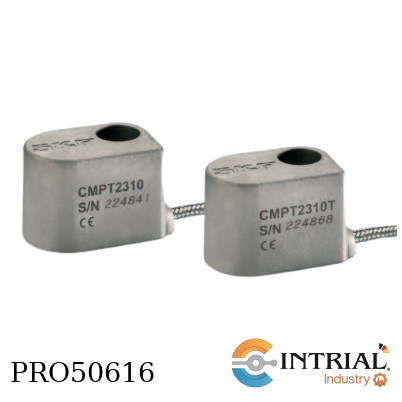

Low profile integral cable accelerometers<br />
Brand: SKF<br />
Model: CMPT-2310T<br />
Sensitivity: 100 mV/g<br />
Frequency range: 1 Hz to 10 kHz<br />
Sensitivity precision: ±10%<br />
Sensitivity deviation over full temperature range: 10%, approximately –5% at –50 °C (–60 °F) and +5% at +120 °C (+250 °F)<br />
Amplitude linearity: < 1%, up to full scale<br />
Transverse sensitivity: ≤ 5% of axial<br />
Acceleration output range: 70 g<br />
Shock limit: 5 000 g peak<br />
Accelerometer measurement temperature range: –50 to +120 °C(–60 to +250 °F)

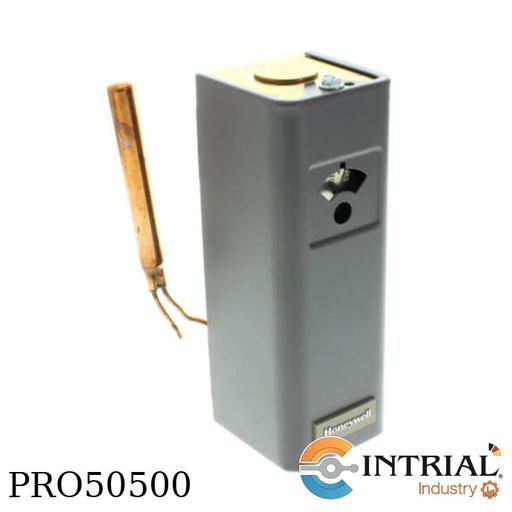

Aquastat
Brand: HONEYWELL
Model: L4006A2007
Hazmat Information: UN1294, Dangerous Goods in Excepted Quantities
Application: High or Low limit
Temperature Range (F): Maximum 150 F
Temperature Range (C): Maximum 66 C
Mounting: Horizontal
Electrical Ratings: Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac

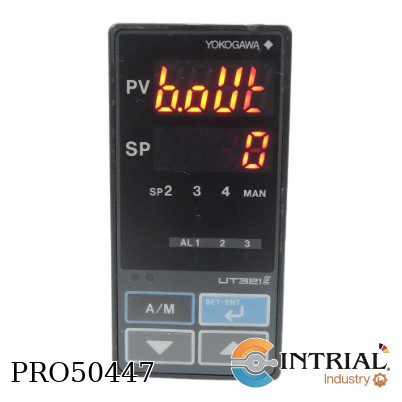

DIGITAL INDICATING CONTROLLER<br />
MODEL: UT321-01<br />
BRAND: YOKOGAWA<br />
1/8 DIN<br />
UNIVERSAL INPUT/OUTPUT<br />
100-240 VAC<br />
50/60 HZ<br />
WITH COMMUNICATION<br />
HEATER BURNOUT ALARM
<div>
<div class="gtx-trans-icon"></div>
</div>

Foil resistance thermometer, 1 x Pt 100 Ohm<br />
DIN EN 60751, class B, thin film sensor 2 x<br />
2,3 mm, kapton foil 10 x 10 mm, self<br />
adhesive, with 1000 mm connection cable<br />
PTFE/Cu-shield/PTFE (cable no. 131B), 2 x<br />
0,14 mm², with shrinking tube at the cable<br />
end, Cu shield cut, 30 mm free ends,<br />
temperature range: -50 to +200°C, accoring<br />
our drawing PT100-2W-200-1000

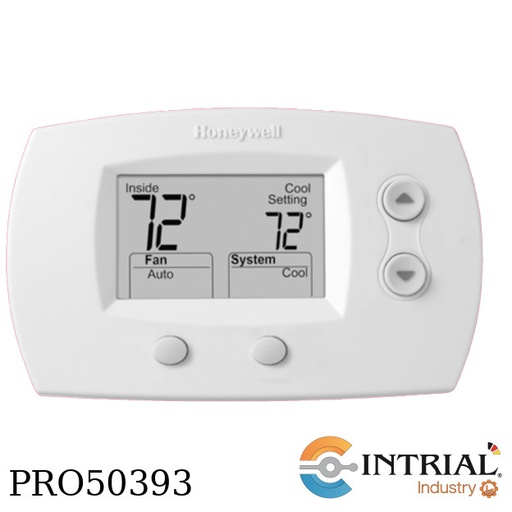

FocusPRO® 5000<br />
Brand: HONEYWELL<br />
Digital Non-Programmable Thermostat<br />
Stages:  Up to 2H/2C<br />
Display Size:  Large

TEMPERATURE CONTROLLER TF1<br />
Brand: HONSBERG-GHM<br />
Switching range: 60°C<br />
Connection material: brass<br />
Connection: thread G 1/2 A<br />
Process connection: screw-in thread<br />
Wiring: wiring 0.214 normally closed (n.c.)

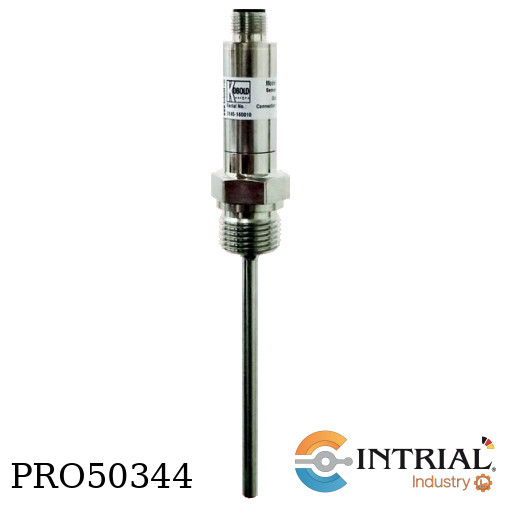

<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold(Alemania)<br />
Model: MMA-0-10-G15-C-3-M-B-0</strong><br />
[MMA-0]:<br />
Probe material: st.st. 1.4404<br />
Connection: fixed<br />
Design: w/o stand-off<br />
Max. temperature: -70...+150°C<br />
[10]: Immersion length/diameter: 100mm/Ø6<br />
[G15]: Connection, G 1/2 male<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3]: Wiring, 3-wire <br />
[M]: Electr. Connection, Plug M12x1 <br />
[B]: Head Transmitter, 4..20 mA,range acc. customers specification<br />
[0]: Options, without

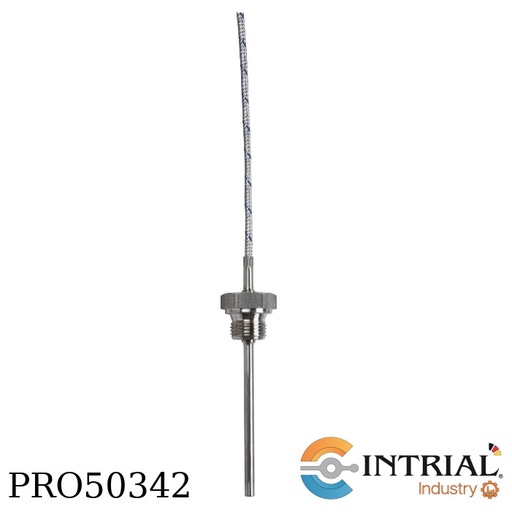

Screw-In Resistance Thermometers with cable<br />
Model: MWE-1-6-N15-A-4-S-0(310mm)<br />
Brand: Kobold (Alemania)<br />
[MWE-1]:<br />
Version: Immersion tube without filling, not removable<br />
Material immersion tube: St. steel 1.4404 / 316 L<br />
Max. pressure (@ 20°C): 30 bar<br />
Temperature range: -70…+250 °C (depending on cable material)<br />
Connection: fixed<br />
Connection cable: Cable acc. customer specification with bend protection spring<br />
[6]: Diameter / length immersion tube, 6mm/<br />
[N15]: Process connection, 1/2 NPT male<br />
[A]: Sensor type, 1x Pt100, cat. B (-70..+250 °C)<br />
[4]: Wiring, 4 wires<br />
[S]: Cable material, Silicone (max. 200°C); Cable length, 5m<br />
[0]: Options, without<br /><br />
EL=310mm<br />

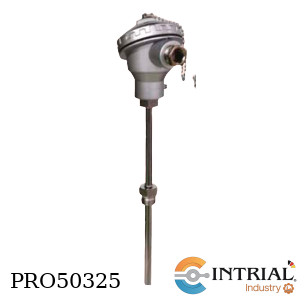

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-G-4-G-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[6]: Diameter / length thermowell, 6 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[G]: Sensor, 1x Pt100, cat. A, (-70..+400 °C)<br />
[4]: Wiring, 4-wire<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: without transmitter<br />
[0]: Options, without

BT 3560, Transmisor, 0-200°C, 100mm, G1/4", DIN 43650-A, Pg 9<br />

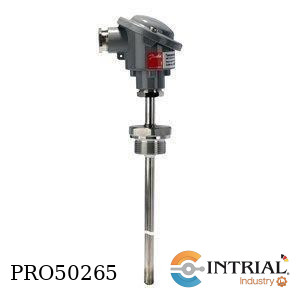

Sensor de Temperatura <br />
Modelo: MBT 3560<br />
Marca: Danfoss<br />
Longitud de Inserción: 100 mm<br />
Rango de Temperatura: -50 a 120 °C<br />
Diámetro del tubo protector: 8 mm<br />
Conexión al Proceso: 1/4" G<br />
Elemento del Sensor: Pt100<br />
Rango del Transmisor: 0-200°C

Sensor de Temperatura <br />
Modelo: MBT 3560<br />
Marca: Danfoss<br />
Longitud de Inserción: 150 mm<br />
Rango de Temperatura: -50 a 120 °C<br />
Diámetro del tubo protector: 8 mm<br />
Conexión al Proceso: 1/4" G<br />
Elemento del Sensor: Pt100<br />
Rango del Transmisor: 0-200°C

Sensor de Temperatura, Pt100<br />
Marca: Danfoss<br />
Clase: B<br />
Rango: -50 a 200°C<br />
Material: Acero Inoxidable AISI 316<br />
Diametro: 10mm<br />
Longitud: 100 mm<br />
Conexión: 1/2" NPT<br />
Cabezal de aluminio fundido<br />
Grado de proteccion: IP65<br />
sin transmisor

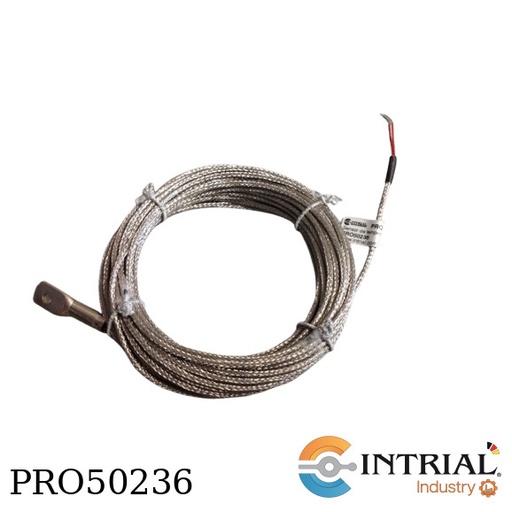

Modelo: PRO50236
Cable lug sensor M6
Marca: INTRIAL(Made in Germany)
1 x Pt100 Ohm DIN EN 60751 Kl. B, 3-wire,
cable lug M6, 20 x 13 x 2.5 mm (LxWxS), with
extension tube 8.5 x 25 mm, bore ø 6.4 mm,
material copper galvanised, with 10.000 mm
connection cable glass silk/glass silk/VA(Cable Trenzado de acero flexible)
(cable no. 120A) 3 x 0.22 mm², temperature
range: -30 to +350°C, Tmax.: cable +280°C,
labelled: Made in Germany, INTRIAL,

<p class="MsoNormal"></p>
Modelo: PRO50235<br />
RTD Cable lug sensor M6<br />
Marca:  INTRIAL(Made in Germany)<br />
1 x Pt100 Ohm DIN EN 60751 Kl. B, 3-wire,<br />
cable lug M6, 20 x 13 x 2.5 mm (LxWxS), with<br />
extension tube 8.5 x 25 mm, bore ø 6.4 mm,<br />
material copper galvanised, with 5. 000 mm<br />
connection cable glass silk/glass silk/<span style="font-size:9pt;line-height:107%;font-family:Arial, sans-serif;color:#000000;background:#FFFF00;">VA(Cable Trenzado de acero flexible)</span><br />
(cable no. 120A) 3 x 0.22 mm², temperature<br />
range: -30 to +350°C, Tmax.: cable +280°C,<br />
labelled: Made in Germany, INTRIAL,<br /><br /><br />


Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-4-N15-C-3-G-A-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[4]: Diameter / length thermowell, 4 mm / LE= 150 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5333D or equivalent<br />
[0]: Options, without

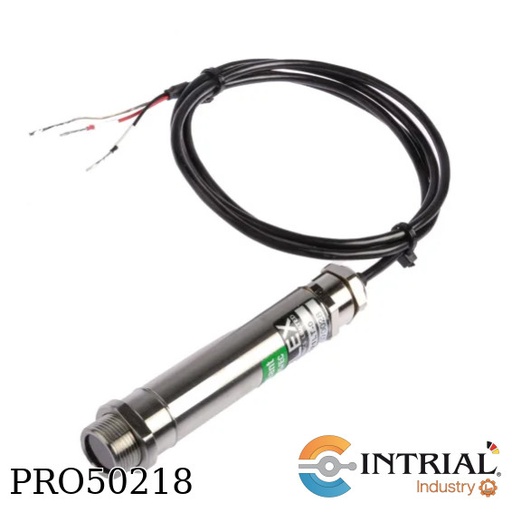

<div>INFRARED SENSOR -20 TO100<br />
Marca: Calex Electronics<br />
Modelo: PC21LT-0<br />
SENSOR DE TEMPERATURA INFRARROJO CALEX PC21LT-0 , DE -20°C A<br />
+100°C, LONG. CABLE 1M, SALIDA 4-20 MA, Ø 18 MM</div>

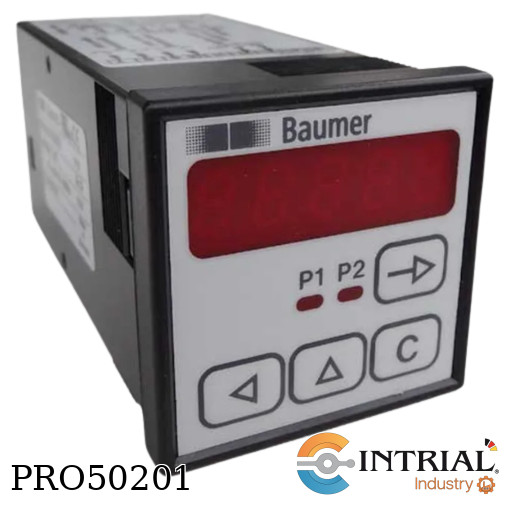

Electronic preset counter<br />
Brand: Baumer<br />
Model: NE216.013AX01<br />
Supply Voltage: 12 → 30 V dc<br />
Display Type: LED<br />
Input Type: Logic<br />
Connection Type: Screw<br />
Reset Method: Automatic, Electrical, Manual<br />
Number Of Digits: 5<br />
Mounting Type: Panel Mount<br />
Output / Interface: Relay<br />
Count Direction: Bi-Directional<br />
Maximum Count Frequency: 10kHz<br />
Range Operating Temperature: 0°C...+50°C<br />
Measurement Range: 0.0001 → 9999.99<br />

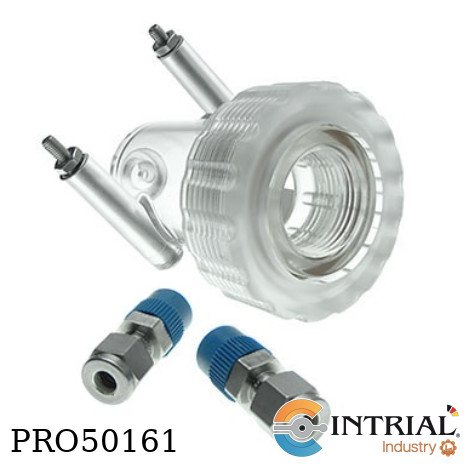

Conjunto de celda de bajo flujo<br />
Marca: Rosemount Analytical<br />
Model: 24091-00 <br />
Accesorio de compresión de tubería de 1/4 in OD o 1/4 in FNPT<br />
Presión máxima de 90 psig (722 kPa abs)<br />
Temperatura máxima de 158 °F (70 °C)<br />
