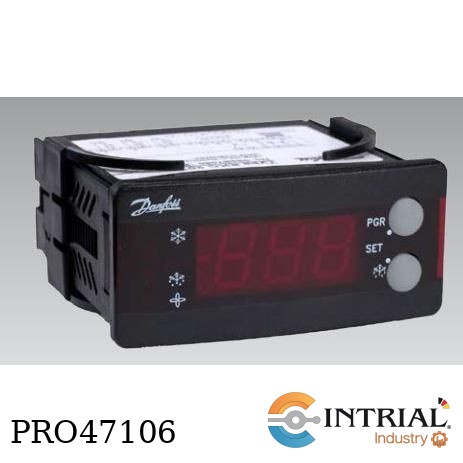

Controller for temperature control<br />
Controlador EKC 201 12V<br />
Brand : Danfoss<br />
Alimentaciòn de Tensiòn : 12v<br />
Sensores : Tipo PT100<br />
Rango de Medida : -60 a 50ºC<br />
Display : Lectura 3 dìgitos<br />
Protecciòn : IP54

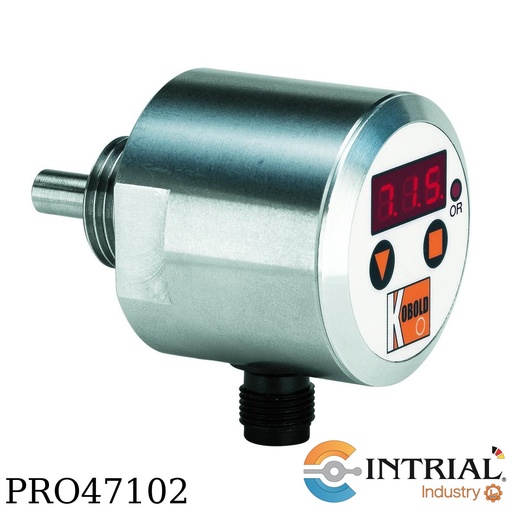

<strong>Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-N4-0-P-3M</strong><br />
[TDA-15H2]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[N4] Connection: 1/2 NPT male<br />
[0] Sensor length: short<br />
[P] Output: 0(4)-20 mA, PNP switch output<br />
[3M] Electrical connection: M12x1 plug connector<br /><br />
Accessories Plug Connector<br />
Brand: Kobod<br />
Model: ZUB-KAB-12K005<br />
M12x1 box with 5 m cable

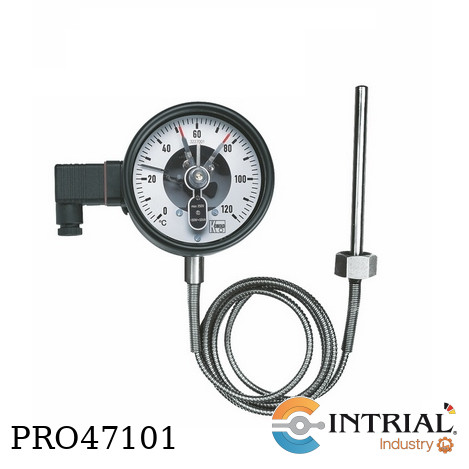

<strong>Capillary Thermometers diam. 160 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-1G-2-08-E-B1-M12</strong><br />
[TNF-1G]<br />
Diameter: 160 mm<br />
Probe material: st.st.<br />
Class: 1,0<br />
[2] Housing material: st. st<br />
[08] Range: 0...80 °C<br />
[E] Capillary tube: st. st.<br />
Probe length: 100mm<br />
[B1] Probe: G 1/2 sleeve nut<br />
[M12] Magn. spring contact,  1st N/O, 2nd N/C<br />
* 2 mts. (Capillary tube)

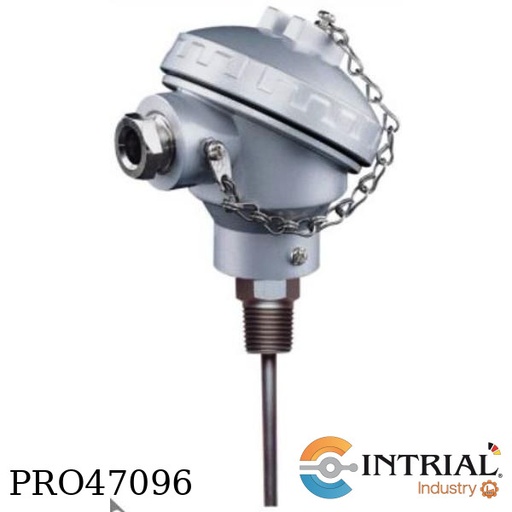

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-A-3-G-B-0</strong><br />
[MWD-L]:   <br />
Versión, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neck pipe, without<br />
Length thermowell (EL) = 150mm<br />
[6]: Diameter / length thermowell, 6 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wire<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[B]: Head-mounted transmitter, 2 wire transmitter with HART protocol model 5337D<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-0-0</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not <br />
removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 70 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br /><br />
Includes Thermowell with 1/2 "NPT connection.<br />
TERMOPOZO-25mm

<strong>Digital Temperature Controller<br />
Model: E5AC-RX4A5M-000 <br />
Marca: OMRON </strong><br />
[E5AC] Model<br />
[RX] Control outputs, 1 Relay output<br />
[4] 4 salidas auxiliares <br />
[A] 100 to 240 VAC<br />
[5] Screw terminals (with cover)<br />
[M] Universal input<br />
[000] ---<br />
96 x 96 mm

<strong>Industrial Resistance Thermometers<br />
Brand: Kobold<br />
Model: MWD-E-C-C15-K-3-B-0-0</strong><br />
[MWD-E]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection Compression fitting<br />
Neckpipe without<br />
[C] Diameter / length thermowell, 12mm / 260 mm<br />
[C15] Process connection, Compression fitting 1/2 NPT male<br />
[K] Sensor, 1x Pt100, cat. A, (-70..+600 °C) <br />
[3] Wirings, 3 wires<br />
[B] Terminal head, DIN B, screwd cover, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br /><br />
Include: <br />
(racor) de 3/4 NPT male a 1/2 NPT female

SENSOR ELÉCTRONICO PARA NIVEL Y TEMPERATURA<br />
Marca: IFM<br />
Modelo: LT0472B-B-00KSPKG/US<br />
Número de salidas digitales: 4<br />
Configuración de fábrica: 2 salidas de conmutación <br />
para nivel (OUT1, OUT2); <br />
2 salidas de conmutación para temperatura (OUT3, OUT4); <br />
aceites minerales<br />
Longitud de varilla L [mm]: 472<br />
Fluidos: líquidos refrigerantes a base de agua; aceites; <br />
fluidos a base de aceite; agua; fluidos similares al agua<br />
Constante dieléctrica del fluido > 2<br />
Temperatura del fluido [°C]: 0...70<br />
Temperatura del fluido con picos [°C] 0...90; (< 1 h)<br />
Tensión de alimentación [V] 18...30 DC<br />
Consumo de corriente [mA] < 50<br />
Clase de protección: III<br />
Protección contra inversiones de polaridad: sí<br />
Retardo a la disponibilidad [s] < 3<br />
Principio de medición: capacitivo

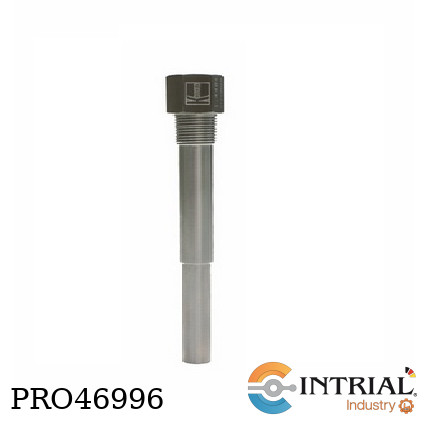

<strong>Thermowells for Temperature Sensors<br />
Brand: Kobold <br />
Model: TWL-0000-N-GN4B-0-25mm</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 25 mm (1”)<br />
[0]: Lagging extension (T), w/o lagging extension

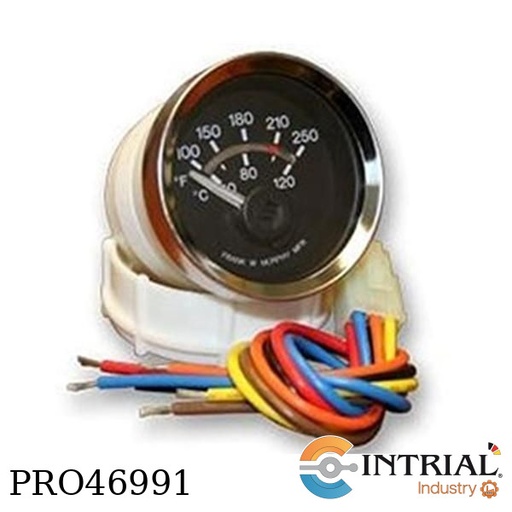

TEMPERATURE SWICHGAGE<br />
Brand: MURPHY<br />
130-250° F.<br />
12VDC<br />

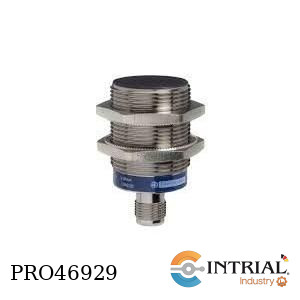

SENSOR INDUCTIVO<br />
Marca: SCHNEIDER<br />
Tamaño de Rosca: M30 x 1.5<br />
Tipo de Cuerpo Cilíndrico<br />
Tipo de Salida: PNP<br />
Rango de Detección: 15 mm<br />
Tipo de Terminal: Conector M12 de 4 contactos<br />
Tensión de Alimentación: 10 → 36 V dc<br />
Tensión DC Máxima: 36V<br />
Tipo de Montaje: Enrasado<br />
Corriente de Conmutación: 10 mA<br />
Índice de Protección IP IP65, IP67<br />
Frecuencia de Conmutación Máxima: 500Hz<br />
Material de la Carcasa Brass<br />
Temperatura de Funcionamiento Máxima: +70°C<br />
Protección de Polaridad Inversa : Sí<br />
Protección contra cortocircuitos/sobrecargas: Sí<br />
Temperatura de Funcionamiento Mínima: -25°C

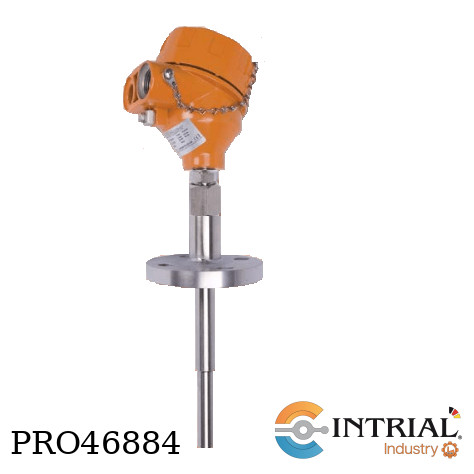

<strong>Resistance Thermometers Exd<br />
Model: TWL-1-5-3-L-N-GA95-A-0<br />
Brand: Kobold</strong><br />
[TWL-1]<br />
Version standard<br />
Thermowell cylindrical<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[3] Wiring: 3 wires<br />
[L] Head-mounted transmitter without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GA95]: Connection thermowell ANSI-flange 2" 150 lbs<br />
[A] Neckpipe/lagging extension (HL/T),<br />
Standard neckpipe (130 mm)w/o lagging extension<br />
[0] Options,w/o<br /><br />
Sesnor<br />
EL= U+H-8 = 250+60-8= 302 mm<br /><strong>Termopozo U= 250 mm</strong><br /><strong>Ceriticado de calibración 3 puntos</strong>

<strong>Resistance Thermometers Exd<br />
Model: TWL-1-5-3-L-N-GA95-A-0<br />
Brand: Kobold</strong><br />
[TWL-1]<br />
Version standard<br />
Thermowell cylindrical<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[3] Wiring: 3 wires<br />
[L] Head-mounted transmitter without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[GA95]: Connection thermowell ANSI-flange 2" 150 lbs<br />
[A] Neckpipe/lagging extension (HL/T),<br />
Standard neckpipe (130 mm)w/o lagging extension<br />
[0] Options,w/o<br /><br />
Sesnor<br />
EL= U+H-8 = 1041+60-8= 1093 mm<br /><strong>Termopozo U= 1041 mm<br />
Ceriticado de calibración 3 puntos</strong>

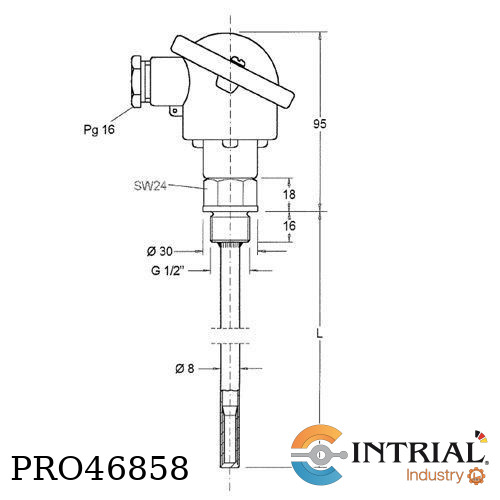

SENSOR 1xPt100<br />
Brand: INOR<br />
Connection head: Type B acc. To DIN 43729<br />
Protective Tube: Tube 8x1mm SS2343<br />
Process connection: ISO-G1/2” SS2343<br />
Temperature: -150.. + 100° C<br />
Sensor: 1xPt100 resp 2xPt100<br />
Class B acc. To IEC751<br />
Electrical connection: teflón insulated <br />
wires 3x0,25 mm2<br />
Sensing tip filled with heat conducting and <br />
vibration clamping paste<br />
L: 215mm

<strong>SENSOR DE TEMPERATURA RTD <br />
PT-100 DE 4 HILOS CON BAYONETA<br />
Marca: Intrial<br />
Modelo: RTD-4-1-T200-D8-L30-100M</strong><br />
SENSOR: De Cuatro Hilos – Platino 100 Ω, Adecuado para movimiento y/o vibración<br />
COEFICIENTE DE TEMPERATURA DEL SENSOR: 0.00385 (Ohms/ Ohms/ °C).<br />
GRADO DE PRECISION: CLASE B - NORMA IEC 751<br />
TOLERANCIA: DIN EN 60751 - F 0,3 (CLASE B)<br />
TEMPERATURA DE SERVICIO: -70° C @ 200° C.<br />
BULBO: En Acero Inoxidable AISI 304 - Ø 8mm x 30mm. de longitud con <br />
resorte para ajuste de bayoneta en bronce Ø Int. 17mm<br />
CABLE: 100m de cable conductor de 4 hilos con doble forro de teflón.

INDUCTIVE SENSOR<br />
Brand: IFM<br />
Sensing range 8 mm flush mountable<br />
Operating voltage 10...30 DC V<br />
3-wire, PNP<br />
M12 Connector<br />
Gold-plated contacts,Increased sensing range<br />
Correction factor K = 1

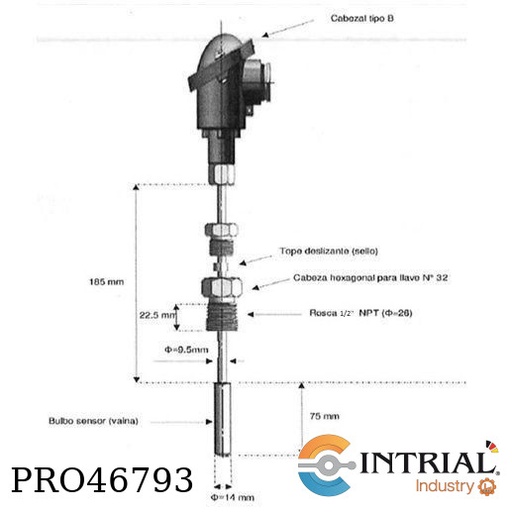

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B, 2-wire<br />
probe tip sleeve ø 14 x 75 mm<br />
tube ø 9.5 x 185mm<br />
nominal length 260 mm<br />
material 1.4571<br />
sliding screw connection ½” NPT<br />
SW36, thread length 22,5 mm<br />
connection head type B<br />
with 12000 mm connection cable glass silk/glass silk/steel<br />
braided (cable no. 117A)<br />
temperatura range: -50 up to +200°C<br />
like to your drawing<br />
**Include Calibration certificate**

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: INTRIAL<br />
1 x Pt 100 Ohm DIN EN 60751<br />
class B, 2-wire<br />
probe tip sleeve ø 14 x 75 mm<br />
tube ø 9.5 x 185mm<br />
nominal length 260 mm<br />
material 1.4571<br />
sliding screw connection ¾” NPT<br />
SW36, thread length 22,5 mm<br />
connection head type B<br />
with 8000 mm connection cable glass silk/glass silk/steel<br />
braided (cable no. 117A)<br />
temperatura range: -50 up to +200°C<br />
like to your drawing<br />
**Include Calibration certificate**

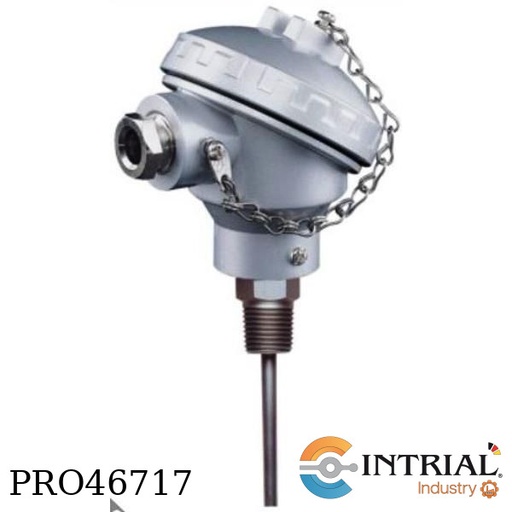

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-0-0-50mm<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert <br />
not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 50 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
Includes Thermowell with 1/2 "NPT connection

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-0-0</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert <br />
not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 75 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without<br />
Includes Thermowell with 1/2 "NPT connection
