TEMPERATURE CONTROLLER<br />
Brand: ATHENA<br />
KF: Imput: “K” TC<br />
Range: 0 to 2460˚ F<br />
Output 1 (Heating) Configuration Code: 0 = None<br />
Output 2 (Cooling) Configuration Code: Y = “B” relay, NC<br />
Standard Options: 00 = None

<strong>Electronic temperature sensor<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-N4-2-P-3M+ZUB-KAB-12K002</strong><br />
[TDA-15H2]:<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[N4]: Connection, 1/2 NPT male<br />
[2]: Sensor length, 200 mm<br />
[P]: Output, 0(4)-20 mA, PNP switch output<br />
[3M]: Electrical connection, M12x1 plug connector<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

BiTh63D201(0a60C)<br />
Termometro bimetalico Bith 63 D201<br />
Marca : Afriso (Alemania)<br />
Dial : 2 1/2 "<br />
Rango:0/60ºC, <br />
bulbo 40 mm x 8mm inferior<br />
Rosca : G1/2

<strong>Screw-in resistance thermometer, 1 x Pt 100<br />
Brand: Intrial<br />
Model: RTD-2-1-T10-D6.35-T200</strong><br />
Specification:<br />
Ohm DIN EN 60751, class A/0°C, 2-wire,<br />
protective tube ø 6,35, built-in length from<br />
thread 220 mm, threas 1/2"NPT, material<br />
stainless steel, SW27, connection head form<br />
B, with transmitter 4-20 mA, measuring<br />
range: -10 to +100°C, IP67, according to your photo

MARCADOR INDICADOR TEMPERATURA 177°C<br />
Number: MAR.028031 <br />
TEMPILSTIK 350 F / 177 C

MARCADOR INDICADOR TEMPERATURA 120°C<br />
Number: MAR.028314 <br />
TEMPILSTIK 120 C / 248 F

MARCADOR INDICADOR TEMPERATURA 60°C<br />
Number: MAR.028303 <br />
TEMPILSTIK 60 C / 140 F

MARCADOR INDICADOR TEMPERATURA 235°C<br />
Number: MAR.028333 <br />
TEMPILSTIK 235 C / 455 F

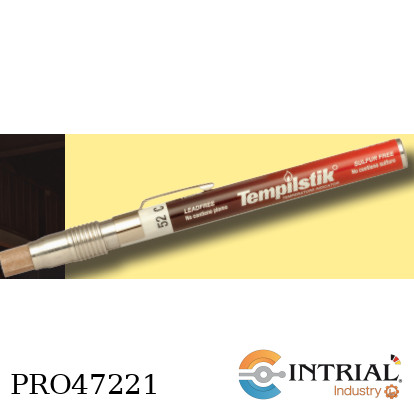

MARCADOR INDICADOR TEMPERATURA 200°C<br />
Number: MAR.028327 <br />
TEMPILSTIK 200 C / 392 F

MARCADOR INDICADOR TEMPERATURA 150°C=302°F<br />
Number: MAR.028318 <br />
TEMPILSTIK 150 C / 302 F

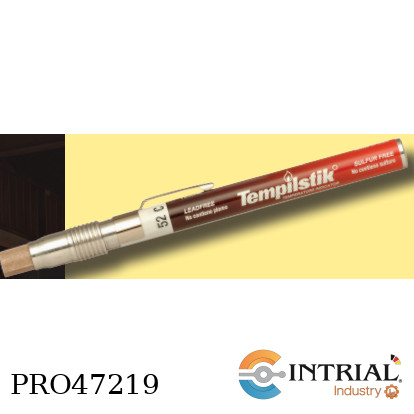

MARCADOR INDICADOR TEMPERATURA 100°C= 212°F<br />
Number: MAR.028310<br />
TEMPILSTIK 100 C / 212 F

<strong>TRANSMISOR. TEMPERATURA, DIN, 1 CANAL, 24...250VAC, 2 RELES, ATEX<br />
Transmisor de temperatura para zonas con riesgo de explosion<br />
Marca: PR Electronics<br />
Modelo: 5116B</strong><br />
Alimentacion: 21.6...256 Vac/dc<br />
Señal de entrada: RTD, Termocuplas<br />
0...100mA, 0...250Vdc<br />
-2500...+2500 mV<br />
Señal de salida: 0...20mA, 4...20mA, 0...10Vdc<br />
Reles de salida: 2 x reles<br />
Separacion galvanica para señales analogas<br />
Grado de proteccion: IP20<br />
Dimensionesion: 109 x 23.5 x 130 mm

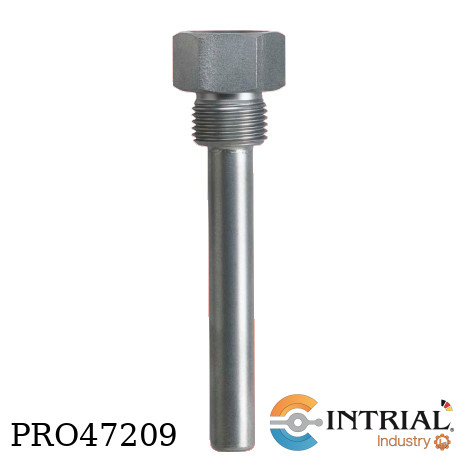

<span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">TERMOPOZO ROSCADO RECTO</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">Modelo: TERMOPOZO-1000mm</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">USO: (PARA SENSOR DIAM.6.35x1020mm,1/2”NPT)</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">TERMOPOZO: Fabricado de barra solida en Acero Inoxidable C-304.</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">LONGITUD DE INSERCION DEL TERMOPOZO: De 1000mm</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">CUERPO DEL TERMOPOZO: De Ø 17.15mm.</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">DIAMETRO INTERNO DEL TERMOPOZO: Ø 9mm (Para sensor de Ø 1/4").</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">CONEXION AL SENSOR: Con rosca hembra de 1/2” NPT.</span><br style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);" /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">CONEXION AL PROCESO: Rosca macho de 1/2’’ NPT</span>

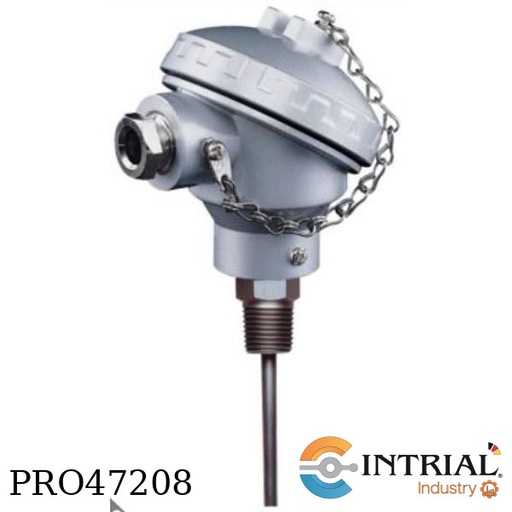

<strong>SENSOR DE TEMPERATURA (RTD) PT-100 DE 03 HILOS CON CABEZAL<br />
Model: PT100-03-1020-INOX</strong><br />
SENSOR: De Tres Hilos – Platino 100 Ohmios – con aislamiento interno MgO<br />
Oxido de magnesio > 20Mohm @ 25°C (500Vdc)<br />
COEFICIENTE DE TEMPERATURA DEL SENSOR: 0.00385 (Ohms/ Ohms/ °C)<br />
GRADO DE PRECISIÓN: CLASE A - NORMA IEC 751<br />
TOLERANCIA: DIN EN 60751 - F 0,15 (CLASE A).<br />
TEMPERATURA DE SERVICIO: -50° C @ 300° C.<br />
TEMPERATURA DE USO: NO INDICADO<br />
BULBO: De Acero Inoxidable AISI 316 – Ø 6.35mm x 1020mm. de longitud.<br />
CONEXIÓN A PROCESO: De Acero Inoxidable con rosca de 1/2" NPT<br />
CABEZAL: De Aluminio Inyectado Tamaño Standard, con Tapa Rosca y cadena<br />
de sujeción y Prensaestopa con Conexión Eléctrica de 1/2” NPT. Grado de<br />
protección IP67<br />
MARCA DEL ELEMENTO: HERAEUS – MADE IN GERMANY<br />


TEMPERATURE TRANSMITTER<br />
Brand: HYDAC<br />
[4] Mechanical connection: G1/4 A ISO 1179-2<br />
[6] Electrical connection: male M12x1, 4 pole <br />
(mating connector not supplied)<br />
[A] Signal : 4 .. 20 mA, 2-conductor<br />
[000] Modification number: Standar

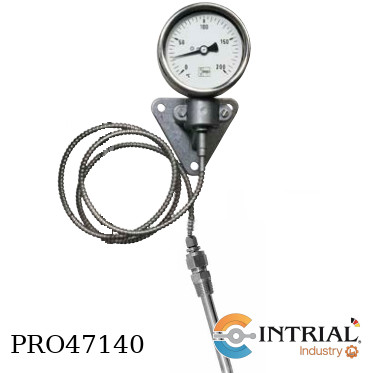

<strong>Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-0F-2-46-E-1A-Y</strong><br />
[TNF-0F]<br />
Diameter: 100 mm<br />
Probe material: st.st.<br />
Class: 1,0<br />
[2] Housing material: st. st<br />
[46] Range: -40...60 °C<br />
[E] Capillary tube: st. st.<br />
[1A] Probe: 1/2 NPT sl. nut + 2 nipple<br />
[Y] Probe diameter 9 mm<br /><br />
E= Capilar  7 mts.<br />
Bulbo =  140 mm<br />
Y= Bulbo 9 mm

INFRARED FLAME SENSOR<br />
Brand: HONEYWELL<br />
Used for combination or dual-fuel applications<br />
Infrared (Lead Sulfide) Flame Detector<br />
Used with R7852 Flame Amplifiers<br />
3/4" NPT<br />
48" lead length<br />
Two no.18 AWG wires for electrical connection<br />
Includes magnifying lens, 32007255-001 cell, orifice, <br />
heat block, and reducer bushing<br />
-20 to 125 F operating temperature range<br />
1-1/4" diameter x 2-1/4" long<br />

TERMÓMETRO INFRAROJO<br />
Marca: FLUKE<br />
Modelo: 62 MAX<br />
Rango de temperatura -30 °C a 500 °C (-22 °F a 932 °F)<br />
Precisión ± 1,5 °C o ± 1,5 % de la lectura<br />
± 2,0 a -10 °C a 0 °C ± 3,0 a -30 °C a -10 °C<br />
Tiempo de respuesta (95 %): <500 ms (95 % de lectura)<br />
Respuesta espectral: 8 a 14 micras<br />
Emisividad: 0,10 a 1,00<br />
Resolución óptica: 10:1 (calculada al 90 % de energía)<br />
Resolución de pantalla 0,1 °C (0,2 °F)<br />
Repetibilidad de lecturas ± 0,8 % de lectura o <± 1,0 °C (2 °F<br />
cualquiera que sea mayor<br />
Batería AA de potencia

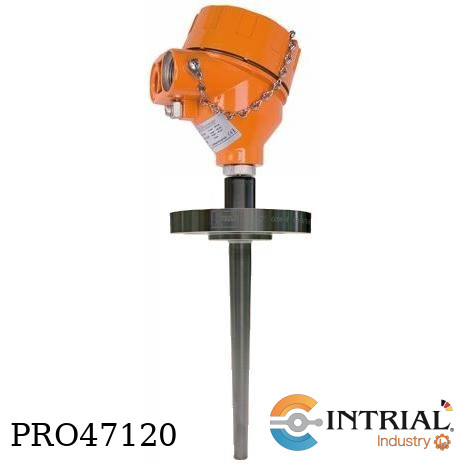

<strong>Resistance Thermometers Exd<br />
Model: TWL-1-5-4-L-N-DA86-D-0<br />
Brand: Kobold</strong><br />
[TWL-1]<br />
Version standard<br />
Thermowell Tapered, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[4] Wiring: 4 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[DA86] Connection thermowell: ANSI-flange 1 1/2" 300 lbs<br />
Immersion length (U): 8.5" ( 216 mm) at connection Flansch.<br />
[D] Neckpipe/lagging extension; <br />
w/o neckpipe w/o lagging extension <br />
[0] Options: without

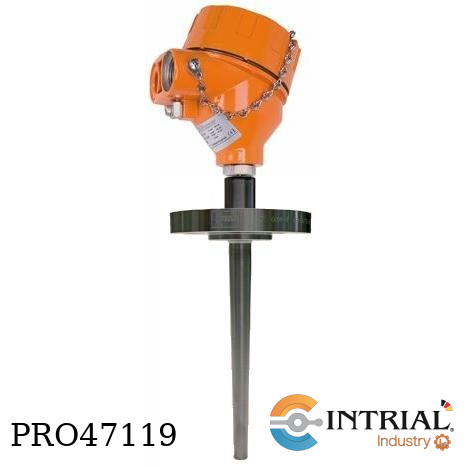

<strong>Resistance Thermometers Exd<br />
Model: TWL-1-5-4-L-N-DA86-D-0<br />
Brand: Kobold</strong><br />
[TWL-1]<br />
Version standard<br />
Thermowell Tapered, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[5] Sensor: 1x Pt100, cat. A, (-30..+550 °C)<br />
[4] Wiring: 4 wires<br />
[L] Head-mounted transmitter, without transmitter<br />
[N] Connection neckpipe, 1/2" NPT male<br />
[DA86] Connection thermowell: ANSI-flange 1 1/2" 300 lbs<br />
Immersion length (U): 7" ( 178 mm) at connection Flansch.<br />
[D] Neckpipe/lagging extension; <br />
w/o neckpipe w/o lagging extension <br />
[0] Options: without
