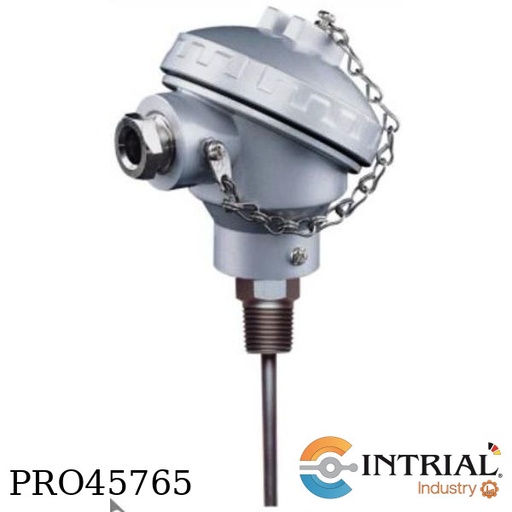

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-L-8-N15-C-3-G-A-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 350 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without<br /><br />
*Temperature range setting: -10 to 80 ° C

THERMOSTAT NON-PROGRAMABLE<br />
BRAND: HONEYWELL<br />
2H/2C<br />
BACKLIT<br />
DIGITAL<br />
MULTI STAGE<br />
HORIZONTAL MOUNT<br />
HARDWIRED OR BATTERY<br />
TEMP RANGE 40 F- 99 F<br />
OPERATING HUMIDITY 5 TO 90% RH NON-CONDENSING<br />
AMERAGE 0.02-1/WATTAGE 0.4 TO 30<br />
PREMIER WHITE

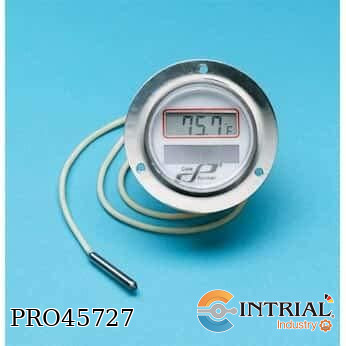

PANEL-MOUNT SOLAR POWERED THERMOMETER<br />
Brand: Cole-Parmer<br />
Meter Measurement Type: Digital Indicator<br />
Number Of Probe Channels: 1<br />
Min Temperature (° F) -40<br />
Max Temperature (° F) 158Min <br />
Temperature (° C)-40<br />
Max Temperature (° C)70<br />
Accuracy±1% full-scale<br />
Resolution0.1°<br />
Mounting TypeU-clamp mount<br />
Display Type3.5-digit LCD
<div>
<div class="gtx-trans-icon"></div>
</div>

CONTROLADOR DIGITAL ENTRADA 1 SONDA DIGITAL<br />
Marca: HACH<br />
Aberturas de los conductos: 1/2" Conducto NPT<br />
Comunicación:Standard (2x 4-20 mA outputs)<br />
Comunicación: digital: MODBUS RS232/RS485, PROFIBUS DPV1 opcional<br />
Condiciones de almacenamiento: -20 °C - 70 °C<br />
Fuente de alimentación: Without power cord<br />
Funciones de relé: Alarma, Temporizador, Control de alimentador, Control PWM o FM, Sistema de alarma<br />
Pantalla: Gráfica LCD con retroiluminación LED, transreflectiva<br />
Protección de la carcasa (IP): IP66 / NEMA 4X<br />
Rango de temperatura de operación: -20 - 60 °C a 0 - 95% humedad relativa (sin-condensación)<br />
Requisitos de alimentación (Hz): 50 - 60 Hz<br />
Requisitos de alimentación (voltaje): 100 - 240 V CA<br />

TERMÓMETROS CON GAS PARA APLICACIONES QUÍMICAS<br />
Marca: AFRISO (Alemania)<br />
Vivienda Ø: 4''(100 mm)<br />
Carcasa: acero inoxidable 304 con bisel de ventana de cristal instrumento de calidad de tipo bayoneta,<br />
Vástago: Acero inoxidable 321<br />
Diámetro bulbo:10 mm<br />
Relleno: relleno de gas a presión<br />
Rango: 0 a 120 º C<br />
Grado de protección: IP65<br />
Precisión: Clase 1 según EN 13190<br />
Montaje: Soporte de Pared<br />
Longitud del bulbo Termómetro: 100 mm<br />
64464(10m)<br />
TUBO CAPILAR: ACERO INOXIDABLE 316<br />
10 metros<br />
64460<br />
Conexión Termómetro Fija Macho: G½B<br />

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-3-E-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772,<br />
filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 100 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[E]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmiter, without transmitter<br />
[0]: Options, without

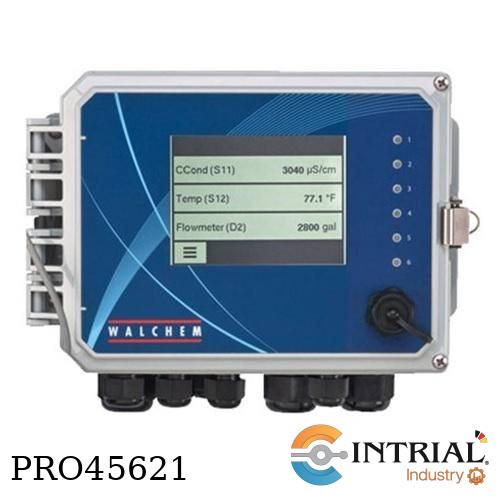

CONTROLADOR PARA TORRE DE ENFRIAMIENTO<br />
Marca: WALCHEM<br />
Set Point de encendido/apagado<br />
Control de tiempo proporcional<br />
Control de pulso proporcional (cuando se adquiere con relés de estado sólido)<br />
Activación En rango o Fuera del rango<br />
Activación basada en el temporizador<br />
Lavado de sensor<br />
Activación basada en el estado de un contacto cerrado<br />
610H =2 relés energizados, 4 relés secos, conectados directamente<br />
6 A (resistiva), 1/8 HP (93W) por relé<br />
Corriente 100-240 VCA, 50 ó 60 Hz, 7A máx<br />
Fusible: 6.3 Amp<br />
SS=Dos tarjetas de entrada de sensor<br />
A= 01 tarjeta dual de salida analógica (4-20 ma)<br />
Carga resistiva máx. de 600 ohmios<br />
Resolución 0.0015% de alcance, Precisión ± 0.5% de lecturas<br />
N= Sin Tarjeta Ethernet con Modbus TCP<br />
NN=No tierne sensor (Sensores por separado)<br />
- Cubierta :Policarbonato<br />
- Grado de protección :NEMA 4X o IP65<br />
- Display :2 x 16 caracteres con retroiluminacion de cristal liquido

Mini PDF In-Transit Logger<br />
Marca: Deltatrak<br />
Modelo: 31010<br />
Rango de Medición: -40°F to 140°F (-40°C TO 60°C)<br />
Tiempo de Descarga de Datos: típico 5 segundos <br />
Pantalla: LED Verde y Rojo<br />
Calificación Impermeable: IP54 con tapa de silicona<br />
Condiciones de Almacenamiento: -4 ° F a 122 ° F (-20 ° C a 50 ° C) 0% a 95% HR sin condensación

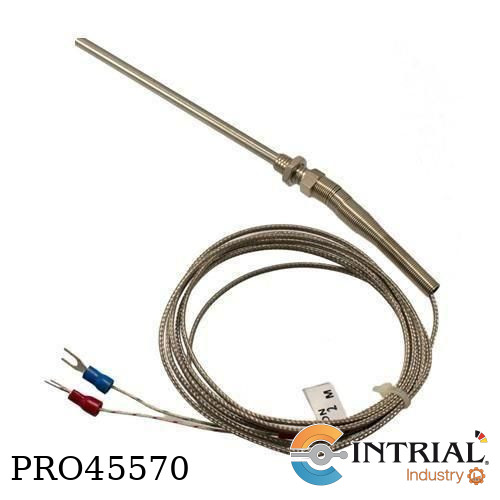

SLEEVE TEMPERATURE SENSOR<br />
Brand: INTRIAL (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B,<br />
3-wire, stainless steel sleeve ø 5 x 152 mm<br />
with welded ring<br />
with pressure spring and bayonet cap<br />
with 5129 mm connection cable<br />
PFA, 3-wire<br />
covered with 4900 mm<br />
corrugated ring hose<br />
229 mm free ends with<br />
forked cable lugs<br />
similar to your potos

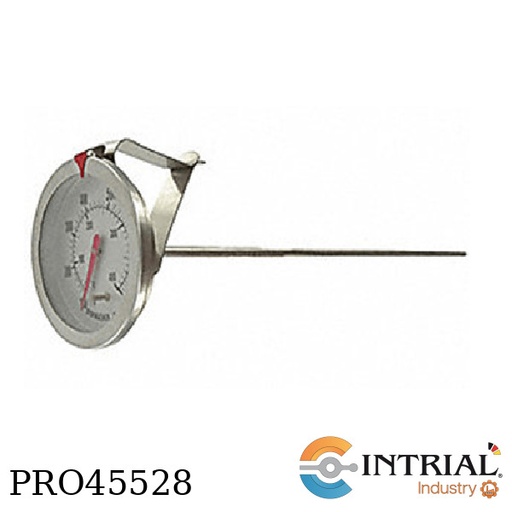

CLIP-ON BIMETAL THERMOMETER<br />
Brand: DWYER<br />
Range -10 to 110°C<br />
8" stem<br /><div>
<div class="gtx-trans-icon"></div>
</div>

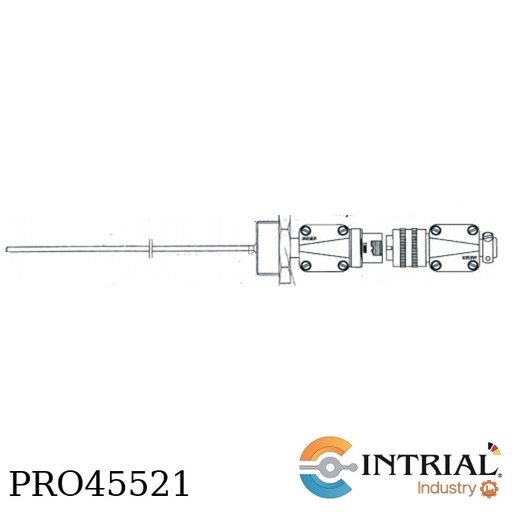

<strong>Screw-in temperature sensor<br />
Brand: Intrial(Made in Germany)<br />
Model: </strong>PRO45521<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
protection tube ø 3±0,2 x 800 mm, material <br />
stainless steel, with compression fitting G1/2", <br />
with connected connector M12 x 1, with <br />
counter plug and with 15.000 mm connection <br />
cable PTFE/Cu-shield nickel-plated/PTFE <br />
(cable no. 98B), 3-wire, , temperature range: <br />
-40 to +200°C, like to your drawing

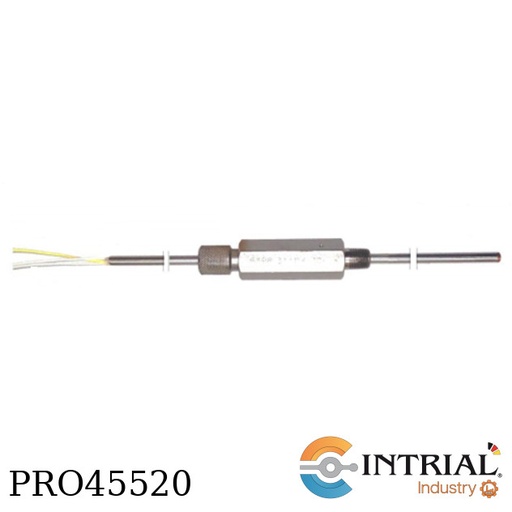

<strong>Screw-in temperature sensor<br />
Brand: Intrial(Made in Germany)<br />
Model: </strong>PRO45520<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
3-wire, protection tube ø 4,8 x 285 mm, <br />
material stainless steel, spring loaded <br />
compression fitting 1/8 "NPT, with transition <br />
sleeve, with 15.000 mm single strands open <br />
stranded, 2 x red/white (cable no. 153A), with <br />
free ends, temperature range: -50 to +260°C, <br />
like to your drawing

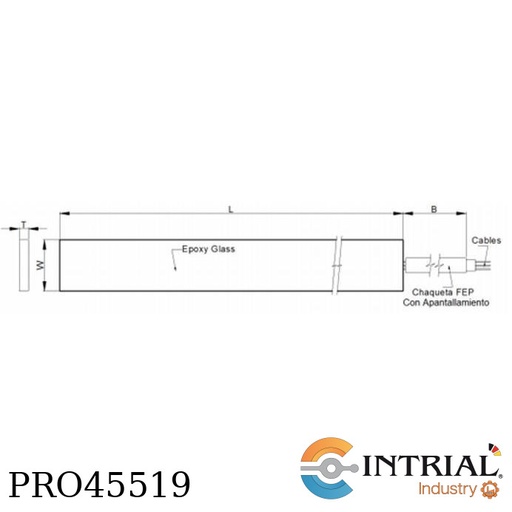

<strong>Slot resistance thermometer<br />
Brand: Intrial(Made in Germany)<br />
Model: </strong>PRO45519<br />
1 x Pt 100 Ohm DIN EN 60751, cl. B, 3-wire, <br />
4+0,1/-0,2 x 20,6±0,5 x 1670±2 mm, material <br />
Veronit G-11, with 12.000 mm connecting <br />
cable PFA/Cu-shield nickel-plated/PFA (cable <br />
no. 98B), with free ends, temperature range: <br />
-40 to +155°C, similar to your drawing

<strong>Screw-in temperature sensor<br />
Brand: INTRIAL(Made in Germany)<br />
Model: </strong>PRO45518<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
protection tube ø 6±0,2 x 200 mm, material <br />
stainless steel, with compression fitting G1/4", <br />
with connected connector M12, with counter <br />
plug, with 15.000 mm connection cable <br />
PTFE/Cu-shield nickel-plated/PTFE (cable <br />
no. 98B), 3-wire, with connected connector <br />
M12, temperature range: -40 to +200°C, like <br />
to your drawing

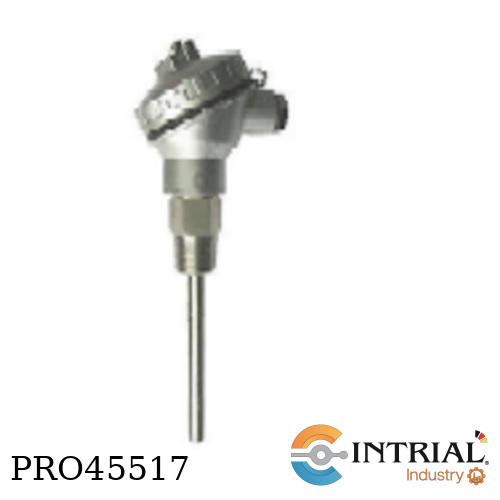

SCREW-IN RESISTANCE THERMOMETER<br />
Brand: Intrial (Made in Germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B, <br />
2-wire<br />
Protective tube ø 6 mm<br />
Length 35 mm<br />
Material Stainless steel<br />
Process connection 1/2" NPT<br />
Connection head form KNE<br />
Temperature range: -50 to +400°C

TEMP/HUMIDITY TRANSDUCER<br />
BRAND: AUTONICS<br />
WALL MOUNT<br />
100MM SENSING POLE<br />
4-20MA OUTPUT<br />
24VDC POWER <br />

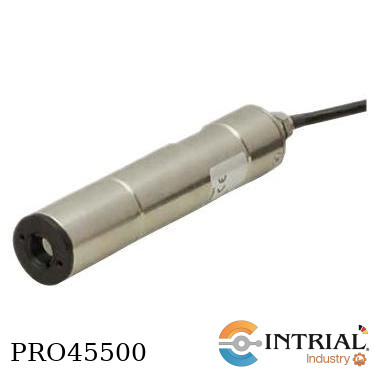

Infrared Thermometers for fixed Installation<br />
Brand: Kobold - Alemania<br />
Model: TIR-SN-4-30-G+TIR-ZS200<br />
[TIR-SN]<br />
Housing, st.st.<br />
Accuracy, ±1,5% of full scale<br />
Emittance, 0,4...1<br />
Power supply, 24 VDC ± 25%<br />
Electron. connection, 2 m tightly wired<br />
[4]:Output, 4-20 mA<br />
[30]: Measuring range, -20...+300 °C<br />
[G]: Optic, Optic 300 mm(1:15)<br /><br />
Include1:<br />
Accessories for TIR-SN<br />
Model: TIR-ZS200<br />
Installation and alignment support

Temperature transmitter<br />
Model: IPAQ-C330X-70C330X012<br />
Configuration is made with a PC with software ConSoft <br />
(free downloadable from inor.com) <br />
and ICON-X for connection from PC to transmitter or<br />
App INOR Connect and NFC or App INOR Connect and ICON-BT

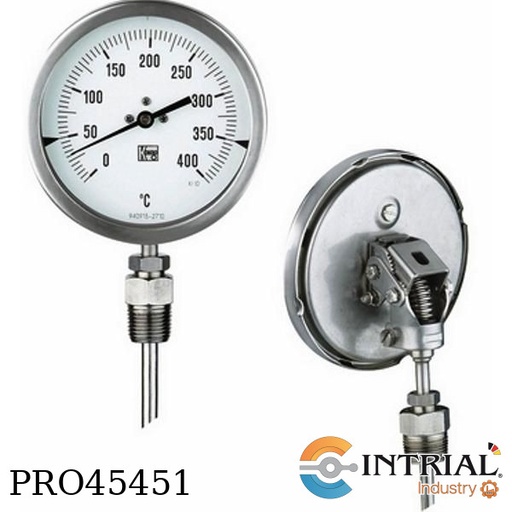

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D16-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D16] Measuring Range: 32 a 320 °F (0 a 160°C) (Dual scales °C/°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 153 mm (6")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D40-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D40] Measuring Range: 32 a 752 °F (0 a 400°C) (Dual scales °C/°F) <br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 153 mm (6")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report
