<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D40-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D40] Measuring Range: 32 a 752 °F (0 a 400°C) (Dual scales °C/°F) <br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 228 mm (9")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D16-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D16] Measuring Range: 32 a 320 °F (0 a 160°C) (Dual scales °C/°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 305 mm (12")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D30-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D30] Measuring Range: 0 ... +300 °C (Dual scales °C/°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 152.4 mm (6")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

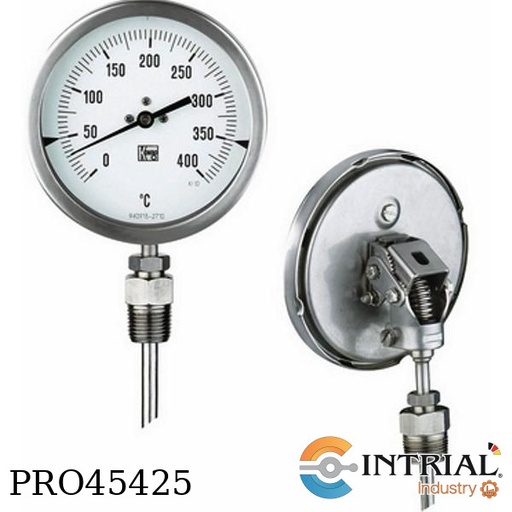

Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D60-9A-8-C40-C01<br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D60] Measuring Range: 0 ... +600 °C (Dual scales °C/°F) <br />
Max. working temperature 500°C (932°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 152.4 mm (6")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D60-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D60] Measuring Range: 0 ... +600 °C (Dual scales °C/°F) <br />
Max. working temperature 500°C (932°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 228.6 mm (9")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D30-9A-8-C40-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D30] Measuring Range: 0 ... +300 °C (Dual scales °C/°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 304.8 mm (12")<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[C01] Calibration report

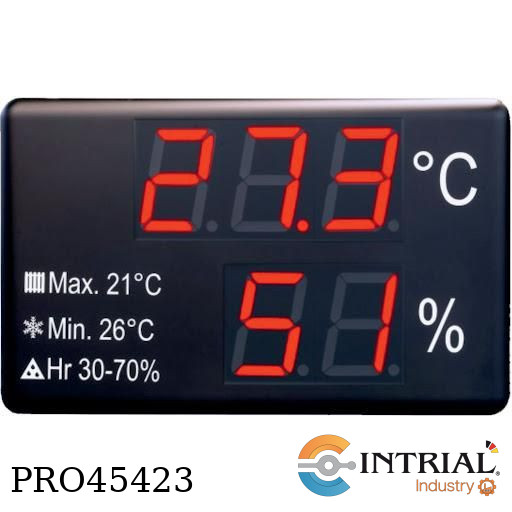

TERMOHIGRÓMETRO DE GRAN FORMATO<br />
(PARA FIJACIÓN EN B PARED(1 PANTALLA)<br />
Marca: Gis Iberica<br />
Obtención de humedad relativa y temperatura ambiental<br />
Sonda: rango temperatura - 20+80ºC <br />
Precisión +- 0,5ºC a 25ºC<br />
Rango humedad 0-99% <br />
Precisión +-3,5% entre 30% y 70%<br />
Resolución: temperatura 0,5ºC<br />
Humedad 1%<br />
Nivel de protección IP41( para entornos comerciales)<br />
Conexiones a PC opcionales. (RS-485/ethernet/wifi)<br />
Dígitos de 100 mm de altura con leds de color rojo<br />
Alimentación general 100VAC a 240VAC 50/60

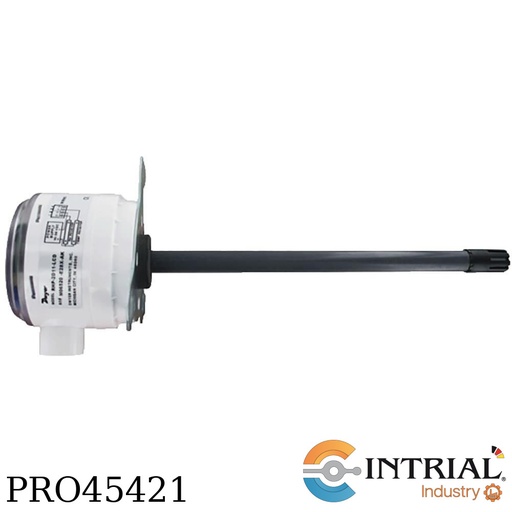

HUMIDITY/TEMPERATURE TRANSMITTER<br />
Brand: DWYER<br />
[2] Accuracy; 2%<br />
[D] Mounting Type; Duct Mount w/ Fiber Membrane Filter<br />
[1] RH Output; 4-20 Ma<br />
[1] Temperature Sensor / Output Type; 4-20 Ma<br />
[LCD] Options; LCD Display
<div>
<div class="gtx-trans-icon"></div>
</div>

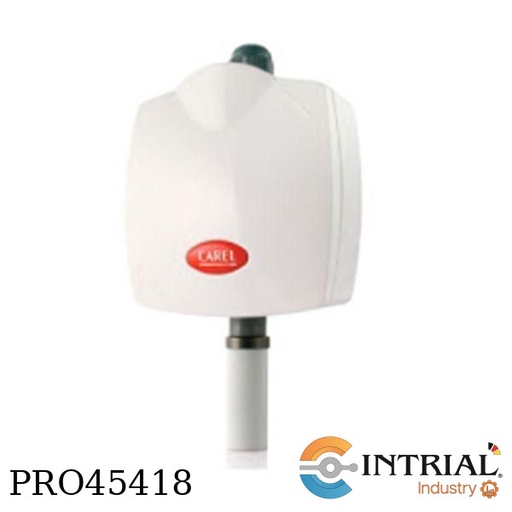

REPLACEMENT INDUSTRIAL HUMIDITY<br />
Brand: CAREL<br />
Temperature (0…100%Hr)  <br />
Humidity (-20T70ºC)<br />
Alimentación seleccionable 8…32 Vcc/ 12…24 Vac<br />
Salida seleccionable 0…1Vcc/-0,5...1Vcc/4-20mA

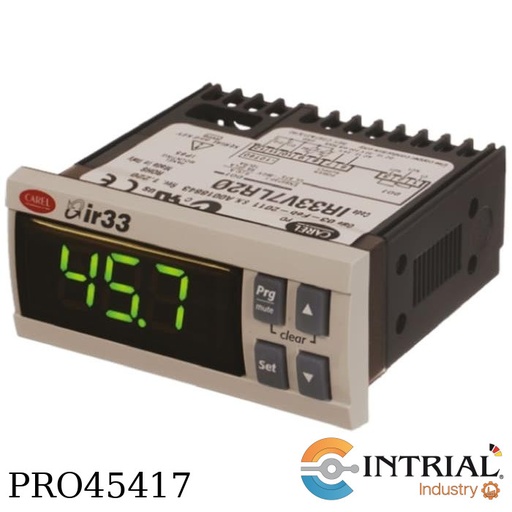

PID TEMPERATURE CONTROLLER<br />
BRAND: CAREL<br />
4 OUTPUT RELAY<br />
24 V AC/DC<br />
115-230VAC<br />
PANEL MOUNT

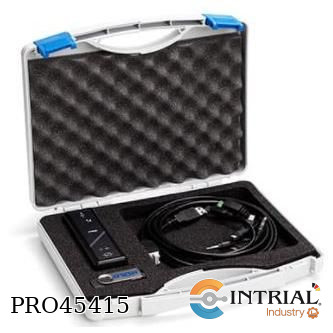

<strong>Ex-certified configuration kit for INOR transmitters<br />
Model: ICON-X (</strong><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">70CFGUSX01)</span><br /><strong>Brand: Sweden</strong><br />
Technical Specification<br />
PC to USB Interface USB cable type A to type B<br />
USB Interface to transmitter Changeable adapter cables<br />
Power Supply PC´s USB port, 5 VDC, 74 mA max<br />
Operation temperature 0 to 50 °C / 32 to 122 °F<br />
Storage temperature -20 to 70 °C / -4 to 140 °F<br />
Humidity (non-condensing) 0 to 90 %RH<br />
Galvanic isolation 1500 VAC<br />
System requirements <br />
Windows 32- or 64-bit edition of Windows<br />
XP (SP2+) / Vista / 7 / 8 / 8.1 / 10<br />
Free hard disk space 185 MB<br />
PC Port 1x USB 1.1 or higher port type A<br />
EX data <br />
0539 II (1)G [Ex ia Ga] IIC Uo : 9.4 V<br />
KIWA 16ATEX0011X Io : 96 mA<br />
IECEx KIWA 16.0005X Po : 0.68 W<br />
Um : 250 V AC/DC

<strong>Programmable 2-wire Transmitter dedicated for Pt100 sensors<br />
Model: IPAQ-C202 (</strong><span lang="en-us" style="font-size:11pt;font-family:Calibri, sans-serif;" xml:lang="en-us">70C2020010)</span><br /><strong>Brand: Inor -Sweden</strong><br />
Technical Specification<br />
Type Head mounted<br />
Input RTD<br />
Input RTD Pt100<br />
Type of transmitter Digital<br />
Output 4-20 mA<br />
Isolation Unisolated<br />
Measuring channels 1 channel<br />
Sensor connection 3-wire connection<br />
Power Supply Standard version: 6 to 32 VDC<br />
Ex version: 8 to 30 VDC<br />
Typical accuracy Max. ±0.1K or ±0,1 % of span<br />
Approvals (IPAQ-C202X) ATEX: II 1G Ex ia IIC T6…T4 Ga<br />
IECEx: Ex ia IIC T6…T4 Ga

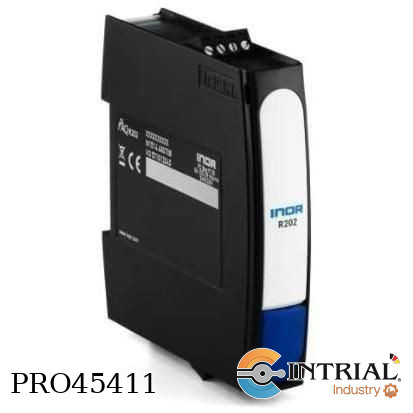

<strong>Programmable 2-wire Transmitter dedicated for Pt100 sensors<br />
Model: IPAQ-R202 </strong><br />
<strong>Brand: INOR - Sweden</strong><br />
Technical Specification<br />
Type Rail mounted<br />
Input RTD<br />
Input RTD Pt100<br />
Type of transmitter Digital<br />
Output 4-20 mA<br />
Isolation Unisolated<br />
Measuring channels 1 channel<br />
Sensor connection 3-wire connection<br />
Power Supply Standard version: 6 to 32 VDC<br />
Typical accuracy Max. ±0.1K or ±0,1 % of span

MINIATURE USB DATA LOGGER<br />
Input type: Temperature/Humidity/Dew Point<br />
MARCA: DWYER INSTRUMENTS<br />
SPECIFICATIONS<br />
Temperature Range: MTL20: -40 to185°F (-40 to 85°C), 0% to 99% RH(non condensing).<br />
Accuracy: MTL20: ±1°F (±0.5°C); MTL30: ±1°F (±0.5°C), ±2% RH from10% to 90% RH.<br />
Resolution:  Non-LCD models: 0.01°F (0.01°C), 0.01% RH; LCD models: 0.1°F (0.1°C), 0.1% RH.<br />
Memory Size: 43,344 temperature; 21,672 each temperature and RH.<br />
Sampling Mode: Stop on memory full or memory rollover for continuous recording.<br />
Sampling Rate: 1 s to 18 hrs.<br />
Computer Requirements: Windows® based application software included.<br />
Power Requirements: 3 V CR2032 lithium metal battery, installed  functional, user replaceable.<br />
Alarms: Programmable high/low.<br />
Interface: USB port (cable included).<br />
Weight: 1 oz (28 g).<br />
Agency Approvals: CE.<br />
NO DISPLAY

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D30-9A-8-C40</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D30] Measuring Range: 0 ... +300 °C (Dual scales °C/°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 152.4 mm (6")<br />
[C40] Options; Case and ring stainless steel AISI 316

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D60-9A-8-C40</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D60] Measuring Range: 0 ... +600 °C (Dual scales °C/°F) <br />
Max. working temperature 500°C (932°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 152.4 mm (6")<br />
[C40] Options; Case and ring stainless steel AISI 316

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D60-9A-8-C40</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D60] Measuring Range: 0 ... +600 °C (Dual scales °C/°F) <br />
Max. working temperature 500°C (932°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 228.6 mm (9")<br />
[C40] Options; Case and ring stainless steel AISI 316

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-D30-9A-8-C40</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D30] Measuring Range: 0 ... +300 °C (Dual scales °C/°F)<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 304.8 mm (12")<br />
[C40] Options; Case and ring stainless steel AISI 316

MINIATURE USB DATA LOGGER<br />
Input type: Temperature/Humidity/Dew Point<br />
MARCA: DWYER INSTRUMENTS<br />
SPECIFICATIONS<br />
Temperature Range: MTL20: -40 to185°F (-40 to 85°C), 0% to 99% RH(non condensing).<br />
Accuracy: MTL20: ±1°F (±0.5°C); MTL30: ±1°F (±0.5°C), ±2% RH from10% to 90% RH.<br />
Resolution:  Non-LCD models: 0.01°F (0.01°C), 0.01% RH; LCD models: 0.1°F (0.1°C), 0.1% RH.<br />
Memory Size: 43,344 temperature; 21,672 each temperature and RH.<br />
Sampling Mode: Stop on memory full or memory rollover for continuous recording.<br />
Sampling Rate: 1 s to 18 hrs.<br />
Computer Requirements: Windows® based application software included.<br />
Power Requirements: 3 V CR2032 lithium metal battery, installed  functional, user replaceable.<br />
Alarms: Programmable high/low.<br />
Interface: USB port (cable included).<br />
Weight: 1 oz (28 g).<br />
Agency Approvals: CE.<br />
NO DISPLAY

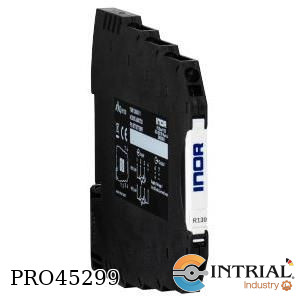

<strong>Modern transmitter<br />
Model: APAQ-R130<br />
Brand: Sweden</strong><br />
Digital 2-wire transmitter for Pt100 and Pt1000 <br />
with wireless communication<br />
Technical Specification:<br />
Type Rail mounted<br />
Input Pt100, Pt1000<br />
Type of transmitter Digital<br />
Output 4-20 mA<br />
Measuring range –200…+850 °C / -328…+1562 °F<br />
Sensor error NAMUR NE43<br />
Adjustments – Zero point Any value within range limits<br />
Adjustments – Minimum span 20 °C / 36 °F<br />
Ambient temperature –40…+85 °C / -40…+185 °F<br />
Humidity 0…98% RH (non-condensing)<br />
Vibration IEC 60068-2-6,10 g<br />
Isolation Unisolated<br />
Power supply 6…32 VDC<br />
Configuration App: INOR Connect*<br />
Wireless communication NFC®
