<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-1-1-D10-9A-8-C40</strong><br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: rear<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D10] Measuring Range: Dual scale °C/°F, 0 a 100 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm/100mm<br />
[C40] Options; Case and ring stainless steel AISI 316

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-1-1-D30-9A-8-C40</strong><br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: rear<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[D30] Measuring Range: Dual scale °C/°F, 0 a 300 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm/100mm<br />
[C40] Options; Case and ring stainless steel AISI 316

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-D-8-G15-C-3-G-0-0</strong><br />
[MWD-D]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Neck pipe HL: 130 mm<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, with<br />
[8] Diameter / length thermowell, 8 mm / 180 mm<br />
[G15] Process connection, 1/2" G male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-D-8-G15-C-3-G-A-0</strong><br />
[MWD-D]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Neck pipe HL: 130 mm<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, with<br />
[8] Diameter / length thermowell, 8 mm / 180 mm<br />
[G15] Process connection, 1/2" G male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter,<br />
programable 2 wire transmitter model 5334D<br />
[0] Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-D-8-G15-C-3-E-0-0</strong><br />
[MWD-D]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert removable<br />
Protective tube material, st.st. 1.4404<br />
Neck pipe HL: 130 mm<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, with<br />
[8] Diameter / length thermowell, 8 mm / 180 mm<br />
[G15] Process connection, 1/2" G male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 wires<br />
[E] Terminal head, hium head with LCD display and HART® transmitter<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br />


<div>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-3-C20-9A-8-C40-P01-R11-C01<br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Process connection, AISI 316 St. St.<br />
Welding, AISI 304 St. St. TIG<br />
Case, AISI 304 St. St.<br />
Ring, AISI 304 St. St. bayonet lock<br />
Min. order quantity 5 pieces per order<br />
[3]: Diameter, 150mm<br />
[C20]: Measuring Range, Scale °C, ranges 0-200°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[8]: Bulb diameter/-length, 8 mm / 326 mm aprox.<br />
[C40]: Options, Case and ring stainless steel AISI 316<br />
[P01]: Options, Suitable for Silicone<br />
[R11]: Options, Silicone filling (max. 250 °C) IP 67<br />
[C01]: Options, Calibration report<br /><br />
Include:</div>

<div>Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0<br />
Brand: Kobold (Alemania)<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 280 mm<br />
[0]: Lagging extension (T), w/o lagging extension</div>

<div>Sonda (L): 280+46 = 326 mm<br />
Termopozo(L): 280 mm</div>

Rod Thermostats general application<br />
Brand: Kobold (Alemania)<br />
Model: TEA-S31-29-M-0<br />
[TEA-S31]<br />
Probe, copper<br />
Housing, plastic<br />
Switching difference, 1 K<br />
Thermostat version, single-level<br />
Contact, change over switch<br />
[29]: Range, 20...90 °C<br />
[M]: Thermowell brass.<br />
[0]: Without option

<strong>Screw-In Thermocouples</strong><br /><strong>Model: TTE-164-XX-2-J1-E<br />
Brand: Kobold (Germany)</strong><br />
[TTE-164]:<br />
Protective tube material, st. st. 1.4571<br />
Protective tube connection G 1/2 male fixed<br />
Temperature range -200...600 °C<br />
electr. Connection, Connecing line<br />
[XX]: Immersion length, 300 mm<br />
[2]:Connection, G 1/2 male fixed<br />
[J1]: Type of sensor, 1x FeCu-Ni<br />
[E]: Electric connection, 2, 5 m, st.st. stranded wire

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-L-8-N15-C-3-G-A-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 300 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without

<strong>V-Form Glass Thermometers for Machines<br />
Brand: Kobold (Alemania)<br />
Model: TGL-21-12-F-050-N</strong><br />
[TGL-21]<br />
Housing (mm), 200x36<br />
Form B, acc. DIN, 16189<br />
Housing material, aluminum<br />
Design, straight<br />
Immersion tube, brass<br />
[12]: Meas. range/scaling, 0...120 °C / 1°<br />
[F]: Dual scale °C / °F<br />
[050] Imm. Length: 40 mm<br />
[N] Connection: 1/2 NPT male

<strong>V-Form Glass Thermometers for Machines<br />
Brand: Kobold (Alemania)<br />
Model: TGL-11-12-F-050-N</strong><br />
[TGL-11]<br />
Housing (mm), 110x36<br />
Form B, acc. DIN, 16181<br />
Housing material, aluminum<br />
Design, straight<br />
Immersion tube, brass<br />
[12]: Meas. range/scaling, 0...120 °C / 2°<br />
[F]: Dual scale °C / °F<br />
[050] Imm. Length: 40 mm<br />
[N] Connection: 1/2 NPT male

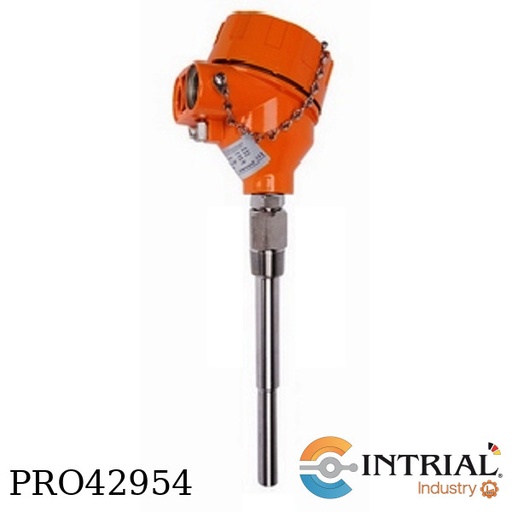

<div>Resistance Thermometers Exd<br />
Brand: Kobold(Alemania)<br />
Model: TWL-1-1-3-A-N-GN4B-A-0(100mm)<br />
[TWL-1]:<br />
Version, standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
Immersion length (U), 100 mm<br />
[1]: Sensor, 1x Pt100, cat. B, (-30..+550 °C)<br />
[3]: Wiring, 3 wires<br />
[A]: Head-mounted transmitter, ATEX Exd / programmable 2-wire transmitter <br />
(model:5333D or equivalent)<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[0]: Options, w/o</div>

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C10-3A-6-000 (100 mm)<br />
[TBE-3]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to, bottom<br />
Probe st.st.<br />
[1]: Diameter, 100 mm<br />
[C10]: Measuring Range, 0-100°C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 100 mm<br />
[000]: Options, without

<strong>Bimetallic Thermometers<br />
Model: TBE-1-1-C16-3A-6-000+TWL-0000-N-GN4B-0<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 131 mm<br />
[000]: Options: w/o<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 91 mm (3.58”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br /><strong>Dimensions:</strong><br />
Thermometer immersion length = 91 + 46 - 6 = 131 mm<br />
Thermowell immersion length (U) = 91 mm<br />
Thermometer bulb diameter = 6 mm<br />
Thermowell outer diameter (d) = 15 mm<br />
Thermowell inside diameter (i) = 7 mm

<strong>Bimetallic Thermometers<br />
Model: TBE-1-3-C16-3A-6-000+TWL-0000-N-GN4B-0<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 131 mm<br />
[000]: Options: w/o<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 91 mm (3.58”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br /><strong>Dimensions:</strong><br />
Thermometer immersion length = 91 + 46 - 6 = 131 mm<br />
Thermowell immersion length (U) = 91 mm<br />
Thermometer bulb diameter = 6 mm<br />
Thermowell outer diameter (d) = 15 mm<br />
Thermowell inside diameter (i) = 7 mm

<strong>Bimetallic Thermometers<br />
Model: TBE-1-3-C16-3A-6-000+TWL-0000-N-GN4B-0<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 190 mm<br />
[000]: Options: w/o<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 150 mm (6”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br /><strong>Dimensions:</strong><br />
Thermometer immersion length = 150 + 46 - 6 = 190 mm<br />
Thermowell immersion length (U) = 150 mm<br />
Thermometer bulb diameter = 6 mm<br />
Thermowell outer diameter (d) = 15 mm<br />
Thermowell inside diameter (i) = 7 mm

<strong>Bimetallic Thermometers<br />
Model: TBE-1-2-C10-9A-9-000+TWL-0000-N-BN4A-0<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[C10]: Measuring Range, 0-100°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length, 9.6 mm / 121 mm <br />
[000]: Options, without<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-BN4A-0</strong><br />
[TWL-0000]:<br />
Thermowell, welded<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[BN4A]: Connection thermowell, 1/2" NPT male, PN 25<br />
Immersion length (U), 75 mm<br />
[0]: Lagging extension (T), w/o lagging extension

<strong>Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0-0<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 91 mm (3.58”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Thermowell immersion length (U) = 91 mm<br />
Thermowell outer diameter (d) = 15 mm<br />
Thermowell inside diameter (i) = 7 mm

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold<br />
Mo<span style="font-size:14px;">del: <span style="font-family:'Times New Roman', serif;">MWD-B-A-N15-C-4-E-0-0</span></span><br />
[MWD-B]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe with 130 mm<br />
Supply voltage: 7.5 ... 45 VDC<br />
Output signal: 4 ... 20 mA<br />
[A]: Diameter / length thermowell, 10 mm / 100 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[4]: Wiring, 4 Wires<br />
[E]:Terminal head, Anschlusskopf<br />
[0]: without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold<br />
Model: <span style="font-size:14px;"><span style="font-family:'Times New Roman', serif;">MWD-B-A-N15-C-4-G-B-0</span></span><br />
[MWD-B]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe with 130 mm<br />
Supply voltage: 7.5 ... 45 VDC<br />
Output signal: 4 ... 20 mA<br />
[A]: Diameter / length thermowell, 10 mm / 100 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A,  (-70..+250 °C)<br />
[4]: Wiring, 4 Wires<br />
[G]:Terminal head, screw cap with chain, aluminium<br />
[B]: Head-mounted transmitter, 2 wire transmitter with HART protocol model 5337D<br />
[0]: Options, without
