Flujo

SIDE-MOUNT BRACKET FLOWLINE Model: LM50-1001-1 2” NPT Bracket with 2” x 1” NPT Reducer
SIDE-MOUNT BRACKET<br />
Brand: FLOWLINE<br />
Model: LM50-1001-1<br />
2” NPT Bracket with 2” x 1” NPT Reducer
S/ 0.00 0.0 PEN

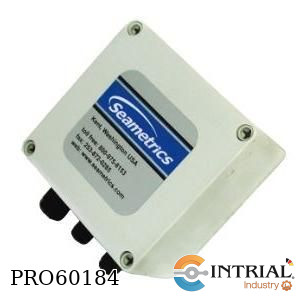

PC-SERIES POWER SUPPLY SEAMETRICS 115 Vac/230 Vac 50/60 Hz 12 Vdc ±1% @ 350mA / 24 Vdc ±4% @ 100 mA
PC-SERIES POWER SUPPLY<br />
Brand: SEAMETRICS<br />
Model: PC42<br />
Input Power 115 Vac/230 Vac ±10%,<br />
internally switchable, 50/60 Hz<br />
Output Voltage/Current (Regulated), 12 Vdc ±1% @ 350mA / 24 Vdc ±4% @ 100 mA<br />
Terminal Block Wire, 22–12 AWG<br />
Operating Temperature, -4 to 140 °F (-20 to 60 °C)<br />
Environmental, NEMA 4X
S/ 743.00 743.0 PEN

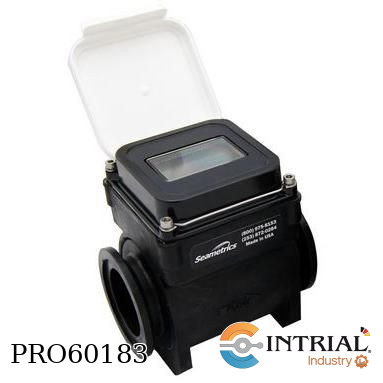

PLASTIC-BODIED MAGMETER SEAMETRICS 2" 10-30 VDC @ 60 mA 6 - 300 gpm
PLASTIC-BODIED MAGMETER<br />
Brand: SEAMETRICS<br />
Model: WMP-101-200-LPM/L-HF<br />
Size, 2"<br />
Power, 10-30 VDC @ 60 mA<br />
Flow Range, 6 - 300 gpm<br />
<br />
Include<br />
POWER/OUTPUT CABLE<br />
Cordset, 5 Pin, 6 meter
S/ 743.00 743.0 PEN
Filter F1 Series
Filter F1 Series<br />
* Body: 316 SS<br />
* Element: Sintered 316 SS<br />
* Max: Pressure: 6000 Psi<br />
* Working Temp: -28°C to 482°C<br />
* Inlet & Outlet Size: 1/8" OD<br />
<br />
<br />

S/ 0.00 0.0 PEN
STEM Protector Quick Connector , 1/4"
STEM Protector (ESPIGA)<br />
* Brand: HIKELOK<br />
* Type: STEM (ESPIGA) for 1/4"<br />
* Body Material: SS316<br />
<br />
<br />

S/ 0.00 0.0 PEN
Body of quick connects, 1/4 OD (BASE)
BODY of quick connects (BASE)
* Brand: HIKELOK
* Type: BODY (BASE)
* End connection: 1/4 OD
* Body Material: SS316
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from (-23°C to 204°C)

S/ 0.00 0.0 PEN
Stem of quick connects, 1/4 NPTF (ESPIGA)
STEM Quick connects (ESPIGA)<br />
* Brand: HIKELOK<br />
* Type: STEM (ESPIGA)<br />
* End connection: 1/4 NPTF<br />
* Body Material: SS316<br />
* Maximum working pressure up to 6000 psig (413 bar)<br />
* Working temperature from (-23°C to 204°C)<br />
<br />

S/ 0.00 0.0 PEN
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA SEAMETRICS 4" 150 lb 150 PSI (10.3 bar) Data Lo
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA<br />
Marca: SEAMETRICS<br />
Model: iMAG4700-04GH-F1-R-BX-S-01-0158<br />
Tamaño de tuberia, 4"<br />
Alimenentado por batería<br />
Indicador de velocidad/total montado en el medidor<br />
Estándar de salida de pulso<br />
Salida de comunicación Modbus<br />
Registrador de datos (Data Logger)<br />
Bridas 150 lb. ANSI Pattern<br />
Presión 150 PSI (10.3 bar) line pressure<br />
Aprobado por NSF-61, clasificación IP68<br />
<br />

S/ 743.00 743.0 PEN
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA SEAMETRICS 6" 150 lb 150 PSI (10.3 bar) Data Lo
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA<br />
Marca: SEAMETRICS<br />
Model: iMAG4700-06GH-F1-R-BX-S-01-0158<br />
Tamaño de tuberia, 6"<br />
Alimenentado por batería<br />
Indicador de velocidad/total montado en el medidor<br />
Estándar de salida de pulso<br />
Salida de comunicación Modbus<br />
Registrador de datos (Data Logger)<br />
Bridas 150 lb. ANSI Pattern<br />
Presión 150 PSI (10.3 bar) line pressure<br />
Aprobado por NSF-61, clasificación IP68<br />
<br />

S/ 743.00 743.0 PEN
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA SEAMETRICS 4" 150 lb 150 PSI (10.3 bar) Sin D
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA<br />
Marca: SEAMETRICS<br />
Model: iMAG4700-04GH-F1-R-BX-S-XX-0158<br />
Tamaño de tuberia, 4"<br />
Alimenentado por batería<br />
Indicador de velocidad/total montado en el medidor<br />
Estándar de salida de pulso<br />
Salida de comunicación Modbus<br />
Bridas 150 lb. ANSI Pattern<br />
Presión 150 PSI (10.3 bar) line pressure<br />
Aprobado por NSF-61, clasificación IP68<br />
Sin Data Logger<br />
<br />

S/ 743.00 743.0 PEN

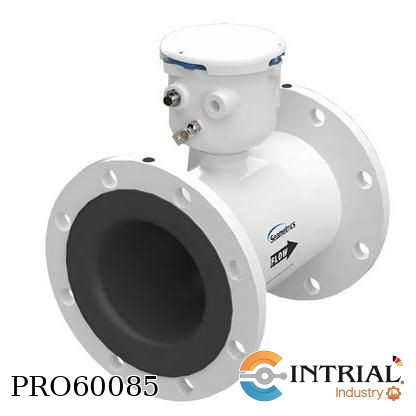

MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA SEAMETRICS 6" 150 lb 150 PSI (10.3 bar) Sin Da
MEDIDOR DE FLUJO ELECTROMAGNETICO EN LINEA CON BRIDA<br />
Marca: SEAMETRICS<br />
Model: iMAG4700-06GH-F1-R-BX-S-XX-0158<br />
Tamaño de tuberia, 6"<br />
Alimenentado por batería<br />
Indicador de velocidad/total montado en el medidor<br />
Estándar de salida de pulso<br />
Salida de comunicación Modbus<br />
Bridas 150 lb. ANSI Pattern<br />
Presión 150 PSI (10.3 bar) line pressure<br />
Sin Data Logger
S/ 743.00 743.0 PEN

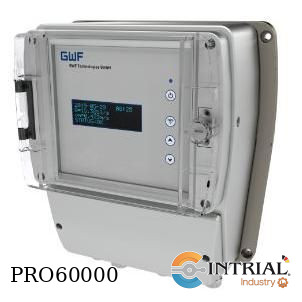

Stationary non-contact radar flow meter GWF 100-240 V AC 10 m < ± 5 % o.r. 0-8 m,
Stationary non-contact radar flow meter<br />
Brand: GWF<br />
Model: Q-eye Radar (3QA0)<br />
For open channels and partially filled pipes<br />
Uncertainty flow measurement typically, < ± 5 % o.r.<br />
Power Supply, 100-240 V AC<br />
Communication, Standard (4-wire RS-485)<br />
Sensor type, Radar velocity sensor RV11<br />
Cable radar sensor RV11, 10 m<br />
Calibration, Incl. factory calibration certificate<br />
Radar level sensor, Downlooking, 0-8 m, incl. 10 m cable<br />
Mounting radar level sensor, Wall bracket, L 80 mm<br />
Ultrasonic level sensor, None<br />
Language documentation, English
S/ 0.00 0.0 PEN

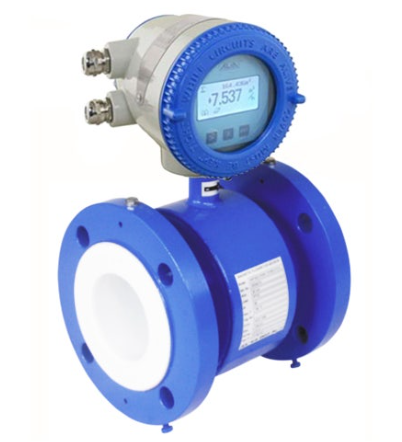

Electromagnetic flowmeter-Sneor ALIAAMF900-P0050-SAE80-005-EX/20+AMC3200-DC-S2-EX-HT/PT
Electromagnetic flowmeter-Sneor<br />
Brand: ALIA <br />
Model: AMF900-P0050-SAE80-005-EX/20<br />
Liner:P=PTFE<br />
Size:50mm<br />
Electrode Mat'l:S=SS316L<br />
Connection:A= 2" ANSI150# RF<br />
Grounding:E= Grounding Electrode 3 electrodes<br />
Protection:8=Junction box IP67,Body IP68<br />
Flange&Housing:0=Carbon Steel(standard)<br />
Installation:005=Remote version with 5m cable<br />
Option:EX=Explosion Proof,Ex d ia(ia) q IIC T6<br />
20=Max.Process Pressure 20 kgf/cm2<br />
<br />
Include<br />
Converter<br />
Brand: ALIA <br />
Model: AMC3200-DC-S2-EX-HT/PT<br />
Power supply:DC=24VDC,+/-10%<br />
Mounging:S2=Remote,2" Mounting Bracket or Wall mounting<br />
Protection Class:EX=Explosion Proof,Ex d ia (ia)q IIC T6<br />
Option:HT=HART Signal(Compatible) <br />
PT=Cable Entry 1/2" NPTF
S/ 0.00 0.0 PEN
Glass Tube Flow Meter KOMETER PA-604
Glass Tube Flow Meter<br />
Brand: KOMETER<br />
Model: PA-604<br />
Con'n: NPT 1/2"(F)<br />
Fluid: Condensate Water<br />
Flow rate: 0.25 - 2.5 m3/h
S/ 0.00 0.0 PEN
Flujómetro doppler Micronics portátil MICRONICS PF-D650
Flujómetro doppler Micronics portátil<br />
Marca: MICRONICS<br />
Modelo: PF-D650<br />
Versión portable con maleta transporte IP67<br />
Baterías hasta 15hrs continuas + cargador 100-240VAC<br />
Electrónica con protector silicona IP 67<br />
Display color LCD<br />
Sensor IP68 para tuberías diámetro externo ½” a 180” (12.5mm a 4.5m)<br />
Cable sensor 3.5m<br />
Salida mediante extracción de datos del puerto USB tipo C<br />
Datalogger de capacidad de 12 millones de puntos<br />
Incluye: <br />
Abrazaderas de acero inoxidable para tuberías hasta 32” y gel acoplante.<br />
Rango medición: +/-0.03 m/s a 12.2 m/s)
S/ 0.00 0.0 PEN
Flow Switch and Flow Meter / -Switch HD2K-008GM015E+OMNI-HD-2KISO
Flow Meter / -Switch<br />
Brand: HONSBERG<br />
Model: OMNI-HD-2KISO<br />
For base device: Viscosity compensated<br />
Housing: Stainless steel 1.4305, oil filled<br />
Media temperature: -20 ... +85 °C<br />
Ambient temperature: -20 ... +70 °C<br />
Programming: Via POM adjusting ring<br />
Voltage supply: 18 ... 30 V DC<br />
Analogue output: Current output 0/4 ... 20 mA<br />
Limit values: Min and max adjustable<br />
Electrical connection: For round plug connector M12x1, 5-pin<br />
Protection type: IP67<br />
Hysteresis: Adjustable<br />
Display: Graphic LCD , backlit + red signal LED<br />
Dimension display: l/min<br />
Options 1: Tropic-version with oil filling
S/ 0.00 0.0 PEN
Flow Switch and Flow Meter / -Switch HD2K-008GM015E+OMNI-HD-2KISO
Flow Switch<br />
Brand: HONSBERG<br />
Model: HD2K-008GM015E<br />
Nominal diameter: DN 8 - G ¼<br />
Connection type: Female thread<br />
Connection material: Brass CW614N nickel-plated<br />
Seals: NBR<br />
Pressure resistance: PN 200<br />
Media temperature: -20 ... +85 °C<br />
Ambient temperature: -20 ... +70 °C<br />
Switching range: 1.5 ... 15 l/min oil 30 ... 330 mm²/s<br />
Flow direction: Horizontal from the left<br />
Electrical connection: Via Evaluation electronics
S/ 0.00 0.0 PEN
Flow Switch and Flow Meter / -Switch HD2K-008GM015E+OMNI-HD-2KISO
HD2K-008GM015E<br />
Flow Switch<br />
Brand: HONSBERG<br />
Nominal diameter: DN 8 - G ¼<br />
Connection type: Female thread<br />
Connection material: Brass CW614N nickel-plated<br />
Seals: NBR<br />
Pressure resistance: PN 200<br />
Media temperature: -20 ... +85 °C<br />
Ambient temperature: -20 ... +70 °C<br />
Switching range: 1.5 ... 15 l/min oil 30 ... 330 mm²/s<br />
Flow direction: Horizontal from the left<br />
Electrical connection: Via Evaluation electronics<br />
<br />
OMNI-HD-2KISO<br />
Flow Meter / -Switch<br />
Brand: HONSBERG<br />
For base device: Viscosity compensated<br />
Housing: Stainless steel 1.4305, oil filled<br />
Media temperature: -20 ... +85 °C<br />
Ambient temperature: -20 ... +70 °C<br />
Programming: Via POM adjusting ring<br />
Voltage supply: 18 ... 30 V DC<br />
Analogue output: Current output 0/4 ... 20 mA<br />
Limit values: Min and max adjustable<br />
Electrical connection: For round plug connector M12x1, 5-pin<br />
Protection type: IP67<br />
Hysteresis: Adjustable<br />
Display: Graphic LCD , backlit + red signal LED<br />
Dimension display: l/min<br />
Options 1: Tropic-version with oil filling
S/ 0.00 0.0 PEN
FLUJÓMETRO DOPPLER MICRONICS UF-D5500
FLUJÓMETRO DOPPLER<br />
Marca: MICRONICS<br />
Modelo: UF-D5500<br />
Montaje en panel/pared<br />
100-240VAC con display<br />
Sensor para tuberías diámetro externo ½” a 32” (15-800mm)<br />
Cable sensor 7.6m<br />
Salida 1x4-20mA<br />
2xSalida relé SPDT<br />
Datalogger 128Mb y tubo silicona<br />
Nema 4X (IP66)
S/ 0.00 0.0 PEN
FLUJOMETRO CORIOLIS SITRANS , FC MASSFLO M
FLUJOMETRO CORIOLIS SITRANS
Brand: SIEMENS
FC MASSFLO M
Modelo: 7ME4100-1DD11-1FA1
S/ 7,849.80 7849.8 PEN
