<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-1-60H-AC-1-Z3-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-1]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C *<br />
max. pressure 16...64 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, Aluminio<br />
Rotor material, PPS<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x60<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options (please specify in clear text), without<br />
*Not Include Battery

<strong>Flap Flow Meter<br />
Model: TSK-S-217R-N2-L-5-V-1-B-E-2-1-0-H<br />
Brand: Kobold (Alemania)</strong><br />
[TSK-S]:<br />
Wetted materials, Armature: Stainless steel<br />
Built-in parts: Stainless steel<br />
Pressure rating: 10 bar<br />
Process temperature: -40° to +300°C<br />
[217R]: Process connection, 16" Class 150 RF ASME B16.5-2003<br />
[N2]: Range, Water: 200-1300 m³/h<br />
[L]: Flow direction, horizontal from left to right<br />
[5]: Temperature class, max. 100°C<br />
Contains: enclosure of magnet PVDF<br />
[V]: Sealing, Viton<br />
Process temperature: max. 150°C<br />
[1]: Protection against particle-penetration into transmission chamber, with (Viton)<br />
[B]: Certificates, Inspection certificate 3.1 with material certificate (DIN EN 10204:2004)<br />
[E]: Indicating part, Stainless steel indicating housing IP67<br />
[2]: Product scale, Measuring range-Scale (Water)<br />
[1]: Electrical output: 1 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature: -40° to +70°C<br />
[0]: Accessory, without<br />
[H]: Design, Heinrichs

<strong>All Metal Flow Switch<br />
Model: DSS-11-09H-G0-N08<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from bottom<br />
Body material: Brass<br />
Seal: NBR<br />
Switch point: adjustable<br />
Accuracy: +/-5% of full scale<br />
Max. temperature: 100 °C*<br />
Max. pressure: 250 bar**<br />
*Measuring range 1 L/min only 70 °C<br />
**Measuring range 1 L/min only 16 bar<br />
[09H]: Measuring range: 1-9 L/min water<br />
[G0]: Contact: 1 ATEX N/O contact type 41R57<br />
[N08]: Connection: 1/4 NPT female

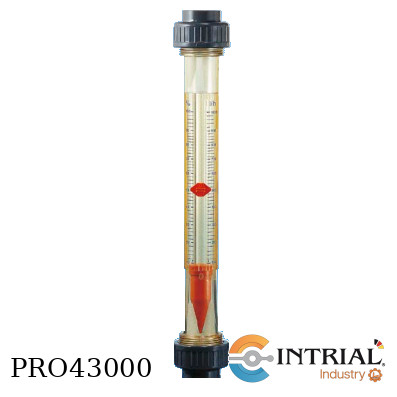

<strong>Low Volume Flowmeter<br />
Model: KSK-1-300-H-P15-00<br />
Brand: Kobold (Alemania)</strong><br />
[KSK-1]: <br />
Operation principle, variable area.<br />
Mounting position, vertical.<br />
Flow direction, from bottom.<br />
Material, Trogamide.<br />
Accuracy, Class 4.<br />
Max. temperature, 60 °C.<br />
Max. pressure, PN 10.<br />
Seal, EPDM.<br />
[300]: Measuring range, 30...300 L/h water.<br />
[H]: Scale, L/h waterscale.<br />
[P15]: Connection, PVC G 1/2 female<br />
[00]: Option contact, w/o.

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-140G-N9-1-RE-N-0<br />
Brand: Kobold (USA)</strong><br />
[DON-1]: <br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Axles: 316L Stainless Steel<br />
Media Temperature, -4...176 °F<br />
max. pressure, 925 PSI<br />
Accuracy, 1% of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[40G]: Measuring range, 13...150 GPM<br />
Pulse per Gallon, 18.5<br />
[N9]: Mech. connection, 2" NPT<br />
[1]: O-ring Material, FKM<br />
[RE]: Electronic/Display, Pulse Output Reed Switch + ATEX (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-125G-N6-1-RE-N-0<br />
Brand: Kobold (USA)</strong><br />
[DON-1]: <br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Axles: 316L Stainless Steel<br />
Media Temperature, -4...176 °F<br />
max. pressure, 925 PSI<br />
Accuracy, 1% of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[25G]: Measuring range, 2.6...40 GPM<br />
Pulse per Gallon, 98<br />
[N6]: Mech. connection, 1" NPT<br />
[1]: O-ring Material, FKM<br />
[RE]: Electronic/Display, Pulse Output Reed Switch + ATEX (Exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Accessory, without

<strong>Calorimetric Flowswitch, Compact Version<br />
Model: KAL-K5-4-20-S-PG1<br />
Brand: Kobold (Alemania)</strong><br />
[KAL-K5]:<br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. temperature: 80 °C <br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
Version: Standard<br />
[4]: Probe material,  st.st. 1.4571 <br />
Version, Standard<br />
[20]: Connection, 3/4"<br />
[S]: Contact version, N/O<br />
[PG1]: Electron. connection/power supply, M 16x1,5 relay output 110 VAC

<strong>All Metal Variable Area Flowmeter BGN<br />
Model: BGN-P80-208R-U-0-0-0-0-S-5-6-O-H<br />
Marca: Heinrichs (Alemania)</strong><br />
[BGN-P80]: Stainless Steel, Wetted Parts PTFE<br />
process temperature ≤ 125°C, process pressure max. 16 bar<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[U]: Range: Agua + H2SO4 (5%): 2.4 - 24.00 m3/hr<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Heinrichs<br /><br />
Include:<br />
5 point calibration certificate

<strong>All Stainless steel Variable Area Flowmeter BGN<br />
Model: BGN-S80-208R-V-0-0-0-0-S-5-6-O-H<br />
Marca: Heinrichs (Alemania)</strong><br />
[BGN-S80]: Stainless Steel, process temperature ≤ 350°C<br />
[208R]: Connection, 3" Class 150 RF ASME B16.5-2003<br />
[V]: Range: Agua + NaOH (5%): 3.9 - 39.00 m3/hr<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature ≤150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Heinrichs<br /><br />
Include:<br />
5 point calibration certificate

<strong>All Stainless steel Variable Area Flowmeter BGN<br />
Model: BGN-S1H-210R-2-0-0-0-0-S-5-6-O-H<br />
Marca: Heinrichs (Alemania)</strong><br />
[BGN-S1H]: Stainless Steel, process temperature  ≤ 350°C<br />
[210R]: Connection, size: 4" Class 150 RF ASME B16.5-2003<br />
[2]: Range: Agua + NaOH (5%): 9.7 - 97.00 m3/hr<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Heinrichs<br /><br />
Include:<br />
5 point calibration certificate

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-P1H-210R-W-0-0-0-0-S-5-6-O-H<br />
Marca: Heinrichs (Alemania)</strong><br />
[BGN-P1H]:<br />
Stainless Steel, Wetted Parts PTFE<br />
process temperature ≤125°C, process pressure max. 16 bar<br />
[210R]: Connection, size: 4" Class 150 RF ASME B16.5-2003<br />
[W]: Range: Agua + H2SO4 (5%): 5.3 - 53.00 m3/hr<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Heinrichs<br /><br />
Include:<br />
5 point calibration certificate

<strong>Magnetic inductive Flowmeter PIT with UMF2<br />
Model: PIT-S-206R-263-H-0-4-0-0-0-H+UMF2-C-1-1-F-0BH-6<br />
Brand: Heinrichs (Alemania)</strong><br />
[PIT]: Sensor<br />
[S]: Model, Stainless steel (1.4571/1.4404)/PTFE <br />
for nominal diameters DN125 - DN2000 (PN16) (PIT-520)<br />
Temperature, Tmax. = 80°C compact version<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2013<br />
[263]: Sensor Length, 263 mm (PIT-S: DN700-DN1200 = 263)<br />
[H]: Electrode Material, Hastelloy C-4<br />
[0]: Measuring range / medium velocity, 1-10 m/s<br />
[4]: Transmitter layout, remote transmitter (UMF2)<br />
Protection class, IP67, junction box on sensor<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br />
[H]: Design, Heinrichs<br /><br /><strong>Model: UMF2-C-1-1-F-0BH-6</strong><br />
[UMF2]: Transmitter<br />
[C]: Transmitter layout, remote transmitter IP67, <br />
including pipe-/wallmount set<br />
Power supply cable entry, ½" NPT (F)<br />
[1]: Indication / user interfcace, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Outputs, <br />
current output: (0)4-20mA<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs<br />
[6]: Interconnecting cable, 40m junction box on transmitter

<strong>Rotating Vane-Flowmeter with Pulse Output<br />
Model: DF-24-D-R15-KLK-3-4<br />
Brand: Kobold (Alemania)</strong><br />
[DF]:<br />
Operating principle, Rotating Vane<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
Max. temperature, s. material combination<br />
Max. pressure, s. material combination <br />
Accuracy, +-2,5% FS<br />
Model, indication, analogue, 2 contacts<br />
[24]: Measuring range, 1...24 L/min water<br />
[D]: Material combination Housing/ cover/ connection/ Temp./ pressure<br />
Brass/ Polysulfone/ brass/ 80 °C/ 16 bar<br />
[R15]: Connection, G 1/2<br />
[KLK]: Model of electronic, LC-Display, 1.5 m cable<br />
[3]: Power supply, 24 VDC<br />
[4]: Analogue output, 0(4)...20 mA

Low Volume Flowmeter<br />
Model: KDF-22-40-N-V-0-N3-0<br />
Brand: Kobold (Alemania)<br />
[KDF-22]:<br />
Mounting length: 125 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 2.5<br />
Max. temperature: without/with contact 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[40]: Measuring range, 12...120 L/h water<br />
[N]: Connection, ¼” NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[N3]: Contacts measuring range, 1 bistable contact with 2 m cable<br />
[0]: Flow differential pressure regulator, w/o

<strong>Low Volume Flowmeter<br />
Model: KDF-22-40-N-V-0-M3-0<br />
Brand: Kobold (Alemania)</strong><br />
[KDF-22]:<br />
Mounting length: 125 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 2.5<br />
Max. temperature: without/with contact 100 °C /80 °C<br />
Max. pressure: PN 16<br />
[40]: Measuring range, 12...120 L/h water<br />
[N]: Connection, ¼” NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[M3]: Contacts measuring range, 1 monost. contact with 2 m cable<br />
[0]: Flow differential pressure regulator, w/o

<strong>Paddle Wheel Flow Sensor<br />
Model: DRH-1465N3-F300<br />
Brand: Kobold (USA)</strong><br />
[DRH-14]: Housing, 316L SS<br />
Housing Cover, Acrylic<br />
O-ring, FKM<br />
Paddle, PTFE<br />
Axle, Ceramic<br />
Axle Support, PTFE<br />
Max. Temperature, 176 °F<br />
Max. Pressure, 230 PSIG<br />
Weight (3/8"), 1.98 LB<br />
[65N3]: Measuring range: 0.08...0.75 GPM<br />
Fitting, 3/8" NPT<br />
Measuring accuracy: ±2,5% of full scale<br />
[F300]: Output, Frequency w/ Micro-DC Plug

<strong>Paddle Wheel Flow Sensor<br />
Model: DRH-1475N3-F300</strong><br /><strong>Brand: Kobold (USA)</strong><br />
[DRH-14]: Housing, 316L SS<br />
Housing Cover, Acrylic<br />
O-ring, FKM<br />
Paddle, PTFE<br />
Axle, Ceramic<br />
Axle Support, PTFE<br />
Max. Temperature, 176 °F<br />
Max. Pressure, 230 PSIG<br />
Weight (3/8"), 1.98 LB<br />
[75N3]: Measuring range: 0.13...1.6 GPM<br />
Fitting, 3/8" NPT<br />
Measuring accuracy: ±2,5% of full scale<br />
[F300]: Output, Frequency w/ Micro-DC Plug

<strong>Thermal Mass Flow Meter for gases<br />
Brand: Kobold (Alemania)<br />
Model: MAS-11-06-00-V2-A</strong><br />
[MAS-11]: <br />
Operating principle: thermal, Bypass<br />
Mounting position: all directions<br />
Indication: LCD+Counter<br />
Max. Temperatura: 50 °C<br />
Max. Pressure: 10 bar<br />
Design: Polyamide<br />
[06] Measuring range: 0-500 cm³N/min N2<br />
[00] Connection: 1/4 NPT<br />
[V2] Power supply: 24 VDC<br />
[A] Output: 4-20 mA<br /><br /><strong>Include:<br />
Accessories for MAS Models<br />
Model: MAS-5024</strong><br />
Power supply unit: 90-264 VAC<br />
Output:  24 VDC

<strong>Thermal Mass Flow Meter for gases<br />
Brand: Kobold (Alemania)<br />
Model: MAS-11-06-C2-V2-A</strong><br />
[MAS-11]: <br />
Operating principle: thermal, Bypass<br />
Mounting position: all directions<br />
Indication: LCD+Counter<br />
Max. Temperatura: 50 °C<br />
Max. Pressure: 10 bar<br />
Design: Polyamide<br />
[06] Measuring range: 0-500 cm³N/min N2<br />
[C2] Connection: Swagelok 1/4" (max. 50 LN/min)<br />
[V2] Power supply: 24 VDC<br />
[A] Output: 4-20 mA<br /><br /><strong>Include:<br />
Accessories for MAS Models<br />
Model: MAS-5024</strong><br />
Power supply unit: 90-264 VAC<br />
Output:  24 VDC

<strong>Thermal Mass Flow Meter for gases<br />
Brand: Kobold (Alemania)<br />
Model: MAS-31-06-C2-V2-A</strong><br />
[MAS-31]: <br />
Operating principle: thermal, Bypass<br />
Mounting position: all directions<br />
Indication: LCD+Counter<br />
Max. Temperatura: 50 °C<br />
Max. Pressure: 35 bar<br />
Design: st.st.<br />
[06] Measuring range: 0-500 cm³N/min N2<br />
[C2] Connection: Swagelok 1/4" (max. 50 LN/min)<br />
[V2] Power supply: 24 VDC<br />
[A] Output: 4-20 mA<br /><br /><strong>Include:<br />
Accessories for MAS Models<br />
Model: MAS-5024</strong><br />
Power supply unit: 90-264 VAC<br />
Output:  24 VDC
