Low Volume Flowmeter/-switch<br />
Model: KSK-3-025-H-V16-00<br />
Brand: Kobold<br />
[KSK-3]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material, PVDF<br />
Accuracy, Class 4<br />
Max. temperature, 140 °C<br />
Max. pressure, PN 10<br />
Seal, FPM<br />
[025] Measuring range, 2,5...25 L/h water<br />
[H] Scale, L/h waterscale<br />
[V16] Connection for size, PVDF Weld-on fitting o.d. 16<br />
[00] Option contact, w/o

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S25-6040-Q-0-S-0-0-V-5-0-0-K<br />
Brand: Kobold Group</strong><br />
[BGN] Model<br />
[S25] Stainless Steel, process temperature ≤ 350°C<br />
[6040] Thread connections, 3/4" NPT(f), 300 mm float not removable<br />
[Q] Range (water 20°C, 1 mPas), Vapor 41 Kg/h  a  407 Kg/h<br />
[0] Heating/cooling, without heating / Cooling<br />
[S] Damping/spring stop, Gas damping and spring stop<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[V] Display, Standard display housing forward advanced, process temperature ≤ 350°C<br />
[5] Scale, Measuring range-Scale (Media)<br />
[0] Switches, without<br />
[0] Accessories, without<br />
[K] Design, Kobold

Plastic Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSM-1-001-2-P15-R2<br />
[KSM-1]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Trogamide<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C<br />
Max. pressure 16 bar<br />
[001]: Measuring range, 1,4...9 Nm³/h air*<br />
*at 0 bar relative<br />
[2]: or scales for air (measuring range s. data sheet), 2 bar rel.<br />
[P15]: Option connection for size 001, 005, 010, PVC G 1/2 female<br />
[R2]: Option 2 contact

Variable Area Flow Meter<br />
Brand: Heinrichs-Kobold<br />
Modelo: V31-205R3S-02-E3W-F-F-S-0-0-2-0-0-0-0-0-0-0-K<br />
[V31]<br />
[205R3S] Flange, 1½" 150lbs RF ASME B16.5-2003<br />
Length, 425 mm; connection - wetted parts, Stainless steel<br />
[02] Type of float, Material, Stainless steel 1.4571<br />
[E3W] Measuring range - stainless steel float, 11 a 110 lpm AGUA DESMINERALIZADA<br />
[F] Gasket, Viton<br />
[F] Float - stop, PVDF<br />
[S] Union nut, Stainless steel<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[2] Scale, Measuring range-scale (H2O)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard (free of oil and grease), without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

<strong>Variable Area Flow Meter<br />
Brand: Heinrichs-Kobold<br />
Modelo: V31-203R3S-01-D6W-F-F-S-0-0-2-0-0-0-0-0-0-0-K<br />
[V31]</strong><br />
[203R3S] Flange, 1" 150lbs RF ASME B16.5-2003<br />
Length, 425 mm; connection - wetted parts, Stainless steel<br />
[01] Type of float, Material, Stainless steel 1.4571<br />
[D6W] Measuring range - stainless steel float, 2.8 a 28 lpm AGUA DESMINERALIZADA<br />
[F] Gasket, Viton<br />
[F] Float - stop, PVDF<br />
[S] Union nut, Stainless steel<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[2] Scale, Measuring range-scale (H2O)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard (free of oil and grease), without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

<strong>Variable Area Flow Meter<br />
Brand: Heinrichs-Kobold<br />
Modelo: V31-205R3S-02-E3W-F-F-A-0-0-2-0-0-0-0-0-0-0-K</strong><br />
[V31]<br />
[205R3S] Flange, 1½" 150lbs RF ASME B16.5-2003<br />
Length, 425 mm; connection - wetted parts, Stainless steel<br />
[02] Type of float, Material, Stainless steel 1.4571<br />
[E3W] Measuring range - stainless steel float, 11 a 110 lpm AGUA DESMINERALIZADA<br />
[F] Gasket, Viton<br />
[F] Float - stop, PVDF<br />
[A] Union nut, Aluminium lacquered<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[2] Scale, Measuring range-scale (H2O)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard (free of oil and grease), without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

<br /><strong>Variable Area Flow Meter<br />
Brand: Heinrichs-Kobold<br />
Modelo: V31-203R3S-01-D6W-F-F-A-0-0-2-0-0-0-0-0-0-0-K</strong><br />
[V31]<br />
[203R3S] Flange, 1" 150lbs RF ASME B16.5-2003<br />
Length, 425 mm; connection - wetted parts, Stainless steel<br />
[01] Type of float, Material, Stainless steel 1.4571<br />
[D6W] Measuring range - stainless steel float, 2.8 a 28 lpm AGUA DESMINERALIZADA<br />
[F] Gasket, Viton<br />
[F] Float - stop, PVDF<br />
[A] Union nut, Aluminium lacquered<br />
[0] Shatter protection max. 80°C, without<br />
[0] Electrical output, without<br />
[2] Scale, Measuring range-scale (H2O)<br />
[0] Approvals, without<br />
[0] Calibration certificate, without<br />
[0] Cleaning according works standard (free of oil and grease), without<br />
[0] Pressure / leakage test, without<br />
[0] Approvals, without<br />
[0] Marking, without<br />
[0] Accessories, without<br />
[K] Make, Kobold

<strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Model: DUK-11-N9G-C34P-L+ZUB-KAB-12-K505<br />
Brand: Kobold (Germany)</strong><br />
[DUK-11]: <br />
Operating principle, Ultrasonic<br />
Mounting position, all directions<br />
Indication/Output, see electronic version<br />
Max. temperature/pressure, 90 °C / 16 bar<br />
Protection, IP 65<br />
Seal, NBR<br />
Sensor Housing, Brass<br />
[N9G]: connection, 2" NPT<br />
Measuring Range, 0.25...65 GPM<br />
[C34P]: Evaluation electronic for DUK,<br />
Compact electronic, 24 VDC, 4-20 mA, 1x PNP<br />
[L]: Flow direction, from left to right<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K505</strong><br />
Version, M12x1 box 5 m cable, 5-pin

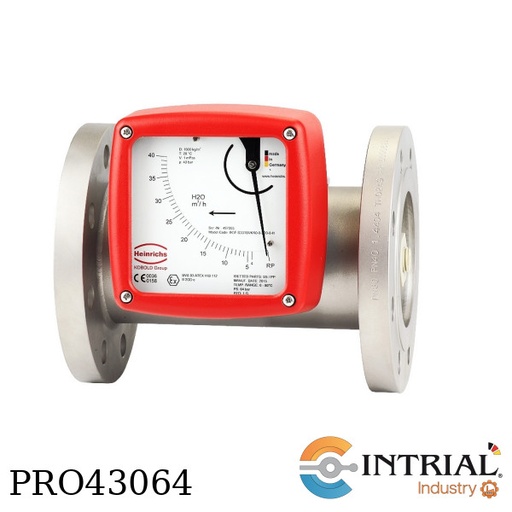

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-P80-208R-V-P-L-0-0-S-5-C-0-K<br />
Brand: Heinrichs (Germany)</strong><br />
[BGF]: Model<br />
[P80]: Stainless Steel, Wetted Parts PTFE, process temperature ≤ 125°C, process pressure max. 16 bar<br />
[208R]: Connection, size, 3" Class 150 RF ASME B16.5-2003<br />
[V]: Range (water 20°C, 1 mPas), 3.4 a 34 m3/h<br />
[P]: Magnet bearer, 81 - 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[C]: Switches, 1 x microswitch<br />
Ambient temperature, -40° to +65°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-P80-208R-V-P-L-0-0-S-5-6-0-K<br />
Brand: Heinrichs (Germany)</strong><br />
[BGF]: Model,<br />
[P80]: Stainless Steel, Wetted Parts PTFE, process temperature  ≤ 125°C, process pressure max. 16 bar<br />
[208R]: Connection, size, 3" Class 150 RF ASME B16.5-2003<br />
[V]: Range (water 20°C, 1 mPas), 3.4 a 34 m3/h<br />
[P]: Magnet bearer, 81 - 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-P80-208R-V-P-L-0-0-S-5-0-0-K<br />
Brand: Heinrichs (Germany)</strong><br />
[BGF]: Model,<br />
[P80]: Stainless Steel, Wetted Parts PTFE, process temperature  ≤ 125°C, process pressure max. 16 bar<br />
[208R]: Connection, size, 3" Class 150 RF ASME B16.5-2003<br />
[V]: Range (water 20°C, 1 mPas), 3.4 a 34 m3/h<br />
[P]: Magnet bearer, 81 - 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>Viscosity Compensated Flowmeter /-switch<br />
Model: VKM-81-08-C4P-N15-0-B+ZUB-KAB-12-K502<br />
Brand: Kobold (Alemania)</strong><br />
[VKM-81]:<br />
Operating principle, variable area<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Body material, Brass<br />
Seal, NBR<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[08]: Measuring range, 5...18 L/min oil<br />
[C4P]: Output/Indicator, Compact electr. 24 VDC, 4-20 mA, 1xPNP<br />
[N15]: Connection, 1/2 NPT female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction, from bottom<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K502</strong><br />
Version: M12x1 box 2 m cable, 5-pin

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-15-A-L443<br />
Brand: Kobold Alemania</strong><br />
[MIK-6FC]<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy<br />
Seal FFKM<br />
[15] Measuring range (liquid >30 µS/cm), 0,16...3,2 L/min; G 1/2 male<br />
[A] Connection set, without<br />
[L443] Evaluation electronic for MIK, Analogue output, <br />
24 VDC, 4-20 mA, DIN-plug 3-wire

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-10-A-L443<br />
Brand: Kobold (Germany)</strong><br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy <br />
Seal FFKM <br />
[10]: Measuring range (liquid >30 µS/cm), 0,05...1,0 L/min G 1/2 male<br />
[A]: Connection set, without<br />
[L443]. Evaluation electronic for MIK, Analogue output, 24 VDC, 4-20 mA, DIN-plug 3-wire

<strong>Counter electronic<br />
Model: ZOE-ZE-K-NF-30-0+ERS-ZOK-003-402<br />
Brand: Kobold (Alemania)</strong><br />
[ZOE-ZE]:<br />
Function: Totaliser/ rate<br />
LCD Digital display: <br />
Flow: 5-digits, 13 mm high; Totaliser: 8-digits, 9 mm high<br />
Backlight, yes<br />
Measuring input, 1 x pulse (0,1…1000 Hz), type NPN, PNP, NAMUR, Reed, Hall, active<br />
Counter function, Partial /total value<br />
Current flow, yes<br />
Pulse output, NPN, open collector, max. 30 VDC, max. 50 mA<br />
Sensor supply, 8 VDC, max. 25 mA (with external supply >10 VDC)<br />
Protection category, IP 66/67<br />
Ambient temperature,  -20…+80 °C<br />
[K]: Housing version, Universal housing w. wall mounting kit<br />
[NF]: Electrical connection/Cable gland, 3 x cable entry ½ NPT<br />
[30]: Supply voltage, 5…28 VDC, incl. Lithium battery 3,6 V<br />
[0]: Options, w/o<br /><br /><strong>Include:<br />
Accessories /Spare part<br />
Model: ERS-ZOK-003-402</strong><br />
2" pipe mount kit, stainless steel

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIM-1-2-10HG5-C3T-K<br />
Brand: Kobold (Alemania)</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 µS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[10HG5] Measuring range (flow/temperature), 0,1…25 L/min / [°C]; G ¾ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[K] Options, with calibration report according to the following line item

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S25-6040-N-P-L-0-0-S-2-C-0-K<br />
Brand: Heinrichs (Germany)</strong><br />
[BGF]: Model<br />
[S25]: Model, Stainless Steel, process temperature  ≤ 200°C<br />
[6040]: Connection, size, 3/4" NPT(f)<br />
300 mm float, not removable<br />
[N]: Range (water 20°C, 1 mPas), 160-1600 l/h<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[C]: Switches, 1 x microswitch<br />
Ambient temperature, -40° to +65°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>Variable Area Flowmeter<br />
Model: V31-60501S-03-D6W-B-F-S-0-1-4-0-0-0-0-0-0-0-K<br />
Brand: Heinrichs (Alemania)</strong><br />
[V31]:<br />
[60501S]: Thread, NPT 1"(F) Verschraubung<br />
Length, 375 mm, connection - wetted parts Edelstahl<br />
[03]: Type of float, Material, Stainless steel 1.4571 - with magnet<br />
guide rod 1.4571, without <br />
[D6W]: Measuring range - stainless steel float with magnet, <br />
H2O: 160 - 1600 l/h; 1000kg/m³, 1mPas<br />
[B]: Gasket, EPDM                  <br />
[F]: Float Stop, PVDF<br />
[S]: Union nut, Stainless steel <br />
[0]: Shatter protection max. 80°C, without <br />
[1]: Electrical output, 1 x K 17 A  Contact closes below limit<br />
[4]: Scale, Measuring range-scale (Medium)<br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, KOBOLD

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S25-6040-N-0-F-0-0-S-2-C-0-K<br />
Brand: Heinrichs (Germany)</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[6040]: Thread connections, 3/4" NPT(f), 300 mm float not removable<br />
[N]: Range (water 20°C, 1 mPas), 160 - 1600 l/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[C]: Switches, 1 x microswitch<br />
Ambient temperature, -40° to +65°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>Flow Switch with Paddle and Bellows<br />
Model: DWN-1-6-R25-X-L-T-Y<br />
Brand: Kobold (Alemania)</strong><br />
[DWN-1]:<br />
Operating principle paddle-bellow<br />
Indication, w/o<br />
Flow direction in direction of the arrow<br />
Output, 1 microswitch/SPDT, adjustable<br />
max. temperature 100 °C<br />
Connection male thread<br />
Electrical connection, PG 13,5<br />
[6]: Material combination, st.st.<br />
[R25]: Connection, G 1 male<br />
[X]: Signal lamp, without signal lamp<br />
[L]: Flow direction, from left to right<br />
[T]: Mounting pos. of indicat, above pipe <br />
[Y]: Options, IP65
