Flujómetro magnético inductivo EP (45 m³/h ; DN40) <br /><strong>EP magnetic inductive flowmeter<br /> Model: EP-H-0317-HH-1-0+UMF2-A-1-1-G-0BK<br /> Brand: Heinrichs Group Kobold</strong><br /> [EP-H]:<br /> Material - lining, hard-rubber<br /> standard 3 stainless steel electrodes<br /> Temperature, 0°C...80°C<br /> [0317]: Process Connection,<br /> flangeless sandwich design for DIN EN 1092-1 DN40 PN40 flanges<br /> Max. measuring range (Water 20°C, 1 mPas), 45 m³/h<br /> Installation length, 104 mm<br /> [HH] Material electrodes, Hastelloy C-4 incl. grounding electrode standard for PTFE<br /> [1]: Transmitter mounting, integrated transmitter<br /> Protection class sensor, IP67<br /> [0]: Approvals, without<br /><br /> Imclude:<br /> [UMF2-A]<br /> Mounting, integrated transmitter IP67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> [G]: Output:<br /> current output 1: 4 - 20mA with HART-protocol<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> [0BK]: Design, Kobold S/ 7,158.78 7158.78 PEN	Coriolis Massflowmeter, ANSI 2", -4° to 212°F, -20° to 100°C, Coriolis Massflowmeter<br /> Brand: Kobold – Heinrichs<br /> Model: TMU-S-050-206R-A-0-0-A-0-1-0-0 <br /> Stainless steel<br /> [S] Wetted materials; Stainless Steel <br /> [050] Meter line size; DN50, ANSI 2" <br /> Range; min. 0-20.000 kg/h - max. 0-80.000 kg/h<br /> [206R] Process connection; 2" Class 150 RF ASME B16.5-2003 <br /> Installation length; 1053 mm<br /> [A] Containment options; Stainless steel containment 1.4301 (304) <br /> [0] Heating / cooling; None <br /> [0] Connection for heating / cooling; None <br /> [A] Sensor configuration; Integral mount transmitter <br /> Process temperatura; -4° to 212°F, -20° to 100°C<br /> Sensor Cable Connection; IP66<br /> [0] Approvals; None <br /> [1] Calibration flow; Standard, 3-point <br /> [0] Calibration density; None <br /> [0] Supplementary equipment; None <br /><br /> UMC4-B-1-1-A-0-0<br /> Brand: Kobold – Heinrichs<br /> [B] Mounting; Integral mount <br /> Conduit port opening; M20 x 1,5<br /> [1] Display / Interface board; Integral within transmitter housing, for ambient temperature up to 60°C <br /> [1] Power supply; 90 - 265V AC, 50/60Hz <br /> [A] Outputs; Analog output 1: 4 - 20mA with HART® <br /> Analog output 2: 4 - 20mA<br /> Pulse output: passive Um=30V DC<br /> Status output: passive Um=30V DC<br /> [0] Approvals; none<br /> [0] Type of protection (signal output); none S/ 50,472.32 50472.32 PEN	Coriolis Massflowmeter, 1½" , 810 mm, -4° to 212°F, -20° to 100°C Coriolis Massflowmeter<br /> Brand: Kobold – Heinrichs<br /> Model: TMU-S-040-206R-A-0-0-A-0-1-0-0 <br /> Stainless steel<br /> [S] Wetted materials; Stainless Steel <br /> [040] Meter line size; DN40, ANSI 1½" <br /> Range; min. 0-6.000 kg/h - max. 0-60.000 kg/h <br /> [206R] Process connection; 2" Class 150 RF ASME B16.5-2003 <br /> Installation length; 810 mm<br /> [A] Containment options; Stainless steel containment 1.4301 (304) <br /> [0] Heating / cooling; None <br /> [0] Connection for heating / cooling; None <br /> [A] Sensor configuration; Integral mount transmitter <br /> Process temperatura; -4° to 212°F, -20° to 100°C<br /> Sensor Cable Connection; IP66<br /> [0] Approvals; None <br /> [1] Calibration flow; Standard, 3-point <br /> [0] Calibration density; None <br /> [0] Supplementary equipment; None <br /><br /> UMC4-B-1-1-A-0-0<br /> Brand: Kobold – Heinrichs<br /> [B] Mounting; Integral mount <br /> Conduit port opening; M20 x 1,5<br /> [1] Display / Interface board; Integral within transmitter housing, for ambient temperature up to 60°C <br /> [1] Power supply; 90 - 265V AC, 50/60Hz <br /> [A] Outputs; Analog output 1: 4 - 20mA with HART® <br /> Analog output 2: 4 - 20mA<br /> Pulse output: passive Um=30V DC<br /> Status output: passive Um=30V DC<br /> [0] Approvals; none<br /> [0] Type of protection (signal output); none S/ 37,532.57 37532.57 PEN	Paddle Wheel Flow Sensor, ±2.5% of Full Scale, 0.13 a 1.6 GPM, 3/8" Paddle Wheel Flow Sensor<br /> Model: DRH-19-75N3-F300<br /> Brand: Kobold (USA)<br /> [DRH-1975-N3]: <br /> Specifications<br /> Accuracy: ±2.5% of Full Scale<br /> Frequency: PNP, 25 mA max.14-28 VDC<br /> Flow Range (GPM): 0.13 a 1.6 GPM<br /> Fitting (NPT) 3/8"<br /> [F300]: <br /> Frequency Output <br /> Power Supply: 12-28 VDC<br /> Power Consumption: 10 mA<br /> Pulse Output:PNP, Open Collector, Max. 25 mA<br /> Electrical Connection: Plug Connector M12 x 1<br /><br /> Include:<br /> Accessories:<br /> [807-037/5M]: (Cable: M12 4-PIN, 16 Feet) S/ 2,974.32 2974.32 PEN

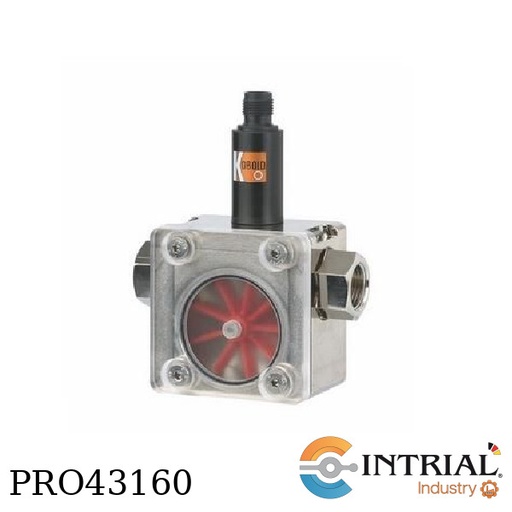

Paddle Wheel Flow Sensor, 0.26 a 8 GPM, 3/8" Paddle Wheel Flow Sensor<br /> Model: DRH-1990-N3-F300<br /> Brand: Kobold (USA)<br /> [DRH-1990-N3]: <br /> Specifications<br /> Accuracy: ±2.5% of Full Scale<br /> Frequency: PNP, 25 mA max.14-28 VDC<br /> Flow Range (GPM): 0.26 a 8 GPM<br /> Fitting (NPT) 3/8"<br /> [F300]: <br /> Frequency Output <br /> Power Supply: 12-28 VDC<br /> Power Consumption: 10 mA<br /> Pulse Output:PNP, Open Collector, Max. 25 mA<br /> Electrical Connection: Plug Connector M12 x 1<br /><br /> Include:<br /> Accessories:<br /> [807-037/5M]: (Cable: M12 4-PIN, 16 Feet) S/ 2,974.32 2974.32 PEN	Calorimetric Flow Monitor, Remote Version, Connection: G 1/4; 1/4 NPT Calorimetric Flow Monitor, Remote Version<br /> Brand: Kobold (ALEMANIA)<br /> Model: KAL-54-08-YP<br /> [KAL-54]:<br /> Operating principle: calorimetric<br /> Mounting position: all directions<br /> Max. temperature: 80° C (option HT: 120 °C)<br /> Max. pressure: 100 bar<br /> Protection class: IP 68<br /> Connection thread: G / NPT<br /> Sensor material st.st.: 1.4571<br /> [08]: Connection: G 1/4; 1/4 NPT<br /> [YP]: Electron. connection/version: PVC cable, special length<br /> Length: 15 m.<br /><br /> Electronic to KAL-Probe<br /> Brand: Kobold (ALEMANIA)<br /> Model: KAL-E-2-0<br /> [KAL-E]: <br /> Output Relay/SPDT<br /> Contact rating max. 250 VAC, max. 3 A<br /> Output indication LED<br /> Temperature range -20..+80 °C<br /> Mounting DIN rail<br /> [2]: Version: Flow/8-LEDs<br /> [0]: Power supply/Ex-Version: 230 VAC S/ 2,409.35 2409.35 PEN	Micro Variable Area Flowmeter KDS, -40 °C, max. 130 °C, 8 a 51 SCFH Micro Variable Area Flowmeter KDS<br /> Brand: Heinrichs - Kobold<br /> Model: KDS-K-F-P-O-0-E-E-0<br /> [KDS]<br /> All-metal design<br /> Connection ¼" NPT (f)<br /> Temp. min. -40 °C, max. 130 °C<br /> [K] Variable Area Flowmeter, rear connection<br /> overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br /> [F] Range: 8 a 51 SCFH AIRE<br /> [P] Sealing: PTFE <br /> [O] Valve: Top (standard) (not for KDS-S) <br /> [0] Certificates: without <br /> [E]: Scale: Measuring Range-Scale (Media) <br /> Approval: IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br /> [E]: Switches: Transmitter 4-20mA w/o HART <br /> Connection: M12 plug<br /> Processtemperature -25C - +100°C<br /> [0]: Accessories: without <br /><br /> Accessories round plug<br /> Model: ZUB-KAB-12-K505<br /> Brand: Kobold<br /> Version, M12x1 box 5 m cable, 5-pin S/ 3,721.55 3721.55 PEN	EPS Electromagnetic Flow Meter, -20°C…+150°C, ½ "Class 150 RF ASME B16.5-2003 EPS Electromagnetic Flow Meter<br /> Brand: Kobold – Heinrichs<br /> Model: EPS-P201R-1-H-0-1-0<br /> [P] Material Lining; PTFE <br /> Electrodes; Standard 2x Measuring Electrodes<br /> Process-Temperature; -20°C…+150°C<br /> [201R] ANSI flanges; Process connection: ½ "Class 150 RF ASME B16.5-2003 <br /> Max. measuring range (Water 20°C, 1 mPas); 6,6 m³/h<br /> Installation length; 200 mm<br /> [1] Material Process connection; Flange steel painted <br /> [H] Material electrodes; Hastelloy C276 <br /> [0] Earthing electrode; w/o <br /> [1] Transmitter mounting; Integrated transmitter <br /> Protection class, sensor; IP67<br /> [0] Certificates; w/o<br /><br /> Transmitte<br /> Brand: Kobold – Heinrichs<br /> Model: UMF2-A-1-4-G-0BK<br /> [A] Mounting; Integrated transmitter IP 67 standard ½" NPT (f) <br /> [1] Display and control unit; integrated <br /> [4] Power supply; 24V DC (±15%) <br /> [G] Output signal; current output: 1x 0/4-20 mA c/w HART protocoll <br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK] Design; Kobold S/ 6,765.12 6765.12 PEN

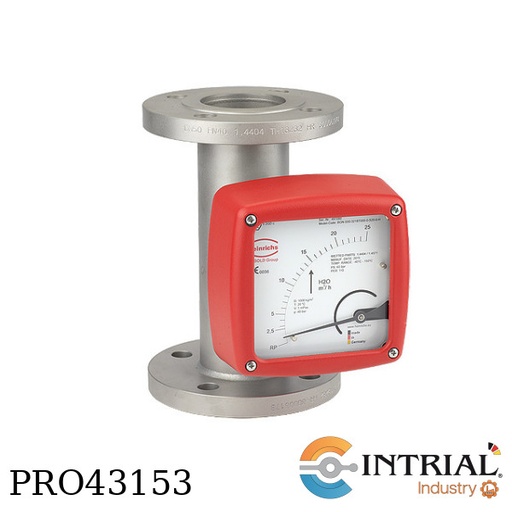

All-Metal Variable Area Flowmeter BGN, Range: 247 a 2470 SCFH, Stainless Steel, process temperature <strong>All-Metal Variable Area Flowmeter BGN<br /> Brand: Heinrichs – Kobold<br /> Model: BGN-S25-6030-N-0-S-0-0-S-5-6-0-K</strong><br /> DN25<br /> [S25] Stainless Steel, process temperature ≤ 350°C<br /> [6030] Thread connections; 1/2" NPT(f), 300 mm float not removable<br /> [N] Range: 247 a 2470 SCFH<br /> [0] Heating / cooling; without heating / Cooling<br /> [S] Damping/spring stop; Gas damping and spring stop<br /> [0] Self draining; without<br /> [0] Certificates; without<br /> [S] Display; Standard display housing,<br /> Process temperature ≤150°C for electrical output,<br /> Process temperature ≤ 200°C for local indication<br /> [5] Scale; Measuring range-Scale (Media)<br /> [6] Switches; Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br /> Ambient temperatura; -40° to +70°C<br /> [0] Accessories; without<br /> [K] Design; Kobold S/ 6,936.44 6936.4400000000005 PEN	Area Flowmeter KDS , 5.4 a 37.2 SCFH ACETILENO <strong>Micro Variable Area Flowmeter KDS<br /> Brand: Heinrichs - Kobold<br /> Model: KDS-K-F-P-O-0-E-E-0</strong><br /> [KDS]<br /> All-metal design<br /> Connection ¼" NPT (f)<br /> Temp. min. -40 °C, max. 130 °C<br /> [K] Variable Area Flowmeter, rear connection<br /> overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br /> [F] Range: 5.4 a 37.2 SCFH ACETILENO<br /> [P] Sealing: PTFE <br /> [O] Valve: Top (standard) (not for KDS-S)<br /> [0] Certificates: without <br /> [E]: Scale: Measuring Range-Scale (Media) <br /> Approval: IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br /> [E]: Switches: Transmitter 4-20mA w/o HART <br /> Connection: M12 plug<br /> Processtemperature -25C - +100°C<br /> [0]: Accessories: without<br /><br /> Accessories round plug<br /> Model: ZUB-KAB-12-K505<br /> Brand: Kobold<br /> Version, M12x1 box 5 m cable, 5-pin S/ 3,721.55 3721.55 PEN	Flujómetro Magnético Inductivo Compacto (0,8...16 L/min) <strong>Compact Magnetic Inductive Flow Meter<br /> Model: MIK-5NA-25-P-C34P<br /> Brand: Kobold (Alemania)</strong><br /> [MIK-5NA]:<br /> Operating principle, Magnetic Inductive<br /> Mounting position all directions<br /> Max. temperature/pressure 80 °C / 10 bar<br /> Protection IP 65<br /> Housing PPS<br /> Electrodes St. st.<br /> Seal NBR<br /> [25]: Measuring range (liquid >30 µS/cm),0,8...16 L/min G 3/4 male<br /> [P]: Connection set, PVC-hose connection, G ¾ - Ø16/18 mm<br /> [C34P]*: Evaluation electronic for MIK, 24 VDC, 4-20 mA, 1x PNP<br /><br /> Include:<br /> Model: ZUB-KAB-12-K502<br /> M12x1 box 2 m cable, 5-pin S/ 1,935.50 1935.5 PEN	Compact Magnetic Inductive Flow Meter, 0,1…25 L/min / [°C] G ¾ male Compact Magnetic Inductive Flow Meter<br /> Brand: Kobold (Alemania)<br /> Model: MIM-1-2-10HG5-C3T-0<br /> [MIM-1]<br /> Operating principle, Magnetic Inductive<br /> Mounting position, all directions, display rotatable<br /> Display:<br /> TFT-display, 128 x 128 color pixel,<br /> 1,4", rotatable in 90° steps,<br /> 2 indications free assignable<br /> Integrated temperature sensor, Pt 1000<br /> Material housing/insulation part, see below<br /> Accuracy, ±(0.8% of meas.value +0,5% of FS)<br /> Max. Viscosity, 70 mm²/s<br /> Min. conductivity, >20 μS/cm<br /> Power supply, 19 - 30 VDC<br /> Ambient temperature: -20 °C … +60 °C<br /> Max. temperature (medium): -20°C..+70°C (compact)<br /> Max. pressure, PN 16<br /> Protection, IP 67<br /> [2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br /> [10HG5] Measuring range (flow/temperature), 0,1…25 L/min / [°C] G ¾ male<br /> [C3T] Evaluation electronic:<br /> Analogue output: 0(4)-20 mA, 0-10 V,<br /> Switching output NPN, PNP, PushPull,<br /> Frequency output, pulse output,<br /> Part- or grand totaliser.<br /> [0]: Options, without<br /><br /> Include:<br /> Accessories round plug<br /> Brand: Kobold (Alemania)<br /> Model: ZUB-KAB-12-K002<br /> M12x1 box 2 m cable, 4-pin S/ 2,030.27 2030.27 PEN

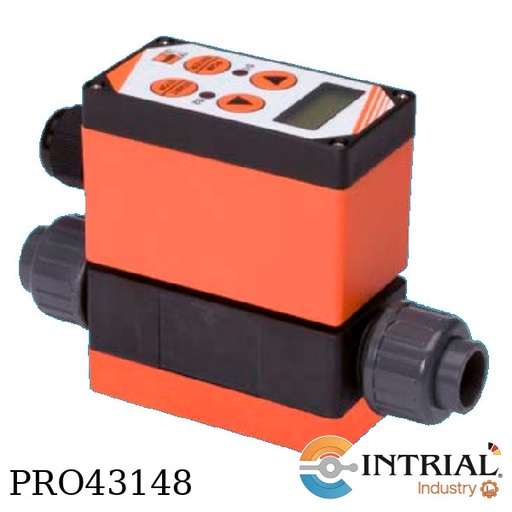

Compact Magnetic Inductive Flow Meter, Measuring range, 25 - 500 L/min G 2¾ male Compact Magnetic Inductive Flow Meter<br /> Brand: Kobold (Alemania)<br /> Model: MIK-6FC-80-K-G34R<br /> [MIK-6FC]:<br /> Operating principle: Magnetic Inductive<br /> Mounting position: all directions<br /> Max. temperature/pressure: 80 °C / 10 bar<br /> Protection: IP 65<br /> Housing: PVDF<br /> Electrodes: Hastelloy<br /> Seal: FFKM<br /> [80]: Measuring range, 25 - 500 L/min G 2¾ male<br /> [K]: Connection set, PVC-glue connection: G 2¾ - Ø54/63 mm<br /> [G34R]: Evaluation electronic for MIK, Dosing electronic<br /> 4-20 mA, 24 VDC, plug connection S/ 5,267.03 5267.03 PEN	Flap Flow Meter TSK DN100, -40° to +300°C , 8 - 80 m³/h , 2 x microswitch Flap Flow Meter TSK DN100<br /> Brand: Kobold Heinrichs<br /> Model: TSK-S-210R-F2-U-5-V-1-0-S-2-D-0-K<br /> [S] Wetted materials; Armature: Stainless steel Built-in parts: Stainless Steel <br /> Pressure rating; 16 bar<br /> Process temperatura; -40° to +300°C <br /> [210R] Process connection; for 4" Class 150 RF ASME B16.5-2003 <br /> [F2] Range; Water: 8 - 80 m³/h <br /> [U] Flow direction; Bottom to top <br /> [5] Temperature class; max. 100°C Contains: enclosure of magnet PVDF <br /> [V] Sealing; Viton <br /> Process temperatura; max. 150°C<br /> [1] Protection against particle-penetration into transmission chamber; with (Viton) <br /> Process temperatura; max. 150°C<br /> [0] Certificate; without <br /> [S] Indicating part; Standard indicating housing (aluminum) <br /> [2] Product scale; Measuring range-Scale (Water) <br /> [D] Electrical output; 2 x microswitch <br /> Ambient temperatura; -40° to +65°C<br /> [0] Accessory; without <br /> [K] Design; Kobold <div> <div class="gtx-trans-icon"></div> </div> S/ 9,101.57 9101.57 PEN	Flap Flow Meter TSK DN80, -40° to +300°C, 10 - 60 m³/h, -40° to +65°C Flap Flow Meter TSK DN80<br /> Brand: Kobold Heinrichs<br /> Model: TSK-S-208R-E2-L-5-V-1-0-S-2-D-0-K<br /> [S] Wetted materials; Armature: Stainless steel Built-in parts: Stainless Steel<br /> Pressure rating; 40 bar<br /> Process temperatura; -40° to +300°C<br /> [208R] Process connection; for 3" Class 150 RF ASME B16.5-2003 <br /> [E2] Range; Water: 10 - 60 m³/h <br /> [L] Flow direction; Left to right <br /> [5] Temperature class; max. 100°C Contains: enclosure of magnet PVDF <br /> [V] Sealing; Viton <br /> Process temperatura; max. 150°C<br /> [1] Protection against particle-penetration into transmission chamber; with (Viton) <br /> Process temperatura; max. 150°C<br /> [0] Certificate; without <br /> [S] Indicating part; Standard indicating housing (aluminum) <br /> [2] Product scale; Measuring range-Scale (Water) <br /> [D] Electrical output; 2 x microswitch <br /> Ambient temperatura; -40° to +65°C <br /> [0] Accessory; without <br /> [K] Design; Kobold <div> <div class="gtx-trans-icon"></div> </div> S/ 9,119.79 9119.79 PEN	Flap Flow Meter TSK DN80, -40° to +300°C, 3" Class 150 RF ASME B16.5-2003 , 10 - 60 m³/h Flap Flow Meter TSK DN80<br /> Brand: Kobold Heinrichs<br /> Model: TSK-S-208R-E2-U-5-V-1-0-S-2-D-0-K<br /> [S] Wetted materials; Armature: Stainless steel Built-in parts: Stainless Steel<br /> Pressure rating; 40 bar<br /> Process temperatura; -40° to +300°C<br /> [208R] Process connection; for 3" Class 150 RF ASME B16.5-2003 <br /> [E2] Range; Water: 10 - 60 m³/h <br /> [U] Flow direction; Bottom to top <br /> [5] Temperature class; max. 100°C Contains: enclosure of magnet PVDF <br /> [V] Sealing; Viton <br /> Process temperatura; max. 150°C<br /> [1] Protection against particle-penetration into transmission chamber; with (Viton) <br /> Process temperatura; max. 150°C<br /> [0] Certificate; without <br /> [S] Indicating part; Standard indicating housing (aluminum) <br /> [2] Product scale; Measuring range-Scale (Water) <br /> [D] Electrical output; 2 x microswitch <br /> Ambient temperatura; -40° to +65°C <br /> [0] Accessory; without <br /> [K] Design; Kobold <div> <div class="gtx-trans-icon"></div> </div> S/ 9,119.79 9119.79 PEN
Flap Flow Meter TSK DN50, -40° to +300°C , 3 - 30 m³/h, -40° to +65°C Flap Flow Meter TSK DN50<br /> Brand: Kobold Heinrichs<br /> Model: TSK-S-206R-C2-U-5-V-1-0-S-2-D-0-K<br /> [S] Wetted materials; Armature: Stainless steel Built-in parts: Stainless Steel <br /> Pressure rating; 40 bar<br /> Process temperatura; -40° to +300°C <br /> [206R] Process connection; for 2" Class 150 RF ASME B16.5-2003 <br /> [C2] Range; Water: 3 - 30 m³/h <br /> [U] Flow direction; Bottom to top <br /> [5] Temperature class; max. 100°C Contains: enclosure of magnet PVDF <br /> [V] Sealing; Viton <br /> Process temperatura; max. 150°C<br /> [1] Protection against particle-penetration into transmission chamber; with (Viton) <br /> Process temperatura; max. 150°C <br /> [0] Certificate; without <br /> [S] Indicating part; Standard indicating housing (aluminum) <br /> [2] Product scale; Measuring range-Scale (Water) <br /> [D] Electrical output; 2 x microswitch <br /> Ambient temperatura; -40° to +65°C <br /> [0] Accessory; without <br /> [K] Design; Kobold S/ 8,434.53 8434.53 PEN	Ultrasonic Flow Meter/-Monitor/-Counter/-Doser, 90 °C / 16 bar, 3.5 LED + Bar graph, 100-240 VAC/DC Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br /> Brand: Kobold(Alemania)<br /> Model: DUK-12-G6H-K042-R<br /> Operating principle: Ultrasonic<br /> Mounting position: all directions<br /> Indication/Output: see electronic version<br /> Max. temperature/pressure: 90 °C / 16 bar<br /> Protection: IP 65<br /> Seal: NBR<br /> Sensor Housing: St. st.<br /> [G6H] Measuring range/connection; 0,25…63 L/min - G1 female <br /> [K] Evaluation electronic for DUK; <br /> Ousing: 97 x 96<br /> Display: 3.5 LED + Bar graph<br /> Temperature range: -20...80 °C<br /> Min./Max. Memory: Yes<br /> Housing: Aluminium/ PA66<br /> Protection: IP 65<br /> [0] Supply voltaje: 100-240 VAC/DC <br /> [4] Output; 0-10 VDC, 0(4)-20 mA selectable <br /> [2] Contacts; 2 change over contacts <br /> [R] Flow direction; from right to left S/ 7,891.43 7891.43 PEN	Ultrasonic Flow Meter/-Monitor/-Counter/-Doser, 90 °C / 16 bar, 0,25…63 L/min - G1 female , 100-240 <strong>Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br /> Brand: Kobold(Alemania)<br /> Model: DUK-12-G6H-K042-L</strong><br /> [DUK-12]:<br /> Operating principle: Ultrasonic<br /> Mounting position: all directions<br /> Indication/Output: see electronic version<br /> Max. temperature/pressure: 90 °C / 16 bar<br /> Protection: IP 65<br /> Seal: NBR<br /> Sensor Housing: St. st.<br /> [G6H] Measuring range/connection; 0,25…63 L/min - G1 female <br /> [K] Evaluation electronic for DUK; <br /> Ousing: 97 x 96<br /> Display: 3.5 LED + Bar graph<br /> Temperature range: -20...80 °C<br /> Min./Max. Memory: Yes<br /> Housing: Aluminium/ PA66<br /> Protection: IP 65<br /> [0] Supply voltaje: 100-240 VAC/DC <br /> [4] Output; 0-10 VDC, 0(4)-20 mA selectable <br /> [2] Contacts; 2 change over contacts <br /> [L] Flow direction; from left to right S/ 8,128.35 8128.35 PEN	Compact Magnetic Inductive Flow Meter, Range: 0,04…10 l/min / [°C] G ½ male <strong>Compact Magnetic Inductive Flow Meter<br /> Brand: KOBOLD (Alemania)<br /> Model: MIM-1-2-05HG4-C3T-0+ZUB-KAB-12-K005</strong><br /> [MIM-1]:<br /> Operating principle: Magnetic Inductive<br /> Mounting position: all directions, display rotatable<br /> Display:<br /> TFT-display, 128 x 128 color pixel,<br /> 1,4", rotatable in 90° steps,<br /> 2 outputs free assignable<br /> Integrated temperature sensor: Pt 1000<br /> Material housing / insulation part: see below<br /> Accuracy: ±(0.8% of meas.value +0,5% of FS)<br /> Min. conductivity: >20 μS/cm<br /> Power supply: 19 - 30 VDC<br /> Max. temperature (medium) -20°C …+60°C<br /> Protection IP 67<br /> [2]: Material housing / insulation part / sealing, st. steel 1.4404 / PEEK / FKM<br /> [05HG4]: Measuring range (flow/temperature), 0,04…10 l/min / [°C] G ½ male<br /> [C3T]: Evaluation electronic:<br /> Analogue output: 0(4)-20 mA, 0-10 V,<br /> Switching output NPN, PNP, PushPull,<br /> Frequency output, pulse output<br /> Part- or grand totaliser<br /> [0]: Options, without<br /><br /> Accessories round plug<br /> Brand: Kobold (Alemania)<br /> Model: ZUB-KAB-12-K005<br /> M12x1 box 5 m cable, 4-pin S/ 2,038.50 2038.5 PEN
