Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-47H-M5-0<br />
[URM-33]:<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Max. temperature 65 °C<br />
Max. pressure<br />
Material: connection, float / seal/ ring 1.4301 / NBR / PVC<br />
[47H]: Range Full Scale, 2500 L/h<br />
[M5]: Connection, N 3/4<br />
[0]: Contacts, w/o<br />

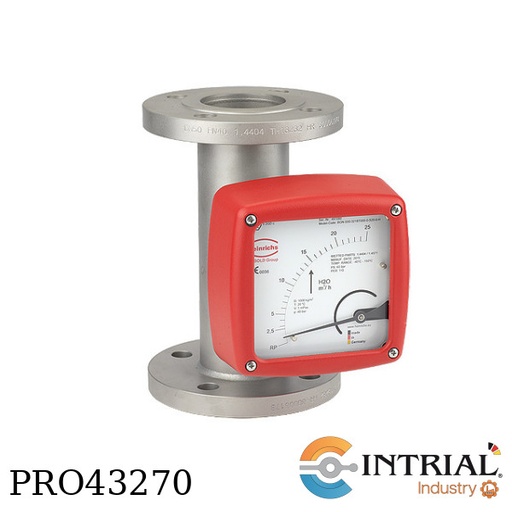

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S50-206R-U-0-A-0-0-S-5-6-0-K<br />
Brand: Kobold - Heinrichs</strong><br />
[S50] Model, Stainless Steel, process temperature ≤ 350°C<br />
[206R] Connection, size, 2" Class 150 RF ASME B16.5-2003<br />
[U] Range (water 20°C, 1 mPas), 2600 a 26000 LPH<br />
[0] Heating/cooling, without heating / Cooling<br />
[A] Damping/spring stop, Spring stop<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0] Accessories, without<br />
[K] Design, Kobold

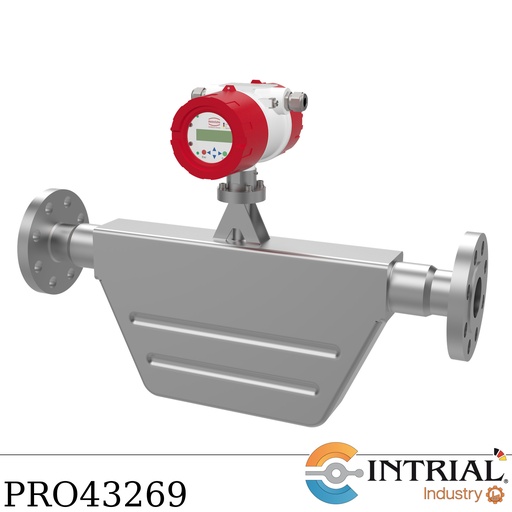

<div>Coriolis mass flow meter<br />
Brand: Kobold - Heinrinch<br />
Model: TMU-S-040-228R-A-0-0-A-L-1-0-0-K<br />
[S]: Wetted materials, Stainless steel; Measuring range, 6000…60000 kg/h<br />
[040]: Meter line size, DN40, ANSI 1½"<br />
[228R]: Process connection, 3" Class 300 RF ASME B16.5-2003; Installation length, 800 mm <br />
[A]: Containment options, Containment options<br />
[0]: Heating / cooling, without<br />
[0]: Connection for heating / cooling, without<br />
[A]: Sensor configuration, Integral mount transmitter;  Process temperature, -20...100°C (-4...212°F); Sensor Cable Connection; without<br />
[L]: Approvals, ATEX / IECEx,II 1/2G Ex ia IIC T6...T2 Ga/Gb<br />
[1]: Calibration flow, Standard, 3-point<br />
[0]: Calibration density, without<br />
[0]: Supplementary equipment, without<br />
[K]: Design, Kobold<br />
Include:<br />
Transmitter<br />
Brand: Kobold - Heinrinch<br />
Model: UMC4-B-1-1-A-2-1-K<br />
[B]: Mounting, Integral mount; Conduit port opening, M20 x 1,5<br />
[1]: Display / Interface board, Integral within transmitter housing, for ambient temperature up to 60°C<br />
[1]: Power supply, 90…265V AC, 50/60Hz<br />
[A]: Outputs, Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2]: Approval, II (1)2G Ex d [ia Ga] IIC T4-T3 Gb, terminal compartment Ex d; Ambient temperature, -20…60°C<br />
[1]: Type of protection (signal output), Ex [ia Ga] intrinsically safe<br />
[K]: Design, Kobold</div>

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold</strong><br /><strong>Model: MIK-5VA-30-A-L343+ZUB-KAB-12-K005</strong><br />
[MIK-5VA]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[30]: Measuring range (liquid >30 µS/cm), 1,6...32 L/min, G 1 male<br />
[A]: Connection set, without<br />
[L343]: Evaluation electronic for MIK:<br />
Analogue output, 24 VDC, 4-20 mA, plug M12, 3-wire<br /><br />
Include:<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

<strong>Viscosity Compensated Flowmeter/-switch ATEX<br />
Brand: Kobold (Alemania)<br />
Model: VKG-21-10-H0-R25</strong><br />
[VKG-21]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[10]: Measuring range, 2,5...70 L/min oil<br />
[H0]: Contact, 1 ATEX cahngeover type 41R57U<br />
[R25]: Connection, G 1 female

Flowindicator with Rotating Vane<br />
Brand: Kobold (ALEMANIA)<br />
MODEL: DAF-2-4-07H-A-40<br />
[DAF-2]:<br />
Operating principle: Rotating vane<br />
Mounting position: all directions, rotating vane axle horizontal<br />
Flow direction: in direction of the arrow<br />
max. temperature: 110 °C<br />
max. pressure: 16 bar<br />
[4]: Material (housing/connection), st. st.<br />
[07H]: Indication range: 5...150 L/min water<br />
[A]: Thread/flange, ANSI-flange<br />
[40]: Connection, from 25 L/min DN40 / 1 1/2"

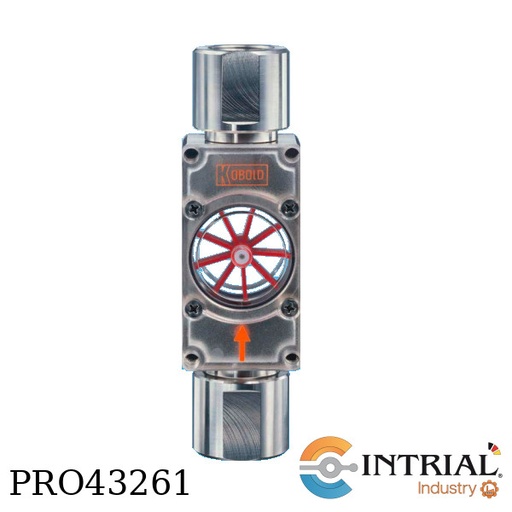

Flowindicator with Rotating Vane<br />
Brand: Kobold (ALEMANIA)<br />
MODEL: DAF-1-4-07H-N-40<br />
[DAF-1]:<br />
Operating principle: Rotating vane<br />
Mounting position: all directions, rotating vane axle horizontal<br />
Flow direction: in direction of the arrow<br />
max. temperature: 110 °C<br />
max. pressure: 16 bar<br />
[4]: Material (housing/connection), st. st.<br />
[07H]: Indication range, 5...150 L/min water<br />
[N]: Thread/flange, NPT-thread female<br />
[40]: Connection, 150 L/min 1 1/2"

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-1209-R0-R20-0-L</strong><br />
[VKM-12]<br />
Operating principle: variable area<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 Bar<br />
Viscosity range: 1...540 mm²/s<br />
[09] Measuring range, 4...40 L/min oil<br />
[R0] Contact, 1 N/O<br />
[R20] Connection, 3/4 G female***<br />
***for 14 up to 70 L/min<br />
[0] Option special connection, w/o<br />
[L] Flow direction, from left

Turbine Wheel Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: TUR-10-80P<br />
Operating principle: Turbine Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Material: PVC<br />
Max. Temperatura: 60 °C<br />
Max. Pressure: PN 10<br />
Accuracy: +-1% FS<br />
Protection: IP 65<br />
[80] Connection / Measuring range; NW 80 / 2...80 m³/h water<br />
[P] Electronic; Pulse output PNP (24 VDC, 3 wires) <br />

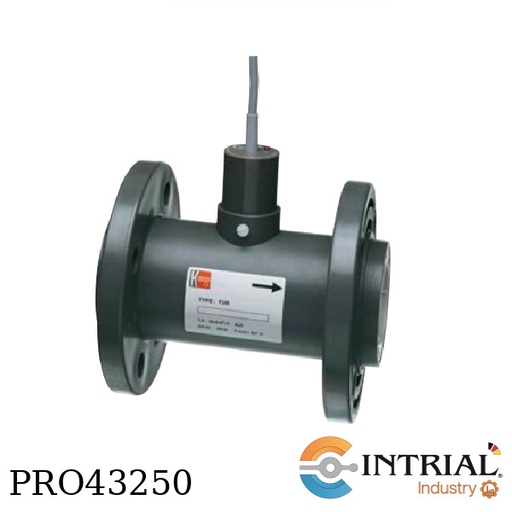

Turbine Wheel Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: TUR-10-50P<br />
Operating principle: Turbine Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Material: PVC<br />
Max. Temperatura: 60 °C<br />
Max. Pressure: PN 10<br />
Accuracy: +-1% FS<br />
Protection: IP 65<br />
[50] Connection / Measuring range; NW 50 / 1,2...20 m³/h water<br />
[P] Electronic; Pulse output PNP (24 VDC, 3 wires)

<strong>Low Volume Flowmeter<br />
Model: KFR-41-70-N0<br />
Brand: Kobold</strong><br />
[KFR-41]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size,  1/4" NPT female*<br />
Seal, NBR<br />
[70] Measuring range, 30…300 L/min air<br />
[N0] Options, Needle valve<br /><br />
Include:<br />
KFR-PPHW024, set hose barbes (2 pcs.)

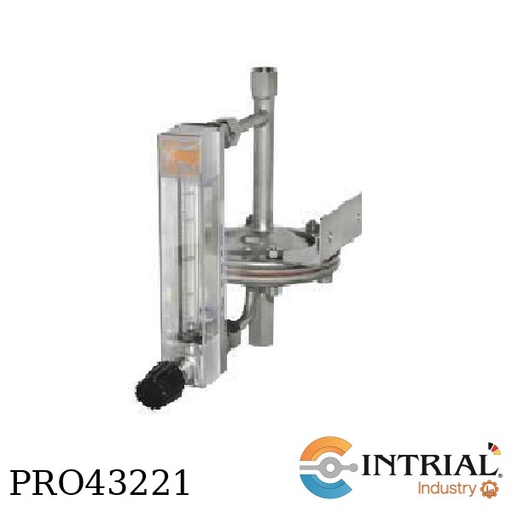

Low Volume Flowmeter<br />
Brand: KOBOLD (Alemania)<br />
Model: KDG-92-75-N-V-0-M3-E<br />
[KDG-92]:<br />
Mounting length 90 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 3<br />
Max. temperature without/with contact 70 °C<br />
Max. pressure PN 16<br />
[75]: Measuring range, 60...800 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, W/O<br />
[M3]: Contacts measuring range, 1 monost. contact with 2 m cable<br />
[E]: Flow differential pressure regulator:<br />
diff. press. regulator for constant outlet pressure, inlet valve, FPM-membrane

<strong>Low Volume Flowmeter<br />
Brand: KOBOLD (Alemania)<br />
Model: KDG-92-74-N-V-0-M3-E</strong><br />
[KDG-92]:<br />
Mounting length 90 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 3<br />
Max. temperature without/with contact 70 °C<br />
Max. pressure PN 16<br />
[74]: Measuring range, 50...450 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, W/O<br />
[M3]: Contacts measuring range, 1 monost. contact with 2 m cable<br />
[E]: Flow differential pressure regulator:<br />
diff. press. regulator for constant outlet pressure, inlet valve, FPM-membrane

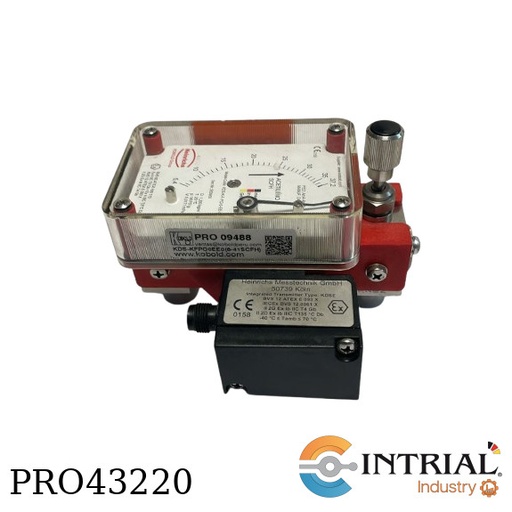

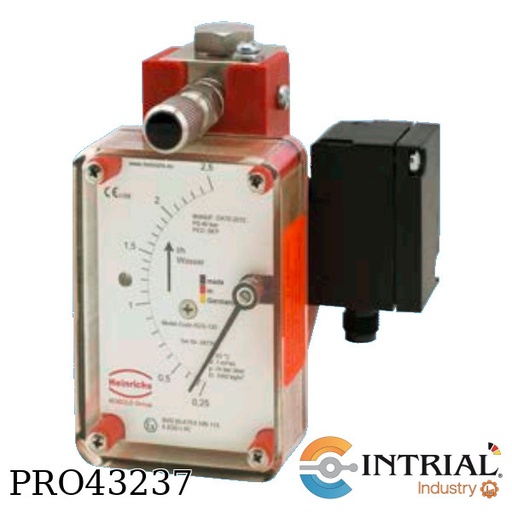

Micro Variable Area Flowmeter KDS<br />
Brand: Kobold-Heinrichs<br />
Model: KDS-K-E-P-O-0-E-F-0<br />
All-metal design<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[K] Model<br />
Variable Area Flowmeter, rear connection,<br />
overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br />
[E] Range; 1.26  a  8.28 Nl/m ( 3 a 18.6 SCFH )  <br />
[P] Sealing; PTFE<br />
[O] Valve; top (standard)<br />
[0] Certificates; without<br />
[E] Scale; Measuring Range-Scale (Media)<br />
Approval; IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[F] Switches; 1 x inductive switch, 3-wire (NBB 2-6,5 M30-E2)<br />
Connection; M12 plug<br />
Processtemperature; -25C - +100°C w/o ATEX<br />
[0]  Accessories; without<br /><br />
Accessories round plug<br />
Model: ZUB-KAB-12-K505<br />
Version, M12x1 box 5 m cable, 5-pin

<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-12-05H-F0-R08</strong><br />
[SMV-12]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body material: St.St.<br />
Seal: FPM<br />
Side mounted indication: ----<br />
Switch point, adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C*<br />
Max. pressure 350 bar<br />
[05H] Adjustment range: 1...4.5 L/min water<br />
[F0] Contact ,1 ATEX-N/O<br />
[R08] Connection G 1/4 female

Low Volume Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: KDG-92-YY-N-V-0-00-E(191Nl/h)    <br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. Pressure: PN 16<br />
[YY] Measuring range; 19 a 191 N l/h    <br />
[N] Connection; 1/4 NPT   <br />
[V] Seal; FPM  <br />
[0] wall mounting kit; w/o  <br />
[00] Contacts measuring range; w/o  <br />
[E] Flow differential pressure regulator; diff. press. regulator for constant outlet pressure, inlet valve, FPM-membrane    <br />

Low Volume Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: KDG-92-YY-N-V-0-00-E(19Nl/h)<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. Pressure: PN 16<br />
[YY] Measuring range; 2 a 19 N l/h<br />
[N] Connection; 1/4 NPT   <br />
[V] Seal; FPM  <br />
[0] wall mounting kit; w/o  <br />
[00] Contacts measuring range; w/o  <br />
[E] Flow differential pressure regulator; diff. press. regulator for constant outlet pressure, inlet valve, FPM-membrane

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-201R-1-H-H-1-0+UMF2-A-1-4-F-0BK</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[201R]: Process connection, ½ "Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 6,6 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting,<br />
Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Low Volume Flowmeter<br />
Brand: Kobold(Alemania)<br />
Model: KDG-92-89-N-V-0-00-E</strong><br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature without/with contact: 100 °C / 70 °C<br />
Max. Pressure: PN 16<br />
[89] Measuring range; 4,0..40 L/h air<br />
[N] Connection; 1/4 NPT<br />
[V] Seal; FPM<br />
[0] wall mounting kit; w/o<br />
[00] Contacts measuring range; w/o<br />
[E] Flow differential pressure regulator;<br />
diff. press. regulator for constant outlet pressure, inlet valve, FPM-membrane

<strong>Micro Variable Area Flowmeter KDS<br />
Brand: Heinrichs - Kobold<br />
Model: KDS-K-F-P-O-0-E-E-0</strong><br />
[KDS]<br />
All-metal design<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[K] Variable Area Flowmeter, rear connection<br />
overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br />
[F] Range: 6.6 a 41.4 SCFH ACETILENO<br />
[P] Sealing: PTFE  <br />
[O] Valve: Top (standard) (not for KDS-S)<br />
[0] Certificates: without  <br />
[E]: Scale: Measuring Range-Scale (Media)  <br />
Approval: IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[E]: Switches: Transmitter 4-20mA w/o HART  <br />
Connection: M12 plug<br />
Processtemperature -25C - +100°C<br />
[0]: Accessories: without<br />
