EP Magnetic inductive flowmeter, Max. measuring range: 280 m³/h, ½ NPT EP Magnetic inductive flowmeter<br /> Brand: Heinrichs Group Kobold<br /> Model: EP-H-0335-SS-1-0+UMF2-A-1-4-G-0BK<br /> [EP-H]:<br /> Material - lining: hard-rubber<br /> Standard 3 stainless steel electrodes<br /> Temperature: 0°C - 80°C<br /> [0335]: Process Connection:<br /> flangeless sandwich design for DIN EN 1092-1 DN100 PN16 flanges / 4" class 150<br /> Max. measuring range (Water 20°C, 1 mPas): 280 m³/h<br /> Installation length: 104mm<br /> [SS]: Material electrodes:<br /> Stainless steel incl. grounding electrode, standard for hard rubber<br /> Soft rubber, Wagunit<br /> [1]: Transmitter mounting: integrated transmitter<br /> Protection class sensor: IP67<br /> [0]: Approvals: without<br /> <br /> Include:<br /> [UMF2-A]:<br /> Mounting, integrated transmitter IP67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [4]: Power supply, 24V DC (±15%)<br /> [G]: Output:<br /> current output 1: 4 - 20mA with HART-protocol<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> [0BK]: Design, Kobold S/ 7,115.04 7115.04 PEN	Multivariable VORTEX Flowmeter <strong>Multivariable VORTEX Flowmeter<br /> Brand: Heinrichs Kobold<br /> Model: DVH-V-50-1-S-R-L-2-S-0-H</strong><br /> [DVH]<br /> [V] Elektronic - Options,Volume Measurement of Liquids, Gases and Steam<br /> [50] Flow Body FLANGE, DN 50 DIN EN 2 inch ANSI JIS 50<br /> [1] Process Connection, ANSI 150 lbs ASME B16.5.2003<br /> Rango: 15 m3/h a 600 m3/h<br /> [S] Material Flow Body, st.st. 1.4404 / 316 L<br /> [R] Sensor Configuration / Mounting Option, Separately including LCD display<br /> IP 66 / Nema 4 , 20 m cable length<br /> [L] Input Power, 12-36 VDC loop powered<br /> [2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br /> [S] Process Temperature, Standard Temperature -200….+260 °C<br /> [0] Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor<br /> [H] Version Heinrichs S/ 14,813.28 14813.28 PEN	EP Magnetic inductive flowmeter, Max. measuring range: 120 m³/h, ½ NPT EP Magnetic inductive flowmeter<br /> Brand: Heinrichs Group Kobold<br /> Model: EP-H-0325-SS-1-0+UMF2-A-1-4-G-0BK<br /> [EP-H]:<br /> Material - lining: hard-rubber<br /> Standard 3 stainless steel electrodes<br /> Temperature: 0°C - 80°C<br /> [0325]: Process Connection:<br /> Flangeless sandwich design for DIN EN 1092-1 DN65 PN16 flanges<br /> Max. measuring range (Water 20°C, 1 mPas): 120 m³/h<br /> Installation length: 104mm<br /> [SS]: Material electrodes:<br /> Stainless steel incl. grounding electrode, standard for hard rubber<br /> Soft rubber, Wagunit<br /> [1]: Transmitter mounting: integrated transmitter<br /> Protection class sensor: IP67<br /> [0]: Approvals: without<br /> <br /> Include:<br /> [UMF2-A]:<br /> Mounting, integrated transmitter IP67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [4]: Power supply, 24V DC (±15%)<br /> [G]: Output:<br /> current output 1: 4 - 20mA with HART-protocol<br /> pulse output: passive Um=24VDC<br /> status output: passive Um=24VDC<br /> [0BK]: Design, Kobold S/ 6,750.54 6750.54 PEN	Electromagnetic Flow Meter-EPS <div><strong>EPS Electromagnetic Flow Meter<br /> Brand: Heinrich (Alemania)<br /> Model: EPS-H-206R-1-S-S-1-0+UMF2-A-1-4-G-0BK+ZUB-EPS-P-206R-14436</strong><br /> [EPS-H] Sensor<br /> Material Lining, Hard Rubber (Ebonit)<br /> Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br /> [206R] Process connection, 2" Class 150 RF ASME B16.5-2003<br /> Max. measuring range, 70 m³/h, Installation length, 200 mm.<br /> [1] Material Process connection, Flange steel painted<br /> [S] Material electrodes, st.st. 1.4571 (316 -TI)<br /> [S] Earthing electrode, st.st. 1.4571 (316 TI)<br /> [1] Transmitter mounting, Integrated transmitter<br /> Protection class, IP67<br /> [0] Certificates, w/o<br /> <br /> <strong>UMF2-A-1-4-G-0BK<br /> [UMF2] Transmitter</strong><br /> [A] Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1] Display and control unit, integrated<br /> [4] Power supply, 24V DC (±15%)<br /> [G] Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold<br /> <br /> <strong>Grounding Rings<br /> Model: ZUB-EPS-P-206R-14436<br /> ZUB-EPS-P-206R-GROUNDING-RING-SET-1.4436</strong><br /> Size: 2"<br /> Pressure rating: ANSI B16.5 Class 150<br /> Material: stainless steel AISI 316 1.4436</div> S/ 7,690.11 7690.110000000001 PEN

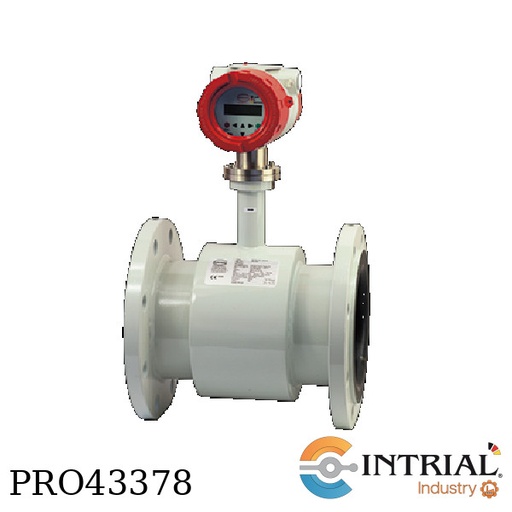

Electromagnetic Flow Meter-EPS <div><strong>EPS Electromagnetic Flow Meter<br /> Brand: Heinrich (Alemania)<br /> Model: EPS-H-205R-1-S-S-1-0+UMF2-A-1-4-G-0BK+ZUB-EPS-P-205R-14436</strong><br /> [EPS-H] Sensor<br /> Material Lining, Hard Rubber (Ebonit)<br /> Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br /> [205R] Process connection, 1½" Class 150 RF ASME B16.5-2003<br /> Max. measuring range, 38 m³/h, Installation length, 200 mm.<br /> [1] Material Process connection, Flange steel painted<br /> [S] Material electrodes, st.st. 1.4571 (316 -TI)<br /> [S] Earthing electrode, st.st. 1.4571 (316 TI)<br /> [1] Transmitter mounting, Integrated transmitter<br /> Protection class, IP67<br /> [0] Certificates, w/o<br /> <br /> <strong>UMF2-A-1-4-G-0BK</strong><br /> [UMF2] Transmitter<br /> [A] Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1] Display and control unit, integrated<br /> [4] Power supply, 24V DC (±15%)<br /> [G] Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold<br /> <br /> <strong>Grounding Rings<br /> Model: ZUB-EPS-P-205R-14436</strong><br /> ZUB-EPS-P-205R-GROUNDING-RING-SET-1.4436<br /> Size: 1½"<br /> Pressure rating: ANSI B16.5 Class 150<br /> Material: stainless steel AISI 316 1.4436</div> S/ 7,554.12 7554.12 PEN	EPS Electromagnetic Flow Meter EPS Electromagnetic Flow Meter<br /> Brand: Kobold(Heinrichs)<br /> Model: EPS-A-7010-N-N-0-1-0<br /> [A] Material Lining; Ceramics<br /> Electrodes; Standard 2x Measuring Electrodes<br /> Process-Temperature; -20...+150 °C<br /> [7010] Process connection; DN25 Tri-Clamp-Connection<br /> Max. measuring range (Water 20°C, 1 mPas); 19,1 m³/h<br /> Installation length: 159 mm<br /> [N] Material Process connection; HC22(2.4602)PTFE-gasket<br /> [N] Material electrodes; Platinum / Iridium<br /> [0] Earthing electrode; w/o<br /> [1] Transmitter mounting; Integrated transmitter<br /> Protection class, sensor; IP67<br /> [0] Certificates; w/o<br /> UMF2-A-1-1-G-0BK<br /> [UMF2]: Transmitter<br /> [A]: Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> [G]: Output signal<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold<br /> S/ 7,326.45 7326.45 PEN	EPS Electromagnetic Flow Meter EPS Electromagnetic Flow Meter<br /> Brand: Heinrichs (Alemania)<br /> Model: EPS-A-7030-N-N-0-1-0 <br /> [EPS-A]: Sensor<br /> Material Lining Ceramics, Standard 2x Measuring Electrodes<br /> Process Temperature, -20°C…+150°C<br /> [7030]: Process connection, DN50 Tri-Clamp-Connection<br /> Material Lining / Electrodes / Sealing, Ceramics / Platinum<br /> Max. measuring range (Water 20°C, 1 mPas), 70 m³/h<br /> Installation length, 184 mm<br /> [N]: Material Process connection, HC22(2.4602)PTFE-gasket<br /> [N]: Material electrodes, Platinum / Iridium<br /> [0]: Earthing electrode, w/o<br /> [1]: Transmitter mounting, Integrated transmitter<br /> Protection class, sensor IP 67<br /> [0]: Certificates, w/o<br /> UMF2-A-1-1-G-0BK<br /> [UMF2]: Transmitter<br /> [A]: Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> [G]: Output signal<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold<br /> S/ 8,704.26 8704.26 PEN	EPS Electromagnetic Flow Meter EPS Electromagnetic Flow Meter<br /> Brand: Heinrichs (Alemania)<br /> Model: EPS-A-7000-N-N-0-1-0 <br /> [EPS-A]: Sensor<br /> Material Lining Ceramics, Standard 2x Measuring Electrodes<br /> Process Temperature, -20°C…+150°C<br /> [7000]: Process connection, DN15 Tri-Clamp-Connection<br /> Material Lining / Electrodes / Sealing, Ceramics / Platinum<br /> Max. measuring range, 6,6 m³/h<br /> Installation length, 144 mm<br /> [N]: Material Process connection, HC22(2.4602)PTFE-gasket<br /> [N]: Material electrodes, Platinum / Iridium<br /> [0]: Earthing electrode, w/o<br /> [1]: Transmitter mounting, Integrated transmitter<br /> Protection class, sensor IP 67<br /> [0]: Certificates, w/o<br /><br /> UMF2-A-1-1-G-0BK<br /> [UMF2]: Transmitter<br /> [A]: Mounting, Integrated transmitter IP 67 standard<br /> Thread - electrical connection, ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br /> [G]: Output signal<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold S/ 7,217.10 7217.1 PEN
Low Volume Flowmeter-UTR <strong>Low Volume Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: UTR-3-32H-0-N4-0</strong><br /> [UTR-3]<br /> Mounting length 240 mm<br /> Material: body / valve st.st. 1.4301<br /> Float st.st. 1.4301<br /> Measuring glass Borosilicate<br /> Operating principle Float<br /> Flow direction from bottom to top<br /> Accuracy class 4<br /> Max. temperature without/with contact 100 °C / 70 °C<br /> Max. pressure PN 10<br /> [32H] Measuring range,160…1600 L/h water<br /> [0] Valve, w/o valve<br /> [N4] Connection, 1/2” NPT<br /> [0] Contacts, w/o S/ 3,411.72 3411.7200000000003 PEN	EP Magnetic inductive flowmeter, Max. measuring range: 430 m³/h <div>EP Magnetic inductive flowmeter</div> <div>Brand: Heinrichs Group Kobold</div> <div>Model: EP-H-0340-SS-2-0+UMF2-C-1-4-G-0BK-/-3</div> <div>[EP-H]:</div> <div>Material - lining: hard-rubber</div> <div>Standard 3 stainless steel electrodes </div> <div>Temperature: 0°C - 80°C</div> <div>[0340]: Process Connection: </div> <div>Flangeless sandwich design for DIN EN 1092-1 DN125 PN16 flanges / 5" class 150</div> <div>Max. measuring range (Water 20°C, 1 mPas): 430 m³/h</div> <div>Installation length: 134mm</div> <div>[SS]: Material electrodes: </div> <div>Stainless steel incl. grounding electrode, standard for hard rubber, soft rubber, Wagunit</div> <div>[2]: Transmitter mounting: remote transmitter</div> <div>Protection class sensor: IP67, junction box via M20 x 1,5, cable >10m add. junction box on Transmitter<span> </span></div> <div>[0]: Approvals: without<br /> </div> <div></div> <div>Include:</div> <div>[UMF2-C]:</div> <div>Mounting, remote transmitter</div> <div>Connection to sensor :incl. 2,5m cable and wall mounting bracket</div> <div>Thread - electrical connection, cable >10m c/w term.conn box on transmitter ½" NPT (f)</div> <div>[1]: Display and control unit, integrated</div> <div>[4]: Power supply, 24V DC (±15%)</div> <div>[G]: Output:</div> <div>current output 1: 4 - 20mA with HART-protocol</div> <div>pulse output: passive Um=24VDC</div> <div>status output: passive Um=24VDC</div> <div>[0BK]: Design, Kobold</div> <div>[3]: Extended cable length, 15m add. Junction box on transmitter</div> S/ 9,925.34 9925.34 PEN	EP Magnetic inductive flowmeter, Max. measuring range: 72 m³/h <div>EP Magnetic inductive flowmeter</div> <div>Brand: Heinrichs Group Kobold</div> <div>Model: EP-H-0321-SS-1-0+UMF2-A-1-4-G-0BK</div> <div>[EP-H]:</div> <div>Material - lining: hard-rubber</div> <div>Standard 3 stainless steel electrodes </div> <div>Temperature: 0°C - 80°C</div> <div>[0321]: Process Connection: </div> <div>Flangeless sandwich design for DIN EN 1092-1 DN50 PN40 flanges / 2" class 300</div> <div>Max. measuring range (Water 20°C, 1 mPas): 72 m³/h</div> <div>Installation length: 104mm</div> <div>[SS]: Material electrodes: </div> <div>Stainless steel incl. grounding electrode, standard for hard rubber, soft rubber, Wagunit</div> <div>[1]: Transmitter mounting: integrated transmitter</div> <div>Protection class sensor: IP67<span> </span></div> <div>[0]: Approvals: without<br /> </div> <div></div> <div>Include:</div> <div>[UMF2-A]:</div> <div>Mounting, integrated transmitter IP67 standard</div> <div>Thread - electrical connection, ½" NPT (f)</div> <div>[1]: Display and control unit, integrated</div> <div>[4]: Power supply, 24V DC (±15%)</div> <div>[G]: Output:</div> <div>current output 1: 4 - 20mA with HART-protocol</div> <div>pulse output: passive Um=24VDC</div> <div>status output: passive Um=24VDC</div> <div>[0BK]: Design, Kobold</div> S/ 6,626.61 6626.610000000001 PEN	EP Magnetic inductive flowmeter, Temperature: 0°C - 80°C <div>EP Magnetic inductive flowmeter</div> <div>Brand: Heinrichs Group Kobold</div> <div>Model: EP-H-0317-SS-1-0+UMF2-A-1-4-G-0BK</div> <div>[EP-H]:</div> <div>Material - lining: hard-rubber</div> <div>Standard 3 stainless steel electrodes </div> <div>Temperature: 0°C - 80°C</div> <div>[0317]: Process Connection: </div> <div>Flangeless sandwich design for DIN EN 1092-1 DN40 PN40 flanges</div> <div>Max. measuring range (Water 20°C, 1 mPas): 45 m³/h</div> <div>Installation length: 104mm</div> <div>[SS]: Material electrodes: </div> <div>Stainless steel incl. grounding electrode, standard for hard rubber, soft rubber, Wagunit</div> <div>[1]: Transmitter mounting: integrated transmitter</div> <div>Protection class sensor: IP67<span> </span></div> <div>[0]: Approvals: without<br /> </div> <div></div> <div>Include:</div> <div>[UMF2-A]:</div> <div>Mounting, integrated transmitter IP67 standard</div> <div>Thread - electrical connection, ½" NPT (f)</div> <div>[1]: Display and control unit, integrated</div> <div>[4]: Power supply, 24V DC (±15%)</div> <div>[G]: Output:</div> <div>current output 1: 4 - 20mA with HART-protocol</div> <div>pulse output: passive Um=24VDC</div> <div>status output: passive Um=24VDC</div> <div>[0BK]: Design, Kobold</div> S/ 6,531.84 6531.84 PEN

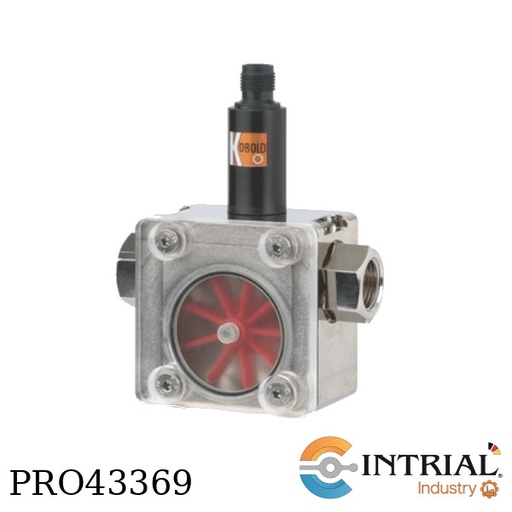

Paddle Wheel Flow Sensor, GPM): 0.66...13.2 Paddle Wheel Flow Sensor<br /> Model: DRH-1998-N6<br /> Brand: Kobold (USA)<br /> [DRH-1998-N6]:<br /> Specifications<br /> Accuracy: ±2.5% of Full Scale<br /> Frequency: PNP, 25 mA max.14-28 VDC<br /> Flow Range (GPM): 0.66...13.2<br /> Fitting (NPT) 1 "<br /> S/ 2,285.42 2285.42 PEN	Paddle Wheel Flow Sensor, (GPM): 0.08...0.75 Paddle Wheel Flow Sensor<br /> Model: DRH-1965-N3<br /> Brand: Kobold<br /> [DRH-1965-N3]:<br /> Power Supply: 12-28 VDC<br /> Power Consumption: 10 mA<br /> Fitting (NPT), 3/8"<br /> Flow Range (GPM): 0.08...0.75<br /> S/ 2,125.04 2125.04 PEN	Paddle Wheel Flow Sensor Flow Range (GPM): 0.13...1.6 Paddle Wheel Flow Sensor<br /> Model: DRH-1975-N3<br /> Brand: Kobold (USA)<br /> [DRH-1975-N3]:<br /> Specifications<br /> Accuracy: ±2.5% of Full Scale<br /> Frequency: PNP, 25 mA max.14-28 VDC<br /> Flow Range (GPM): 0.13...1.6<br /> Fitting (NPT) 3/8"<br /> S/ 2,125.04 2125.04 PEN	Paddle Wheel Flow Sensor Flow Range (GPM): 0.26...4.2 Paddle Wheel Flow Sensor<br /> Model: DRH-1985-N3<br /> Brand: Kobold (USA)<br /> [DRH-1985-N3]:<br /> Specifications<br /> Accuracy: ±2.5% of Full Scale<br /> Frequency: PNP, 25 mA max.14-28 VDC<br /> Flow Range (GPM): 0.26...4.2<br /> Fitting (NPT) 3/8" S/ 2,125.04 2125.04 PEN

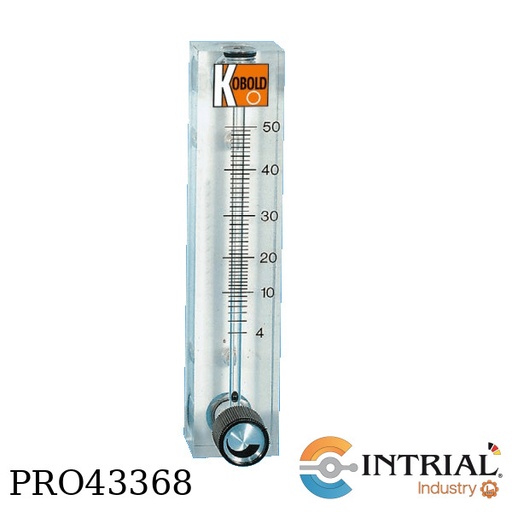

Low Volume Flowmeter <strong>Low Volume Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: KFR-42-69-N0</strong><br /> [KFR-42]<br /> Operating principle, variable area<br /> Mounting position, vertical<br /> Flow direction, from bottom<br /> Total length, 165 mm<br /> Accuracy, ±3 % FS<br /> Max. temperature, 65 °C<br /> Max. pressure, 6,5 bar<br /> Housing, Acryl<br /> Connection material, St.st.<br /> Connection size,1/8" NPT female on rear<br /> Seal, FPM<br /> [69] Measuring range, 1...10 L/min water<br /> [N0] Options, Needle valve<br /><br /><strong>Include:<br /> Model: KFR-PPHW024</strong><br /> set hose barbes (2 pcs.) S/ 947.70 947.7 PEN	Low Volume Flowmeter <strong>Low Volume Flowmeter<br /> Brand: Kobold (Alemania)<br /> Model: KFR-22-15-N0</strong><br /> [KFR-22]:<br /> Operating principle, variable area<br /> Mounting position, vertical<br /> Flow direction, from bottom<br /> Total length,102 mm<br /> Accuracy, ±5 % FS<br /> Max. temperature, 65 °C<br /> Max. pressure, 6,5 bar<br /> Housing, Acryl<br /> Connection material, St.st.<br /> Connection size,1/8" NPT female on rear<br /> Seal, FPM<br /> [15] Measuring range, 1...10 L/min air<br /> [N0] Options, Needle valve<br /><br /><strong>Include:<br /> Model: KFR-PPHW024</strong><br /> set hose barbes (2 pcs.) S/ 743.58 743.58 PEN	EPS Electromagnetic Flow Mete, -20...+150 °C,IP67, 159 mm EPS Electromagnetic Flow Meter<br /> Brand: Kobold(Heinrichs)<br /> Model: EPS-A-7010-N-N-0-1-0<br /> [A] Material Lining; Ceramics<br /> Electrodes; Standard 2x Measuring Electrodes<br /> Process-Temperature; -20...+150 °C<br /> [7010] Process connection; DN25 Tri-Clamp-Connection<br /> Max. measuring range (Water 20°C, 1 mPas); 19,1 m³/h<br /> Installation length: 159 mm <br /> [N] Material Process connection; HC22(2.4602)PTFE-gasket<br /> [N] Material electrodes; Platinum / Iridium<br /> [0] Earthing electrode; w/o<br /> [1] Transmitter mounting; Integrated transmitter<br /> Protection class, sensor; IP67<br /> [0] Certificates; w/o<br /> <br /> UMF2-A-1-2-G-0BK<br /> [UMF2]: Transmitter<br /> [A]: Mounting, IP67<br /> Integrated transmitter IP 67 standard<br /> term.conn.box on transmitter ½" NPT (f)<br /> [1]: Display and control unit, integrated<br /> [2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br /> [G]: Output Signal:<br /> current output: 1x 0/4-20 mA c/w HART protocoll<br /> pulse output: passive Um=24 VDC<br /> status output: passive Um=24 VDC<br /> [0BK]: Design, Kobold<br /> S/ 7,450.38 7450.38 PEN	Coriolis Massflowmeter, Process temperature: -4° to 212°F, -20° to 100°C , Range: min. 0-6.000 kg/h <br /><strong>Coriolis Massflowmeter<br /> Brand: Kobold - Heinrichs (Alemania)<br /> Model: TMU-S-040-331B-A-0-0-C-L-1-1-0</strong><br /> [TMU-S]<br /> Wetted materials, Stainless steel<br /> [040] Meter line size, DN40, ANSI 1½"<br /> Range: 3.00 a 300 gal/min (US)<br /> [331B] Process connnection, DN80 PN40 Form B1 DIN EN 1092-1<br /> Installation length 600 mm<br /> [A] Containment options, Stainless steel containment 1.4301 (304)<br /> [0] Heating/cooling, none<br /> [0] Connection for heating / cooling, none<br /> [C] Sensor configuration, Remote mount transmitter<br /> Process temperature: -40° to 212°F, -40° to 100°C<br /> Sensor Cable Connection, Terminal block via ½" NPT (f) IP66<br /> [L] ApprovaIs, ATEX / IECEx II 1/2G Ex ia IIC T6 - T2 Ga/Gb<br /> [1] Calibration Flow, standard, 3-points<br /> [1] Calibration Density, Standard (3-point)<br /> [0] Supplementary equipment, None<br /><br /><strong>Include:<br /> Transmitter UMC3<br /> Model: UMC3-C-0-2-C-2-1-H</strong><br /> [C] Mounting, Remote mount; terminal block via 1/2" NPT (f)<br /> [0] Display / Interface board, None<br /> [2] Power supply, 19 - 36V DC, 24V AC (±20%), 50/60Hz<br /> [C] Outputs:<br /> Custody transfer (OIML R-117)<br /> Analog output: 4 - 20mA - active<br /> Pulse output 1: passive Um=30V DC<br /> Pulse output 2: passive Um=30V DC<br /> Status output: passive Um=30V DC<br /> Binary input: passive Um=30V DC<br /> [2] Approvals, II(1)2G Ex d [ia] IIB/IIC T3-T6 (Type of protection connection area Ex d)<br /> for ambient temperature up to 60°C<br /> [1] Type of protection (signal output), Ex ia<br /> [H] Design, Heinrichs S/ 58,820.17 58820.17 PEN
