Paddle Type Flow Switch<br />
Model: PSE-11-520-R-15-R-1<br />
Brand: Kobold (Alemania)<br />
[PSE-11] Paddle Type Flow Switch<br />
[520] Measuring range/paddle: Paddle length: 52 mm(58 mm for NPT)<br />
[R] Connection: G-thread<br />
[15] Connection: 1/2"<br />
[R] Contact versión: N/O<br />
[1] Connecting cable: PVC-cable 1.5 m (standard)<br />
Operating principle: paddle<br />
Mounting position: horizontal<br />
Approvals: w/o<br />
Body material: brass<br />
max. pressure* 100 bar

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-35HG9-E05-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display: <br />
TFT-display, 128 x 128 color pixel, <br />
1,4", rotatable in 90° steps, <br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[35HG9]: Measuring range (flow/temperature), 1,5…350 L/min. / [°C] G 2 male<br />
[E05]: remote electronic / 5m ETFE-cable<br />
[0]: Options, without

Low Volume Flowmeter/-switch<br />
Model: KSK-1-050-I-P08-00<br />
Brand: Kobold (Alemania)<br />
[KSK-1]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Trogamide<br />
Accuracy Class 4<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM<br />
[050]: Measuring range, 1.0 ...5.75 Nm3/h (7 bar rel)<br />
[I]: Scale, 7 bar rel. air measuring ranges <br />
[P08]: Connection for size 80 L/h water, PVC G 1/4 female<br />
[00]: Option contact, w/o<br />

EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-A-H06A-N-N-0-1-0+ UMF2-A-1-2-G-0BK<br />
[EPS-A]: Sensor<br />
Material Lining Ceramics, Standard 2x Measuring Electrodes<br />
Process Temperature, -20°C…+150°C<br />
[H06A]: Process connection, DN 6 - 1/2"NPT(Hastelloy) / incl. Gasket/PTFE<br />
Material Lining / Electrodes / Ceramics / Platinum / PTFE  / <br />
Max. measuring range (Water 20°C, 1 mPas), 1020 l/h<br />
Installation length, 156 mm<br />
[N]: Material Process connection, HC22(2.4602)PTFE-gasket<br />
[N]: Material electrodes, Platinum / Iridium<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br />
<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design,  Kobold<br />

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-1-0 + UMF2-A-1-2-G-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS]: Sensor<br />
[P]: Material Lining, PTFE, Electrodes, Standard 2x Measuring Electrodes,<br />
Process-Temperature, -20°C...150°C<br />
[206R]:Process connection, ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
<br />
UMF2-A-1-2-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design: Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-201R-1-H-0-1-0 + UMF2-A-1-2-G-0BK</strong><br />
[EPS]: Sensor<br />
[P]: Material Lining, PTFE, <br />
Electrodes, Standard 2x Measuring Electrodes,<br />
Process-Temperature, -20°C...150°C<br />
[201R]:Process connection: ½ "Class 150 RF ASME B16.5-2003<br />
(Water 20°C, 1 mPas)Max. measuring range: 6,6 m³/h<br />
Installation length: 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
<br />
UMF2-A-1-2-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design: Heinrichs<br />

Variable Area Flowmeter with glass measuring tube<br />
Brand: Kobold (Alemania)<br />
Model: URB-18L-G6<br />
[URB]:<br />
Operating principle:variable area<br />
Mounting position: vertical, from bottom<br />
Accuracy: class 4 acc. VDI/VDE 3513<br />
Max. temperature: 65°C<br />
Max. pressure: 3 bar<br />
Connection: PVC<br />
Seal: NBR option: EPDM<br />
Measuring tube/float: Borosilicate glass/st. steel (1.4404)<br />
[18L]: Measuring range: 2...20 Nm³/h air<br />
[G6]: Connection: G 1male<br />

<strong>Variable Area Flowmeter-Plastic KSM<br />
Model: KSM-2-060-Q-P25-R0<br />
[KSM-2]:</strong><br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Polysulfone<br />
Accuracy, ±4 % FS<br />
Max. temperature, 100 °C*<br />
Max. pressure, 16 bar<br />
[060] Measuring range: 600...6000 L/h water<br />
[Q] either scales for liquid media, m³/h water<br />
[P25] Option connection, PVC G 1 female<br />
[R0] Option contact: w/o contact

<span style="font-size:9px;">Float with measuring cone<br />
Model: V31-40201S-02-C1W(L)-VFA104-0000000-K<br />
Brand: Kobold (Heinrichs)<br />
Operating conditions<br />
Fitting position: vertical<br />
Flow direction: bottom to top<br />
Performance characteristics<br />
Accuracy class VDI/VDE 3513: 1,6 % (liquids)<br />
Process conditions/scale<br />
Range:[kg/h] : 13-130<br />
Fluid: Toluene<br />
Density[kg/m³] : 1220<br />
Viscosity[cP] : 1<br />
Process temperature[°C] : 35 (max. 80)<br />
Process pressure[PSI g] : 150<br />
Mechanical construction<br />
Material-body: SS 1.4301<br />
Material-measuring cone: Borosilicate-glass<br />
Material-float stops: PVDF<br />
Material-float: Alu-3.1645-guided<br />
Material-sealing: FEP/Perfluor - FFKM<br />
Material-cap nut: Alu, laquered<br />
Material-process conn: stainless steel<br />
Material-splinter shield: Acrylglass<br />
Measuring cone: C1W(L)<br />
Float type: 02<br />
Nominal pressure: S05: max. 15 bar<br />
Process connection: G 1/2"(f)<br />
Fitting length: 375 mm - (screw. conn.)<br />
Design: Kobold<br />
Net weight[kg/each] :approx. 2,5<br />
Optional<br />
Certificate: without<br />
Calibration Certificate: without<br />
Cleaning in acc. WN: without<br />
Pressure-/Tightness test: without<br />
Approval: no EX version<br />
Marking (TAG): without<br />
Electrical output: without</span>

<br />
<br />
<strong>Micro Variable Area Flowmeter KDS<br />
Brand: Heinrichs - Kobold<br />
Model: KDS-K-G-P-O-0-E-E-0</strong><br />
[KDS]:<br />
All-metal design<br />
Range (0,1-1 l/h - 20-200 l/h H2O)<br />
Connection ¼" NPT (f)<br />
Temp. min. -40 °C, max. 130 °C<br />
[K]: Variable Area Flowmeter, rear connection,<br />
overall length 90 mm, max. 40 bar, measuring accuracy 3% of range<br />
[G]: Range: H2O: 4 - 40 l/h / Air 120-1200 Nl/h<br />
[P]: Sealing: PTFE<br />
[O]: Valve: top , (standard)  (not for KDS-S)<br />
[0]: Certificates: without<br />
[E]: Scale: Measuring Range-Scale (Alcohol)<br />
Approval: IIC 2GD c IIC (BVS 03 ATEX H-B 113)<br />
[E]: Switches: Transmitter 4-20mA w/o HART<br />
Connection: M12 plug<br />
Processtemperature -25C - +100°C<br />
[0]: Accessories: without<br />

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-60H-AC-1-E3-N-N</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[60H]: Measuring range, 150-2500 L/min<br />
[AC]: Mech. connection for meas. range 55H and 60H, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi), incl. battery<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery<br />

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-55H-AC-1-E3-N-N</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[55H]: Measuring range, 75-1500 L/min<br />
[AC]: Mech. connection for meas. range 55H and 60H, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi), incl. battery<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery<br />

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5NA-25-A-C34P + ZUB-KAB-12D500<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-5NA]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal NBR<br />
[25]: Measuring range (liquid >30 µS/cm),0,8...16 L/min G 3/4 male<br />
[A]: Connection set, without<br />
[C34P]: Evaluation electronic for MIK, Compact electronic, 24 VDC, 4-20 mA, 1x PNP<br />
Include:<br />
Accessories Circular Plug-in connector<br />
Model: ZUB-KAB-12D500<br />
[D500]: M12x1 box with terminal , 5-pin

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-205R-1-H-0-1-0<br />
Brand: Kobold-Heinrich</strong><br />
[P] Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[205R] Process connection, 1½" Class 150 RF ASME B16.5-2003<br />
Max. measuring range:  38 m³/h<br />
Installation length 200 mm<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy<br />
[0] Earthing electrode, w/o<br />
[1] Transmitter mounting, integrated transmitter. <br />
Protection class sensor, IP67<br />
[0] Certificates, w/o<br />
<br />
UMF2-A-1-1-F-0BH-0<br />
[UMF2] Transmitter<br />
[A] Mounting, integrated transmitter IP67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design, Henrich

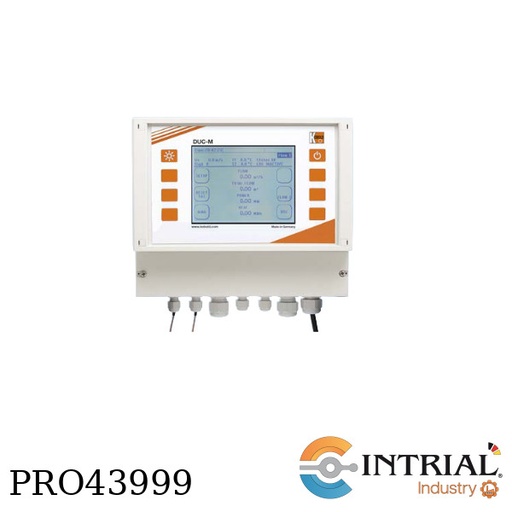

Transmitter Clamp-on Ultrasonic Flow Meter <br />
Model: DUC-MF-1-0-0-S-00 + DUC-WF-10-0-10<br />
Brand: Kobold (Alemania)<br />
[DUC-MF]: <br />
Operating principle ,Ultrasonic<br />
Mounting version, stationary, wallmount<br />
Measuring units, volume flow, flow velocity, thermal output<br />
Counter,  heat quantity, volume<br />
Housing, ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1(2) pulse, 1x micro-USB,<br />
1 relay; optional RS232/RS485<br />
Measuring channels: 1, optional 2 channels<br />
Protection: IP 65<br />
[1] Measuring channels: 1 channel<br />
[0] Power supply: 90-240 VAC<br />
[0] Ex-approval: without<br />
[S] Language packages: german/spanish/french<br />
[00] Options: without<br />
Model: DUC-WF-10-0-10<br />
[DUC-WF]:<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[10]: for tube diameter, DN32..DN400, 1 MHz<br />
[0]: Ex-approval¸ without<br />
[10]: Cable length, 10 m

<strong>Accessories for DUC<br />
Model: DUC-ZF-MS+ DUC-ZF-10+ DUC-ZF-EB<br />
Brand: Kobold (Alemania)<br />
Iclude:</strong><br />
Application area for stationary<br />
<br />
[<strong>DUC-ZF-MS</strong>]: Mounting rails suitable for transducer<br />
DUC-WF10, -WP10 (max. DN 400), max.150 °C<br />
[<strong>DUC-ZF-10</strong>] coupling foil 2 pair for DUC-WF10<br />
[<strong>DUC-ZF-EB</strong>] stainless steel strap (1 pair)<br />
suitable for ultrasonic transducer<br />
DUC-WF21, -WF10 (max. DN400)<br />
<br />
<span style="font-size:12px;"><span style="font-family:'Times New Roman', serif;">DUC-ZF-MS…(2) UND<br />
DUC-ZF-10….(2) UND<br />
DUC-ZF-EB…(4) UND</span></span>

Accessories for DUC<br />
Brand: Kobold (Alemania)<br />

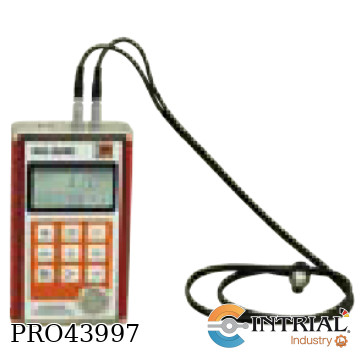

Model: DUC-ZF-WD<br />
[DUC-ZF]: Application area for stationary<br />
[WD]: wall thickness gauge (Universal) <br />
Opcional

Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DUC-WF-10-0-30<br />
[DUC-WF]<br />
Application area for stationary<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, coupling foil, steel strap<br />
[10] for tube diameter, DN32..DN400, 1 MHz<br />
[0] Ex-approval¸ without<br />
[30] Cable length, 30 m

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold-Heinrichs<br />
Model: BGN-H25-223R-M-0-F-0-0-S-5-K-0-K</strong><br />
[BGN] Model<br />
[H25] Hastelloy C22, process temperature ≤ 350°C<br />
[223R] Connection, size, 1" Class 300 RF ASME B16.5-2003<br />
[M] Rango: 0.12 a 1.20 m3/h<br />
[0] Heating/cooling, without<br />
[F] Damping/spring stop, with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display, Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[K] Switches, Transmitter ES with Foundation Fieldbus<br />
[0] Accessories, without<br />
[K] Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-H25-223R-M-0-F-0-0-S-5-9-0-K</strong><br />
[BGN] Model<br />
[H25] Hastelloy C22, process temperature ≤ 350°C<br />
[223R] Connection, 1" Class 300 RF ASME B16.5-2003<br />
[M] Range, 100 - 1000 l/h    <br />
[0] Heating/cooling, without heating / Cooling<br />
[F] Damping/spring stop: with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[9] Switches, Transmitter ES with Profibus PA, EEx ia, -40° to +70°C<br />
[0] Accessories, without<br />
[K] Design, Kobold
