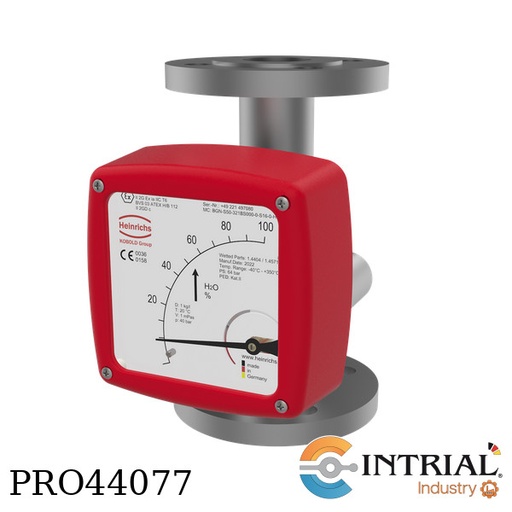

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S50-321B-S-0-0-0-0-S-5-6-0-H<br />
[BGN]: Model<br />
[S50]: Model, Stainless Steel, process temperature  = 350°C<br />
[321B]: Connection, DN50 PN40 Form B1 DIN EN 1092-1 <br />
[S]: Range (water 20°C, 1mPas): H2O: 1-10 m3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[0]: Damping / spring stop, without <br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing, <br />
Process temperature = 150°C for electrical output, <br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs<br />
<br />
Data Process.<br />
Media: Water<br />


All-Metal Variable Area Flowmeter BGN<br />
Brand: KOBOLD (Heinrichs)<br />
Model: BGN-S15-305B-J-0-G-0-0-S-5-0-0-H<br />
<span class="value">[S15]: Model, Stainless Steel, process temperature = 350°C<br />
[305B]: Connection, size; DN15 PN40 Form B1 DIN EN 1092-1<br />
[J]: Range, 1.8 a 15.45 Nm3/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches,without<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs</span>

Oval Gear Flow Meter/Counter<br />
Brand: Kobold<br />
Model: DON-2-10H-N2-3-H0-N-0<br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C *<br />
*80 °C with electronic Z,L,M<br />
max. pressure 16...100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[10H] Measuring range, 2-100 L/h<br />
[N2] Mech. connection, for range 10H 1/4 NPT<br />
[3] Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[H0] Electronic, Pulse output Hallsensor/Reed switch, Push Pull (8-30 VDC)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without

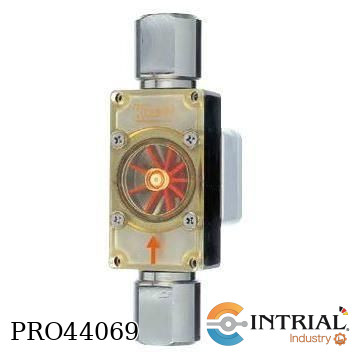

Paddle Wheel Flow Sensors DF
MODEL: DF-0409-B
DF Flow Sensor Material Combination: IV
Range (Water): 1...25 GPM
Stand.Connection.: 1-1/4" NPT
Diameter of Orifice: 0.59
Press. Drop Max.: 15.9 PISG
[B]Options: Suffix "..B" Special Conn. (NPT), ?1-1/2"

<br />
<strong>Low Volume Flowmeter<br />
Brand: Kobold<br />
Model: KFR-41-53-N0</strong><br />
[KFR-41]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size, 1/8 NPT female on rear<br />
Seal, NBR<br />
[53] Measuring range, 100...1500 cm³/min water<br />
[N0] Options, Needle valve

Compact Magneto-Inductive Flowmeter -Model MIK<br />
Model: MIK-6FC-U7-A-L443<br />
Brand: Kobold USA<br />
[MIK-6FC]<br />
Measurement Process: Electromagnetic<br />
Mounting Position: Universal, Flow in Direction of the Arrow<br />
Ambient Temperature: 14 ... 140 °F<br />
Max. Pressure: 145 psi<br />
Protection, IP 65<br />
PVDF-housing, FFKM-seal,<br />
Hastelloy- electrode<br />
[U7]: Measuring Range, Native, Process Connection, 0.4…8.0 GPM, G 1<br />
[A]:  Optional Fitting Set, without<br />
[L443]: Output/Electronics, DIN-plug, 4 - 20 mA

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-35H-R9-1-Z3-N-N</strong><br />
[DON-1]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 80 °C<br />
max. pressure 16…64 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material Aluminium<br />
Rotor material PPS<br />
[35H] Measuring range, 30-450 L/min<br />
[R9] Mech. Connection, G 2 for meas. range 35H<br />
[1] Seal, FKM for DON-x30…DON-x40<br />
[Z3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N] Cable entry, 1/2 NPT<br />
[N] Options, without battery

<strong>All-Metal Flowmeter - Switch<br />
Brand: Kobold<br />
Model: SMW-11-11H-L-R0-R25</strong><br />
[SMW-11]:<br />
Operating principle variable area<br />
Mounting position horizontal<br />
Flow direction s. below<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
[11H]: Adjustment range, 5...90 L/min water<br />
[L]: Flow direction, from left<br />
[R0]: Contact, 1 N/O<br />
[R25]: Connection, G 1 female

<strong>All-Metal Flowmeter /Switch<br />
Brand: Kobold (ALEMANIA)<br />
Model: SMW-31-01H-L-R0-R15</strong><br />
[SMW-31]<br />
Operating principle variable area<br />
Mounting position horizontal<br />
Flow direction s. below<br />
Body material Brass <br />
Seal NBR<br />
Side mounted indication yes<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
[01H] Adjustment range, 0,5...3,5 L/min water<br />
[L] Flow direction, from left<br />
[R0] Contact, 1 N/O<br />
[R15] Connection, G 1/2 female

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05H-N1-1-E3-N-N<br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[05H] Measuring range, 0,5-36 L/h<br />
[N1] Mech. Connection, for meas. range 05H, G 1/8<br />
[3] Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi), incl. battery<br />
[N] Cable entry, 1/2 NPT<br />
[N] Options, without battery

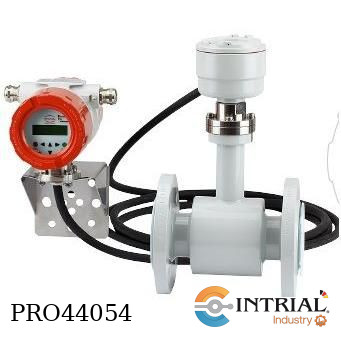

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-212R-1-S-S-2-0 + UMF2-C-1-1-G-0BK-2<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[212R] Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, IP 67 terminal conn.box via M 20 x 1,5,<br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br />
[UMF2] Transmitter<br />
[C] Mounting, Remote transmitter<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting<br />
bracket Thread - electrical connection,<br />
cable > 10m add. term.conn.box on transmitter, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold<br /><span style="color:rgb(34,34,34);font-family:'OpenSans-Regular', sans-serif;font-size:12px;background-color:rgb(255,255,255);">[2] Longer cable, 10m breakout cable</span>

Accessories /Spare part<br />
Model: ERS-ZOK-023618<br />
Brand: Kobold (Alemania)<br />
2" pipe mount kit, stainless steel

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSE-22-498-N-15-U-1<br />
[PSE-22]:<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approval  ATEX / IECEx<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
Rising flow rate water: 183-250 l/min<br />
Falling flow rate water: 170-233 l/min<br />
[498]: Measuring range/paddle, Paddle length: 60 mm for NPT<br />
[N]: Connection, NPT<br />
[15]: Connection, ½”<br />
[U]: Contact versión, SPDT<br />
[1]: Connecting cable, PVC-cable 1.5 m (standard)

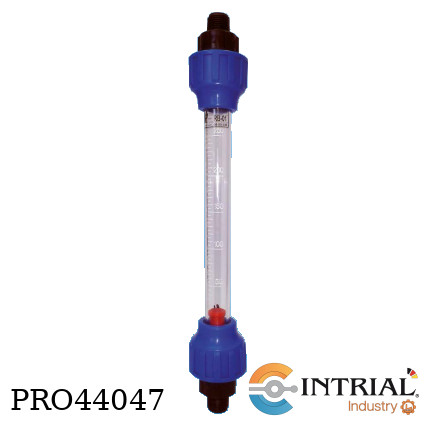

<strong>Variable Area Flowmeter with glass measuring tube<br />
Brand: Kobold (Alemania)<br />
Model: URB-18H-I6-0</strong><br />
[URB]:<br />
Operating principle:variable area<br />
Mounting position: vertical, from bottom<br />
Accuracy: class 4 acc. VDI/VDE 3513<br />
Max. temperature: 65°C<br />
Max. pressure: 3 bar<br />
Connection: PVC<br />
Seal: NBR option: EPDM<br />
Measuring tube/float: Borosilicate glass/st. steel (1.4404)<br />
[18H]: Measuring range: 63...630 L/h water<br />
[I6]: Connection: G1 female<br />
[0]: Gasket: NBR

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-55H-AC-1-HE-N-0</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[55H]: Measuring range, 75-1500 L/min<br />
[AC]: Mech. connection for meas. range 55H and 60H, ANSI flange 4" 150 lbs<br />
[1]: Seal, FKM for DON-x45…DON-x60<br />
[H3]: Electronic, Pulse output Hallsensor/Reed switch, Push Pull (exd)<br />
[N]: Cable entry, 1/2 NPT<br />
[O]: Options, without<br />

<p class="MsoNormal"><span style="font-size:13.5pt;line-height:107%;color:#000000;">Oval Gear Flow Meter/Counter</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Brand: Alemania</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Model: DON-2-50H-AB-1-HE-N-0<br />
<span style="float:none;word-spacing:0px;">[DON-2]:</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Operating principle Gear Wheel</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Mounting position horizontal / vertical</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Flow direction in direction of the arrow</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">max. temperature 120 °C*</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">max. pressure 16 bar</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Accuracy ±0,2 % …1 % of reading</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Housing material st. steel</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">Rotor material st. steel</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[50H]: Measuring range, 50-1000 L/min</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[AB]: Mech. Connection, ANSI flange 3" 150 lbs</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[1]: Seal, FKM for DON-x45…DON-x60</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[HE]: Electronic, Pulse output Hallsensor/Reed switch, Push Pull (exd)<br />
<span style="float:none;word-spacing:0px;">[N]: Cable entry, 1/2 NPT</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">[0]: Options , without</span><br style="word-spacing:0px;" />
<span style="float:none;word-spacing:0px;">*Not include battery</span></span></span></p><p></p>

<strong>Oval Wheel Flowmeter Model DON<br />
Model: DON-1-55H-RC-4-M4-0-0<br />
Brand: Kobold (Alemania)</strong><br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C <br />
max. pressure, 40 bar<br />
Accuracy, ± 1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[55H]: Measuring range, 75-1500 L/min <br />
[RC]: Mech. connection, for meas. range 55H and 60H, G 4<br />
[4]: Seal, NBR<br />
[M4]: Electronic, mech. totaliser 4-digit (not for DON-x05…DON-x15)<br />
[0]: Cable entry, without (only for mechanical totaliser "M4")<br />
[0]: Options, without

<strong>Oval Wheel Flowmeter Model DON<br />
Model: DON-8-55H-RC-4-M4-0-0<br />
Brand: Kobold</strong><br />
[DON-8]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[55H]: Measuring range, 75-1500 L/min<br />
[RC]: Mech. connection, for meas. range 55H and 60H, G 4<br />
[4]: Seal, NBR<br />
[M4]: Electronic, mech. totaliser 4-digit (not for DON-x05…DON-x15)<br />
[0]: Cable entry, without (only for mechanical totaliser "M4")<br />
[0]: Options, without<br />

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-55H-RC-4-M4-0-0</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[55H]: Measuring range, 75-1500 L/min<br />
[RC]: Mech. Connection, or meas. range 55H and 60H: G 4<br />
[4]: Seal: NBR<br />
[M4]: Electronic: mech. totaliser 4-digit (not for DON-x05…DON-x15)<br />
[0] Cable entry: without (only for mechanical totaliser "M4")<br />
[0] Options (please specify in clear text): without<br />

<strong>Variable Area Flowmeter-switch<br />
Brand: Kobold (Alemania)<br />
Model: DSV-21-05H-R0-R20</strong><br />
[DSV-21]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Fitting material brass <br />
Sight glass Borosilicate<br />
Accuracy ±4 % FS<br />
Max. temperature 70 °C (plastic-float)<br />
Max. pressure 10 bar<br />
[05H]: Measuring range, 2...18 L/min water<br />
[R0]: Contact, 1 N/O<br />
[R20]: Connection measuring range, G 3/4 female (betw. 10 and 50 L/min)
