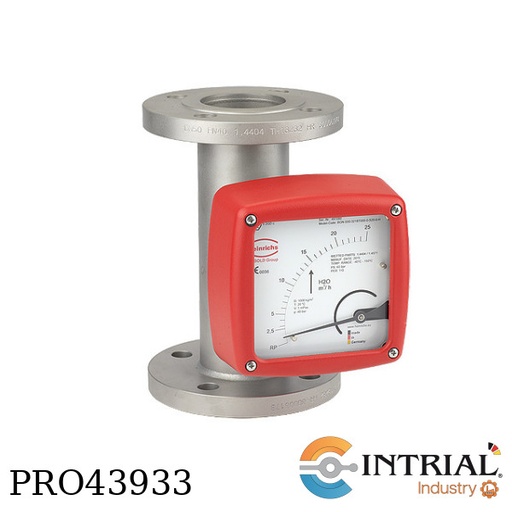

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S50-206R-Q-0-S-0-0-S-5-6-0-K</strong><br />
[BGN]<br />
[S50] Model, Stainless Steel, process temperature ≤ 350°C<br />
[206R] Connection, 2" Class 150 RF ASME B16.5-2003<br />
[Q] Range: 12.24 a 122.40 Sm3/h-- AIRE<br />
[0] Heating/cooling, without heating / Cooling<br />
[S] Damping/spring stop, Gas damping, and spring stop<br />
[0] Self-draining, without<br />
[0] Certificates, without  <br />
[S] Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media) <br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0] Accessories, without<br />
[K] Design, Kobold<br />
Range: 12.24 a 122.40 Sm3/h-- AIRE<br /><br />
INCLUYE:<br />
CALIBRATION CERTIFICATE<br />
Brand: Kobold<br />
Model: ZGN-CALIBRATION-CERTIFICATE<br />
ZGN-CALIBRATION-CERTIFICATE FOR BGN 5 POINTS

<strong>Low Volume Flowmeter/-switch<br />
Brand: Kobold<br />
Model: KSK-2-500-H-P15-00</strong><br />
[KSK-2]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material, Polysulfone<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
[500] Measuring range, 50...500 L/h water<br />
[H] Scale, L/h waterscale<br />
[P15] Connection , PVC G 1/2 female<br />
[00] Option contact, w/o contact

<strong>Oscillation Flow Meter for Gases<br />
Brand: Kobold (Alemania)<br />
Model: DOG-42-B0B50-1-N0-0</strong><br />
[DOG-42]<br />
Operating principle: electronic mounted and wired in IP 65-housing<br />
Mounting position: any direction<br />
max. temperature: -20...+120 °C (-20...+60 °C ATEX)<br />
Housing material: st.steel 1.4404/316 L<br />
Measuring head: PPS (Polyphenylensulfid)<br />
Gaskets: Klingersil C- / NBR<br />
Protection type IP 65<br />
[B0B50] Measuring range, 1.1...110 m³/h air<br />
Flange: ANSI 2" 300 lbs<br />
[1] Shut-off ball valve to measuring unit, with ball valve<br />
[N0] Remote electronic, <br />
as "M0" ( Flow computer: Input pulse, Pt100, 4..20 mA (pressure)<br />
 incl. transmitter "B0", 230 VAC<br />
output: 4..20 mA, supply:230 Vac ± 10%, ohne ATEX<br />
electronic mounted and wired in IP 65-housing )<br />
, but with ATEX-transmitter "A0", 230 VAC<br />
output: 4..20 mA, supply:230 Vac ± 10%, with ATEX<br />
electronic mounted and wired in IP 65-housing<br />
[0] Options, w/o

Transmitter Clamp-on Ultrasonic Flow Meter<br />
Brand: KOBOLD (Alemania)<br />
Model: DUC-MP-1-0-0-S-00<br />
[DUC-MP]:<br />
Operating principle ,Ultrasonic<br />
Mounting version, stationary, Portable<br />
Measuring units, volume flow, flow velocity, thermal output<br />
Counter, heat quantity, volume<br />
Housing, Aluminium, ABS<br />
Additional input for heat measuring: 2x Pt100<br />
Output: 2x4-20 mA, 1 pulse, 1x micro USB, 1 relay<br />
Measuring channels: 1<br />
Protection: IP 40<br />
[1]: Measuring channels: 1 channel<br />
[0]: Power supply: 100-240 VAC, battery <br />
[0]: Ex-approval: without<br />
[S]: Language packages: german/spanish/french<br />
[00]: Options: without<br />
<br />
Include:<br />
Transducer Clamp-on Ultrasonic Flow Meter<br />
Brand: KOBOLD (Alemania)<br />
Model: DUC-WP-10-0-03<br />
[DUC-WP]:<br />
Application area for Portable<br />
flow velocity 0..2 m/s, 2-30 m/s<br />
Temperature range -40..+150 °C<br />
Sensor Housing PEEK/aluminium<br />
Protection IP 68 (for stationary transducer)<br />
Included Accessories Mounting rail, <br />
coupling gel, textile tightening <br />
straps (DUC-WP05) or <br />
clambing chain (DUC-WP-10, - WP21)<br />
[10]: for tube diameter, DN32..DN400, 1 MHz<br />
[0]: Ex-approval¸ without<br />
[03]: Cable length, 3 m

Digital Mass Flowmeter  and Regulator<br />
Brand: Kobolb - Kobolb Messring<br />
Model: DMS-5-06-C1-N-D2-3-G<br />
DMS- 05: Model<br />
Operating principle thermal<br />
Mounting position all directions <br />
Indication LC-Display (Option)<br />
Output 4-20 mA + 0-5/0-10/1-5V, 24 VDC<br />
max. temperature 50 °C,24 °C<br />
max. pressure 35 bar<br />
[06]: Measuring range (air), 0-500 mLN/min<br />
[C1]:Connection, 1/8" compressing fitting (up to 5 L/min)<br />
[N]: Seal, Neoprene<br />
[D2]: Display, with Display<br />
[3]:Electrical connection, 24 VDC / plug connection incl. 3 m cable.<br />
[G]:Options, Gas substituation

<strong>Low Volume Flowmeter/-switch<br />
Model: KSK-2-005-H-P15-R0<br />
Brand: Kobold</strong><br />
[KSK-2]<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material, Polysulfone<br />
Accuracy, Class 4<br />
Max. temperature, 60 °C<br />
Max. pressure, PN 10<br />
Seal, EPDM<br />
[005] Measuring range, 50...500 L/h water<br />
[H] Scale, L/h waterscale<br />
[P15] Connection , PVC G 1/2 female<br />
[R0] Option contact, w/o contact

<strong>Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold(Alemania)<br />
Model: VKG-21-03-U0-R15  </strong> <br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[03] Measuring range; 0,4...2 L/min oil<br />
[U0] Contact; 1 SPDT <br />
[R15] Connection; G 1/2 female

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-15H-R3-1-L0-M-0<br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[15H]: Measuring range, 15 – 550 l/h<br />
[R3]: Mech. connection, G 3/8<br />
[1]: Seal, FKM up to DON-x25<br />
[L0]: Electronic, Transmitter 4-20 mA, loop powered<br />
[M]: Cable entry, M20<br />
[0]: Accessory, without

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDF-92-82-N-V-0-00-0<br />
[KDF-92]<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature: without/with contact 100 °C / 70 °C<br />
Max. pressure: PN 16<br />
[82]: Measuring range: 1,0...10 L/h water<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[0]: Wall mounting kit, w/o<br />
[00]: Contacts measuring range: w/o<br />
[0]: Flow differential pressure regulator, w/o<br />

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold<br />
Model: DRG-12-30-G5-C34P+ZUB-KAB-12K002</strong><br />
[DRG-12]:<br />
Operating principle Rotating Vane<br />
Mounting position / flow direction in all directions/ in direction of the arrow<br />
Accuracy +/-3%<br />
Protection IP 65<br />
Max. temperature, 80 °C<br />
Max. pressure, 40 bar<br />
Material of housing, Brass casting<br />
Material housing cover, Brass casting<br />
[30]  Measuring range, 5-140 L/min<br />
[G5] Mech. connection, for range code: 20/25/30, G 3/4 female<br />
[C34P] Electronic, Compact electronics, 4-20 mA, 1x PNP<br />
<br />
Accessories Round Plug<br />
Model: ZUB-KAB-12K002<br />
M12x1 socket with 2 m cable, 4 pins

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-H25-223R-M-0-F-0-0-S-5-6-0-K</strong><br />
[BGN] Model<br />
[H25] Hastelloy C22, process temperature ≤ 350°C<br />
[223R] Connection, 1" Class 300 RF ASME B16.5-2003<br />
[M] Range, 100 - 1000 l/h    <br />
[0] Heating/cooling, without heating / Cooling<br />
[F] Damping/spring stop: with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0] Accessories, without<br />
[K] Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-H15-223R-K-0-F-0-0-S-5-6-0-K</strong><br />
[BGN] Model<br />
[H15] Hastelloy C22, process temperature ≤ 350°C<br />
[223R] Connection, 1" Class 300 RF ASME B16.5-2003<br />
[K] Range, 40 - 400 l/h   <br />
[0] Heating/cooling, without heating / Cooling<br />
[F] Damping/spring stop: with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0] Accessories, without<br />
[K] Design, Kobold

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-H25-223R-N-0-F-0-0-S-5-6-0-K</strong><br />
[BGN] Model<br />
[H25] Hastelloy C22, process temperature ≤ 350°C<br />
[223R] Connection, 1" Class 300 RF ASME B16.5-2003<br />
[N] Range, 160 - 1600 l/h  <br />
[0] Heating / cooling, without heating / Cooling<br />
[F] Damping / spring stop : with liquid damping<br />
[0] Self draining, without<br />
[0] Certificates, without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale, Measuring range-Scale (Media)<br />
[6] Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0] Accessories, without<br />
[K] Design, Kobold

Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-2-03H-N-15<br />
[DAA-1]:<br />
Operating principle: rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[2] Material (housing/connection): st. st.<br />
[03H] Nom. diameter/ind. range*: 1/2" 1...12 L/min water<br />
[N] Thread: G-thread female<br />
[15] Connection*: 1/2"

Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-2-02H-N-10<br />
[DAA-1]:<br />
Operating principle: rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[2] Material (housing/connection): st. st.<br />
[02H] Nom. diameter/ind. range*: 3/8" 0,6...8 L/min water<br />
[N] Thread: G-thread female<br />
[10] Connection*: 3/8"

Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-2-01H-N-08<br />
[DAA-1]:<br />
Operating principle: rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[2] Material (housing/connection): st. st.<br />
[01H] Nom. diameter/ind. range*: 1/4" 0,4...4 L/min water<br />
[N] Thread: G-thread female<br />
[08] Connection*:   1/4"

Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-1-03H-N-15<br />
[DAA-1]:<br />
Operating principle: rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[1] Material (housing/connection): brass, nickle-plated<br />
[03H] Nom. diameter/ind. range*: 1/2" 1...12 L/min water<br />
[N] Thread: G-thread female<br />
[15] Connection*:     1/2"

Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-1-02H-N-10<br />
[DAA-1]:<br />
Operating principle: rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[1] Material (housing/connection): brass, nickle-plated<br />
[02H] 3/8" 0,6...8 L/min water<br />
[N] Thread: G-thread female<br />
[10] Connection*:   3/8"<br />
<br />

<strong>Compact Magnetic Inductive Flow Meter-MIM<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-10HG5-C3T-0</strong><br />
[MIM-1]: Display<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[10HG5] Measuring range (flow/temperature), 0,1…25 L/min / [°C] G ¾ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-21-15-N0+KFR-PPHW024</strong><br />
[KFR-21]<br />
Operating principle variable area<br />
<span style="font-size:13.3333px;font-family:sans-serif;">Air measuring </span><span style="font-size:13.3333px;font-family:sans-serif;">range (at 1 bar </span><span style="font-size:13.3333px;font-family:sans-serif;">abs., 20 °C)</span><br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 102 mm<br />
Accuracy ±5 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass<br />
Connection size 1/8 NPT female on rear<br />
Seal NBR<br />
[15]: Measuring range, 1...10 L/min air<br />
[N0]: Options, Needle valve<br />
[KFR-PPHW024] set hose barbes (2 pcs.)
