Modelo: KDS-SA-P-30-A-E-0
Variable Area Flowmeter/-switch-All Metal-Low Volume KDS
Measuring range: 0,1 - 1 L/h ... 20 - 200 L/h water
5,0 - 50 NL/h ... 600 - 6000 NL/h air
Connection: ¼ NPT
Material: st. st.
Max. pressure: 40 bar (64 bar) on request up to 420 bar
Max. temperature: -40...+130 °C
contact:-25..+100°C, analogue output: -40..+100°C
Accuracy: ± 3 % FS
Option: contacts, analogue output, up/downstream diff. pressure regulato
KDS-S : All-Metal Flowmeter
A: Measuring range: 0.1...1 L/h water
P: Material/Seal: st.st 1.4401/PTFE-seal
30: Connection: 1/4 NPT female
A: Scale: %-scale, standard water ranges
E: Contacts/output: Transmitter 4...20 mA EEx ib
0: Options: w/o
Ficha técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kds.pdf

FLOW METER AREA VARIABLE (SIN SALIDA DE CORRIENTE)
MODEL: BGN-S-1H210RX-0-0-0-0-S-2-0
BRAND: KOBOLD
BGN-S:
    Operating principle, variable área
    Mounting position, vertical
    Flow direction, from bottom to the top
    Material tube, st. st.
    Accuracy, 1, 6% F.S
    Max. Temperature, 350°C0
    Max. Pressure, class 150
1H210RX: Measuring range water, 8000-80000 L/h (Equivalent: 8 – 80 m3/h)
S:    Display material, Aluminium
2:    Display measuring range water
0:    Electrical output, sin salida de corriente.
Datasheet:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_bgn.pdf

FLOW METER AREA VARIABLE
MODEL: BGN-S-1H210RX-0-0-0-0-S-2-I
BRAND: KOBOLD
BGN-S:
 Operating principle, variable área
 Mounting position, vertical
 Flow direction, from bottom to the top
 Material tube, st. st.
 Accuracy, 1, 6% F.S
 Max. Temperature, 350°C0
 Max. Pressure, class 150
1H210RX: Measuring range water, 8000-80000 L/h (Equivalent: 8 – 80 m3/h)
S: Display material, Aluminium
2: Display measuring range water
I: Electrical output, 4-20 mA SIL with HART® and counter module
Datasheet:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_bgn.pdf

Rotating Vane Flow Meter
Brand: Kobold
Model: DRS-9-3-50-N5-L442-0
[DRS-9]
Operating principle, rotating vane
Mounting position, all directions
Flow direction, in direction of the arrow
Max. Temperature, 80°C
Max. Pressure, 16 bar
Accuracy, +/-1, 5%
Protection, IP65
[3] Material, plastic
[50] Measuring range, 2-40 L/min
[N5] Connection, 3/4 NPT male
[L442] Evaluating Electronic, Analogue output 4-20mA, DIN-plug, 2-wire
[0] Options, w/o

Flow Meter Turbine
Brand: Kobold
Modelo DRS-9-2-50-N5-L442-0
[DRS-9]:
Operating principle, rotating vane
Mounting position, all directions
Flow direction, in direction of the arrow
Max. Temperature, 80°C
Max. Pressure, 16 bar
Accuracy, +/-1, 5%
Protection, IP65
[2]: Material, st. st. 1.4301
[50]: Range, 2-40 L/M
[N5]: Connection, ¾” NPT male
[L442]: Evaluating Electronic, Analogue output 4-20mA, DIN-plug, 2-wire

FLOW METER TURBINE

Brand: KOBOLD
Modelo: DRS-9-1-50-N5-L442-0

[DRS-9]:

Operating principle, rotating vane

Mounting position, all directions

Flow direction, in direction of the arrow

Max. Temperature, 80°C

Max. Pressure, 16 bar

Accuracy, +/-1, 5%

Protection, IP65

[1]: Material, brass

[50]: Range, 2-40 L/M

[N5]: Connection, ¾” NPT male

[L442]: Evaluating Electronic, Analogue output 4-20mA, DIN-plug, 2-wire

Oval Gear Flow Meter/Counter
MODELO: DOM-A25H-N6-1-H-0
[DOM-A] Oval Gear Flow Meter/Counter
[25H] Measuring range: 10-150 L/min
[N6] Mech. Connection: G 1 for meas. range 25H
[1] Seal: FPM (Standard)
[H0] Electronic: Pulse output, NPN and reed switch
Operating principle: Gear Wheel
Mounting position: horizontal / vertical
Flow direction: in direction of the arrow
max. temperature: 120 °C
max. pressure: 10...68 bar
Accuracy: ±0,5 % …1 % of reading
Housing material: Aluminium
Rotor material: Aluminium
Ficha técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf

MODELO: MAS-30-15-C4-00-0
[MAS-30] Operating principle, thermal, Bypass
[15]  M-body 0-100 LN/min N2 (Equivalente: 0 a 6 m3/Hr)
[C4] Connection, Swagelok 1/2" (up to 20 LN/min)
[00] Power supply, 12 VDC
[A]  Output, 4-20 mA
Mounting position, all directions
Indication, LC-Display
Max. Temperature: 50°C
Max. Pressure: 35 bar (507 PSI)
Design, st.st.

Ficha Técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_mas-mfc.pdf

Multivariable VORTEX Flowmeter - Insertion Version
Brand: Kobold - Heinrichs (Alemania)
Modelo: DVE-V-S-L-L-2-S-0-A
[DVE-V] Vortex Flow Meter Insertion Version
[S] Probe length: Standard (max. stem length app. 690 mm)
[L] Transmitter Version/ Mounting: compact incl. Display
[L] Supply voltaje: 12-36 VDC, loop powered 1)
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)
[0] Option Pressure Sensor:
[A] Process connection: 2" NPT male, sensor-bushing compression fitting
Version: Standard
Integrated temperature sensor: no
Integrated pressure sensor: no

MODELO: DVH-V-802-S-L-A-M-S-0
[DVH-V] Vortex Flow Meter with Flange
[802] Connection (ASME B16.5.2003): Flange ANSI 3 inch 300 lbs
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L
[L] Transmitter Version/ Mounting: compact incl. Display
[A] Supply voltaje: 85-240 VAC, 50/60 Hz 2)
[M] Output: 1x 4-20 mA MODBUS 1x Alarm 1x Pulse
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)
[0] Option Pressure Sensor: without
Version Standard for
Integrated temperature sensor: no
Integrated pressure sensor: no
Transmitter Housing Aluminium
Ficha tecnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_dvh.pdf

MODELO: DRB-1130-NB-L303
[DRB-11] Pelton Wheel Flow Meter
[30] Measuring range: 50-750 L/min
[NB] Mech. Connection: 30 3 NPT female
[L303] Electronic Analogue output 0-20 mA, M12x1, 3-wire
Operating principle : Pelton Wheel (4-vane)
Mounting position / flow direction:  in all directions/ in direction of the arrow
Protection: IP 65
Max. temperature: 80 °C
Max. pressure: 16 bar
Accuracy of final value:  +/-3%
Material Housing : al. + bronze
Material Axis : Ceramic

Paddle Bellows Flow Switch for Liquids
Model: FPS-6200P
Brand: Kobold Usa
Stainless Steel Design, Paddle: stainless steel 316L
Max. Media Temperature: -40 ... 250°F
Max. Ambient Temp: -30 ... 150°F
Max. Allowed Pressure: Stainless Steel 435 PSIG
Max. Pressure Loss: Approx. 0.15 ... 0.44 PSIG
Process Connection: 1" NPT male
Inlet/Outlet Pipe Section: 5 times nominal pipe size
Electrical DetailsSwitch: SPDT contact
Switching Voltage: Max. 24 ... 250 VAC
Switching Current: Max. 8 A (inductive load)
Max. 15 A (resistive load)
Electrical Connection: Cable gland
Case: Base: ABS,
Cover: PC (transparent)
Protection Type: IP 65
Special Switching Ranges Series FPS-6
Pipe Size 1" a 8 "
check technical sheet

MODELO: DMH-1-L50-H-1-1-A-1-5
[DMH-1] Magnetic Inductive Flow Meter with flange
[L50] Connection flange ASME 16.5: 2" 150 lbs max. 0..62 m³/h
[H] Lining: hard rubber
[1] Electrodes material: st.st.
[1] Grounding Electrodes material: st.st.
[A] Version/cable length: compact version, 1/2 NPT connection
[1] Electronic: UMF2-Electronic without HART®
[5] Power supply/Cable entries: 230 VAC 1/2 NPT
Mounting position : all directions
Display / Protection class: LCD Display / IP 67
Output: Analogue, frequency, connection and status output
Max. medium temperature:  80°C
Connection: steel
Coating: Hard rubber

MODELO: DMT-2-L25-T-33A15
[DMH-2] Magnetic Inductive Flow Meter with flange
[L25] Connection flange ASME 16.5: 1" 150 lbs max. 0..17 m³/h
[T] Lining: PTFE
[3] Electrodes material: Hastelloy C4
[3] Grounding Electrodes material: Hastelloy C4
[A] Version/cable length: compact version, 1/2 NPT connection
[1] Electronic: UMF2-Electronic without HART®
[5] Power supply/Cable entries: 230 VAC 1/2 NPT
Mounting position : all directions
Display / Protection class: LCD Display / IP 67
Output: Analogue, frequency, connection and status output
Max. medium temperature:  150°C
Connection: St.  steel
Coating: Hard rubber

MODELO: PSE-11-520-N-15-U-1
[PSE-11] Paddle Type Flow Switch
[520] Measuring range/paddle: Paddle length: 52 mm(58 mm for NPT)
[N] Connection: NPT-thread
[15] Connection: 1/2"
[U] Contact versión: SPDT
[1] Connecting cable: PVC-cable 1.5 m (standard)
Operating principle: paddle
Mounting position: horizontal
Approvals: w/o
Body material: brass
max. pressure* 100 bar
Ficha técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_psr.pdf

Flujómetro VORTEX multivariable
MODELO: DVH-V-501-S-L-L-2-S-0
Brand: Heinrichs (Alemania)
[DVH-V] Vortex Flow Meter with Flange
[501] Connection (ASME B16.5.2003): Flange ANSI 2 inch 150 lbs
[S] Material Measuring Tube/Connection: Stainless steel 1.4404/316L
[L] Transmitter Version/ Mounting: compact incl. Display
[L] Supply voltaje: 12-36 VDC, loop powered 1)
[2] Output: 4-20 mA, HART, 1x Pulse, loop powered
[S] Process temperatura: -200..+260°C (-330..+500°F) (standard)
[0] Option Pressure Sensor: without
Version:  Standard
Integrated temperature sensor: no
Integrated pressure sensor: no
Transmitter Housing: Aluminium

MODELO: UMC4-B11A21
[UMC4] Transmitter IP65, Aluminium painted, display cover out of safety class
[B] Mounting of transmitter: integrated, M 20x1,5
[1] Display/Interface board: integrated in transmitter housing, max.60°C
[1] Power supply: 90-265 VAC, 50/60 Hz
[A] Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA, pulse/status output passive
[2] Approvals: II(1)2G EEx d [ia Ga] IIC T3-T4 Gb up to 60°C
[1] Ignition protection signal output: EEx ia

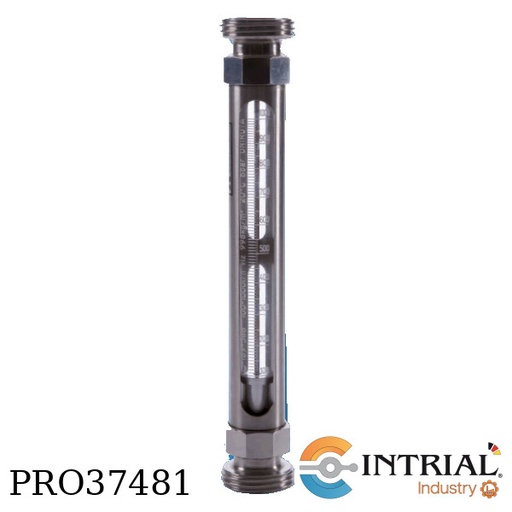

Variable Area Flowmeter/-switch Glass Cone with Thread Connection
MODELO URM-33-63L-I6-P
Brand: Kobold (Alemania)
[63L] Range Full Scale: 320 Nm³/h
[I6] Connection: G1
[P] Contacts: 1 x PNP-Open Collector, N/O
Mounting position: vertical, flow direction from bottom
Accuracy: Class 4
Max. temperature: 65 °C 100 °C
Max. pressure: 6 bar...16 bar depend see data sheet
Material: connection, float / seal/ ring: 1.4301 / NBR / PVC

MODELO: TME-S95-206R-0-R-1-A-0-0
[TME-S95] Coriolis Massflowmeter with transmitter UMC4
[206R] Process connection: flange 2" Class 150 RF
[0] heating/cooling element: without
[R] Flow direction: right to left
[1] Sensor: integrated transmitter up to 100 °C
[A] Approvals: Ex II ½ G EEx ia IIC T6-T2
[0] Certificates: without
[0] Special versión: without
Operating principle: Coriolis
Mounting position: all directions
Display:LCD Display
max. medium temperature 180 °C
Material: stainless steel
Protection class: IP 65
Measuring range:0-30000 kg/h
Ficha Tecnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_tme.pdf

Coriolis Massflowmeter with transmitter UMC4
MODELO: TME-S80-201R 0 U 2000
[TME-S80] Coriolis Massflowmeter with transmitter UMC4
[201R] Process connection: flange ½" Class 150 RF
[0] heating/cooling elemen: without
[U] Flow direction: bottom to top
[2] Sensor: integrated transmitter up to 150 °C
[0] Approvals: wihtout
[0] Certificates: without
[0] Special versión: without
Operating principle: Coriolis
Mounting position: all directions
Display: LCD Display
max. medium temperature: 180 °C
Material: stainless steel
Protection class: IP 65
Measuring range: 0-600 kg/h
Ficha Técnica: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_tme.pdf
