Caudal

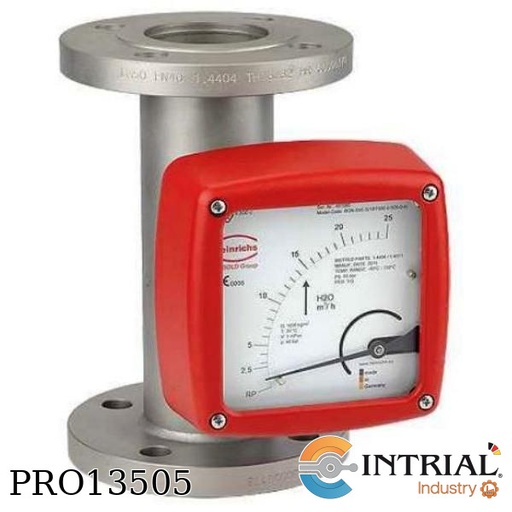

All-Metal Variable Area Flowmeter BGN
Variable Area Flowmeter
Model: BGN-S1H-210R-2-0-0-0-0-S-2-0-0-H
Brand: Kobold – Heinrichs
[BGN] Model,
[S1H] Model, Stainless Steel, process temperature ≤ 350°C
[210R] Process connection - Flange,
4" Class 150 RF ASME B16.5-2003; Installation length 250 mm
[2] Measuring range (water 20°C, 1000kg/m³, 1mPas)
Model S: 10000…100000 l/h ( 10-100 M3/h )
[0] Heating / cooling, without
[0] Damping / spring stop, without
[0] Self draining, without
[0] Certificates, without
[S] Display, Standard display housing
Process temperature, for electrical output ≤ 150°C
Process temperature, for local indication ≤ 200°C
[2] Scale, Measuring range-Scale (Water)
[0] Switches, without
[0] Accessories, without
[H] Design, Heinrichs

S/ 8,392.19 8392.19 PEN
Flujometro Electromagnetico EPS, 1896 m3/h, Hard Rubber, Electrodo Hastelloy C-4
EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material – lining, hard-rubber
Process Connection, 10" Class 150 RF
Material electrodes, Hastelloy C-4 standard for PTFE
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA
S/ 26,168.46 26168.46 PEN
Flujometro Electromagnetico EPS, 288 m3/h, 4" Class 150 RF, Hard Rubber, Electrodo Hastelloy C-4
EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 4" Class 150 RF
Material electrodes, Hastelloy C-4 standard for PTFE
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA
S/ 12,032.89 12032.89 PEN
Flujometro Electromagnetico EPS, 670 m3/h, 6" Class 150 RF, Hard Rubber, Electrodo Hastelloy C-4, HA
EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material – lining, hard-rubber
Process Connection, 6" Class 150 RF
Material electrodes, Hastelloy C-4 standard for PTFE
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA
S/ 14,540.51 14540.51 PEN
Flujometro Electromagnetico EPS, 163 m3/h, 3" Class 150 RF, Hard Rubber, Electrodo St. St
EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 3" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230V AC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA
S/ 7,363.13 7363.13 PEN

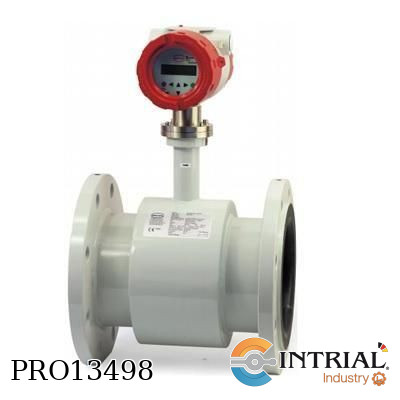

Flujometro Electromagnetico EP, 62 m3/h, 2" Class 150 RF, Hard Rubber, Electrodo St. St., 4-20 mA
EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 2" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA
S/ 7,058.50 7058.5 PEN
Flujometro Electromagnetico EP, 28 m3/h, 1 1/4" Class 150 RF, Hard Rubber, Electrodo St. St., 4-20 m
EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 1 1/4" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230VAC, 50/60Hz
Output signal, 1: 0(4) - 20mA
S/ 6,817.03 6817.03 PEN

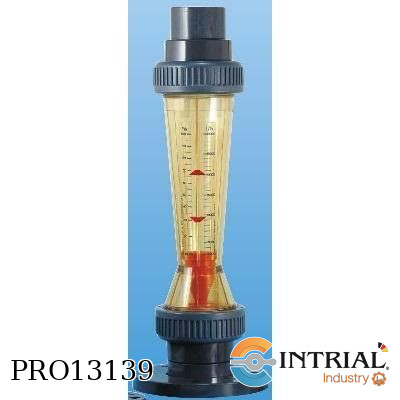

Plastic Flowmeter/-switch, 600...6000 L/h water
Variable Area Flowmeter-Plastic KSM
KSM-1060-M-P25-R0
GENERAL DESCRIPTION
Variable Area Flowmeter-Plastic KSM
Operating principle: variable area
Mounting position: vertical
Flow direction: from bottom
Armature material: Trogamide
Accuracy: ±4 % FS
Max. temperature: 60 °C
Max. pressure: 16 bar
Measuring range: 600...6000 L/h water
scales for liquid media: L/min water
Option connection: PVC G 1 female
Option contact: w/o contact
*********************************************
SPECIFIC DESCRIPTION OF THE REQUESTED
MODEL: KSM-1060-M-P25-R0
[KSM-1] Plastic Flowmeter/-switch
[060] Measuring range: 600...6000 L/h water
[M] scales for liquid media: L/min water
[P25] connection for size >=060: PVC G 1 female
[RO] Option contact: w/o contact
S/ 1,987.53 1987.53 PEN

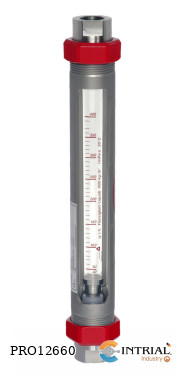

Flujometro de Area Variable V31, Agua, 95-950 L/h, 1" NPT
VARIABLE AREA FLOWMETER
Brand: Kobold – Heinrichs
Thread, NPT 1"(F)
Length, 375 mm, connection - wetted parts Edelstahl
Type of float, Material, Stainless steel 1.4571
Measuring range - stainless steel float with magnet, 95 - 950 l/h
Scale, Measuring range-scale (H2O)
S/ 3,037.76 3037.76 PEN

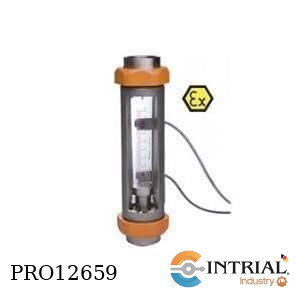

Variable Area Flowmeter

VARIABLE AREA FLOWMETER.


Model: V31-60801S-03-E2W-B-F-A-0-5-2-0-0-0-0-0-0-0-K
Brand: Kobold – Heinrichs
[V31]:
[60801S]: Thread, NPT 2"(F) Verschraubung
Length, 375 mm, connection - wetted parts Edelstahl
[03]: Type of float, Material, Stainless steel 1.4571 - with magnet
guide rod 1.4571, without
[E2W]: Measuring range - stainless steel float with magnet, H2O: 480 - 4800 l/h
1000kg/m³, 1mPas
[B]: Gasket, EPDM
[F]: Float Stop, PVDF
[A]: Union nut, Aluminium lacquered
[0]: Shatter protection max. 80°C, without
[5]: Electrical output, 2 x K 33i Inductive contact closes on descending float
only available for float with magnet
[2]: Scale, Measuring range-scale (H2O)
[0]: Approvals, without
[0]: Calibration certificate, without
[0]: Cleaning according works standard (free of oil and grease), without
[0]: Pressure / leakage test, without
[0]: Approvals, without
[0]: Marking, without
[0]: Accessories, without
[K]: Make, KOBOLD
S/ 7,010.21 7010.21 PEN
Paddle Flow Monitor for Liquids PSR, 2.3-4.6 L/min, Brass, G1/4", Cable 1.5 mts
Interruptor tipo Paleta en linea
Latón,G 1/4 Rango de 2,3-4,6 L/min


S/ 0.00 0.0 PEN

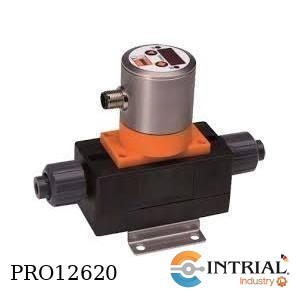

Compact Magnetic Inductive Flow Meter 2,5...50 L/min, G 1 male
Model: MIK-5NA-35-A-C34P
Brand: Kobold
[MIK-5NA]:
Operating principle, Magnetic Inductive
Mounting position all directions
Max. temperature/pressure 80 °C / 10 bar
Protection IP 65
Housing PPS
Electrodes St. st.
Seal NBR
[35]: Measuring range (liquid >30 µS/cm), 2,5...50 L/min, G 1 male
[A]: Connection set, without
[C34P]*: Evaluation electronic for MIK, 24 VDC, 4-20 mA, 1x PNP
*Please specify flow direction in writing
***********************************************
Datasheet: http://www.kobold.com/uploads/files/s5gb_mik.pdf
S/ 2,269.87 2269.87 PEN
Interruptor de Flujo DSS, 3.5-50 L/min, Laton
Rotametro solo Interruptor, Latón,Rango 3,5-50  L/Minute
S/ 0.00 0.0 PEN

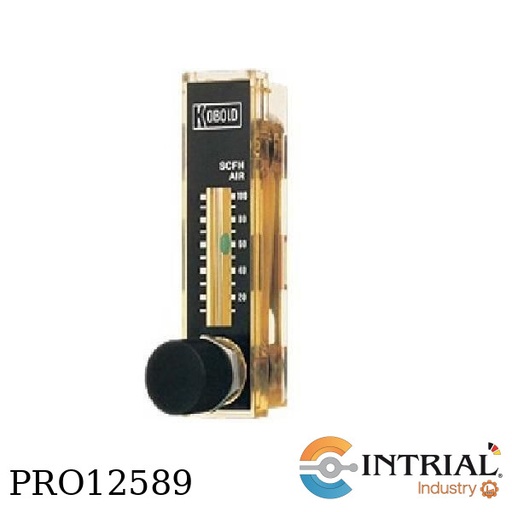

Medidor de Flujo Agua, 1-4 L/h, 1/8" NPT, Valvula
ROTAMETRO AREA VARIABLE
Marca: KOBOLD (Alemania)
Posición de montaje: vertical
Precisión: ± 6% FS
Max. Temperatura: 60°C
Max. Presión: PN10
Sello: EDPM,Rango 1-4 L/h
con válvula tipo aguja
Conexion: 1/8 NPT hembra trasera
S/ 761.58 761.58 PEN
Flujometro Electromagnetico EP, 8 m3/h, 3/4" Class 150 RF, PTFE, Electrodo Hastelloy, 4-20 mA
MEDIDOR DE FLUJO DE AGUA SATURADA ELECTROMAGNETICO 1/2” (DN015)
PTFE (PFA) - Standard 3 Hastelloy electrodes (-20ºC-150ºC)
3/4" Class 150 RF ASME B16.5 2003 (8 m3/h)
Stainless Steel (1.4301)
Power Supply 230V AC (+10%, -15%), 50/60Hz
Output current output 1: 4 - 20mA with HART
Cable 10m
S/ 12,408.10 12408.1 PEN

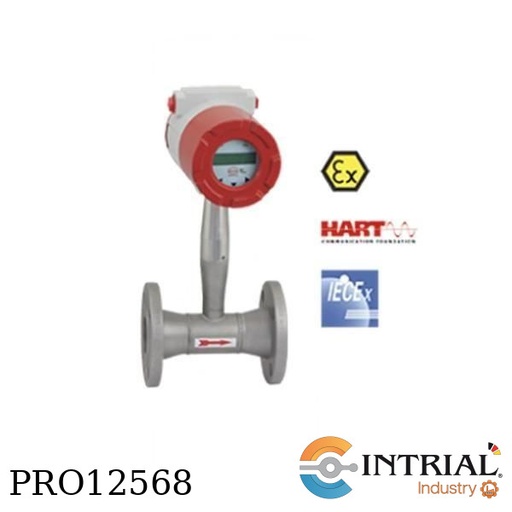

Flujometro Tipo Vortex DVH, 1 1/2" Class 150, 4-20 mA, HART
MEDIDOR DE FLUJO DE VAPOR TIPO VÓRTEX DN 1.5” (DN040)
DN 40 DIN EN
ANSI 150 lbs (ASME B16.5.2003) (Not for Wafer)
st st 1.4404/316 L
100-240 VAC (50/60 Hz 12 W)
1x4-20mA HART (1x Alarm, 1x Pulse)
Standart Temperature 200..+260°C (-330..+500°F)
S/ 17,757.70 17757.7 PEN

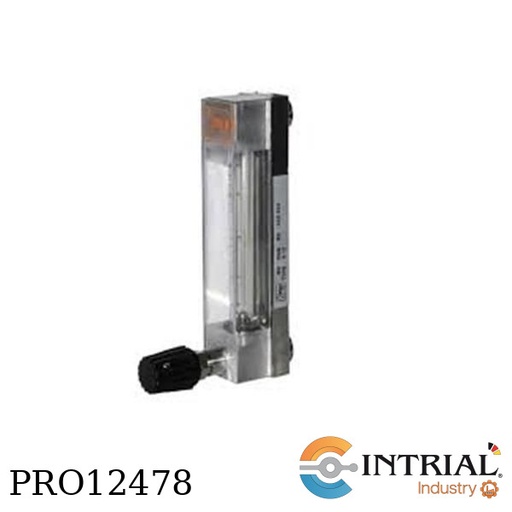

Variable Area Flowmeter-Low Volume KDG (600 Nml/min air),Connection, 1/4 NPT,Max. temperature withou
Variable Area Flowmeter-Low Volume KDG
Model: KDG-92YY-N-V-0-00-0
Brand: Kobold
[KDG-92]:
Mounting length: 90 mm
Operating principle: variable area
Flow direction: from bottom to top
Body material: st.st
Glass: Borosilicate
Accuracy: class 3
Max. temperature without/with contact: 100 °C / 70 °C
Max. pressure: PN 16
[YY]: Measuring range, 60 a 600 Nml/min air at 25°C & 0 bar relative pressure
[N]: Connection, 1/4 NPT
[V]: Seal, FPM
[0]: wall mounting kit, w/o
[00]: Contacts measuring range, w/o
[0]: Flow differential pressure regulator, w/o
************************************************************
Datasheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kdf-kdg-
S/ 1,519.44 1519.44 PEN
Caudalímetro de área variable/interruptor Cono de vidrio con conexión de rosca (100L/h, G1/2,female)
Variable Area Flowmeter/-switch Glass Cone with Thread Connection
Brand: Kobold (Alemania)
Model: URM-33-24H-I4-0
[URM-33]:
Mounting position: Vertical, flow direction from bottom
Accuracy: Class 4
Max. Temperature: 65 °C
Max. Pressure: 6 bar...16 bar depend see data sheet
Material: Connection, float / seal/ ring 1.4301 / NBR / PVC
[24H]: Range Full Scale: water: 100 L/h, range factor 1:10
[I4]: Connection: G 1/2, female
[0]: Contacts: w/o
S/ 1,664.32 1664.32 PEN
Flujómetro/interruptor de área variable (0.2 - 2 Nm³/h)
FLOWMETER VARIABLE AREA

MODEL: URM-33-45L-I6-0

BRAND: KOBOLD



URM-33:

Mounting position, vertical, flow direction from bottom

Accuracy, Class 4

Max. Temperature, 65°C

Max. Pressure, 16 bar

Material: connection, float / seal/ ring, 1.4301 / NBR / PVC

22L: Range Full Scale*, 0.2 - 2 Nm³/h.

I4: Connection, G1/2" female

0: Without (W/O)
S/ 1,486.00 1486.0 PEN
Oval Gear Flow Meter/Counter Measuring range: 30-450 L/min
Oval Gear Flow Meter/Counte
MODEL: DOM-S-35H-R9-3-H0-0
BRAND: KOBOLD
[DOM-S] Oval Gear Flow Meter/Counter
[35H] Measuring range: 30-450 L/min
[R9] Mech. connection, G 2 for meas. range 35H and 40H
[3] Seal, PTFE encaps. FPM for meas. range 35H and 40H
[H0] Electronic: Pulse output, NPN and reed switch
[0] Accessory, Special gear wheels for viscosity > 1000 cP for range 35H
Operating principle: Gear Wheel
Mounting position:horizontal / vertical
Flow direction: in direction of the arrow
max. temperature:120 °C
max. pressure: 12...68 bar
Accuracy: ±0,5 % ...1 % of reading
Housing material:st. st. 1.4401
Rotor material: st. st. 1.4401
Datasheet:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s4gb_dom.pdf
S/ 14,629.67 14629.67 PEN
