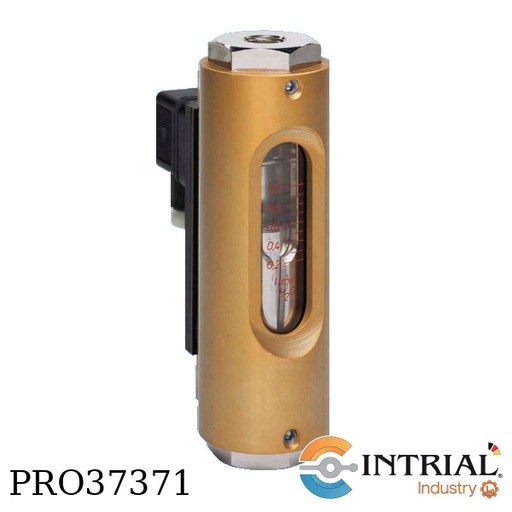

INTERRUPTOR DE CAUDAL DE ÁREA VARIABLE DSS

• Brand: KOBOLD (Alemania)

• Measuring range (l/min agua): 0.5 ... 2.5

• Max. temperature: 100 °C

• Max. pressure: 250 bar

• Accurecy: +/-5% of full scale

• Body material: Brass

• Contact: 1 N/O

• Connection: 1/2 NPT female

• Instalation position: vertical, upward flow

Variable Area Flowmeter-Plastic-Low Flow KFR
Modelo : KFR-5359-00
KFR-53
Operating principle: variable area
Mounting position: vertical
Flow direction: from bottom
Total length: 343 mm
Accuracy: ±2 % FS
Max. temperature: 65 °C
Max. pressure: 6,5 bar
Housing: Acryl
Connection material: PVC
Connection size: 1 NPT fem. bott
Seal: NBR
59: Measuring range, 1...19 L/min water
00: Options, w/o
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s1gb_kfr.pdf

ULTRASONIC FLOWMETER
MODEL: DUK-12-N4H-C34P-B
[DUK-12] Ultrasonic Flowmeter/-Monitor/-Counter/-Doser
[N4H] Measuring range/connection: 0,08...20 L/min 1/2 NPT female
[C34P] Evaluation electronic for DUK Compact electronic: 24 VDC, 4-20 mA, 1x PNP
[B] Flow direction: from bottom to top
Operating principle: Ultrasonic
Mounting position: all directions
Indication/Output: see electronic version
Max. temperature/pressure 90 °C / 16 bar
Protection: IP 65
Seal: NBR
Sensor Housing: St. st.
Ficha Técnica
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s5gb_duk.pdf

MODEL: KSM-1-201-Y-P50-R0
[KSM-1] Plastic Flowmeter/-switch
[201] Measuring range: 2000...20000 L/h water or 55…545 Nm³/h air
[Y] Range scale: 8,8 – 88 GPM Water
[P50] connection for size 120: PVC G 2 female
[RO] Option contact: w/o contact
Hoja Tecnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s2gb_ksm.pdf

Variable Area Flowmeter/-switch Glass Cone with Thread Connection
Brand: Kobold (Alemania)
Model: URM-55-35H-G6-0-Y
[URM-55]:
Mounting position vertical, flow direction from bottom
Operational data: 20°C; 6 barg; p=998 kg/m3
Accuracy Class 4 (VDI/VDE 3513)
Max. temperature 100 °C
Max. pressure 6 bar; test pressure: 10bar
Material: connection, float / seal/ ring: 1.4404 / FPM / PTFE
[35H]: Range Full Scale*, water 63-630 L/h water
[G6]: Connection male G 1"
Distance of connections: 360±2 mm
Wetted parts:
Measuring tube: borosilicate glass (SCHOTT DURAN)
Float, housing, guiding rod: stainless steel (1.4404)
Centering ring: PTFE
Gaskets: PTFE (GORE-TEX)
[0]: Contacts w/o, for meas. range: all
[Y]: Scale  on aluminium backing with big figures
****************************************************************************
Datasheet: http://www.kobold.com/uploads/files/s2gb_urm.pdf

Model: PSR-12-153-N-15-U
Paddle Switch PSR
Switching range: 2,3-4,7 L/min...47,6-67,2 L/min water
Connection: G ¼... G 1 ½, ¼...1 ½ NPT
Material: brass, st. st.
Max. pressure: 100 bar
Max. temperature: 110 °C
Reed contact
**************************************************
PSR-12-153-N-15-U
PSR-12:
Mounting position, all directions
Approvals, W/O
incl. fitting, st.st.
Body material, st.st.
max. pressure, 250 bar
153: Measuring range, 2.5-6.4 L/min
N: Connection, NPT-thread
15: Connection, 1/2" (for PSR-xx15..)
U: Contact version, SPDT
1: Connecting cable, PVC-cable 1.5 m (standard)
Datasheet:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s3gb_psr.pdf

Low Volume Flowmeter
Brand: Kobold (Alemania)
Model: KFR-2129-N0
[KFR-21]:
Operating principle variable area
Mounting position vertical
Flow direction from bottom
Total length 102 mm
Accuracy ±5 % FS
Max. temperature 65 °C
Max. pressure 6,5 bar
Housing Acryl
Connection material brass
Connection size 1/8 NPT female on rear
Seal NBR
[29]: Measuring range, 0,2...2,5 L/min air
[N0]: Options, Needle valve

Flowindicator with Flange Connection
Model 1: DAT-2112H-F-2H-B
•    Flowindicator with Flange Connection
•    DAT-2: Operating principle  Drip tube
•    Mounting position  all directions
•    Flow direction in direction of the arrow
•    max. temperature 150 °C (Option B: 280 °C)
•    max. pressure 16 bar (Option 25 or 40 bar)
•    1: Housing, cast iron
•    12H: Nom. Diameter, 200mm
•    F: flanges, flange acc. EN 1092-1
•    2H: connection, DN 200 / 8"
•    B:option, DN 150/200 borosilicate glass
Ficha Técnica:
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/s6gb_dat-1-2.pdf

Rotating Vane-Flowmeter-Low Volume DTK
Brand: Kobold (Alemania)
Model: DTK-12-35-N2-F300
[DTK-12]:
Operating principle: Rotating vane
Mounting position: horizontal
Flow direction: in direction of the arrow
Material: st. st.
max. temperature: 80 °C
max. Pressure: 30 bar
Accuracy: +-2% v. EW,+-5% v. EW OEM
[35] Measuring range (water) : 0,5-7,0 L/min
[N2] Connection: 1/4 NPT
[F300] Evaluating Electronic: Frequency output PNP, plug M12x1

INTERRUPTOR DE CAUDAL DE VISCOSIDAD COMPENSADA VKM-1
• Brand: KOBOLD (Alemania)
• Measuring range (l/min agua): 4…14
• Max. Pressure loss (bar): 1,1
• Body material: Brass
• Contact: 1 N/O
• Connection: G1
• Flow direction: from right
• Max. temperature: 100 °C
• Max. pressure: 250 bar

MEDIDORES E INTERRUPTORES DE CAUDAL DE VISCOSIDAD VKG-2
•    Brand: KOBOLD (Alemania)
•    Measuring range (l/min agua): 0.1 ... 0.45
•    Max. temperature: 100 °C
•    Max. pressure: 12 bar
•    Max. Pressure loss (bar): 0.9
•    Body material: Brass
•    Contact: 1 N/O
•    Connection: G ¼
•    Instalation position: any

Paddle Type Flow Switch
Brand: Kobold(Alemania)
Model: PSR-11-258-N-25-R-1
[PSR-11]:
Operating principle, paddle
Mounting position, all directions
Incl. fittin, brass
Body material, brass
Max. presure, 100 bar
[258]: Measuring range/paddle, 7.4-18.2 L/min paddle: 8
[N]: Connection, NPT-thread
[25]: Connection, 1"
[R]: Contact version, N/O
[1]: Connecting cable; PVC-cable 1.5 m (standard)

INTERRUPTOR DE CAUDAL TIPO PALETA PSE
• Brand: KOBOLD (Alemania)
• Switching range (L/min water): 8 - 16
• Material case: Brass 58
• Tolerance: ±15 %
• Max. pressure: 100 bar
• Max. medium temperature standard: 110 °C
• Connection female: G ½
• Preferred mounting position: Upright, horizontal
• Cable Length: 1.5 m(Standard)
• Contact: N/O contact (Standard CE)
• Protection type: IP 65

MEDIDOR E INTERRUPTOR DE CAUDAL DE PLÁSTICO KSK

• Brand: KOBOLD (Alemania)

• Measuring range (l/min agua): 8 ... 80

• Max. temperature: 60 °C

• Max. pressure: PN 10

• Scale meas.: L/h water

• Body material: Plastic

• Thread fitting option: PVC glue-in connection Ø 20

Variable Area Flowmeter/-switch
Brand: KOBOLD (Alemania)
Model: DSV-2102H-R0-R08
Measuring range (l/min agua): 0.5 ... 2.5
Max. temperature: 70 °C
Max. pressure: 10 bar
Body material: Brass
Contact: 1 N/O
Connection: G ¼
Installation position: vertical, flow in the upward direction

INDICADOR DE CAUDAL CON ROTOR Y AUTOLIMPIEZA MECH DAA
• Brand: KOBOLD (Alemania)
• Indication range water (l/min agua): 0.4 ... 4
• Max. temperature: 100 °C
• Max. pressure: 16 bar
• Weight (Kg): 0.3
• Body material: Nickel plated brass with rotor/wipers
• Connection thread: NPT

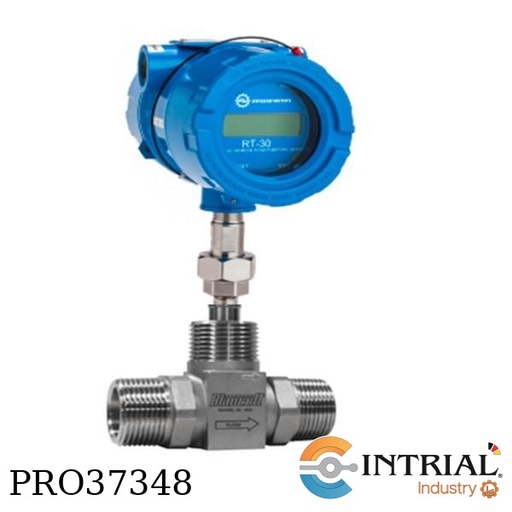

MEDIDOR DE FLUJO TIPO TURBINA PARA LIQUIDOS
Marca: AW GEAR METER(USA)
Model: TRG-1120L-M14
Versión completamente en acero inoxidable
Rango de trabajo de 13 a 200 GPM
Precisión:0.5%
Conexión 2” NPT
Max presión: 5000 PSI
Temperatura: -100 a 230°C
RT-30SD-D11
TRANSMISOR DE FLUJO CON PANTALLA LOCAL
MARCA: AW GEAR METER(USA)
Recinto de doble acceso
Muestra tanto la tasa / el total
Salida analógica / Salida de pulsos
9-24 VCC alimentado
Efecto Hall único MAG-PB integral

Oval Gear Flow Meter/Counter
Brand: Kobold (Alemania)
Model: DON-2-30H-N8-1-E3-N-N
[DON-2]:
Operating principle Gear Wheel
Mounting position horizontal / vertical
Flow direction in direction of the arrow
max. temperature 120 °C
max. pressure  16…100 bar
Accuracy ±0,2 % …1 % of reading
Housing material, st. steel
Rotor material, st. stee
[30H]: Measuring range, 15-250 L/min
[N8]: Mech. Connection, for meas.
range 30H, G 1 1/2
[1]: Seal, FKM up to DON-x25
[E3]: Electronic, Z3 electronic with ATEX
approval (Exi), incl. battery
[N]: Cable entry, 1/2 NPT
[N]: Options, without battery

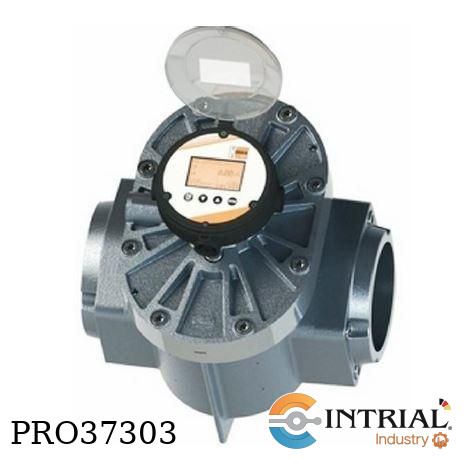

Oval Gear Flow Meter/Counter
Brand: Kobold (Alemania)
Model: DON-2-25H-N6-1-E3-N-N
[DON-2]:
Operating principle Gear Wheel
Mounting position horizontal / vertical
Flow direction in direction of the arrow
max. temperature 120 °C
max. pressure  16…100 bar
Accuracy ±0,2 % …1 % of reading
Housing material, st. steel
Rotor material, st. stee
[25H]: Measuring range, 10-150 L/min
[N6]: Mech. Connection, for meas.
range 25H, 1” NPT
[1]: Seal, FKM up to DON-x25
[E3]: Electronic, Z3 electronic with ATEX
approval (Exi), incl. battery
[N]: Cable entry, 1/2 NPT
[N]: Options, without battery

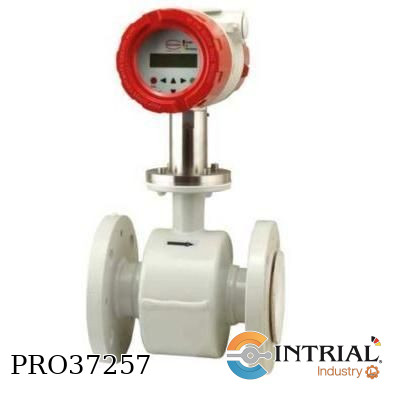

EPS Electromagnetic Flow Meter
Model: EPS-H-345B-1-S-S-1-0+UMF2-A-1-1-G-0BH
Brand: Kobold-Heinrich
[EPS-H]: Material Lining, Hard Rubber (Ebonit)
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, Process-Temperature 0°C...95°C
[345B]:Process connection,DN150 PN16 Form B1 DIN EN 1092-1
Max. measuring range, 632 m³/h, Installation length, 300 mm.
[1]: Material Process connection, Flange steel painted
[S]: Material electrodes, st.st. 1.4571 (316 -TI)
[S]: Earthing electrode, st.st. 1.4571 (316 TI)
[1]: Transmitter mounting, Integrated transmitter, Protection class, sensor, IP67,
[0]:Certificates, w/o
UMF2-A-1-1-G-0BK
[UMF2]:Transmitter
[A]: Mounting IP 67, Integrated transmitter IP 67 standard
Thread - electrical connection, ½" NPT (f)
[1]: Display and control unit, integrated
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz,
[G]: Output Signal:
current output: 1x 0/4-20 mA c/w HART protocoll
pulse output: passive Um=24 VDC
status output: passive Um=24 VDC
[0BK]: Design, Kobold
