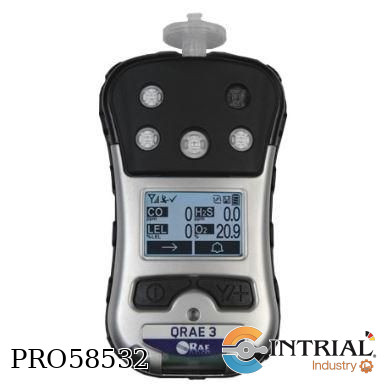

Medidor de Gases portátil  - QRAE 3 - HONEYWELL<br />
M020-11111-111<br />
Marca HONEYWELL (EEUU)<br />
- Gas y rango: O2 (0-30% vol.), LEL (0 a 100%), CO (0-500 ppm), H2S (0-100 ppm).<br />
- Sensores: Electroquímicos, reemplazables; duración +/- 1 año.<br />
- Sistema de muestreo: Bomba interna.<br />
- Alarmas: Audibles (95dB a 10cm); iluminación intermitente del display.<br />
- Comunicación inalámbrica: No incluida (opcional).<br />
- Otras funciones: Memoria p/lecturas (c/intervalos de registro programables); max/min y promedio.<br />
- Alimentación: Batería de litio; duración 8...14hrs.<br />
- Display: LCD; lectura de valor actual, aviso de batería baja.<br />
- Construcción: Cubierta de PBT anti-estático; protección IP65.<br />
- Incluye: Batería y certificado.

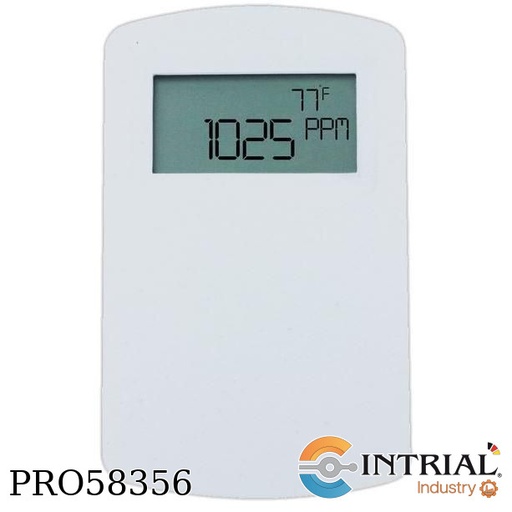

Carbon Dioxide/Temperature Transmitter<br />
Brand: DWYER<br />
Model: CDT-2N4B<br />
[2]: Range, 0 to 2000 PPM CO2 range<br />
[N]: Configuration, North American style wall mount<br />
[4]: CO2, 4-20 mA / 0 to (5 or 10) VDC<br />
[B]: Temperature Output, 10 KΩ NTC thermistor type II<br />
<br />


BRAND : HANWEI<br />
GTQ-CALKIT

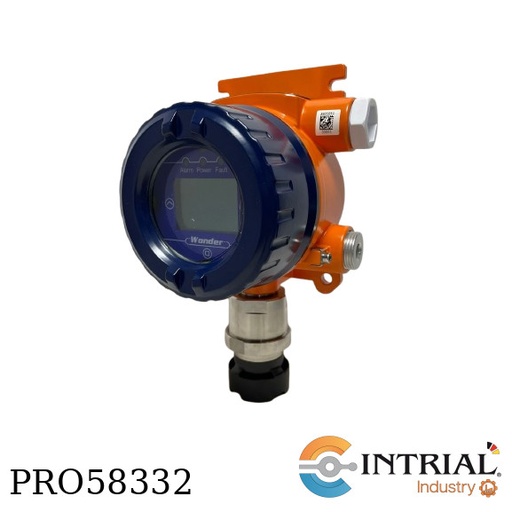

BRAND : HANWEI<br />
Model: GTQ-WD2200-HCN<br />
Fixed gas detector for HCN<br />
RANGES:  0-20ppm<br />
4-20ma analog signal output, rs485-rtu digital upload<br />
ingress protection: ip67

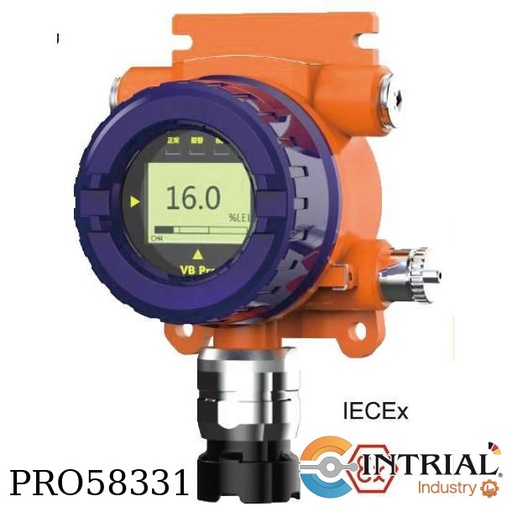

BRAND : HANWEI<br />
Model: GTQ-WD2200-CL2 <br />
Fixed gas detector for CL2<br />
RANGES:  0-10ppm<br />
4-20ma analog signal output, rs485-rtu digital upload<br />
ingress protection: ip67

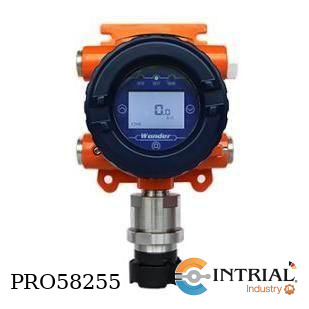

BRAND : HANWEI<br />
Model: GTQ-WD2200-NO-1000PPM<br />
Fixed gas detector for NO<br />
RANGES:  0-1000 ppm<br />
4-20ma analog signal output, rs485-rtu digital upload<br />
ingress protection: ip67

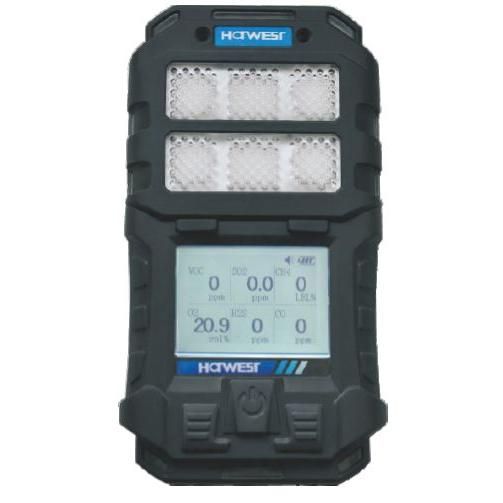

• Detector Portable Multi-gas (6 gases)
• Model : E6000-CH4,CO,O2,NO2,CO2
• Gases : CH4,CO,O2,NO2,CO2
• Modulo de Sensor Inteligente Intercambiable
• Intrinsecamente seguro
• Alarma visual, audible y vibrativa.
• Niveles de alarma y valor de calibración ajustables.
• Niveles STEL y TWA
• Reloj en tiempo real
• Funciones de auto diagnostico y auto corrección.

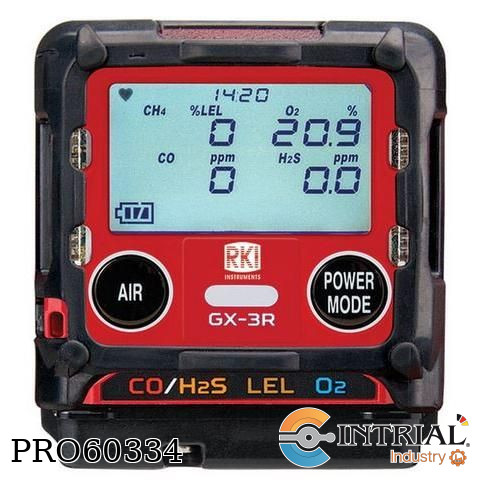

MONITOR DE GAS<br />
Marca: RKI<br />
Modelo: GX-3R<br />
P/N: 72-RA-C<br />
Dimensiones (61 x 67 x 27) mm<br />
Peso 105 g.<br />
Detección simultánea de 4 gases:<br />
 LEL CH4 0 a 100% (1% LEL CH4)<br />
 O2 0 a 40% Vol. (0.1% VOL)<br />
 H2S 0 a 200 ppm (0.1% ppm)<br />
 CO 0 a 2,000 ppm (1 ppm)<br />
Sensor de CO compensado en H2<br />
Operación simple con 2 botones<br />
Alarmas: audible, visual y vibración.<br />
3 niveles de alarma ajustables por el usuario<br />
Registro de datos (Adaptador usb como opcional )<br />
Cuerpo resistente a los golpes y caídas de hasta 7 metros de altura (con protector de caucho)<br />
Funda de goma extraíble.<br />
Gran pantalla LCD con retroiluminación automática<br />
Hasta 25 horas de funcionamiento (batería de iones de litio)<br />
Sensores y filtros reemplazables en campo<br />
Certificaciones Antiexplosión TIIS: IIC T4 Ga, JNIOSH-TR-46-1: 2015, JNIOSH-TR-46-6: 2015.<br />
Diseño resistente al agua y al polvo, IP66 / 68<br />
Visualización de temperatura ambiental<br />
<br />
Incluye:<br />
 • BOMBA PARA MUESTREO A DISTANCIA<br />
   Marca: RKI<br />
   Modelo: RKIACSC1<br />
   P/N: 81-1198<br />
 • Cartilla de operación rápida.<br />
 • Protector de caucho (ensamblado en equipo)<br />
 • Cargador<br />
 • Adaptador para calibracion<br />
 • Manguera de 3 metros con sonda<br />
 • Certificado de calibración de INTRIAL S.A.C.

MONITOR DE GAS<br />
Marca: RKI<br />
Modelo: GX-3R<br />
Monitor de 4 gases O2 / CO / H2S / LEL(CH4) Datalogger<br />
Incluye,<br />
 1 Baterias Recargables Litio (25 horas uso)<br />
 1 Cargador 115/220VAC<br />
 1 CD con Manual y Software<br />
 1 Certificado de Calibracion

DETECTOR DE GAS PORTATIL
MARCA: SCOTT

DETECTOR MULTIGAS PORTATIL
MARCA : SCOTT SAFETY

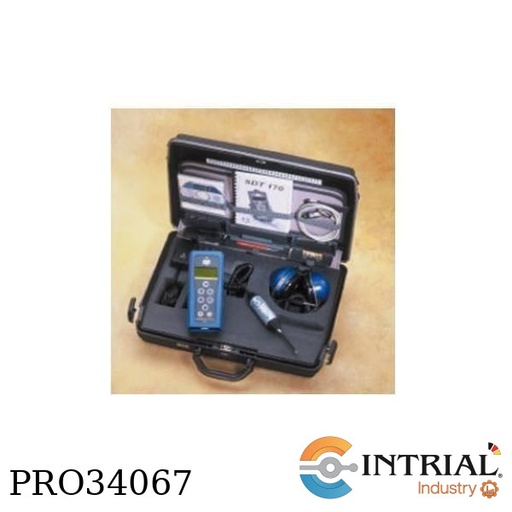

Functional Ultrasonic Detector
BRAND: SDT North America
FUBP170MH2 Power Pack
FSSON1701 Broadband
Contact probe w/cable
FUHEADPH1 Headphone
FUPS170US Power Charger 110V
FUSTRAP Shoulder Strap
FUCABRS232/170 Cable
RS232 to PC
FUSUITSYS3-1 Carrying Case
FSPRECIND Precision
Indicator

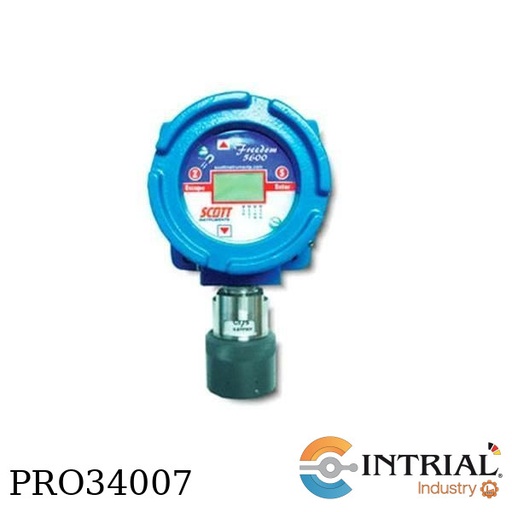

H2S GAS DETECTOR
-Marca: SCOTT INSTRUMENTS INC.
-Modelo: FREEDOM 5600
-Range: 0-50 ppm
-Transmissor com sensor integrado.
-Sensor Eletroquímico por difusão
Integrado ao transmissor
com tecnologia eletroquímico de alta
perfomace.
-Repetibilidade e Linearidade: +/- 2%
FS;
-Sinal de Saída: Analógico 4-20 mA, 2
fios (two wires), 700
E a 24 VDC;
-Alimentação: 10-28 VDC 2 fios, 0.5 W
@ 24 VDC;
-Extensão do cabo do sensor: até
15.25m;
-Calibração: Não Intrusiva;
-Display: 3.5 dígitos LCD, 100%
Bargraph, configuração
automática do gás a ser monitorado;
-Umidade: 0-99% não condensado;
-Garantia: 1 ano;
-Peso: 1.3 Kg;
-Invólucro: invólucro do sensor em
aço Inox 316 com tampa
em PVC, proteção NEMA 4X;
-Aprovação: ATEX EEx nL IIc T6 e
LCIE 03 ATEX 6437 X
para Classe 1, Divisão 2, Grupos B, C

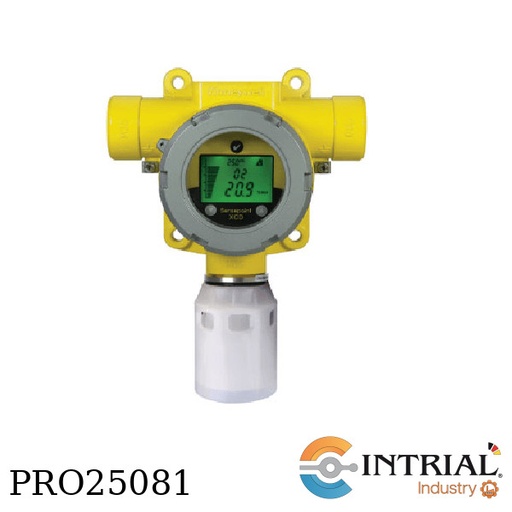

SENSEPOINT XCD GAS DETECTORBrand: HONEYWELLCertification: ATEX/IEC ExSensor Type: Flammable CAT; 0-100% LELEnclosure MaterialConduit Entry: M20Communication: None

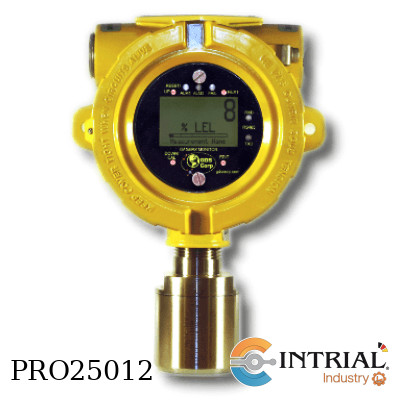

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
- Power Input 10-30VDC at less than 0.75 watts
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and
- engineering units display.
- Input Accepts microamp-level signals from local or remote
- GDS Corp toxic or oxygen deficiency sensors
- Accuracy +/- 5% of full scale range (typical)
- Standard
- Output
- Standard 2-wire 4-20mA current sink output. Max loop R
- is 600 ohms with nominal 24VDC power supply.
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual
- for additional information
- Housing Aluminum housing with epoxy paint standard; #316
- stainless steel optional
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”
- (127 mm) Shipping weight 6.5 pounds (3 kg)
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for
- explosion-proof installations
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically
- safe. IMPORTANT: Intrinsically Safe installations
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.
- ATEX Certified EX II 2 G EEx d IIB + H2 T5
- Warranty Two years on electronics and one year on sensors.
//////////CODIGOS PARA ORDENAR///////
GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
Chanel 1
- 2: Sensor Head (Local sensor head for splash guard)
- 14: Senor Type (Hydrogen)
- 1: Detection Range (0 – 1 % H2)

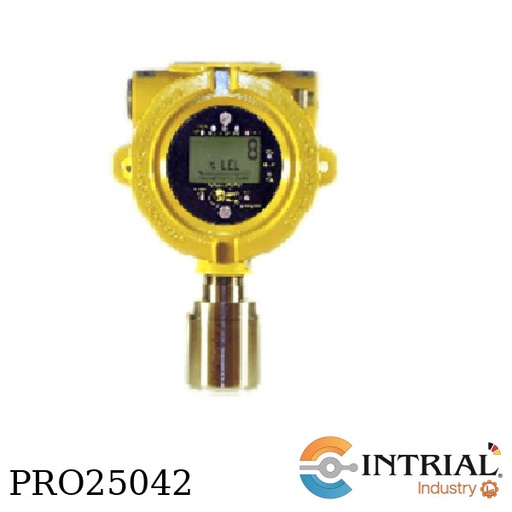

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
- Power Input 10-30VDC at less than 0.75 watts
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and
- engineering units display.
- Input Accepts microamp-level signals from local or remote
- GDS Corp toxic or oxygen deficiency sensors
- Accuracy +/- 5% of full scale range (typical)
- Standard
- Output
- Standard 2-wire 4-20mA current sink output. Max loop R
- is 600 ohms with nominal 24VDC power supply.
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual
- for additional information
- Housing Aluminum housing with epoxy paint standard; #316
- stainless steel optional
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”
- (127 mm) Shipping weight 6.5 pounds (3 kg)
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for
- explosion-proof installations
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically
- safe. IMPORTANT: Intrinsically Safe installations
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.
- ATEX Certified EX II 2 G EEx d IIB + H2 T5
- Warranty Two years on electronics and one year on sensors.
//////////CODIGOS PARA ORDENAR///////
GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
Chanel 1
- 3: Sensor Head (Local sensor head for reactive gases)
- 20: Senor Type (Ammonia)
- 6: Detection Range (0 – 100 %)

Four Channel Alarm & Display Controller for Critical Monitoring Applications
Model : C2-Quad-00-0-0-0-1-0-1-1
C2-Quad : Protector Alarm Controller
INPUT TYPE
00 = No input (wireless only)
DISCRETE RELAY 3
0 = Stardard 2x 5A SPDT relays
ANALOG OUTPUT
0 = None
MODBUS / WIRELESS 2
1 = RS-485 / RS-232 MODBUS serial
slave interface
AUDIBLE ALARM
0 = None
VISUAL ALARM
1-4 Strobe (red, amber, blue, purple) XP
ENCLOSURE OPTIONS
1 = NEMA 4X Extended non-metallic

GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations
Model : GM-CX-1-53-RXXXX-1-10-4-1
Chanel 1
1 : Local sensor head configured for Carbon Dioxide
53 : Toxic Sensor SmartIR Carbon Dioxide
RXXXX : Detection Range 0-500
Chanel 2

1 : Local sensor head configured for Oxygen
10 : Toxic Sensor OXYGEN
4 : Range 0-25
OUTPUT :

1 : MODBUS ports (Includes YAdapter for Dual Sensor Heads)
GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations

Power Input:    10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.
Display:        Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph
Electrochemical Sensor Input:    Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source
Bridge Type Sensor Input:        Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source
Standard Output:            Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply
Optional Outputs:        Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability
Temp:        Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits
Housing :        Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)
Dimensions:        Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)
Approvals:        CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations
Warranty:        2 years on electronics and one year on sensors

GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations
Model : GM-CX-1-29-R0020-1-11-7-1Chanel 1
1 : Local sensor head configured for Nitrogen
29 : Toxic Sensor Nitrogen Dioxide
R0020 : Detection Range 0-0020
Chanel 2

1 : Local sensor head configured for Carbon Monoxide
29 : Toxic Sensor Carbon Monoxide
7 : Range 0-500
OUTPUT :

1 : MODBUS ports (Includes YAdapter for Dual Sensor Heads)
GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations

Power Input:    10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.
Display:        Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph
Electrochemical Sensor Input:    Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source
Bridge Type Sensor Input:        Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source
Standard Output:            Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply
Optional Outputs:        Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability
Temp:        Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits
Housing :        Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)
Dimensions:        Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)
Approvals:        CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations
Warranty:        2 years on electronics and one year on sensors
