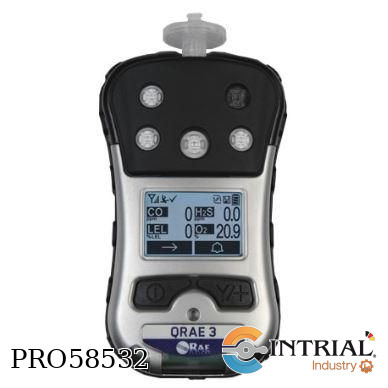

Medidor de Gases portátil  - QRAE 3 - HONEYWELL<br />
M020-11111-111<br />
Marca HONEYWELL (EEUU)<br />
- Gas y rango: O2 (0-30% vol.), LEL (0 a 100%), CO (0-500 ppm), H2S (0-100 ppm).<br />
- Sensores: Electroquímicos, reemplazables; duración +/- 1 año.<br />
- Sistema de muestreo: Bomba interna.<br />
- Alarmas: Audibles (95dB a 10cm); iluminación intermitente del display.<br />
- Comunicación inalámbrica: No incluida (opcional).<br />
- Otras funciones: Memoria p/lecturas (c/intervalos de registro programables); max/min y promedio.<br />
- Alimentación: Batería de litio; duración 8...14hrs.<br />
- Display: LCD; lectura de valor actual, aviso de batería baja.<br />
- Construcción: Cubierta de PBT anti-estático; protección IP65.<br />
- Incluye: Batería y certificado.

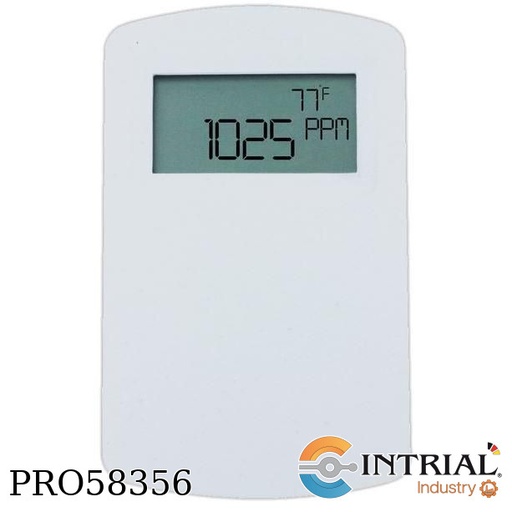

Carbon Dioxide/Temperature Transmitter<br />
Brand: DWYER<br />
Model: CDT-2N4B<br />
[2]: Range, 0 to 2000 PPM CO2 range<br />
[N]: Configuration, North American style wall mount<br />
[4]: CO2, 4-20 mA / 0 to (5 or 10) VDC<br />
[B]: Temperature Output, 10 KΩ NTC thermistor type II<br />
<br />


BRAND : HANWEI<br />

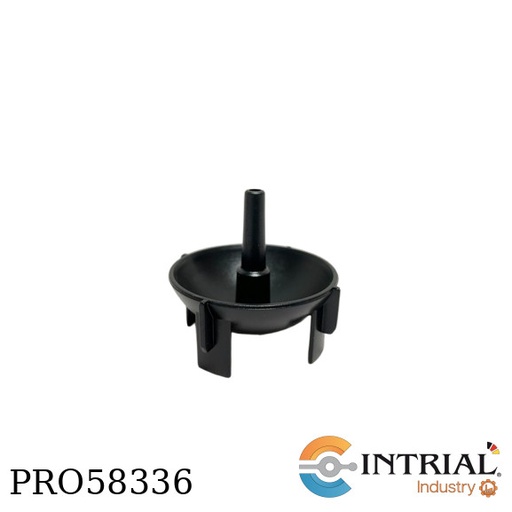

GTQ-CALKIT

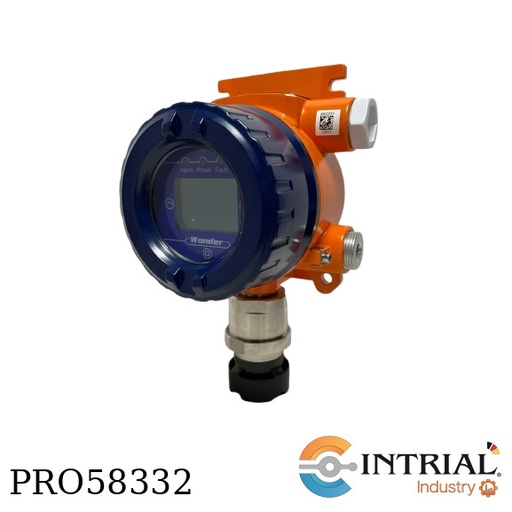

BRAND : HANWEI<br />
Model: GTQ-WD2200-HCN<br />
Fixed gas detector for HCN<br />
RANGES:  0-20ppm<br />
4-20ma analog signal output, rs485-rtu digital upload<br />
ingress protection: ip67

BRAND : HANWEI<br />
Model: GTQ-WD2200-CL2 <br />
Fixed gas detector for CL2<br />
RANGES:  0-10ppm<br />
4-20ma analog signal output, rs485-rtu digital upload<br />
ingress protection: ip67

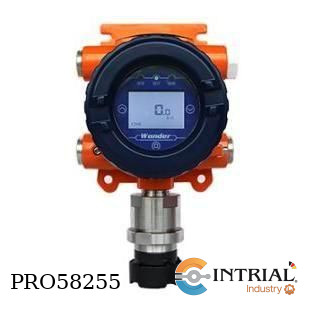

BRAND : HANWEI<br />
Model: GTQ-WD2200-NO-1000PPM<br />
Fixed gas detector for NO<br />
RANGES:  0-1000 ppm<br />
4-20ma analog signal output, rs485-rtu digital upload<br />
ingress protection: ip67

<ul>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;">Detector Portable Multi-gas (6 gases)</span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Model : </span></span></span>E6000-CH4,CO,O2,NO2,CO2</li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Gases : </span></span></span>CH4,CO,O2,NO2,CO2</li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Modulo de Sensor Inteligente Intercambiable</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Intrinsecamente seguro</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Alarma visual, audible y vibrativa.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles de alarma y valor de calibración ajustables.</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Niveles STEL y TWA</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Reloj en tiempo real</span></span></span></li>
<li><span style="font-size:11px;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="en-us" xml:lang="en-us">Funciones de auto diagnostico y auto corrección.</span></span></span></li>
</ul>
<br />
<br />

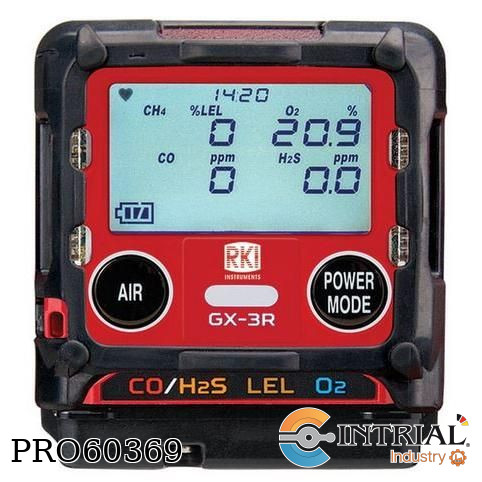

MONITOR DE GAS<br />
Marca: RKI<br />
Modelo: GX-3R<br />
P/N: 72-RA-C<br />
Dimensiones (61 x 67 x 27) mm<br />
Peso 105 g.<br />
Detección simultánea de 4 gases:<br />
 LEL CH4 0 a 100% (1% LEL CH4)<br />
 O2 0 a 40% Vol. (0.1% VOL)<br />
 H2S 0 a 200 ppm (0.1% ppm)<br />
 CO 0 a 2,000 ppm (1 ppm)<br />
Sensor de CO compensado en H2<br />
Operación simple con 2 botones<br />
Alarmas: audible, visual y vibración.<br />
3 niveles de alarma ajustables por el usuario<br />
Registro de datos (Adaptador usb como opcional )<br />
Cuerpo resistente a los golpes y caídas de hasta 7 metros de altura (con protector de caucho)<br />
Funda de goma extraíble.<br />
Gran pantalla LCD con retroiluminación automática<br />
Hasta 25 horas de funcionamiento (batería de iones de litio)<br />
Sensores y filtros reemplazables en campo<br />
Certificaciones Antiexplosión TIIS: IIC T4 Ga, JNIOSH-TR-46-1: 2015, JNIOSH-TR-46-6: 2015.<br />
Diseño resistente al agua y al polvo, IP66 / 68<br />
Visualización de temperatura ambiental<br />
<br />
Incluye:<br />
 • BOMBA PARA MUESTREO A DISTANCIA<br />
   Marca: RKI<br />
   Modelo: RKIACSC1<br />
   P/N: 81-1198<br />
 • Cartilla de operación rápida.<br />
 • Protector de caucho (ensamblado en equipo)<br />
 • Cargador<br />
 • Adaptador para calibracion<br />
 • Manguera de 3 metros con sonda<br />
 • Certificado de calibración de INTRIAL S.A.C.

MONITOR DE GAS<br />
Marca: RKI<br />
Modelo: GX-3R<br />
Monitor de 4 gases O2 / CO / H2S / LEL(CH4) Datalogger<br />
Incluye,<br />
 1 Baterias Recargables Litio (25 horas uso)<br />
 1 Cargador 115/220VAC<br />
 1 CD con Manual y Software<br />
 1 Certificado de Calibracion

DETECTOR DE GAS PORTATIL<br />
MARCA: SCOTT
<div>
<div class="gtx-trans-icon"></div>
</div>

DETECTOR MULTIGAS PORTATIL<br />
MARCA : SCOTT SAFETY
<div>
<div class="gtx-trans-icon"></div>
</div>

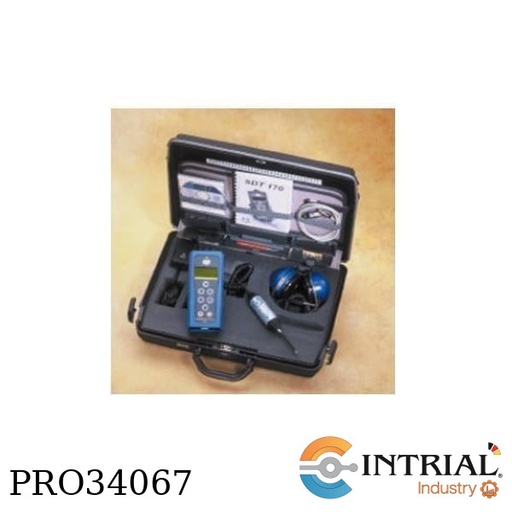

Functional Ultrasonic Detector<br />
BRAND: SDT North America<br />
FUBP170MH2 Power Pack<br />
FSSON1701 Broadband<br />
Contact probe w/cable<br />
FUHEADPH1 Headphone<br />
FUPS170US Power Charger 110V<br />
FUSTRAP Shoulder Strap<br />
FUCABRS232/170 Cable<br />
RS232 to PC<br />
FUSUITSYS3-1 Carrying Case<br />
FSPRECIND Precision<br />
Indicator

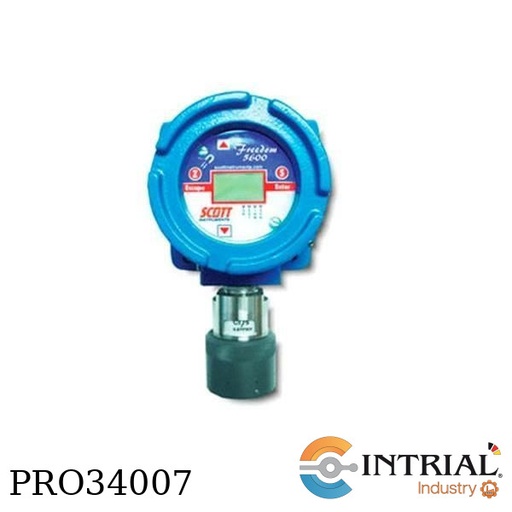

H2S GAS DETECTOR<br />
-Marca: SCOTT INSTRUMENTS INC.<br />
-Modelo: FREEDOM 5600<br />
-Range: 0-50 ppm<br />
-Transmissor com sensor integrado.<br />
-Sensor Eletroquímico por difusão<br />
Integrado ao transmissor<br />
com tecnologia eletroquímico de alta<br />
perfomace.<br />
-Repetibilidade e Linearidade: +/- 2%<br />
FS;<br />
-Sinal de Saída: Analógico 4-20 mA, 2<br />
fios (two wires), 700<br />
E a 24 VDC;<br />
-Alimentação: 10-28 VDC 2 fios, 0.5 W<br />
@ 24 VDC;<br />
-Extensão do cabo do sensor: até<br />
15.25m;<br />
-Calibração: Não Intrusiva;<br />
-Display: 3.5 dígitos LCD, 100%<br />
Bargraph, configuração<br />
automática do gás a ser monitorado;<br />
-Umidade: 0-99% não condensado;<br />
-Garantia: 1 ano;<br />
-Peso: 1.3 Kg;<br />
-Invólucro: invólucro do sensor em<br />
aço Inox 316 com tampa<br />
em PVC, proteção NEMA 4X;<br />
-Aprovação: ATEX EEx nL IIc T6 e<br />
LCIE 03 ATEX 6437 X<br />
para Classe 1, Divisão 2, Grupos B, C

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-size:10pt;font-family:'Arial Narrow', sans-serif;">SENSEPOINT XCD GAS DETECTOR</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Brand: HONEYWELL</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Certification: ATEX/IEC Ex</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Sensor Type: Flammable CAT; 0-100% LEL</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Enclosure Material</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Conduit Entry: M20</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Communication: None</span></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p>

<p></p>

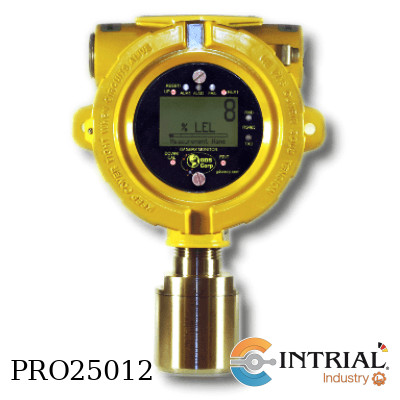

<span style="font-size:12px;"><span style="font-family:arial, helvetica, sans-serif;"><span class="value"><strong>GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications</strong><br />
- Power Input 10-30VDC at less than 0.75 watts<br />
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and<br />
- engineering units display.<br />
- Input Accepts microamp-level signals from local or remote<br />
- GDS Corp toxic or oxygen deficiency sensors<br />
- Accuracy +/- 5% of full scale range (typical)<br />
- Standard<br />
- Output<br />
- <span style="background-color:#FFFF00;">Standard 2-wire 4-20mA current sink output. Max loop R</span><br />
- is 600 ohms with nominal 24VDC power supply.<br />
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual<br />
- for additional information<br />
- Housing Aluminum housing with epoxy paint standard; #316<br />
- stainless steel optional<br />
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”<br />
- (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for<br />
- explosion-proof installations<br />
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically<br />
- safe. IMPORTANT: Intrinsically Safe installations<br />
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.<br />
- ATEX Certified EX II 2 G EEx d IIB + H2 T5<br />
- Warranty Two years on electronics and one year on sensors.<br />
//////////CODIGOS PARA ORDENAR///////<br /><br />
GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications</span><br />
Chanel 1<br />
- 2: Sensor Head (</span></span>Local sensor head for splash guard<span style="font-size:12px;"><span style="font-family:arial, helvetica, sans-serif;">)<br />
- 14: Senor Type (Hydrogen)<br />
- 1: Detection Range (0 – 1 % H2)</span></span>

<div class="MsoNormal" style="line-height:normal;">

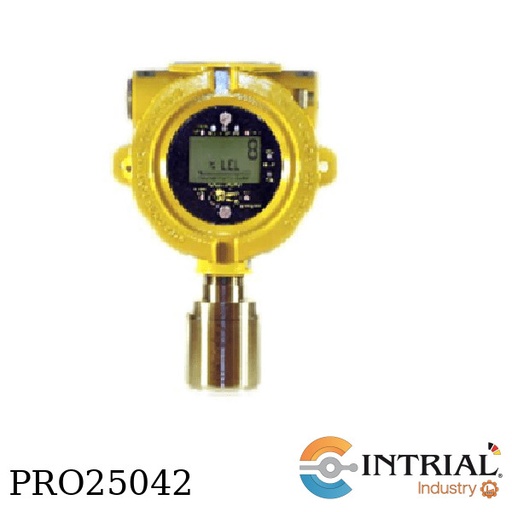

<div><span style="font-size:12px;"><span style="font-family:arial, helvetica, sans-serif;"><span class="value"><strong>GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications</strong><br />
- Power Input 10-30VDC at less than 0.75 watts<br />
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and<br />
- engineering units display.<br />
- Input Accepts microamp-level signals from local or remote<br />
- GDS Corp toxic or oxygen deficiency sensors<br />
- Accuracy +/- 5% of full scale range (typical)<br />
- Standard<br />
- Output<br />
- Standard 2-wire 4-20mA current sink output. Max loop R<br />
- is 600 ohms with nominal 24VDC power supply.<br />
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual<br />
- for additional information<br />
- Housing Aluminum housing with epoxy paint standard; #316<br />
- stainless steel optional<br />
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”<br />
- (127 mm) Shipping weight 6.5 pounds (3 kg)<br />
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for<br />
- explosion-proof installations<br />
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically<br />
- safe. IMPORTANT: Intrinsically Safe installations<br />
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.<br />
- ATEX Certified EX II 2 G EEx d IIB + H2 T5<br />
- Warranty Two years on electronics and one year on sensors.<br />
//////////CODIGOS PARA ORDENAR///////<br /><br />
GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications</span><br />
Chanel 1<br />
- 3: Sensor Head (Local sensor head for reactive gases)<br />
- 20: Senor Type (Ammonia)<br />
- 6: Detection Range (0 – 100 %)</span></span></div>
</div>

<strong>Four Channel Alarm & Display Controller for Critical Monitoring Applications<br />
Model : C2-Quad-00-0-0-0-1-0-1-1</strong><br />
C2-Quad : Protector Alarm Controller<br />
INPUT TYPE<br />
00 = No input (wireless only)<br />
DISCRETE RELAY 3<br />
0 = Stardard 2x 5A SPDT relays<br />
ANALOG OUTPUT<br />
0 = None<br />
MODBUS / WIRELESS 2<br />
1 = RS-485 / RS-232 MODBUS serial<br />
slave interface<br />
AUDIBLE ALARM<br />
0 = None<br />
VISUAL ALARM<br />
1-4 Strobe (red, amber, blue, purple) XP<br />
ENCLOSURE OPTIONS<br />
1 = NEMA 4X Extended non-metallic

<strong><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations</span></span><br />
Model : GM-CX-1-53-RXXXX-1-10-4-1<br />
Chanel 1</strong>
<ul><li>1 : Local sensor head configured for Carbon Dioxide</li>
<li>53 : Toxic Sensor SmartIR Carbon Dioxide</li>
<li>RXXXX : Detection Range 0-500</li>
</ul><strong>Chanel 2</strong>

<ul><li>1 : Local sensor head configured for Oxygen</li>
<li>10 : Toxic Sensor OXYGEN</li>
<li>4 : Range 0-25</li>
</ul><strong>OUTPUT :</strong>

<ul><li>1 : MODBUS ports (Includes YAdapter for Dual Sensor Heads)</li>
</ul><div class="MsoNormal" style="line-height:normal;"><strong><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations</span></span></strong></div>

<ul><li><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Power Input:    10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Display:        Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Electrochemical Sensor Input:    Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Bridge Type Sensor Input:        Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Standard Output:            Standard dual 3-wire 4-20mA current source. </span><span style="font-size:12pt;font-family:'Times New Roman', serif;">Max loop R is 750 ohms with nominal 24VDC power supply</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Optional Outputs:        Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Temp:        Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Housing :        Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Dimensions:        Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Approvals:        CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Warranty:        2 years on electronics and one year on sensors</span></span></li>
</ul>

<strong><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">GMII: GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations</span></span><br />
Model : GM-CX-1-29-R0020-1-11-7-1</strong><br /><strong>Chanel 1</strong>
<ul><li>1 : Local sensor head configured for Nitrogen</li>
<li>29 : Toxic Sensor Nitrogen Dioxide</li>
<li>R0020 : Detection Range 0-0020</li>
</ul><strong>Chanel 2</strong>

<ul><li>1 : Local sensor head configured for Carbon Monoxide</li>
<li>29 : Toxic Sensor Carbon Monoxide</li>
<li>7 : Range 0-500</li>
</ul><strong>OUTPUT :</strong>

<ul><li>1 : MODBUS ports (Includes YAdapter for Dual Sensor Heads)</li>
</ul><div class="MsoNormal" style="line-height:normal;"><strong><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations</span></span></strong></div>

<ul><li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Power Input:    10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Display:        Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Electrochemical Sensor Input:    Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Bridge Type Sensor Input:        Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Standard Output:            Standard dual 3-wire 4-20mA current source. </span><span style="font-size:12pt;font-family:'Times New Roman', serif;">Max loop R is 750 ohms with nominal 24VDC power supply</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Optional Outputs:        Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Temp:        Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Housing :        Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Dimensions:        Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Approvals:        CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations</span></span></li>
<li class="MsoNormal" style="line-height:normal;"><span class="value"><span lang="en-us" style="font-size:12pt;font-family:'Times New Roman', serif;" xml:lang="en-us">Warranty:        2 years on electronics and one year on sensors</span></span></li>
</ul>
