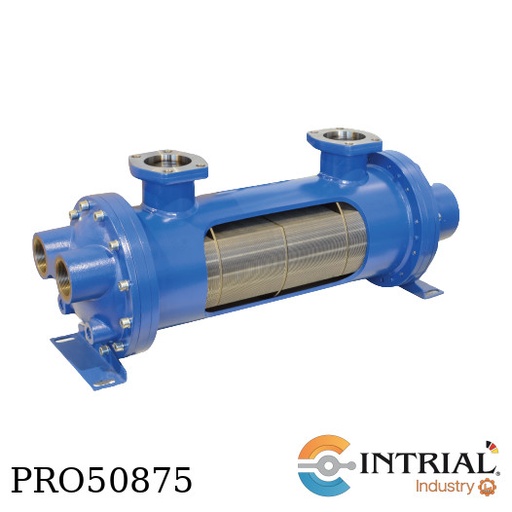

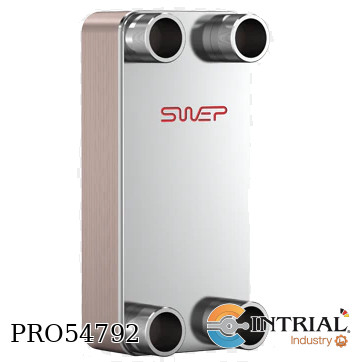

HEAT EXCHANGER, G1 1/2“ HEAT EXCHANGER<br /> Brand: UNIVERSAL HYDRAULIK<br /> Model: EKM-712-T-CN-UH-1012917<br /> (TURNED BRACKETS)<br /> Connection: G1 1/2“<br /> S/ 7,497.62 7497.62 PEN	HEAT EXCHANGER SWEP 201.9 kW 31 m3/h4.23 m2 HEAT EXCHANGER<br /> Brand: SWEP<br /> Model: B315Mx50/1P<br /><br /> SIDE 1<br /> DUTY REQUIREMENTS <br /> Fluid, Water <br /> Flow type, Counter-current <br /> Circuit, Inner<br /> Heat load, 201.9 kW <br /> Inlet temperature, 22 °C<br /> Outlet temperature, 16.38 °C<br /> Flow rate, 31 m3/h <br /> Thermal length, 0.587<br /> Total heat transfer area, 4.23 m2 <br /> Heat flux, 47.8 kW/m2 <br /> Mean temperature difference, 9.56 K <br /> O.H.T.C. (available/required), 5000/4990 W/m2, °C<br /> Pressure drop-total, 26.3 kPa<br /> -in ports, 2.38 kPa<br /> Port diameter (up/down), 70.0/70.0 mm<br /> Number of channels per pass, 24<br /><br /> SIDE 2<br /> DUTY REQUIREMENTS<br /> Fluid, Water<br /> Flow type, Counter-current <br /> Circuit, Outer<br /> Heat load, 201.9 kW <br /> Inlet temperature, 7 °C<br /> Outlet temperature, 12.25 °C<br /> Flow rate, 33 m3/h<br /> Thermal length, 0.549<br /> Total heat transfer area, 4.23 m2 <br /> Heat flux, 47.8 kW/m2 <br /> Mean temperature difference, 9.56 K <br /> O.H.T.C. (available/required), 5000/4990 W/m2, °C<br /> Pressure drop-total, 28.5 kPa<br /> -in ports, 2.70 kPa<br /> Port diameter (up/down), 70.0/70.0 mm<br /> Number of channels per pass, 25<br /><br /> S/ 0.00 0.0 PEN	AIRCOOLER UNIVERSAL-HYDRAULIK 0.37 Kw 0.89 A 1500 rpm AIRCOOLER<br /> Brand: UNIVERSAL-HYDRAULIK<br /> Model: LKI-320-400V-4<br /> Motor performance, 0.37 Kw<br /> Power Consumtion, 0.89 A<br /> Rotation speed, 1500 rpm<br /> Air flow, 0.74 m3/s<br /> Weight, 25 kg<br /><br /> <div> <div class="gtx-trans-icon"></div> </div> <div> <div class="gtx-trans-icon"></div> </div> S/ 0.00 0.0 PEN	ENFRIADOR - DRYCOOLER VDDS1007 ALFA LU-VE ENFRIADOR - DRYCOOLER VDDS1007 ALFA LU-VE<br /> VDDS1007.1DD120 SWR 2.1-60Hz<br /> Marca: ALFA LU-VE<br /> Aplicación: Glicol/Agua<br /> Tipo de producto: Alfa-V<br /> Capacidad Calculada: 908,70 kW<br /> Temperatura del aire ON/OFF: 30,0 °C / 37,0 °C<br /> Caudal de aire: 407378 m³/h<br /> Fluido: Et.glicol<br /> Tipo de ventilador: CA<br /> Número de fans: 14<br /> Velocidad de rotación: 930 rpm<br /> Alimentación 460V / T / 60 Hz / D<br /> Potencia nominal total: 58800 W<br /> Corriente nominal total: 89,6 A S/ 0.00 0.0 PEN

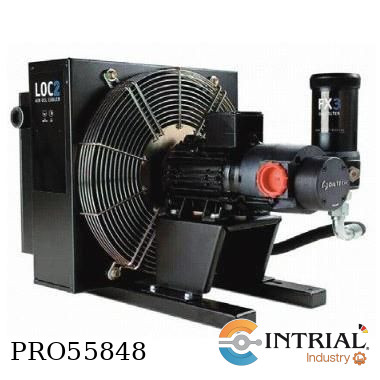

OFFLINE COOLING SYSTEM PARKER 460 V 60 Hz IE2 60 cm3/r OFFLINE COOLING SYSTEM<br /> Brand: PARKER<br /> Model: LOC3-044-4-B-D-0-00-000-0-0-0-0<br /> [LOC3]: Type, LOC3 used for all sizes with IE2 motors<br /> [044]: Cooler size, 044<br /> [4]: Number of poles, 4<br /> [B]: Voltage, 460 V<br /> Frequency, 60 Hz<br /> Efficiency, IE2<br /> [D]: Pump displacement, Displacement 60 cm3/r<br /> [0]: By-pass valve, pump, no by-pass valve<br /> [00]: Thermo contact, no thermo contact<br /> [000]: Cooler matrix, standard<br /> [0]: Matrix guard, no guard<br /> [0]: Filter unit, no filter unit<br /> [0]: Pressure drop indicator, no pressure drop indicator<br /> [0]: Standard/special, standard S/ 0.00 0.0 PEN	INTERCAMBIADOR DE CALOR THERMAL TRANSFER INTERCAMBIADOR DE CALOR<br /> Marca: THERMAL TRANSFER<br /> Modelo: BOL-30-1-3<br /> [BOL]: Serie<br /> [30]: Tamaño del modelo seleccionado, 30<br /> [1]: Tipo de conexión, 1 1/4" NPT<br /> [3]: Especificar motor,Trifásico<br /> [-]: Núcleo, P-BAR estándar<br /> [-]: Nivel de ruido, Nivel de ruido estándar<br /> Electric Motor Information (60 HZ Nema Frame)<br /> Voltaje, 208-230/460<br /> Motor, 1/2 HP S/ 0.00 0.0 PEN	AIR-COOLED SOUTHWEST THERMAL 208-230/460 V 60 Hz 23350 CFM, 11.73 m3/s AIR-COOLED<br /> Brand: SOUTHWEST THERMAL<br /> Model: AOCS-2010-SWT-70404<br /> Horse power, 10<br /> Phase, 3<br /> 60 Hz<br /> Volts, 208-230/460<br /> 1200 RPM<br /> NEMA Frame, 256T<br /> Type, TEFC<br /> Full load, 27.6/13.8 amperes<br /> Service factor, 1.15<br /> Thermal overload, no<br /> Airflow, 23350 CFM, 11.73 m3/s<br /> <br /> *Reemplazo para el modelo: OCS 2000D* S/ 0.00 0.0 PEN	EXCHANGER SWEP V400THx142/1P-SC-S-35.1+90+2x1/2"INT/2x3"VIC EXCHANGER<br /> Brand: SWEP<br /> Model: V400THx142/1P-SC-S-35.1+90+2x1/2"INT/2x3"VIC<br /> Material, 316 stainless steel plates, copper brazing S/ 19,220.42 19220.420000000002 PEN

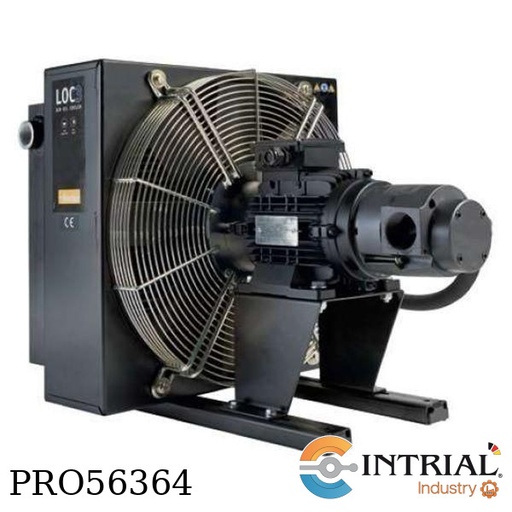

COOLING SYSTEM PARKER 4-pole 460 alt 480 V 60 Hz 60 cm3/r COOLING SYSTEM<br /> Brand: PARKER<br /> Model: LOC3-044-4-B-D-H-00-000-0-00-0<br /> [044]: Cooler size, 044<br /> [4]: Number of poles, 4-pole<br /> [B]: Voltage and frecuency, 460 alt 480 V 60 Hz<br /> [D]: Pump size, displacement 60 cm3/r<br /> [H]: Bypass valve,pump, Built-in bypass valve, 5 bar external<br /> [00]: Thermo contact, No thermo contact<br /> [000]: Cooler matrix, standard<br /> [0]: Matriz guard, No guard<br /> [0]: Filter unit, no filter unit<br /> [0]: Pressure drop indicator, no pressure drop indicator<br /> [0]: Standard S/ 0.00 0.0 PEN	Brazed plate heat exchanger ALFA LAVAL -196 / 225 °C 50 bar 147 x 113 x 527 mm Brazed plate heat exchanger<br /> Brand: ALFA LAVAL<br /> Model: CBH60-40H<br /> Process data:<br /> Hot side<br /> Fluid, Water<br /> Duty type, Liquid cooling<br /> Cold side<br /> Fluid, Water<br /> Duty type, Liquid heating<br /> Heat exchanger specification:<br /> Hot side<br /> Relative directions of fluids, Countercurrent<br /> Number of plates, 40<br /> Number of passes, 1<br /> Channel arrangement, 120H<br /> Channel volume, 2,1dm³<br /> Number of circuits, 1<br /> Design pressure at -196 °C, 50 bar<br /> Design pressure at 225 °C, 39 bar<br /> Design temperature (min./max.), -196 / 225 °C<br /> Pressure vessel code, PED/UK<br /> Material channel plates/sealing, ALLOY 316 / Cu<br /> Connection S1 (Hot-In), Soldering 1 3/8" ALLOY 316<br /> Connection S2 (Hot-Out), Soldering 1 3/8" ALLOY 316<br /> Connection S3 (Cold-In), Soldering 22 mm ALLOY 316<br /> Connection S4 (Cold-Out), Soldering 22 mm ALLOY 316<br /> Unit dimensions (length x width x height), 147 x 113 x 527 mm<br /> Cold side<br /> Relative directions of fluids, Countercurrent<br /> Number of plates, 40<br /> Number of passes, 1<br /> Channel arrangement, 119H<br /> Channel volume, 2,0dm³<br /> Number of circuits, 1<br /> Design pressure at -196 °C, 50 bar<br /> Design pressure at 225 °C, 39 bar<br /> Design temperature (min./max.), -196 / 225 °C<br /> Pressure vessel code, PED/UK<br /> Material channel plates/sealing, ALLOY 316 / Cu<br /> Connection S1 (Hot-In), Soldering 1 3/8" ALLOY 316<br /> Connection S2 (Hot-Out), Soldering 1 3/8" ALLOY 316<br /> Connection S3 (Cold-In), Soldering 22 mm ALLOY 316<br /> Connection S4 (Cold-Out), Soldering 22 mm ALLOY 316<br /> Unit dimensions (length x width x height), 147 x 113 x 527 mm S/ 0.00 0.0 PEN	AIR OIL COOLER 3 H.P. MOTOR 220/440V/60HZ. MODEL: LAC-33-4-D-D50-S50<br /> AIR OIL COOLER 3 H.P. MOTOR 220/440V/60HZ. <br /> MARCA OILAIR<br /> MOTOR 4 -POLOS 1800 RPM (CORRIENTE ALTERNA)<br /> ELECTROMOTOR : 3HP Y 4 POLOS<br /> CON SISTEMA BYPASS<br /> CON TERMOSTATO A 120F <div> <div class="gtx-trans-icon"></div> </div> S/ 0.00 0.0 PEN	RADIADOR AIR COOLER, 71LITROS, 0.6/1.0 MPa RADIADOR AIR COOLER <br /> MARCA: LUVATA-COILTECH <br /> VOL: 71LITROS, MAX WORKING/TEST<br /> PRESS:0.6/1.0 MPa USO:MOLINO <div> <div class="gtx-trans-icon"></div> </div> S/ 0.00 0.0 PEN

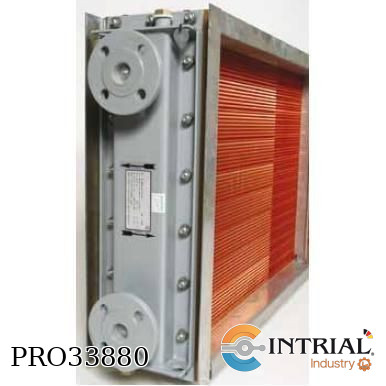

Heat Exchanger Motor/Generator Model QLKE-255 cooler 5 rows, single tube 4500x1400x800mm Modelo: QLKE-255-123-5-2-4-23-1-3-X0<br /> Heater Exchanger (Intercambiador de Calor)<br /> Brand: LUVATA-COILTECH (Suecia)<br /> • Motor/generator cooler 5 rows, single tube Tube<br /> • Tube in copper/nickel<br /> • Fins in Aluminum<br /> • Side casing zinc plated<br /> • Water box: Carbon steel with Rilsan<br /> • Connections in/out: DN 65<br /> • Dry weight: approx: 342 kg/cooler<br /> • Packing: seaworthy packaging, 1 crate for 2 coolers<br /> • Dimensions: approx.: 4500x1400x800 mm<br /> • Total weight: approx 800 Kg<br /> • As per original cooler. Our ref. C-2830.2109<br /> • including QLAZ-06-60 test report<br /> • QLKZ-04-21 vent and drain ball valves Drip tray S/ 107,026.00 107026.0 PEN	AIR OIL COOLERS, 6 poles KEY FOR LAC-M AND LAC2-M AIR OIL COOLERS<br /> Brand: OILTECH (OLAER)<br /> [LAC]: Series<br /> [044]: Cooler Size<br /> [6]: Number of poles, motor<br /> [X]: Voltage and frequency, Motor for special voltage (stated in plain language)<br /> [00]: Thermo Contact, No thermo contact<br /> [000]: Cooler matrix, Standard<br /> [0]: Matrix Guard, No guard<br /> [Z]: Standard/Special, Special. S/ 27,173.72 27173.72 PEN	GASKET for UKTFM-1224 <p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span lang="es" style="font-size:10pt;font-family:'Arial Narrow', sans-serif;" xml:lang="es">SELLO PARA INTERCAMBIADOR UKTFM-1224-T-CN-W-SW</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Marca: UNIVERSAL HYDRAULIK</span></p> <p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p> <p></p> <p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p> <p></p> S/ 272.10 272.1 PEN	CARTRIDGE for UKTFM-1224 <ul><li class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="es" style="font-size:10pt;" xml:lang="es">REPUESTO PARA INTERCAMBIADOR UKTFM-1224</span></span></li> <li class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-family:arial, helvetica, sans-serif;"><span lang="es" style="font-size:10pt;" xml:lang="es">SS: Stainless steel material for tubes(Acero Inoxidable para los tubos de enfriamiento)</span></span></li> <li class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span style="font-family:arial, helvetica, sans-serif;"><span style="font-size:10pt;">Marca: UNIVERSAL HYDRAULIK</span></span></li> </ul><p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p> <p></p> S/ 13,753.75 13753.75 PEN

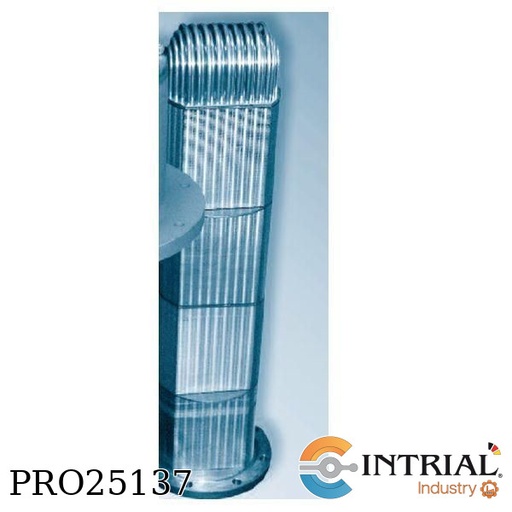

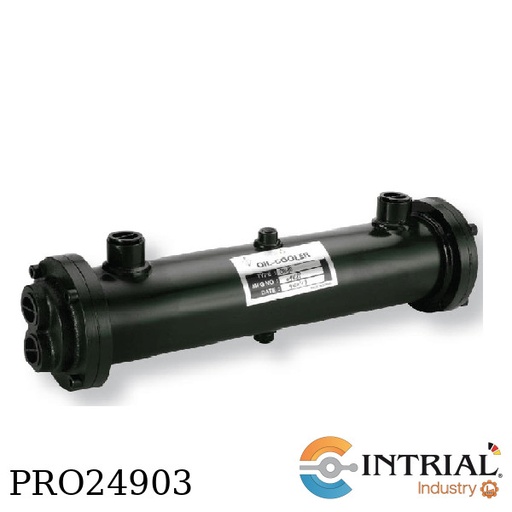

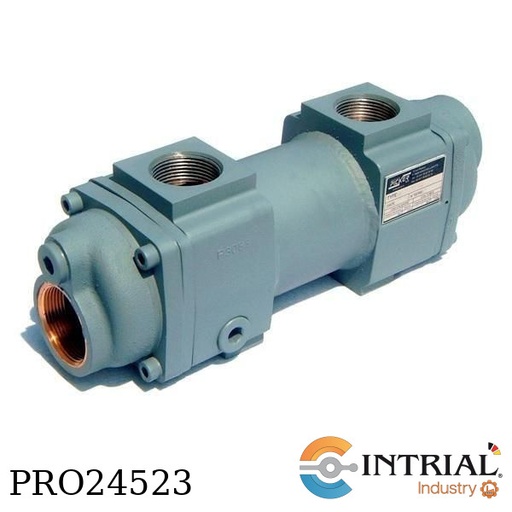

CARTRIDGE for UKTFM <p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><span lang="es" style="font-size:10pt;font-family:'Arial Narrow', sans-serif;" xml:lang="es">REPUESTO PARA INTERCAMBIADOR UKTFM-1224-T-CN-W-SW</span><br /><span style="font-family:'Arial Narrow', sans-serif;font-size:10pt;">Marca: UNIVERSAL HYDRAULIK</span></p> <p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"></p> <p></p> S/ 8,123.09 8123.09 PEN	OIL COOLER, 36CM, 4" OIL COOLER<br /> Brand: KAMUI<br /> Lot N°: GV2202<br /> Lenght: 36 cm<br /> Diameter: 4”<br /> Shell Side Pressure:1.0 MPa <br /> tube side Pressure: 0.5 MPa(73 PSI) S/ 2,365.46 2365.46 PEN	INTERCAMBIADOR DE CALOR Excharge surface (m2): 1..14 INTERCAMBIADOR DE CALOR<br /> Brand: PICKERS<br /> Excharge surface (m2): 1..14<br /> CAPACITY<br /> SHELL side: 2.9<br /> TUBE side: 2.1<br /><br /> **El intercambiador CC14LFD0AA ya no se fabrica.; es reemplazado por el modelo CC14LFD2AA<br /> Instalación estrictamente lugar a lugar.<br /> La única diferencia está en el material de los tubos del haz: níquel de cobre<br /> en lugar de tubos de cobre.** S/ 0.00 0.0 PEN	Heat Exchanger Motor/Generator Model 5KD1408B-L Counterflow 440Kw cooler 8 rows 3000x1300x500 Fabricante: LUVATA (ex Coil-Tech)<br /> Seccion Transversal: 2400x953<br /> Drawing : 119191700<br /> Tipo de Flujo: COUNTERFLOW<br /> • Motor/generator cooler 8 rows, single tube<br /> • Tube in stainless steel 316L<br /> • Fins in Aluminum<br /> • Tube plate in SS316L<br /> • Side casing zinc plated<br /> • Water box: Stainless steel 316L<br /> • Connections in/out: 3" ANSI B 16.5 150lb<br /> • Dry weight: approx: 320 kg/cooler<br /> • Packing: seaworthy packaging, 1 crate/cooler<br /> • Dimensions: approx.: 3000x1300x500 mm<br /> • Total weight: 420 Kg S/ 127,596.76 127596.76000000001 PEN
