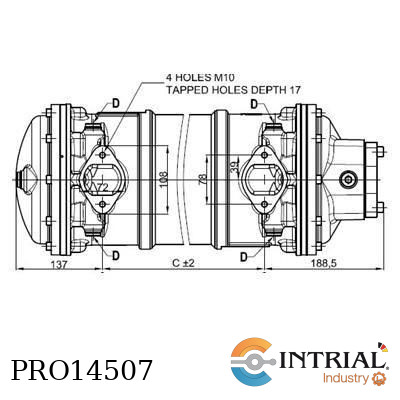

HEAT EXCHANGER<br />
Brand: PICKER<br />
Exchange Surface: 10.02 m2<br />
Capacity (I): Shell side: 20.7; tubes side:19.7<br />
Maximum admissible temperature (°C): With “nitrlle” gaskets : 100;<br />
With “viton” gaskets: 150<br />
Net weight : 80 Kg - Gross weight : 107 Kg<br />
Dimensions : 198 x 32 x 37 cm

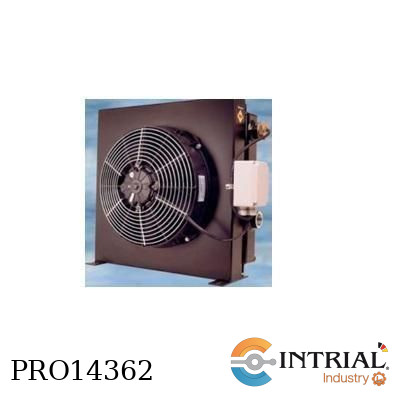

Air Oil Cooler-Motor corriente continua<br />
AIR FLOW (CPM 1082)<br />
ALIMENTACION A 24VDC<br />
 Con sistema Bypass<br />
Con termostato a 120F<br />
Marca OILAIR<br />
MAS ESPECIFICACIONES: VER DATA SHEET

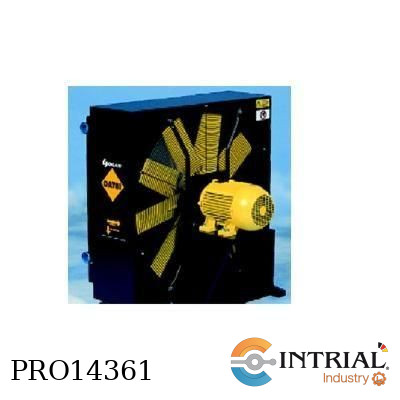

Air Oil Cooler<br />
 Motor 4 – polos 1800RPM(Corriente Alterna)<br />
 Electromotor: 3 HP y 4 polos<br />
Con sistema Bypass<br />
 Con termostato a 120F<br />
220/440VAC/60Hz<br />
Marca OILAIR<br />
MAS ESPECIFICACIONES: VER DATA SHEET

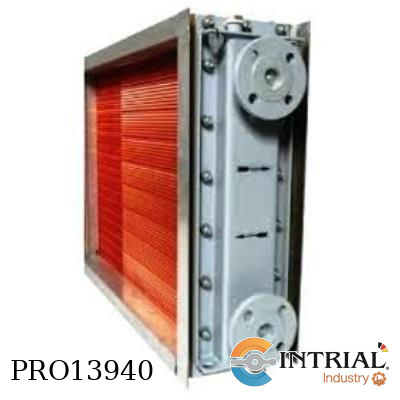

Heater Exchanger  (Intercambiador de Calor)<br />
Brand: LUVATA-COILTECH (Suecia)<br />
•    Motor/generator cooler model QLKE, 3 rows, single tube<br />
•    Tube in copper<br />
•    Fins in Aluminum<br />
•    Tube plate in brass<br />
•    Side casing galvanized steel<br />
•    Water box carbon steel Rilsan coated<br />
•    Connections in/out: DN80<br />
•    Max/Min working temp_  99/0   C<br />
•    Mas working/Test Press   0.6/0.9 Mpa<br />
•    Weight:  230Kg<br />
•    Vol:  41 Liters<br />
•    Dimensions:  2.5x1.3x0.25m without Box<br />
Note.-   Ordering code: QLKE-225-113-3-1-2-13-E-4-X0-Z,  same to “SO00019811-1”

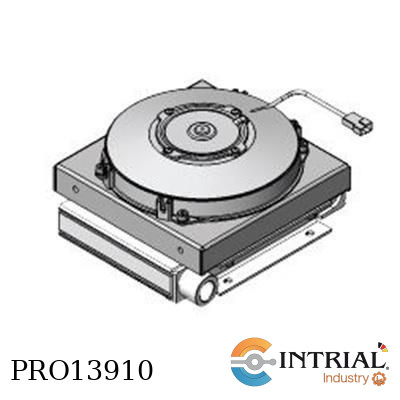

OIL/AIRCOOLER 12V ABZ-10020441

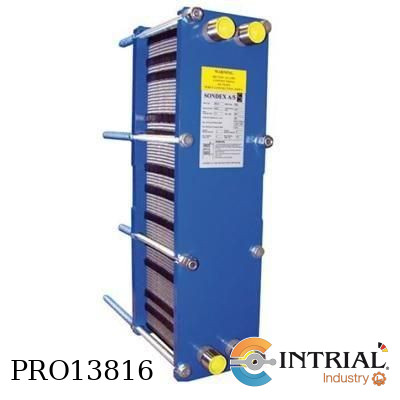

• Brand: Sondex<br />
• Frame Size: S4A<br />
• Fluid Class: 2-2<br />
• Nominal power: 90 kW<br />
• Transmission surf: 0.67 m2<br />
• Assembling measure (mm): min. 49 / max. 51<br />
• Dimension H: 460/18.11"<br />
• Dimension C: 381/15"<br />
• Dimension L1: 120/4.72"<br />
• Dimension L2: 220/8/.66"

• Brand: MPG<br />
• Type: WTD-18<br />
• Surface area (m2): 1.8<br />
• Tube type: 11.22.19 <br />
• Tube length (nm): 6700<br />
• Inside cross section (cm2): 2.13 <br />
• Weight (kg): 6.45<br />
• Dimensions:  L (mm): 300, D (mm): 180, G (inch): ¾” / *1” <br />
• Suitable Fittings F: F I – F VI

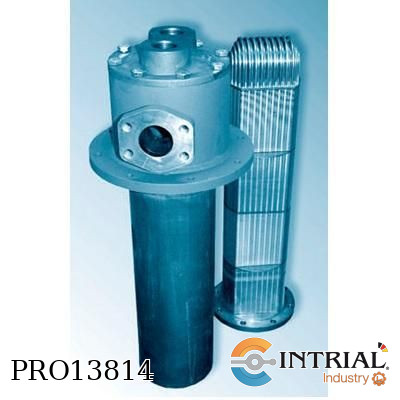

• Brand: Universal Hydraulik<br />
• [UKTFM]: Type de raccordement, SAE Flange: FM.<br />
• [1224]: Unit size.<br />
• [T]: Cooling water connection system:  2-pass = T, 4- pass, without series 500 : F<br />
• [CN]: Tubes Copper/Nickel.<br />
• [W]: End plates Cooper/Nickel<br />
• [SW]: Sea water - SAE 2 1/2" - G2"<br />
• Maximum operating pressure:  Shell: 35 bar, Tubes:  16 bar.<br />
• Maximum operating temperature: 95°C

DTC-SSC/SSC-6-1-1<br />
Heat Exchangers SENTRY Tube-IN-Tube DTC-6<br />
DTC-6 dual tube coil heat exchangers spiral wound.<br />
•    Inner Tube Design/Material:  (5100 Psi at 1000F) / 3/8 in OD 316SS<br />
•    Outer Tube Design / Material:  (2300 Psi at 1000F) / 3/4 in OD 316SS<br />
•    H.T. Area: 1.90 ft2<br />
•    Total weight: 16 lb<br />
For more details, please see datasheet attached

HEAT EXCHANGER<br />

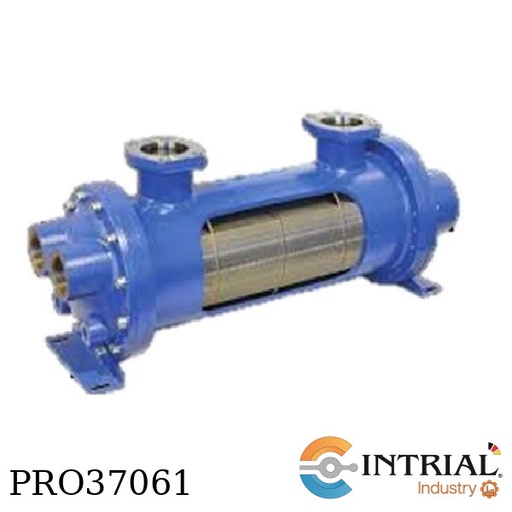

Brand: Universal Hydraulik<br />
Model: EKM-508-T-CN (S:G34-T:G38)<br />
Maximum operating pressure: Shell = up to 20 bar, Tubes = up to 16 bar<br />
Operating temperatura, [5...95]°C<br />
[508]: Unit size<br />
[T]: Cooling water connection system, 2-pass<br />
[CN]: Tube material, Copper nickel<br />
[S]: BSPP thread: G3/4"<br />
[T]: BSPP thread: G3/8"

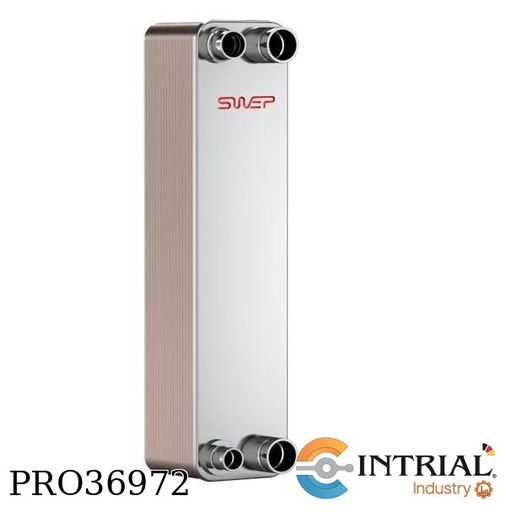

INTERCAMBIADORES DE PLACAS<br />
Brand: SWEP<br />
4x1 1/4"&28U<br />
Maximum number of plates (NoP) 140<br />
Max flow 17 m³/h (74.85 gpm)<br />
Channel volume 0.107/0.107 dm³ (0.0038/0.0038 ft³)<br />
Material 316 stainless steel plates, stainless steel brazing<br />

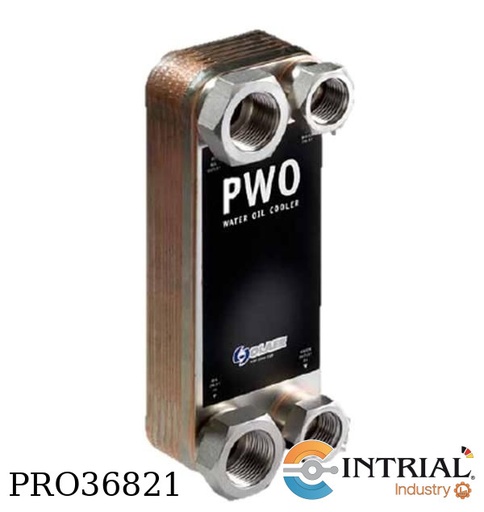

WATER OIL COOLER<br />
Brand: OLAER<br />
Max Work. Temp. “TS °C. Alt.1 (Alt.2): Prim – 155(225); Sec – 155(225)<br />
 Max Work. press. “PS” Bar, Alt.1 (Alt.2): Prim 31(27); Sec – 31 (27)<br />
Test Pressure (PT) Bar: Prim. 50; Sec. 50<br />
Volume (V) L: Prim 1.159; Sec. 1.22<br />
Min work. Temp. (TS): -160 °C

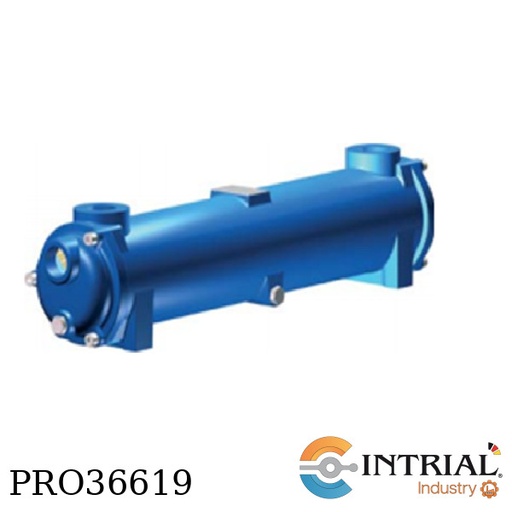

HYDRAULIC OIL COOLERS<br />
Brand: PILAN<br />
Caudal Máximo de Aceite: 120 Litros/Min<br />
Caudal Máximo de Agua: 300 Litros/min<br />
Potencia (Kw): 360

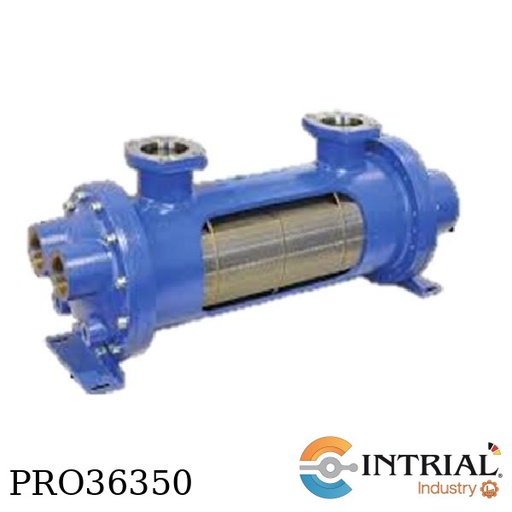

HEAT EXCHANGER<br />
MARCA: UNIVERSAL HYDRAULIK<br />
Maximum operating pressure Shell = up to 20 bar; Tubes = up to 16 bar<br />
Operating temperatura 5 - 95 °C<br />
Cooling water connection system: 1-pass <br />
Tube material: Copper nickel <br />
Connection: G1 1/2“<br />
Part. Number: 10000008463

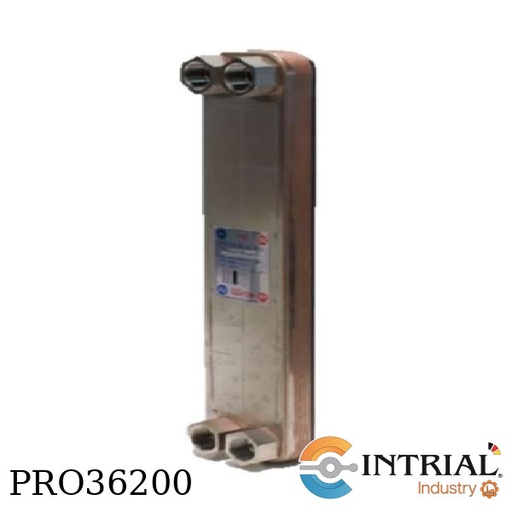

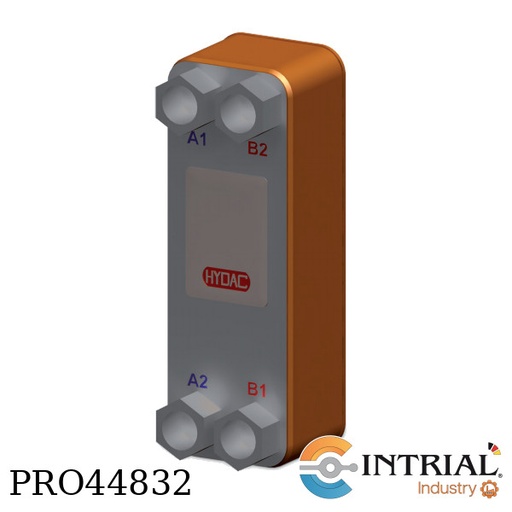

BRAZED PLATE HEAT EXCHANGERS<br />
Brand: HYDAC<br />
Plate material Stainless steel 1.4401 (AISI 316)<br />
Braze material Copper (standard), nickel<br />
Temperature range up to +200 °C<br />
Pressures Copper braze: max. 30 bar (test pressure 45 bar)<br />
Nickel braze: max. 10 bar<br />
Number of plates: 50<br />
Connections: 4 x G1" female thread

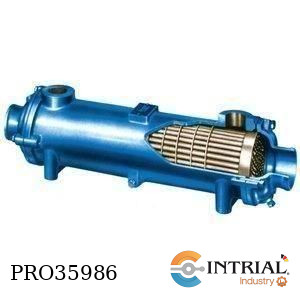

HYDRAULIC OIL COOLERS AND HEAT EXCHANGERS<br />
Brand: PILAN<br />
Max Press : 15 bar<br />
Temp Max : 120ºC<br />
Seals NBR / Viton,<br />
Cover screws Steel

INTERCAMBIADORES DE PLACAS<br />
Marca: SWEP<br />
P80ASHx64/1P-SC-M 12.8+35.1+2x1 1/2" NPT / 2x1/2"INT NPT<br />
Max working temperatura TS°F<br />
Prim: 400<br />
Sec: 400<br />
Max working pressure PS psi<br />
Prim: 650<br />
Sec: 289<br />
Test pressure PT psi<br />
Prim: 997<br />
Sec: 419<br />
Volume V in3<br />
Prim: 189<br />
Sec: 238<br />
<br />


GASKET Kit<br />
For Heat Exchanger Model: QLKE-330-073-5-7-2-13-D-9-00<br />
Brand: LUVATA-COILTECH

PLATE HEAT EXCHANGERS<br />
Brand: HYDAC<br />
Plate material Stainless steel 1.4401 (AISI 316)<br />
Braze material Copper (standard), nickel<br />
Temperature range up to +200 °C<br />
Number of plates: 50<br />
Connections: G1”

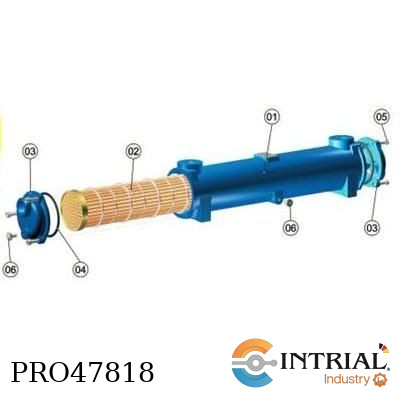

Model: REP-TP-C3<br />
Brand: Hidraer<br />
Tube : Steel<br />
Tube Plates : Bronce<br />
Seals : NBR<br />
Include Juntas
