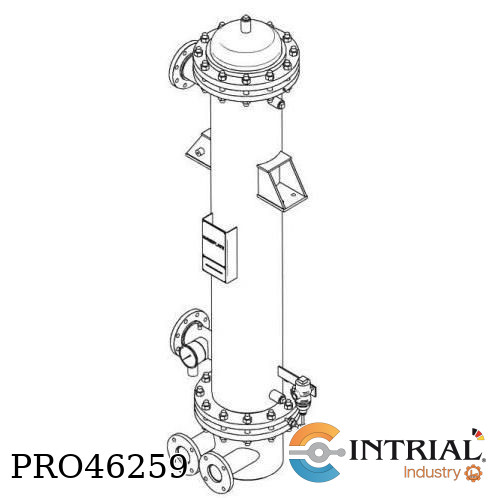

<strong>Exchanger type: Thermofin: T-REX (shell & tube)<br />
Brand: THERMOFIN - CANADA<br />
Namber de Serie: 7571U-1-rev-G</strong><br />
TEMA BEM; OFWF Leak detector type<br />
Code: Per ASME Section VIII Div.1; U Stamp<br />
Tubes: Outer Copper & inner Cu/Ni 90-10<br />
Tubesheet: Material Carbon Steel.<br />
Shell: Pipe 12'' material Carbon Steel.<br />
Shell connections: Flanges 4''-150# FFSO material Carbon Steel.<br />
Channel: Pipe 12'' material Carbon Steel.<br />
Channel connections: Flanges DN80 material Carbon Steel.<br />
Tubes joint: Rolled expansion.<br />
Surface Protection: Shell side inside sandblast + oil flushing; <br />
Outside anti-corrosive epoxy & Ansi 70 grey finish<br />
Tests: Hydrostatic test and other standard Thermofin tests.<br />
Instrumentation: Level switch LS-800-S (1x), <br />
Flow indicator Orto 0150A (1x) &<br />
Temperature sensor RTD-810-B (1x)

Kit, 3/4in, Set of 2 Clamps + Gaskets<br />
Brand: BREWMAGIC

TC Reinforced Brewer Hose, 3/4in x 15ft<br />
Brand: BREWMAGIC

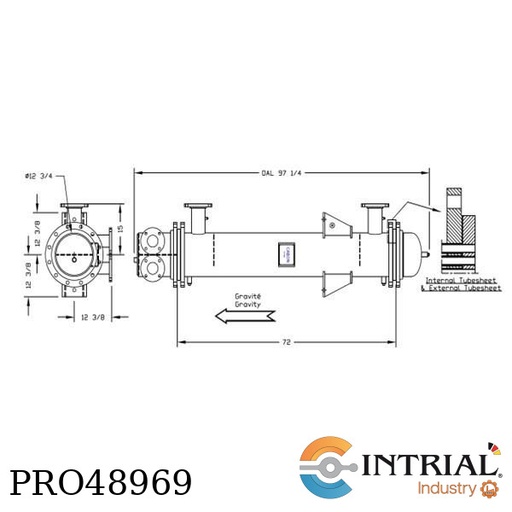

SHELL-AND-TUBE (BEM 12-72-2)<br />
Brand: CARON ET FILS<br />
Application: Hot side / Cold side<br />
Fluid name: Nytro 10XN / Water<br />
Pressure (psig): 15.0<br />
Temperature (°F): Nytro 10XN ( Inlet / 185.0, Outlet / 157.5); Water ( Inlet / 77.0, Outlet /90.7)<br />
Average flow rate: Nytro 10XN (137.9 usgpm); Water (117.0 usgpm)<br />
Pressure drops - All./calc. (psi): Nytro 10XN ( 0.0 / 1.8); Water (0.0 / 1.3)<br />
Suggested inlet nozzle: Nytro 10XN (4" Flange/150#); Water (3 1/2" Flange/DIN80 PN10)<br />
Suggested outlet nozzle: Nytro 10XN (4" Flange/150#); Water (3 1/2" Flange/DIN80 PN10)<br />
Shell side material: Carbon Steel<br />
Tube side material: Carbon Steel

PLATEPRO SANITARY WORT CHILLER<br />
Brand: BREWMAGIC<br />
Dimensions: 16″ x 14″ x 6″<br />
Weight: 48 pounds<br />
304 SS tie-bar frame<br />
3/4″ tri-clamp connections for wort<br />
304 SS garden hose thread connections for cooling water<br />
41 removable plates made of 316 SS<br />
9.43 square feet surface area (0.23 square feet per plate)<br />
EPDM clip flow gaskets

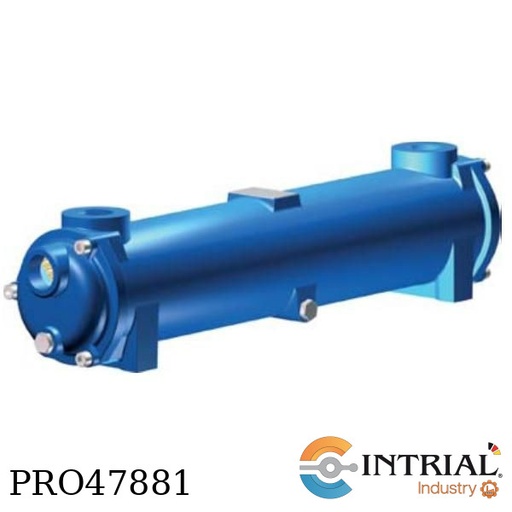

TUBULAR WATER EXCHANGER<br />
Brand: HIDRAER<br />
MAWP: oil 14 bar, water 10 bar<br />
MAWT: 120ºC (180ºC with VITON seals)<br />
Heat dissipated (kW): 29<br />
Oil flow (l/min): 98<br />
Water flow (l/min): 49<br />
Oil pressure drop (bar): 1,04<br />
Water pressure drop (bar): 0,14<br />
Surface (m2): 1,16<br />
Connection: 1” <br />
Dimensions: 730 x 108 x 108

TUBULAR WATER EXCHANGER<br />
Brand: HIDRAER<br />
MAWP: oil 14 bar, water 10 bar <br />
MAWT: 120°C (180°C with VITON seals)<br />
Heat dissipated (kW): 9<br />
Oil flow (l/min): 56<br />
Water flow (l/min): 28<br />
Oil pressure drop (bar): 0,36<br />
Water pressure drop (bar): 0,09<br />
Surface (m2): 0,32<br />
Connection: 3/4” <br />
Dimensions: 349 x 86 x 86

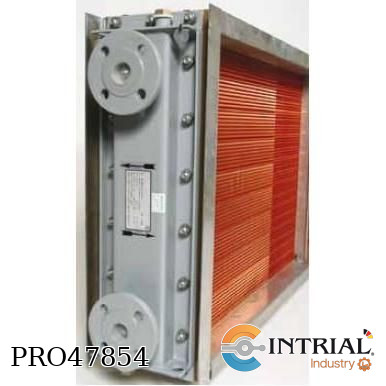

Modelo: QLKE-400-113-4-7-2-23-1-5-X0-Z<br />
Brand: LUVATA<br />
• Motor/generator cooler 4 rows, single tube<br />
• Tube in Copper Niquel<br />
• Fins in Aluminum<br />
• Water box: Carbon steel with Rilsan<br />
• Number of Liquid Passes: 02<br />
• Connections in/out: DN 100 EN1092-1 Type 11<br />
• Dry weight: Approx.: 362 kg<br />
• Dimensions: approx.:   4240 x 193 x 313 mm<br />
• As per original cooler. Our ref. SO16938

[L003513]<br />
CHILLER (ENFRIADOR) DE CIRCULACION DE 12L,-10°C/+35°C 3.4BAR 42LPM<br /><br />
[A000009]<br />
LAUDA: ADAPTADOR BYPASS EXTERNO UC 2-4<br /><br />
[E7012402]<br />
LAUDA: LIQUIDO CALOPORTADOR -10°C/30°C, 25L - REFRIFLUID 1

LAUDA: ADAPTADOR BYPASS EXTERNO UC 2-4

LAUDA: ADAPTADOR BYPASS EXTERNO UC 2-4<br />

CHILLER (ENFRIADOR) DE CIRCULACION<br />
Marca: LAUDA<br />
12L,-10°C/+35°C 3.4BAR 42LPM

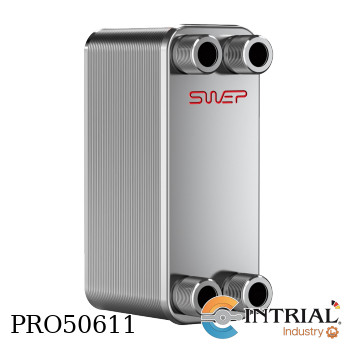

Intercambiadores de placas<br />
Marca: SWEP<br />
Modelo: B35Hx40/1P-SC-S 4x1 1/2"<br />
Material: Stainless Steel 316

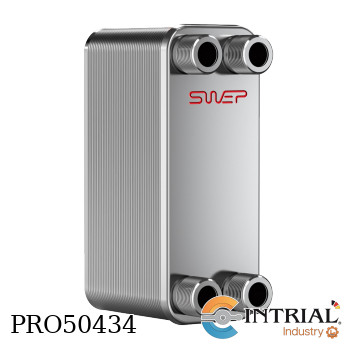

INTERCAMBIADOR DE CALOR<br />
Modelo: B10TSHx20/1P-SPS-S 4x1"<br />
Marca: SWEP<br />
Área de Transferência Térmica(m²): 0,216<br />
Flujo de Calor(kW/m²): 14,6<br />
Carga Térmica(kW):  3,148<br />
Fluido: <br />
-lado 1: Propylene Glycol-Water (30,0 mass%)<br />
-lado 2: Water

INTERCAMBIADOR DE CALOR<br />
Marca: SWEP<br />
M10Hx60/1P-CSN-S 4x1"<br />
Part. Num. SWEP: 10441-60

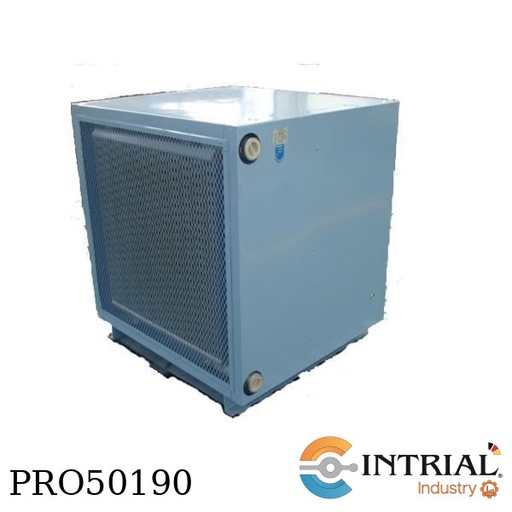

Model: AOA-1976A-C2-J2<br />
Intercambiador de calor tipo radiador<br />
Presión de diseño: 0.98MPa<br />
Marca: KAMUI<br />
Alimentación: 380v , 3 phase.<br />
El nuevo código : AOA-1976A-C2-J2 es mas especifico para indicar que la alimentación es 380V y 3 fases<br />
Codigo antiguo: Modelo: AOA-1976A

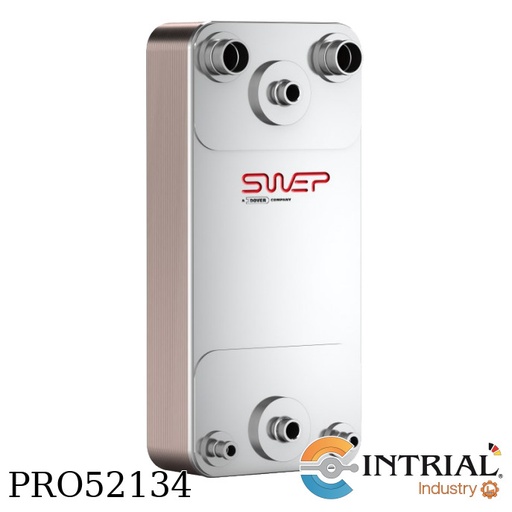

BRAZED HEAT EXCHANGERS <br />
BRAND: SWEP<br />
MODEL: DBD300Hx30/1P-SC-M<br />
22U+2x42U+22U+2x1/ 2"INT NPT / 2x2"VIC<br />
SWEP Part. Num.: 0286943.0

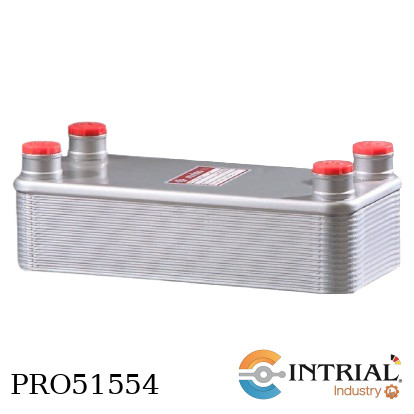

HEAT EXCHANGERS<br />
Brand: SESINO<br />
Model: M18-20<br />
SURFACE(m2), 0,390<br />
OIL FLOW(l/min), 20÷60<br />
COOLING CAPACITY(kW/°C), 0,25÷0,55

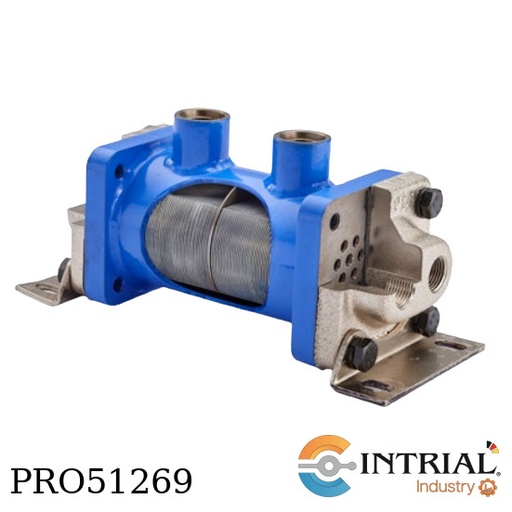

HEAT EXCHANGER<br />
Brand: Universal Hydraulik<br />
Model: SS-EKM-508-T (S:G34-T:G38)<br />
Maximum operating pressure: Shell = up to 20 bar, Tubes = up to 16 bar<br />
Operating temperatura, [5...95]°C<br />
[SS]: Complete cooler Stainless Steel<br />
[508]: Unit size<br />
[T]: Cooling water connection system, 2-pass<br />
[S]: BSPP thread: G3/4"<br />
[T]: BSPP thread: G3/8"

HEAT EXCHANGER<br />
Brand: Universal Hydraulik<br />
Model: EKM-518-T-CN (S:G34-T:G38)<br />
Maximum operating pressure: Shell = up to 20 bar, Tubes = up to 16 bar<br />
Operating temperatura 5 - 95 °C<br />
[518]: Unit size<br />
[T]: Cooling water connection system, 2-pass<br />
[CN]: Tube material, Copper nickel<br />
[S]: BSPP thread: G3/4"<br />
[T]: BSPP thread: G3/8"
