GEAR PUMP<br />
Brand: STEIMEL<br />
Model: PSF6/132RD123193R<br />
gear pump, SF 6/132 RD - VLF<br />
STEIMEL part-no., PSF6/132RD123193R<br />
list of spare parts, DET056132RD--165R<br />
Connections, SAE 2 ½<br />
Casing parts, EN-GJL-250 (GG-25)<br />
Shafts, 16 Mn Cr S 5, hardened<br />
Gear whels, noise-optimized, EN-GJS-400-15 (GGG-40), helical toothed, ionitrided<br />
Shaft sealing, radial shaft sealing ring<br />
Elastomers, FKM<br />
Bearing, multilayer<br />
Flow medium, lube oil<br />
Viscosity, 50 - 5000 cSt.<br />
Temperature, 10-60°C<br />
Flow rate, approx. 185 ltr/min.<br />
Pressure, 5 bar<br />
Speed, 1450 1/min.<br />
Opening pressure, 8 bar<br />
Range of adjustment, 2-16 bar<br />
Sense of rotation, clockwise<br />
Test run, yes, with HLPD 46<br />
Coupling, BKUA065-2438-301<br />
Pump mount with base, BLF056300168LA21<br />
Motor form/size, B 5 / IEC 132<br />
Finish, primer HDO058 - green<br />
Engine mounting screws, 4 x IBO12X045VZ (galvanized) loose screwed into bellhousing

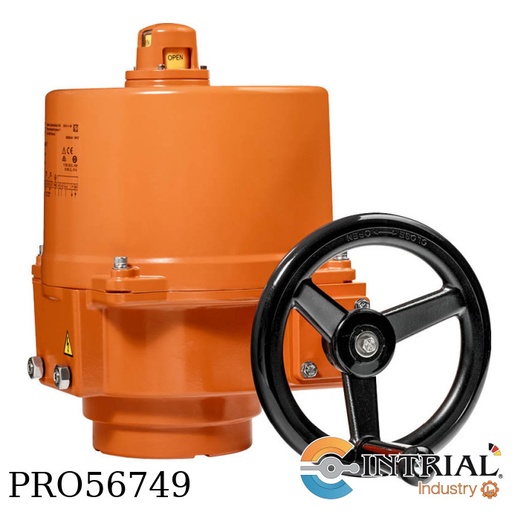

ROTARY ACTUATOR FOR BUTTERFLY VALVES<br />
BRAND: BELIMO<br />
MODEL: SY4-24<br />
NOMINAL VOLTAGE AC/DC 24 V<br />
NOMINAL VOLTAGE FREQUENCY 50/60 HZ<br />
NOMINAL VOLTAGE RANGE AC 21.6...26.4 V / DC 21.6...26.4 V<br />
POWER CONSUMPTION IN OPERATION 208 W<br />
POWER CONSUMPTION IN OPERATION NOTE INCL. HEATER<br />
POWER CONSUMPTION FOR WIRE SIZING 228 VA<br />
CURRENT CONSUMPTION 9.5 A<br />
AMBIENT TEMPERATURE -30...65°C [-22...149°F]

GRID<br />
Brand: FALK<br />
Model: 1140T(0758257)

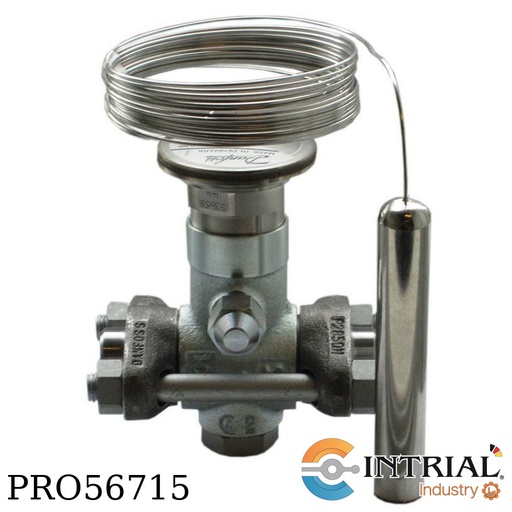

VÁLVULA DE EXPANSIÓN TERMOSTÁTICA<br />
Marca: DANFOSS<br />
Modelo: 068G6134<br />
Ajuste de recalentamiento, ajustable<br />
Intervalo de temperatura, -20 a 30 °C<br />
Long. tubo capilar, 5000 mm<br />
Presión de prueba Max., 28.5 bar<br />
Presión de trabajo máx., 19 bar<br />
Tamaño de conexión, 1/2 in

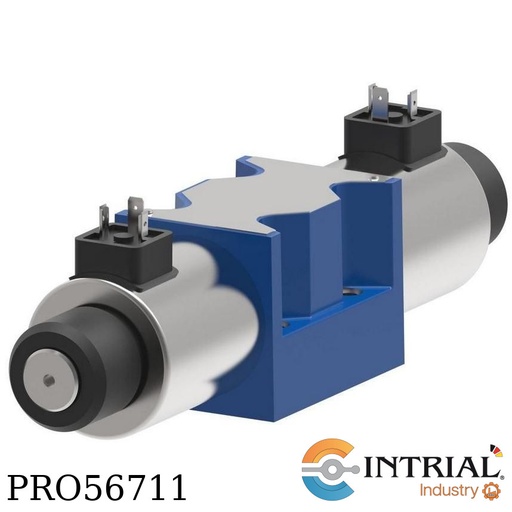

SOLENOID VALVE<br />
Brand: VICKERS<br />
Model: DG4V-5-8CJ-VM-U-G6-20<br />
[DG]: Valve type, Directional control valve with sub plate mounted<br />
[4]: Operation, Solenoid operated<br />
[V]: Pressure rating, 315 bar<br />
[5]: Interface, ISO-4401 size 05<br />
[8]: Spool type, Tandem center<br />
[C]: Spring arrangement, Spring centered doubleend<br />
[J]: Spool shift control, Notched spool<br />
[VM]: Solenoid identification, Sol "A" is at port "A", Sol "B" is at port "B"<br />
[U]: Coil type, ISO4400, DIN43650 connector<br />
[G]: Coil voltage, 12 VDC 38 WATT<br />
[6]: Tank port rating, 160 bar tank pressure rating<br />
[20]: Design code

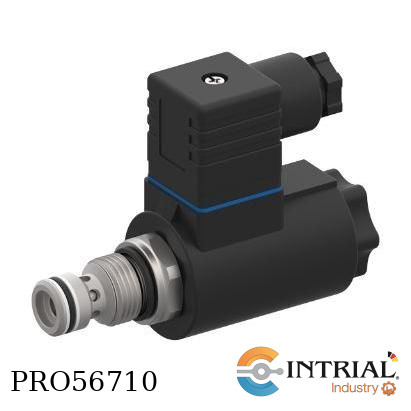

DIRECTIONAL VALVE 2-WAY/2-POSITION<br />
Brand: BUCHER HYDRAULICS<br />
Model: WS22ONA5-3-24D<br />
[W]: directional valve<br />
[S]: seat valve, direct acting<br />
[22O]: 2/2 function, de-energized normally open<br />
[N]: electrically operated, V DC = 27 W / V AC = 25 W<br />
[A]: standard model - with thread 3/4-16 UNF-2A<br />
[5]: nominal size 5<br />
[3]: design stage<br />
[24]: voltage, 24 V<br />
[D]: current DC

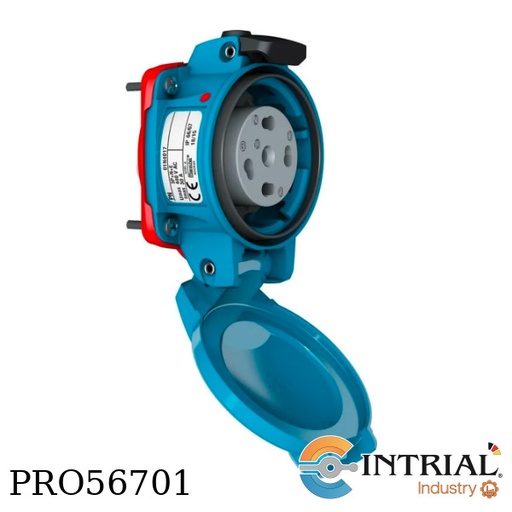

BASE HEMBRA <br />
MARCA: MARECHAL <br />
MODELO:6114013<br />
DSN1<br />
3P+E<br />
380-440 V AC

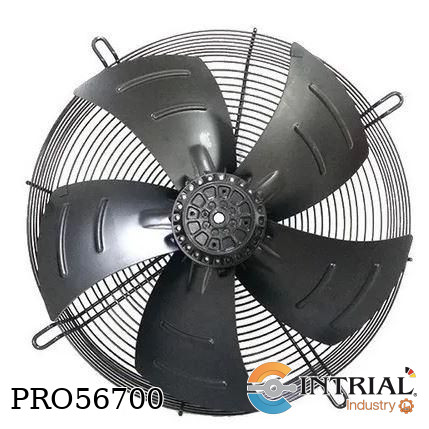

AXIAL FAN<br />
Brand: EBM-PAPST<br />
Model: S4D400 (8317072919)<br />
Phase, 3<br />
Nominal voltage, 230 VAC<br />
Frequency, 50 Hz<br />
Speed (rpm), 1450 min-1<br />
Power consumption, 135 W<br />
Current draw, 0.76 A<br />
<br />


AGITADOR PARA TANQUE DE 300L<br />
Marca: DANIKEN<br />
Modelo: BBMIX‐0P3‐316‐0P5<br />
Motor 1/2 HP TRIFASICO 220VAC. en aluminio., marca WEG, 1645 RPM<br />
Datos técnicos:<br />
Material del eje, Acero inoxidable AISI316L.<br />
Diametro eje, 5/8"<br />
Longitud eje, 800mm<br />
Material del impulsor, 316L.<br />
Tipo de impulsor, Propela marina<br />
Potencia del agitador, 0.5Hp.<br />
Velocidad, 1645RPM<br />
Caja de Rodamientos en Polímero técnico.<br />
Montaje bridado inferior<br />
Condiciones de operación:<br />
Densidad del fluido, 1250Kg/m3<br />
Viscosidad dinámica del fluido, 15cP<br />
Operación hasta 4000 msnm

AGITADOR PARA TANQUE DE SULFATO DE ALUMINIO AL 5%<br />
Marca: DANIKEN<br />
Modelo: BLENDLITE‐5‐316‐1P5<br />
Caja reductora sin fin corona marca SITI (italia),<br />
Motor marca Weg norma IEC, IP55, 220V/380V/440V, 3F, 60Hz.<br />
01 Impulsores Hidrofoil de alta eficiencia con 3 palas de forma especial cuenta con bocamasa con cartelas y va soldado al eje.<br />
Material del conjunto eje impulsor, Acero inoxidable AISI 316L.<br />
Velocidad del agitador, 87Rpm.<br />
Potencia del agitador, 1.5Hp.<br />
Condiciones de operación:<br />
Producto recomendado, Sulfato de alumnio al 5% m/m<br />
Dimensiones recomendadas del Tanque, Diametro: 2200mm x Alto: 1770mm , bafles requeridos: NO<br />
Densidad del fluido, 1053Kg/m3 , Viscosidad del fluido: 5cP<br />
Operación hasta 4000 msnm.

AGITADOR PARA TANQUE DE SODA CAUSTICA AL 20%<br />
Marca: DANIKEN<br />
Modelo: BLENDLITE‐1‐316‐0P5<br />
Datos técnicos:<br />
Caja reductora sin fin corona marca SITI (italia),<br />
Motor marca Weg norma IEC, IP55, 220V/380V/440V, 3F, 60Hz.<br />
01 Impulsores Hidrofoil de alta eficiencia con 3 palas de forma especial cuenta con bocamasa con cartelas y va soldado al eje.<br />
Material del conjunto eje impulsor, Acero inoxidable AISI 316L.<br />
Velocidad del agitador, 179Rpm.<br />
Potencia del agitador, 0.5Hp.<br />
Condiciones de operación:<br />
Producto recomendado, Soda Caustica al 20% m/m<br />
Dimensiones recomendadas del Tanque, Diametro: 1100mm x Alto: 1430mm , bafles requeridos: NO<br />
Densidad del fluido, 1250Kg/m3 , Viscosidad del fluido: 15cP<br />
Operación hasta 4000 msnm.<br />

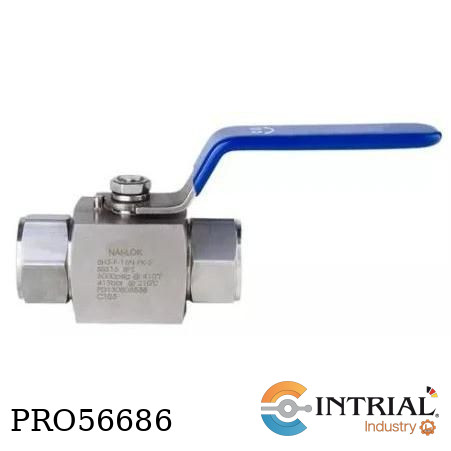

BH BALL VALVE<br />
Brand: NAI-LOK<br />
Model: BH-F8N-SS<br />
1/2" Female NPT<br />
Pressure, 6000psi<br />
Material, SS316<br />
Handle, SS304 lever handle

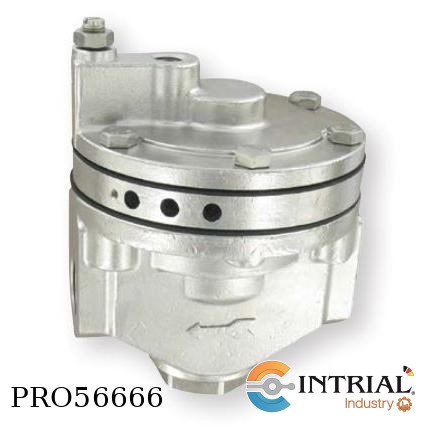

VOLUME BOOSTERS<br />
Brand: DWYER<br />
Model: VB-02<br />
Cv, 2.32<br />
Weight, 1.7 lb (0.76 kg)<br />
In/Out Connection, 1/2˝ NPT<br />
Construction, Aluminum<br />
Service: Air only.<br />
Wetted Materials: Body: Aluminum or SS; Diaphragm: Nitrile elastomer.<br />
Max Supply Pressure: 145 psi (10 bar).<br />
Max Signal/Output Pressure: 101.5 psi (7 bar).<br />
Signal Connection: 1/4˝ NPT.<br />
In/Output Pressure Ratio: 1:1.<br />
Temperature Limits: -4 to 158°F (-20 to 70°C).<br />
Linearity: ±1% FS.

ROUST-A-BOUT COUPLING FOR PLAIN END PIPE <br />
BRAND: VICTAULIC<br />
MODEL: L080099PE0<br />
STYLE: 99<br />
NOMINAL INCHES: 8 (DN200)<br />
ACTUAL OUTSIDE DIAMETER: 8.625 INCHES <br />
PIPE WALL THICKNESS: <br />
INCHES: 0.322, 0.277, 0.250, 0.148<br />
SCHEDULE: 40, 30, 20, 10<br />
REQUIRED BOLT TORQUE: LB*FT: 250<br />
WOEKING PRESURE PSI: 150, 100, 75, 50

ROUST-A-BOUT COUPLING FOR PLAIN END PIPE <br />
BRAND: VICTAULIC<br />
MODEL: L160099PE0<br />
STYLE: 99<br />
NOMINAL INCHES: 16 (DN400)<br />
ACTUAL OUTSIDE DIAMETER: 16.000 INCHES <br />
PIPE WALL THICKNESS: <br />
INCHES: 0.375 <br />
SCHEDULE: STD<br />
REQUIRED BOLT TORQUE: LB*FT: 350<br />
WOEKING PRESURE PSI: 150<br />

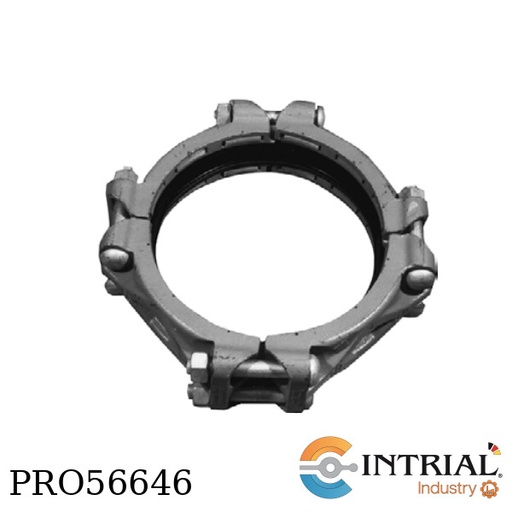

ROUST-A-BOUT COUPLING FOR PLAIN END PIPE <br />
BRAND: VICTAULIC<br />
MODEL: L140099PE0<br />
STYLE: 99<br />
NOMINAL INCHES: 14 (DN350)<br />
ACTUAL OUTSIDE DIAMETER: 14.000 INCHES <br />
PIPE WALL THICKNESS: <br />
INCHES: 0.375 <br />
SCHEDULE: STD<br />
REQUIRED BOLT TORQUE: LB*FT: 350<br />
WOEKING PRESURE PSI: 200<br />

ROUST-A-BOUT COUPLING FOR PLAIN END PIPE <br />
BRAND: VICTAULIC<br />
MODEL: L120099PE0<br />
STYLE: 99<br />
NOMINAL INCHES: 12 (DN300)<br />
ACTUAL OUTSIDE DIAMETER: 12.750 INCHES <br />
PIPE WALL THICKNESS: <br />
INCHES: 0.375, 0.330, 0.180, 0.165 <br />
SCHEDULE: STD, 30, 10, 5<br />
REQUIRED BOLT TORQUE: LB*FT: 350<br />
WOEKING PRESURE PSI: 250, 150, 100, 75  <br />

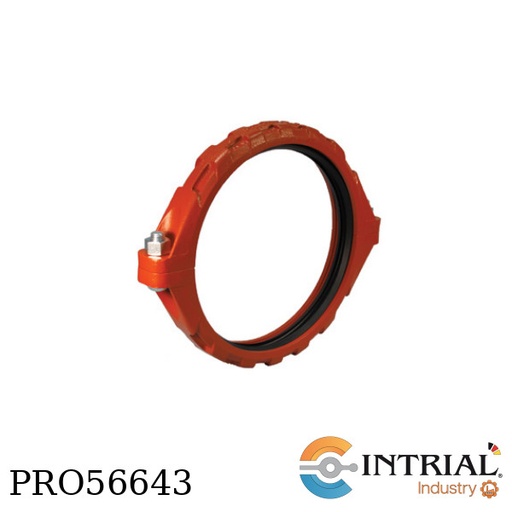

FLEXIBLE COUPLING<br />
BRAND: VICTAULIC<br />
MODEL: L160M77PE0<br />
STYLE: 77<br />
INCHES: 16<br />
DN: 400<br />
ACTUAL OUTSIDE DIAMETER INCHES : 16.000 <br />
ALLOWABLE INCHES: 0–0.13<br />
PER CPLG DEGREES: 0º–27’ <br />
PIPE INCHES/FT: 0.10 <br />
SIZE: 1 X 3 1/2

<p class="MsoNormal">PUMP<br />
Brand: NACHI<br />
Model: IPH-3B-10-20<br />
[3]: Size, 3<br />
[B]: Mounting Method, Flange Type Mounting<br />
[10]: Capacity, 10.2 cm³/rev<br />
[20]: Design Number, 3A (B), 4A (B)<br />
Rated Pressure, 3625 psi<br />
Maximum Operating Pressure, 4350 psi<br />
Minimum Revolution Speed, 600 min-1<br />
Weight, 10.5 lbs</p>

<p class="MsoNormal"></p>

<p></p>

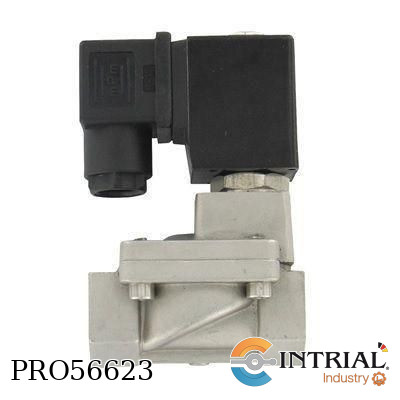

STAINLESS STEEL SOLENOID VALVE 2-WAY GUIDED NC<br />
Brand: DWYER<br />
Model: SBSV-S2F1<br />
Connection, 1/2" NPT<br />
Orificie, 0.51 in, 13 mm<br />
Cv value, 4.5<br />
Voltage, 110 VAC<br />
Service, Compatible gases and liquids.<br />
End Connections, Female NPT.<br />
Operating Pressure, 3/8 to 2˝: 7.3 psi (0.5 bar) to 188.5 psi (13 bar).<br />
Pressure Limit, 246.6 psi (17 bar).<br />
Wetted Material, Body: 316 SS; Spring; 304 SS; Seal: Fluoroelastomer.<br />
Temperature Limits, Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C).<br />
Power Requirements, Standard: 110 VAC; Optional: 220 VAC, 24 VDC, 24 VAC<br />
Enclosure Rating, NEMA 13 (IP54).<br />
Electrical Connection, DIN connection.<br />
Other Materials, Nylon.<br />
Mounting Orientation, Any position, best if solenoid vertically above valve.<br />
Type of Operation, NC.<br />
Agency Approvals, CE.
